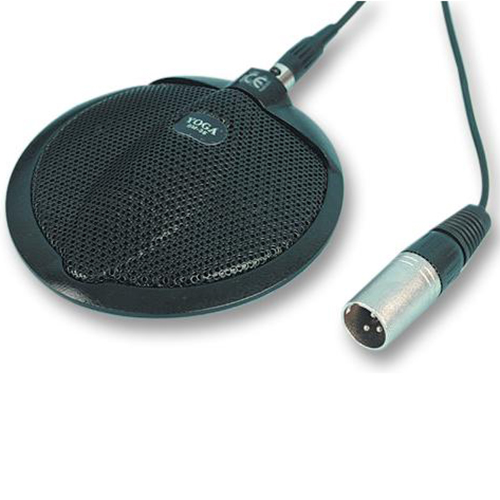

Yoga BM-38 Boundary Microphone

Description

Yoga BM-38 boundary condenser microphone for surface fixing on any wall or other boundary surface. These microphones require a 9 to 48v phantom power supply supplied by your mixer or amplifier or by a stand alone power supply such as the EMA-200.

• Integrated electronics for use with phantom power 9-48V DC current
• Transformer-balanced AF output
• With 4m connection cable 3-pole mini XLR/XLR
• Colour: Black
• Type: boundary microphone
• Transmission method: cable
• Polar pattern: semi-cardioid
• System: electret
• Audio frequency range: 30-20,000 Hz
• Nominal impedance: 250 Ω
• Sensitivity: 22 mV/Pa
• Maximum sound pressure: 140 dB
• Power supply: DC current  17-48 V, phantom power
• Admissible ambient temperature: 0-40 °C
• Dimensions: Ø 120 mm x 22 mm
• Weight: 350 g
• Cable: 4 m
• Connection: 3-pole mini XLR/XLR

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
