Description

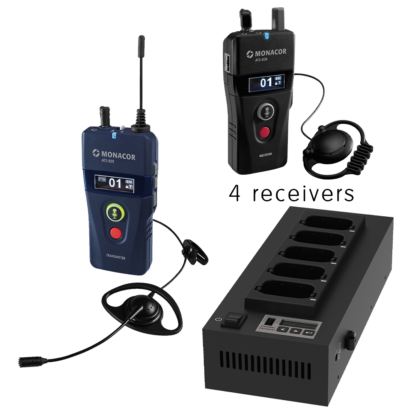

Monacor ATS-80-85 tour guide system with one transmitter and four receivers
System includes:
- 1 x ATS-80T 42-channel PLL transmitter on channel 65 and 70
- 4 x ATS-80R 42-channel digital PLL voice transmission receivers on channel 65 and 70
- 1 x ATS-85PS charging station for ATS-80 series tour guide systems
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
ATS-80T
Monacor ATS-80T 42-channel PLL transmitter on channel 65 and 70
- 42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
- As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
- High resistance to interference due to digital transmission
- High operating range
- Frequency range optimised for voice transmissions
- Interference-free parallel operation of up to 42 different channels possible
42-channel PLL transmitter, for microphone operation and audio line signals.
- 3 different operating modes: guiding, lecturing and discussions for versatile applications
- Integrated microphone, adjustable gain
- Supplied with additional earphone microphone
- Audio line input via 3.5 mm stereo jack
- High-contrast OLED display
- Battery status indication
- Priority assignment
- Alarm function
- Talk/mute button
- Call button
- Channel lock
- Full-duplex communication
- Attendance monitoring
- Belt clip
- Lanyard
- Adjustable transmitting power (high: ≤ 20 mW/low: ≤ 10 mW)
- Operating range: approx. 100 m
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
- Dimensions: 47 x 97 x 35 mm
- Weight: 53 g
Technical specifications:
- Description: 42-channel digital PLL transmitter
- Carrier frequency range: 823-832 MHz, 863-865 MHz
- Admissible ambient temperature: 0-40 °C
- Transmitting power: ≤ 20 mW/≤ 10 mW
- Operating range: 100 m
- Power supply transmitter: 2 x 1.2 V NiMH rech. battery AA size
- Width transmitter: 47 mm
- Height transmitter: 97 mm
- Depth transmitter: 35 mm
- Weight transmitter: 53 g
- Connections transmitter: 3.5 mm jack (microphone/headset),
3.5 mm jack (line in)
ATS-80R
Monacor ATS-80R 42-channel digital PLL voice transmission receiver on channel 65 and 70
42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz
- As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
- High resistance to interference due to digital transmission
- High operating range
- Frequency range optimised for voice transmissions
- Interference-free parallel operation of up to 42 different channels possible
- Call alert
- Mute function
- Automatic channel lock
- Built-in microphone
- Full duplex communication (release by transmitter)
- Hearing Aid Compatible (HAC)
- Belt clip
- Lanyard
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied)
- Dimensions: 47 x 109 x 35 mm
- Weight: 53 g
42-channel PLL receiver
- Supplied with matching earphone
- Adjustable headphone output
- Automatic switch-off (power-saving function)
- High-contrast OLED display
- Battery status indication
- Push-to-talk button with 3 operating modes (PTT, PTB, PTM)
- Alarm-off button
- Operating range alert
Technical specifications:
- Description: 42-channel digital PLL receiver
- Carrier frequency range: 823-832 MHz, 863-865 MHz
- Audio frequency range: 300-4,500 Hz
- Admissible ambient temperature: 0-40 °C
- Power supply receiver: 2 x 1.2 V NiMH rech. battery AA size
- Width receiver: 47 mm
- Height receiver: 109 mm
- Depth receiver: 35 mm
- Weight receiver: 53 g
- Connections receiver: 3.5 mm jack (earphones)

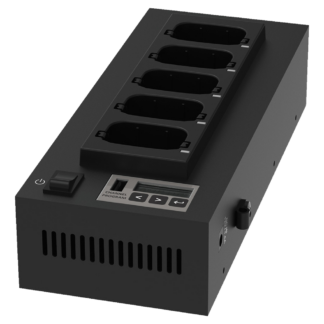

ATS-85PS
Monacor ATS-85PS charging station for ATS-80 series tour guide systems
- Description: charging station
- Nominal value: 5 devices
- Colour: black
- Suitable for ATS-80R, ATS-80T
- Power supply: via enclosed plug-in power supply
- Admissible ambient temperature: 0-40 °C
- Dimensions: 94 x 65 x 230 mm
- Weight: 750 g
