Description

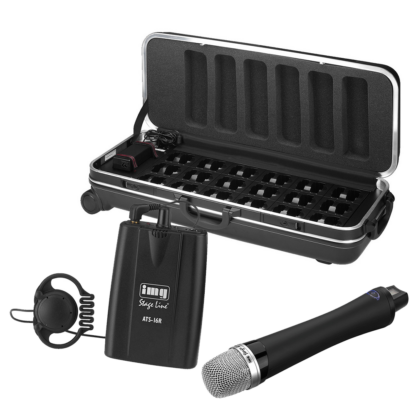

IMG Stageline ATS-10-HH Series channel 70 tour guide, classroom, equestrian training and wireless communication system
System includes:
- 1 x ATS-12HT handheld wireless microphone
- Up to 72 x ATS-16R wireless receivers
- Optional ATS-36C 36-unit charging cases
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

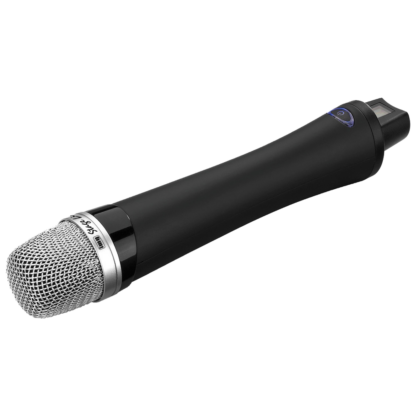

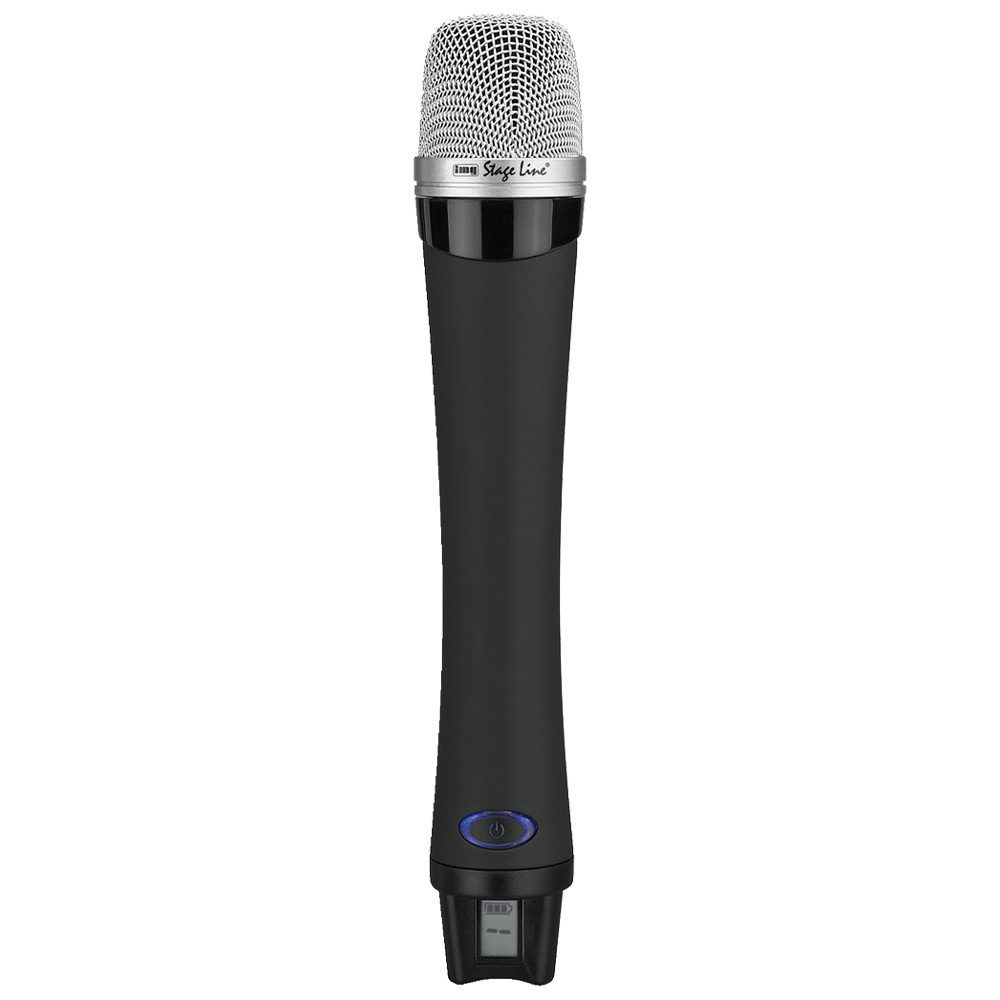

IMG Stageline ATS-12HT hand-held microphone with integrated transmitter for the ATS-10 tour guide, equestrian training and wireless communication system on license-free Ch. 70 (863.000 to 865.000MHz)
- 16 selectable channels
- Suitable as a tour guide system and for any other application in which a certain audio source or voice is to be distributed to one or more receivers
- Wireless transmission of audio signals with one transmitter and one receiver are also possible
- Two systems can be independently used at the same time in the same area
- License free in the UK and EU
- Matching the 16-channel mono PLL audio transmission system of the ATS-10 series
- Electret microphone cartridge, cardioid characteristic
- 16 selectable channels
- Features pilot tone and is thus also suitable for the operation with ATS-16R
- Mute function
- Push-to-talk function
- Adjustable transmitting power (high: ≤ 10mW/low: ≤ 1 mW)
- LCD for indicating channel and battery status
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied), operating range: approx. 50m
- Dimensions: Ø 35mm x 200mm
- Weight: 100g

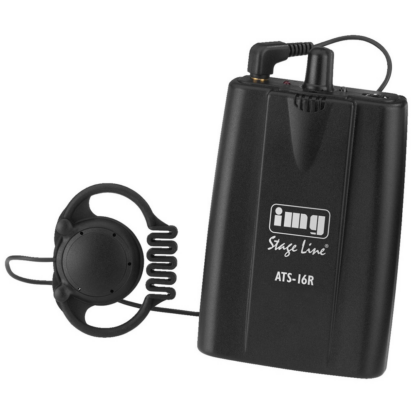

IMG Stageline ATS-16R 16-channel PLL receiver for the ATS-16 professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories
- Suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
- Wireless transmissions of audio signals with one transmitter and one receiver are also possible
- Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitter, stationary RF sources of interference and other local conditions)
- License-free in the UK & EU
- ATS-12HT handheld transmitter microphone is also compatible with the ATS-16 series
- Built-in speaker
- Including matching chip-on earphone with rubber ear hook
- Connection for optional audio tube earphone
- Connections receiver: 3.5 mm jack for 32Ω earphone only
- Pilot tone squelch and noise squelch
- Status indication of rech. battery, indication of carrier signal
- Volume level control, belt clip
- Power supply via 2 x 1.2 V NiMH rech. battery AA size (not supplied) or low-voltage jack (5 V)
- Dimensions: 66 x 111 x 35 mm
- Weight: 100 g

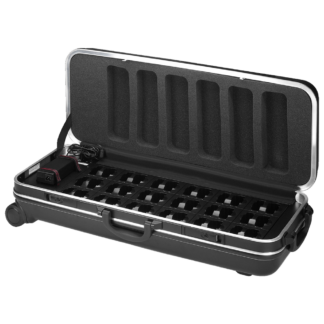

IMG Stageline ATS-36C transport case with intelligent PWM quick-charge function for transmitters and receivers of the ATS-16 series
- For simultaneously charging rech. batteries (NC, NiMH) of up to 36 units
- Average charging time, depending on capacity and condition of the rechargeable batteries used: approx. 5-6 hours, e.g. for 1,300 mAh rech. batteries
- Each slot with LED for indicating a fault and battery charging status
- Mechanical reverse polarity protection
- Lockable plastic transport case fitted with castors
- Supplied with matching switch-mode PSU
- Type: transport case
- Nominal value: 36 devices
- Type: with charging function
- Colour: black
- Suitable for: ATS-16R, ATS-16T
- Power supply: via enclosed power supply
- Dimensions: 860 x 230 x 350 mm
- Weight: 9.6 kg
