Fonestar ZONE-6 Output Switching Unit

Description

Fonestar ZONE-6 6-zone output switching unit

Fonestar has designed a simple-to-install and manage 6-zone output system, with the aim of transforming your old installation into a system of independent zones. From the ZONEMIC-6 zone microphone, you can make independent announcements to the zones you choose. Additionally, each time an announcement is made, a contact closure will be triggered at the corresponding zone output. This allows the system to be connected to volume controllers or any other external system, such as alarm systems, that can be activated via contact closure. Among its many applications, it is especially useful for commercial installations that require different audio for each zone.

• Features:
  • 6-zone output switching unit
  • Connection to the ZONEMIC-6 paging microphone, connection of up to 4 microphones
  • Possibility of activating the priority in attenuators by contact closure when giving warnings from the ZONEMIC-6 microphone

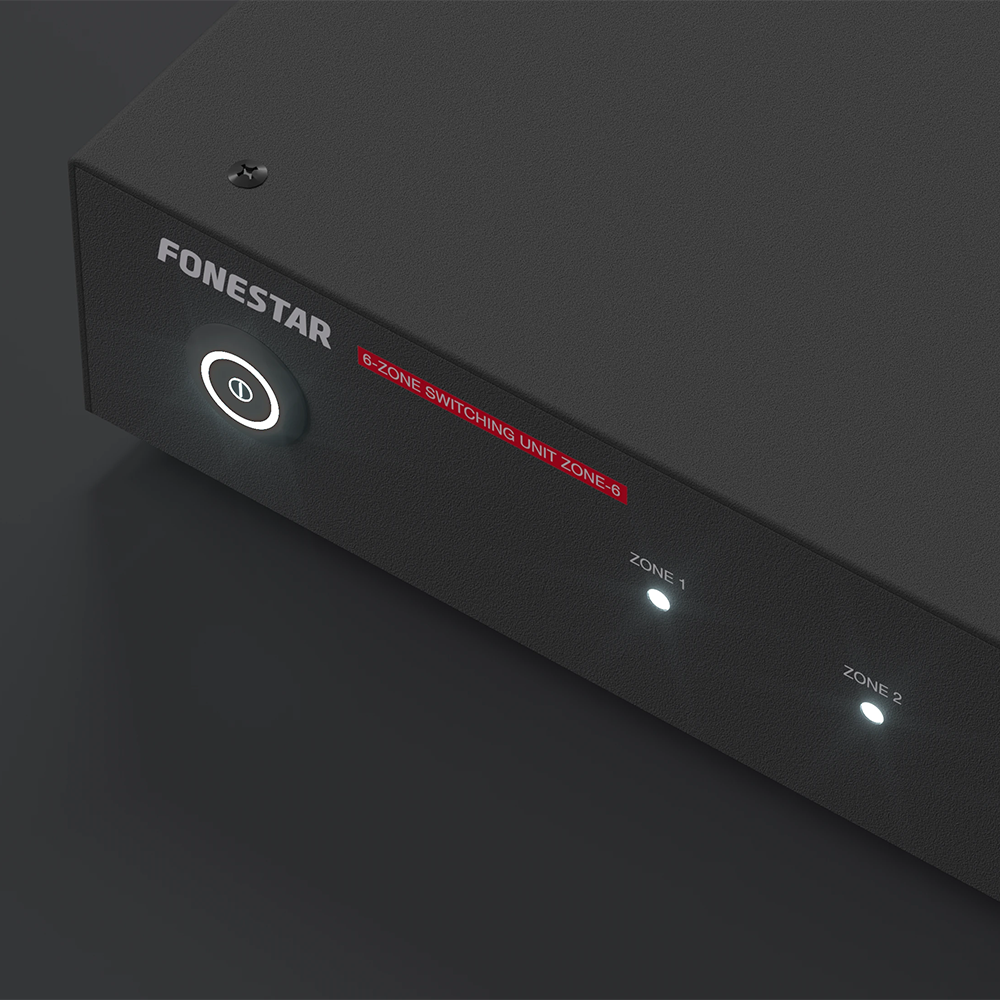

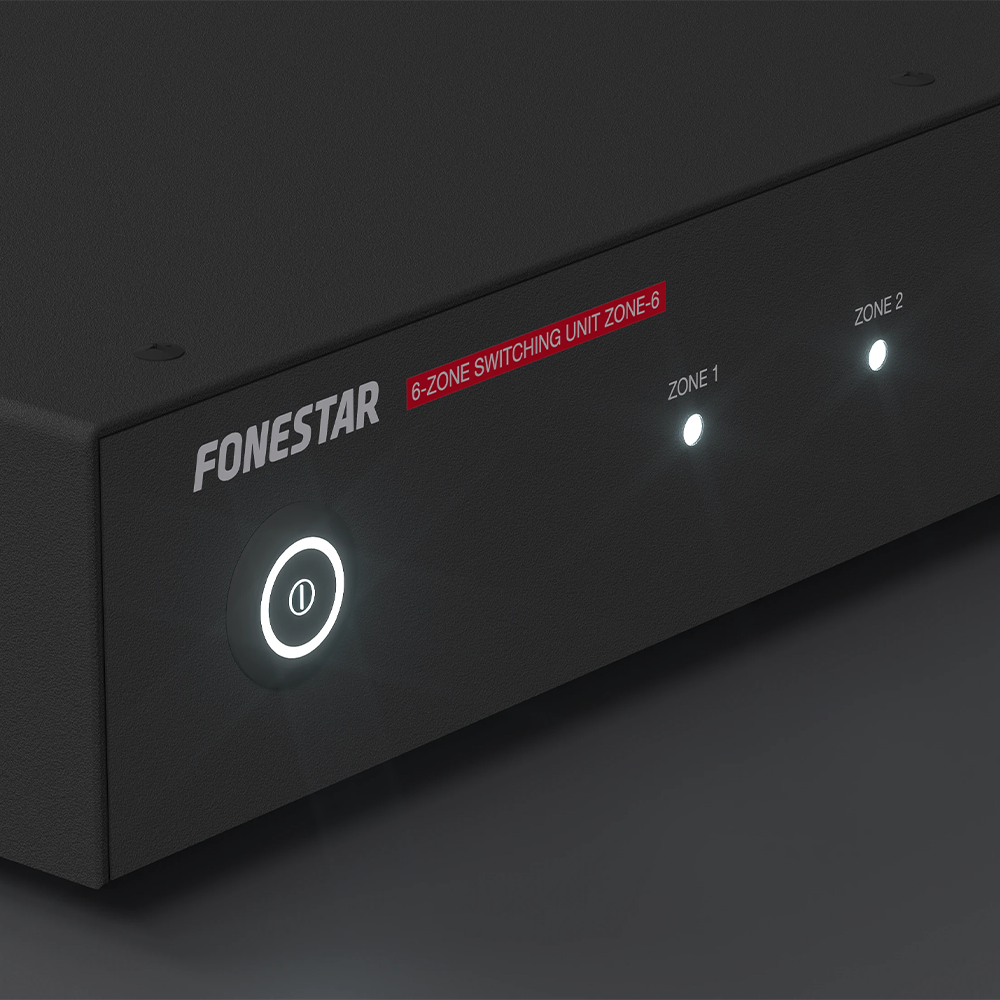

  • Status indicator lights for each zone

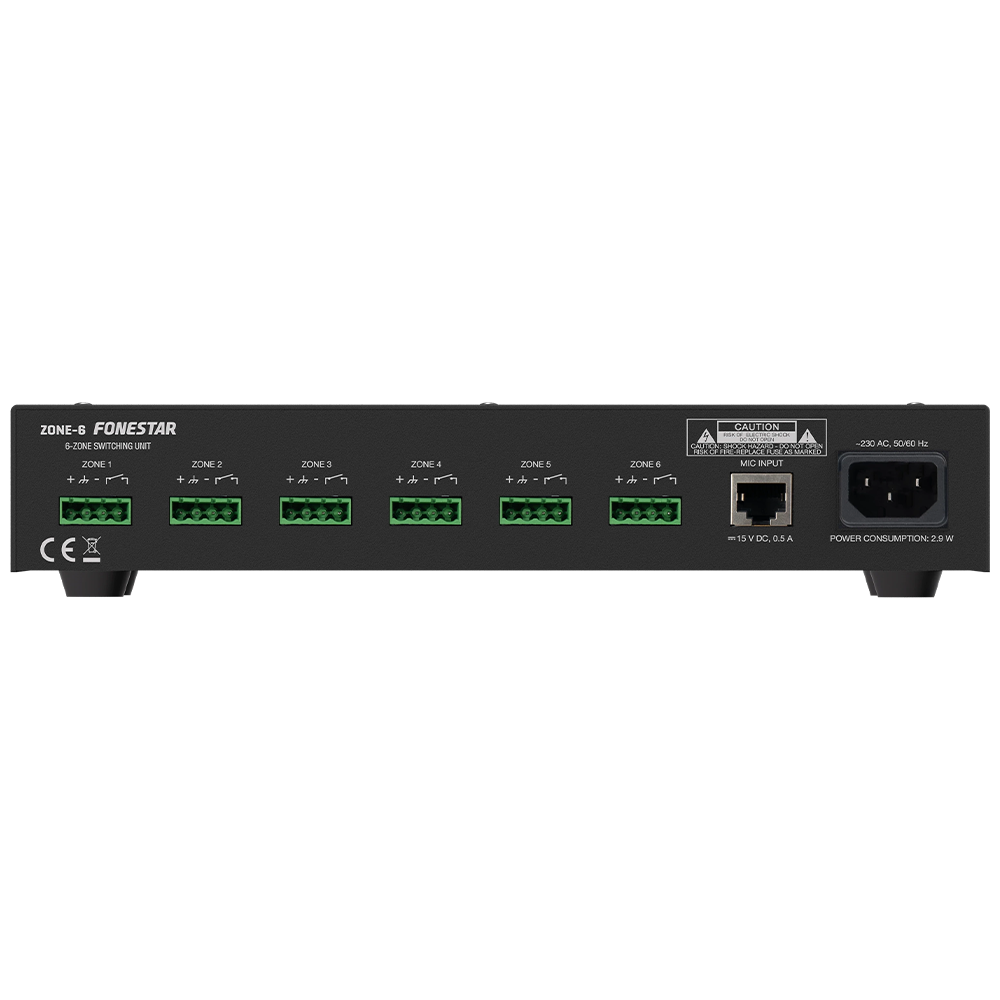

• Inputs: 1 ZONEMIC-6 microphone with zone selector and recorded messages, RJ45
• Outputs: 6 x balanced lines, euroblock 500 mV
• Power supply: 230 V AC 50/60 Hz, 2.9 W
• Dimensions: 262 x 44 x 128 mm depth
• Weight: 1 kg
• Optional: ZONEMIC-6: Zone microphone with recorded messages

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
