Fonestar VULKAN-51ST Horn Speaker

Description

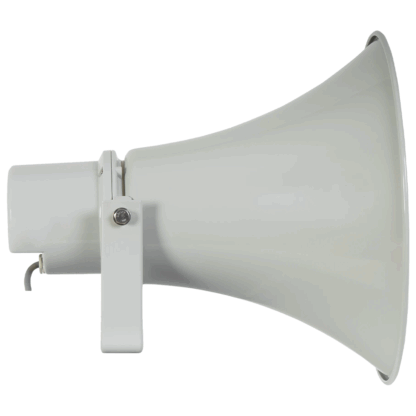

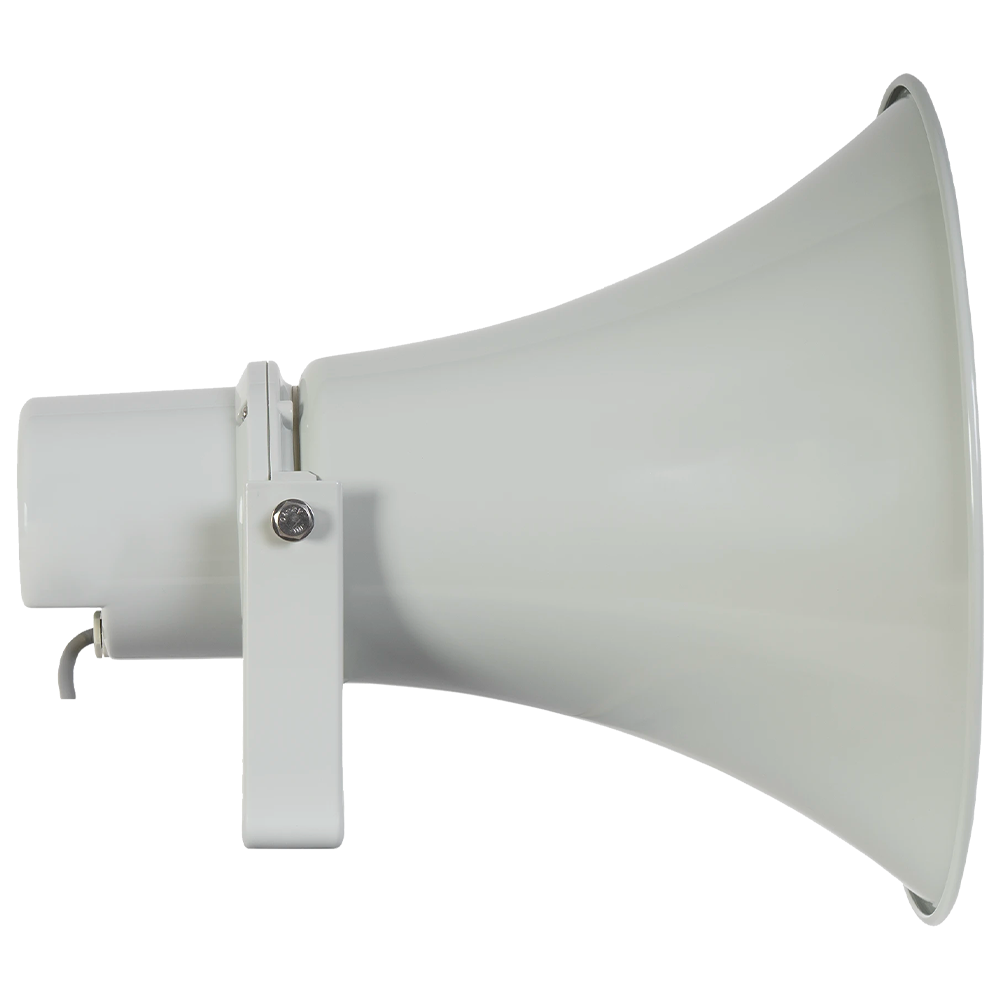

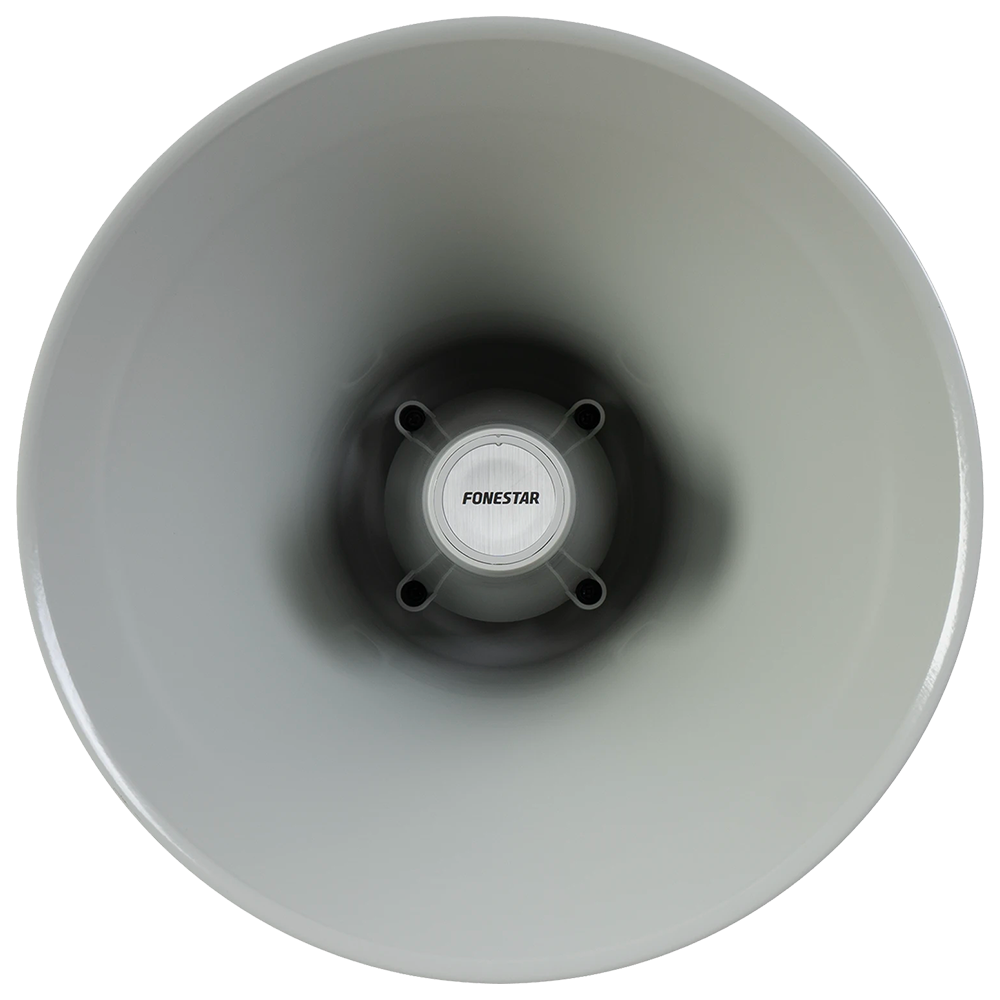

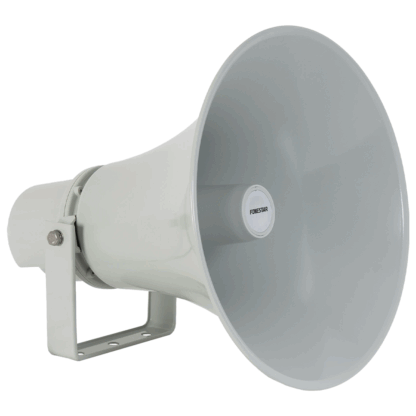

Fonestar VULKAN-51ST 50W 100V line or 16Ω horn speaker

100 V line transformer and low impedance exponential loudspeaker. FONESTAR presents the VULKAN range of horn loudspeakers to provide a solution for a wide range of installations where it is required to send the sound signal with maximum efficiency. The horn loudspeakers of the VULKAN series are suitable for reproducing the frequency range of speech and sending messages over long distances.
Specially constructed with materials that are highly resistant to adverse weather conditions, and a design that gives them an IP-66 degree of protection against the ingress of dust and water. Suitable for outdoor use and marine environments. This loudspeaker has a selector switch for easy power selection. Features a 100 V line transformer, which facilitates connection in installations with long cable runs and many loudspeakers. It also features connection as a low impedance loudspeaker for direct connection to the amplifier in installations where a long cable run is not necessary.
The diffuser and mount are made of aluminium and are highly resistant to aggressive environments. For public address applications in open spaces, industrial facilities, sports facilities, car parks, etc.

• Features:
  • 100 V line transformer and low impedance exponential loudspeaker
  • Prepared for outdoor use with anti-corrosion materials
  • Protection against water
  • For long-range message playback
• Power: 50 W RMS

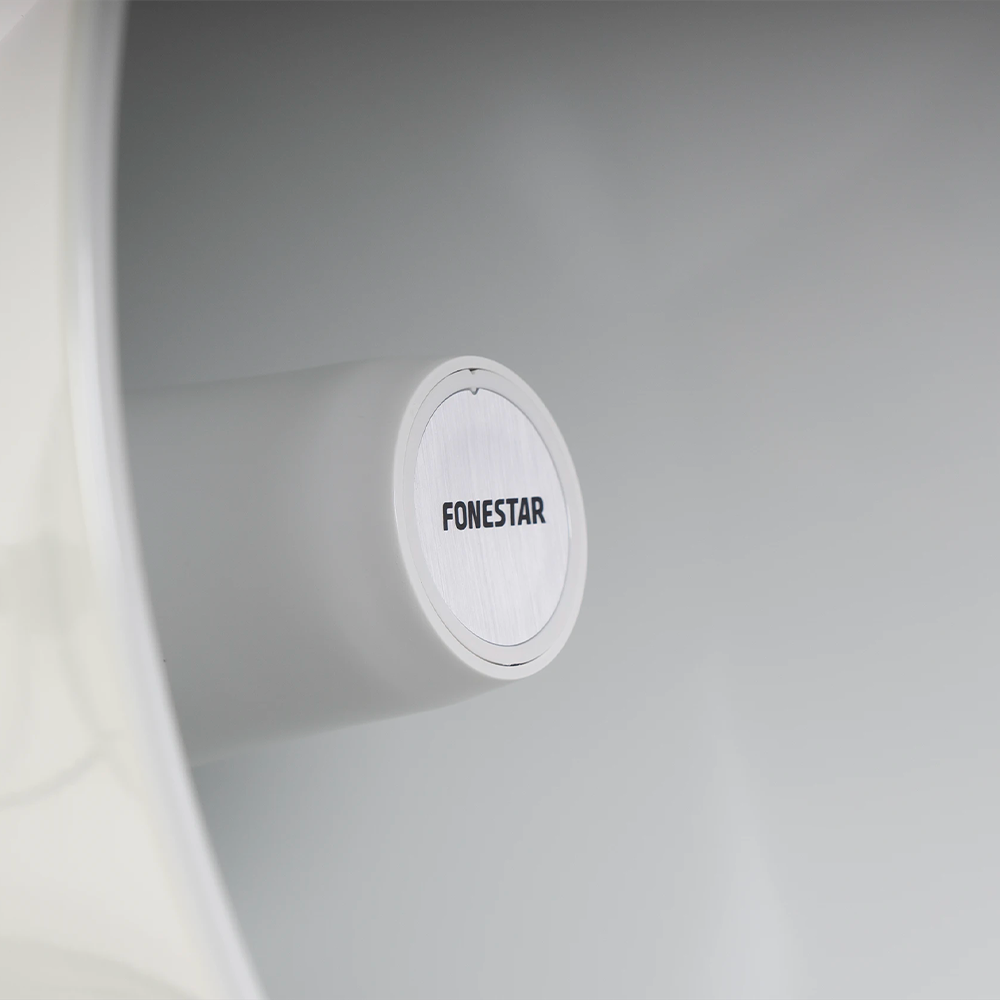

• Loudspeaker: 1 x compression driver
• Frequency response: 380-6,500 Hz (-10 dB)
• Impedance:
  • 50 W RMS@100 V (200 Ω)
  • 25 W RMS@100 V (400 Ω)
  • 12.5 W RMS@100 V (800 Ω)
  • 6.25 W RMS@100 V (1.600 Ω)
  • Low Z: 16 Ω
• Sensitivity: 109 dB @ 1 W/1 m
• Maximum sound pressure: 116 dB @ 15 W/1 m
• Dispersions:
  • H/V: 100º/100º@500Hz, 62º/62º@1kHz, 25º/25º@2kHz, 25º/25º@4kHz (-6 dB)
• Protections: IP-66 in compliance with EN 60529
• Material:
  • Aluminum diffuser and ABS back cover with high resistance to sun exposure
  • Aluminium mount
  • Stainless steel screws A2

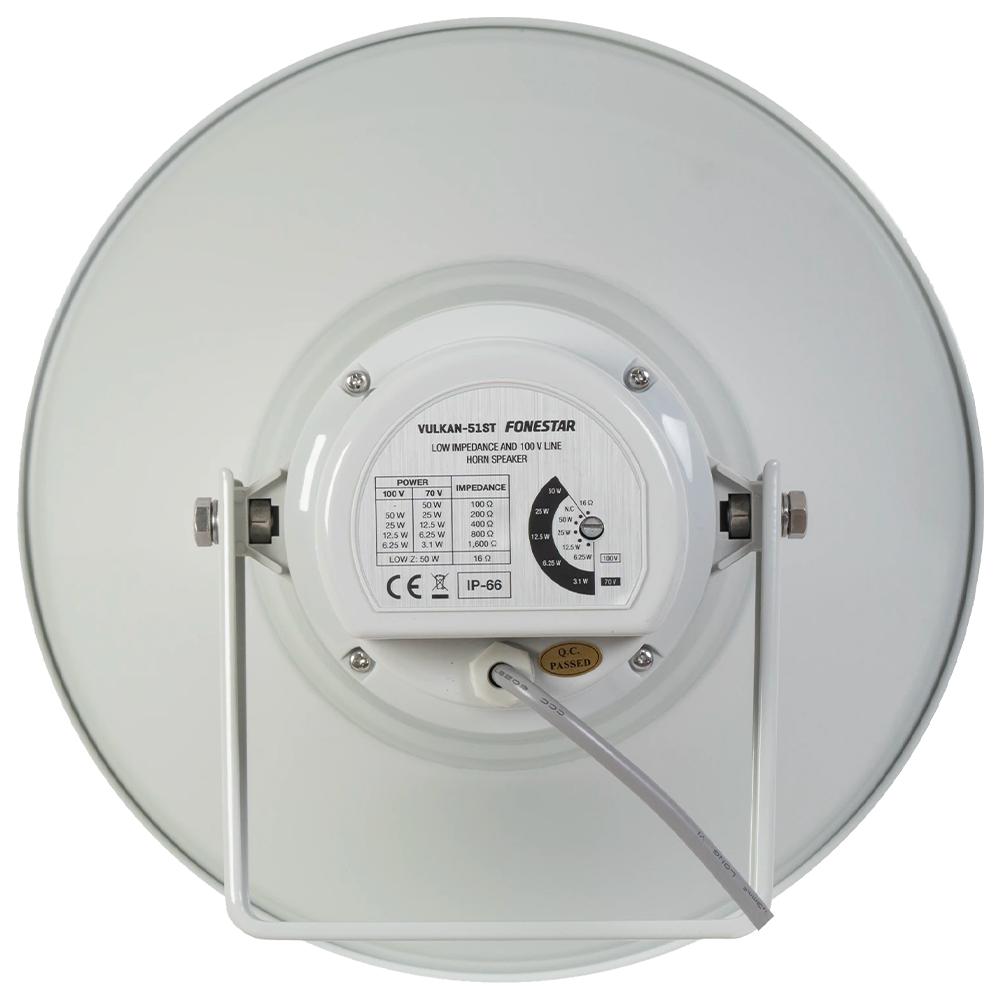

• Switch: High Z and low Z selector
• Connection: 30 cm cable with stripped ends
• Temperature range: Operation: -25ºC ~ +55ºC
• Storage: -40ºC ~ +70ºC
• Humidity: <95%
• Colour: Grey (RAL 7035)
• Dimensions: 325 x 325 x 350 mm depth
• Weight: 2.6 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
