Description

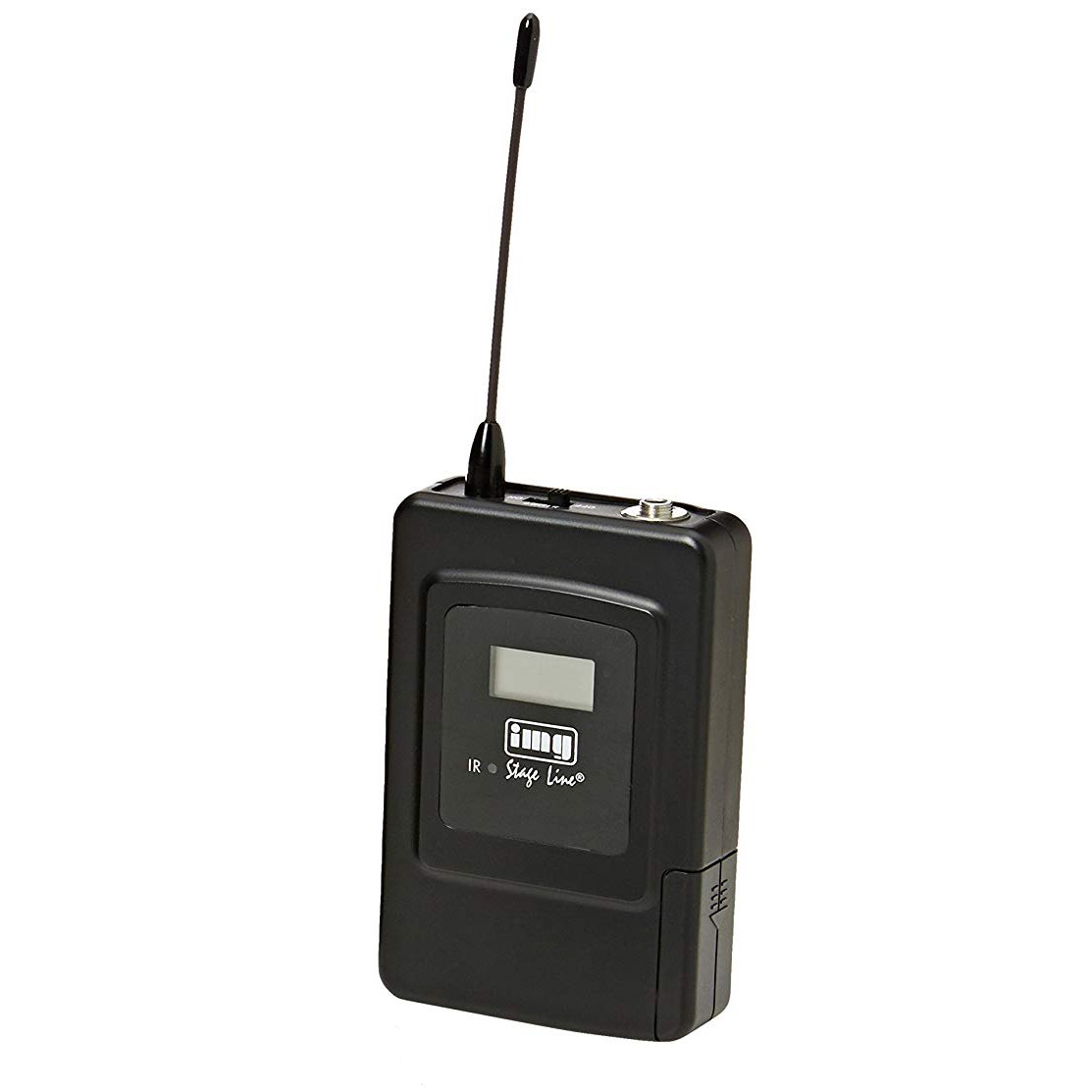

IMG Stageline TXS-631TX UHF multi-frequency UHF diversity wireless microphone bodyworn transmitter only
For use with TXS-611 and TXS-631 wireless microphone receivers only
- Bodyworn transmitter only (TX)
- 80 selectable UHF deregulated channels (863-865 MHz) – license-free Ch 70 in the UK & EU
- Up to 4 systems can be used at the same time
- ACT function on TXS-631 receiver for transmitting the selected frequency to the hand or pocket transmitter via infrared signal
- Audio gain can be adjusted on the pocket transmitter
- Indication of channel and battery status on transmitters
- Headmic with locking 3.5mm jack plug available for pocket / bodyworn transmitter
- ECM-631SX clothing clip mic with locking 3.5mm jack plug optionally available for pocket / bodyworn transmitter
- License free in the UK & EU
- Audio frequency range: 50-18,000 Hzspare wireless mic beltpacks
- THD: < 0.5%
- Dynamic range: 120 dB
- RF S/N ratio: 105 dB
- Admissible ambient temperature: 0-40 °C
- Transmitting power: < 10 mW
- Operating range: ≈ 30 m
- Power supply transmitter: 2 x 1.5 V battery AA size
- Width transmitter: 62 mm
- Height transmitter: 105 mm
- Depth transmitter: 25 mm
- Weight transmitter: 88 g
Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa
Wireless microphone systems need to be connected to a public address PA sound system to work
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
