IMG Stageline TXS-631SX Wireless Microphone System

SKU: TXS-631SX

From: £201.95 + VAT    £242.34 incl. VAT

UHF Ch 70 radio microphone system with beltpack transmitter and headworn microphone

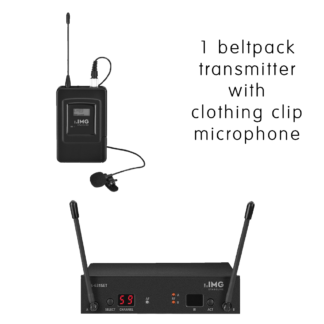

IMG Stageline TXS-631SET Wireless Microphone System

UHF Ch 70 radio microphone system with beltpack transmitter and clothing clip microphone

£162.95 + VAT    £195.54 incl. VAT

2 in stock

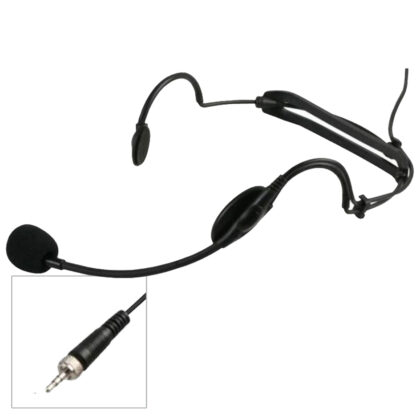

Pulse HSM-700-SX Headmic

Headband microphone with 3.5mm locking jack

£39.00 + VAT    £46.80 incl. VAT

17 in stock

Beltpack Wireless Microphone Accessory Pack

Essential accessories for your radio microphones

17 in stock

Batteries AA
Wireless

PDF

Description

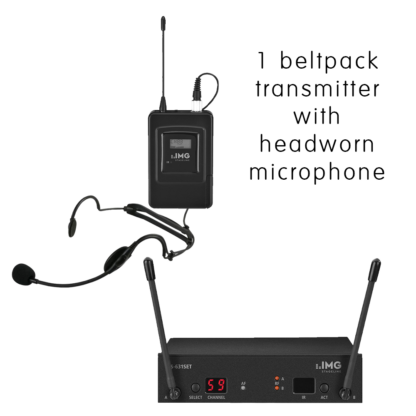

IMG Stageline TXS-631SX complete UHF diversity, multi-frequency wireless microphone system on deregulated Channel 70 with bodyworn transmitter and headworn microphone

TXS-631SX

  • Each system supplied with bodyworn pocket transmitter & headmic, wireless microphone receiver and mains power supply for receiver
  • License-free in the UK & EU
  • True diversity UHF systems
  • 80 selectable UHF deregulated channels (863-865 MHz) – license free Ch 70 in the UK & EU
  • Up to 4 systems can be used at the same time
  • ACT function for transmitting the selected frequency to the hand or pocket transmitter via infrared signal
  • Automatic scan to ensure you use a clear frequency
  • Volume and squelch controls
  • Indication of channel, antenna A/B, ACT status and AF audio level on the receiver
  • Indication of channel and battery status on transmitters
  • Stable metal housing on receiver for rejection of RF noise etc.
  • Audio frequency range: 50-18,000 Hz
  • THD: < 0.5%
  • Dynamic range: 120 dB
  • RF S/N ratio: 105 dB
  • Admissible ambient temperature: 0-40 °C
  • Transmitting power: < 10 mW
  • Operating range: ≈ 30 m
  • Power supply transmitter: 2 x 1.5 V battery AA size
  • Audio signal receiver: 350 mV/10 kΩ (jack) 25 mV/10 kΩ (XLR, balanced)
  • Power supply receiver: via encl. plug-in power supply
  • Receiver dimensions: 152 x 38 x 120 mm
  • Receiver weight: 482 g
  • Connections receiver: 1 x 6.3 mm jack, unbalanced  1 x XLR, balanced
  • Transmitter dimensions: 52 x 52 x 275 mm
  • Transmitter weight: 235 g

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this and additional equipment

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Additional information

Weight0.482 kg
Dimensions12 × 15.2 × 3.8 cm
Options

Handheld system, Clothing clip system, Headmic system, Aerobics headmic system

Frequency Band

UHF

Wireless Microphone Channel

Channel 70 (863-865 MHz)

Colour

Black

IMG Stageline TXS-631SET Wireless Microphone System

Options

Handheld system, Clothing clip system, Headmic system, Aerobics headmic system

Frequency Band

UHF

Wireless Microphone Channel

Channel 70 (863-865 MHz)

Colour

Black

Pulse HSM-700-SX Headmic

Connector

Locking 3.5mm Jack (Internal Thread)

Cable Length

1.2m

Condition

New

Colour

Black

Beltpack Wireless Microphone Accessory Pack

Condition

New

Brand

IMG Stageline

With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional sound and lighting equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing desks and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
