Description

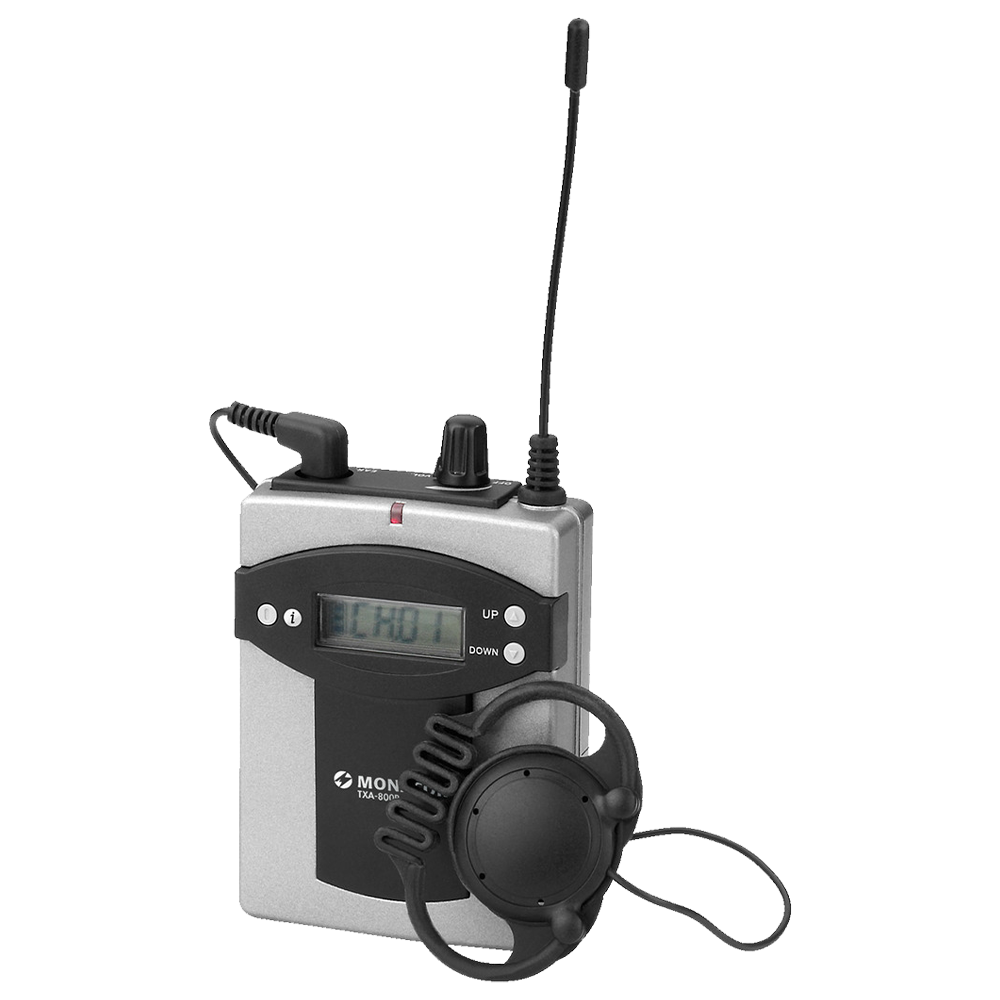

Monacor TXA-800R professional 16-channel mono PLL audio transmission system on 863-865 MHz
The Monacor TXA-800R is a professional 16-channel mono PLL audio receiver operating on the licence-free 863–865 MHz UHF band. Designed for seamless integration with Monacor’s portable amplifier systems – including the TXA-624CD/SW, TXA-604/SW, TXA-820, and TXA-1020 series – it also works perfectly in tour-guide or multi-receiver audio distribution setups. Compatible with transmitters such as the TXA-800ST, ATS-16T, and the TXA-820CD (which has a built-in wireless transmitter), the TXA-800R supports up to four simultaneous transmitters on different frequencies, depending on local conditions. It offers 16 selectable channels, a backlit LCD for clear frequency and battery readouts, and both headphone and adjustable line outputs for flexible connection options. Built into a durable metal housing and powered by two AA batteries, it’s compact, portable, and practical – ideal for professional audio transmission applications where reliability and clarity matter.
- Compatible with portable amplifier systems TXA-624CD/SW, TXA-604/SW and the TXA-820 and TXA-1020 series
- In addition to the combination with TXA-624CD/SW, TXA-604/SW and the TXA-820 and TXA-1020 series, it can also be used as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
- Can be combined with transmitters and receivers of the ATS-16 series
- Simultaneous operation of up to 4 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
- Licence-free in the EU
- 16-channel PLL receiver
- Matching the transmitters TXA-800ST, ATS-16T and portable amplifier system TXA-820CD with integrated wireless transmitter
- 16 selectable UHF frequencies (863.1-864.9 MHz)
- Adjustable headphone output
- Audio line mono output via 3.5 mm stereo jack
- Line output level adjustable in 3 steps
- Backlit LCD for indicating channel/frequency and battery status
- Metal housing
- Power supply via 2 x 1.5 V battery AA size or NiMH rechargeable battery (not supplied)
- Scope of delivery includes earphones with rubber ear hook
- Belt clip
- Matching microphone transmitter TXA-800HT is available at option
Specifications
- Description: pocket receiver
- Carrier frequency range: 863.1-864.9 MHz
- Channels: 1
- Admissible ambient temperature: 0-40 °C
- Power supply: 2 x 1.5 V AA batteries
- Width: 64 mm
- Height: 175 mm
- Depth: 37 mm
- Weight: 200 g
- Connections:
- 1 x 3.5 mm mono jack (line in)
- 1 x 3.5 mm stereo jack (headphones)
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
