Description

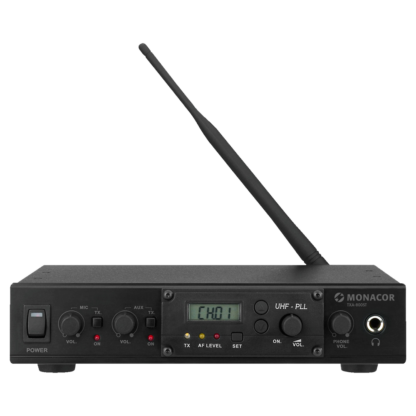

Monacor TXA-800ST 16-channel mono PLL audio transmitter on deregulated frequencies of 863-865 MHz
- Create a wideband, 16 channel UHF wireless streaming audio link
- Compatible with TXA-802SR, Sennheiser EW100 G1 & G2, TXA-800 & TXA-1000 series portable amplifier systems etc.
- Can be combined with the TXA-800 series receivers for use as a “tour guide system” and for all other applications in which a certain audio or voice source is to be distributed to one or more receivers
- Can be combined with the transmitters and receivers of the ATS-16 Series
- Simultaneous operation of up to 4 transmitters on different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
- 16-channel PLL transmitter
- Microphone and line audio inputs
- Matching the receivers TXA-800R, ATS-16R and portable amplifiers of the TXA-800 series and Sennheiser G1 & G2 receivers
- 16 selectable UHF frequencies (863.1-864.9mHz)
- Audio stereo line input via RCA L/R
- Balanced XLR microphone input and 6.3 mm microphone input
- Audio mono line output via RCA
- Adjustable headphone output
- Backlit LCD for channel/frequency, LEDs for carrier frequency, signal and signal peak
- Additional DC voltage output 10-15 V DC current for connecting an additional transmitter
- Power supply via supplied plug-in PSU
- Dimensions: 215 x 50 x 210 mm
- Weight: 1.25 kg
NB – Like all media players, CD players, FM & DAB tuners and MP3 players etc. these items require an external amplifier and loudspeaker(s) to work
License free Ch. 70 in the UK & EU
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
