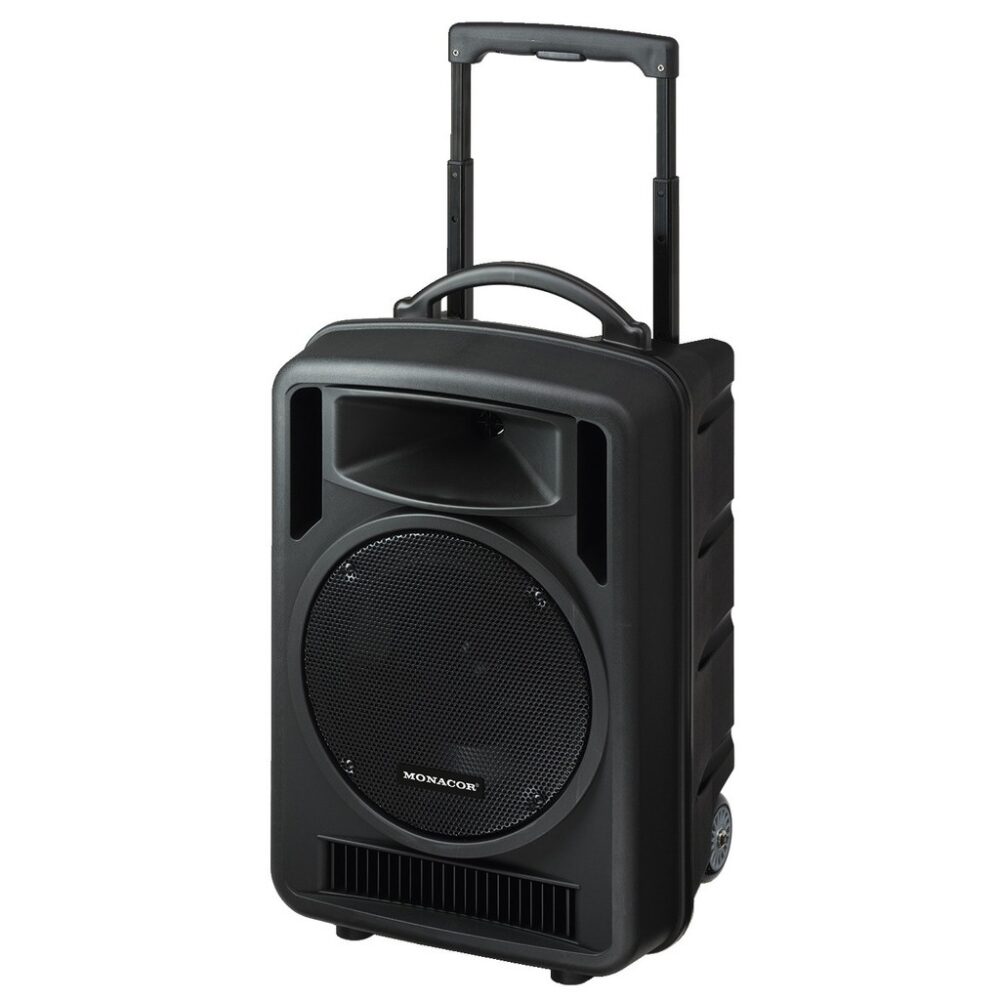

Monacor TXA-1020USB Portable All-in-One PA System

SKU: 174600

£895.82 £1,074.98 incl. VAT

120w portable PA with MP3, Bluetooth & optional wireless microphones

Available on back-order




Monacor TXA-1020USB 120w high-power portable PA sound system with integrated 2-channel multifrequency wireless microphone receiver, MP3 player and Bluetooth receiver

  • Supplied without wireless microphones
  • High-performance class D version 120 W, with optimum efficiency
  • Operation via mains or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
  • For mobile applications, e.g. sales events, lectures
  • 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
  • 2-way speaker system of high power capability with a 25 cm (10″) bass speaker

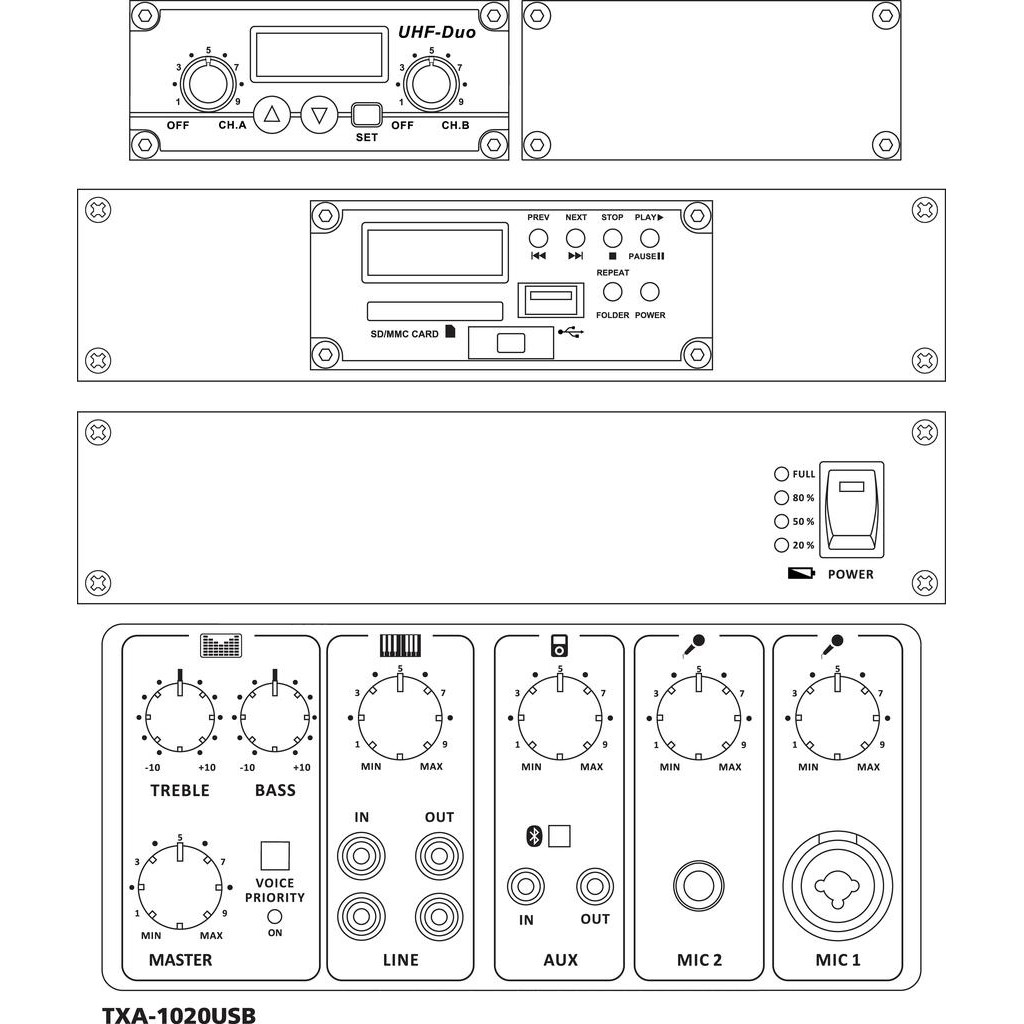

  • 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack)
  • Switchable microphone priority circuit
  • 2 castors allow unit to pulled like a trolley
  • Stand sleeve
  • License-free in the EU & UK
  • MP3 player with SD card reader and USB MP3 player
  • Supplied with remote control for MP3 player
  • Power rating (RMS): 120 W
  • Peak music power output (MAX): 170 W
  • Frequency range: 20-20,000 Hz
  • Wireless receiver carrier frequency: 863.1-864.9 MHz
  • Wireless operating range: approx. 30 m
  • Inputs: 6 mV (mic), 300 mV (line, aux)
  • Equalizer, bass: ±10 dB/100 Hz, treble    ±10 dB/10 kHz
  • Power supply: ˜ 230 V/50 Hz/170 VA, rechargeable battery: 2 x 12 V/4.5 Ah
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: 360 x 580 x 320 mm
  • Weight: 19.1 kg
  • Connections: 1 x XLR/6.3 mm jack (mic), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out)

Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters and multifrequency transmitter module TXA-1020MT are optionally available

Not quite right for you?
Ask us to quote a custom PA sound system



One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Additional information

Weight19.1 kg
Dimensions32 × 36 × 58 cm
Output (RMS)


Frequency Band


Wireless Microphone Channel

Channel 70 (863-865 MHz)

Speaker Size


Media Playback

Bluetooth, SD Card Slot, USB Slot


3.5mm Jack, 3 Pin XLR (Female), 6.3mm Jack, RCA Phono
