Chassis Speaker

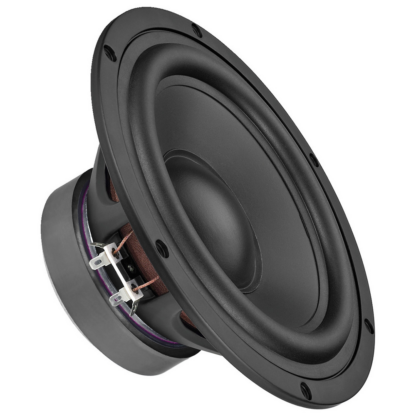

Monacor SPH-8M 8" 100w RMS hi-fi bass speaker
SPH-8M 8" 100w RMS hi-fi bass speaker

Monacor SPH-8M Chassis Speaker

SKU: SPH-8M

£76.48 + VAT    £91.78 incl. VAT

8″ 100w 8Ω bass speaker

In stock

Low Impedance 8 Ohms

PDF

Description

Monacor SPH-8M 8″ 100w RMS hi-fi bass speaker

  • Impedance (Z): 8Ω
  • Resonant frequency (fs): 35Hz
  • Max. frequency range: f3-2,500Hz
  • Music power: 150w PPMO
  • Power rating (P): 100w RMS
  • SPL (1W/1m): 89dB
  • Suspension compl. (Cms): 0.71mm/N
  • Moving mass (Mms): 27g
  • Mech. Q factor (Qms): 2.26
  • Electr. Q factor (Qes): 0.50
  • Total Q factor (Qts): 0.41
  • Equivalent volume (Vas): 44 litres
  • DC resistance (Re): 6.5Ω
  • Force factor (BxL): 9.01Tm
  • Voice coil induct. (Le): 0.78mH
  • Voice coil diameter: Ø 38mm
  • Voice coil former: aluminium
  • Linear excursion (XMAX): ±4.5mm
  • Eff. cone area (Sd): 240cm²
  • Magnet weight: 790g

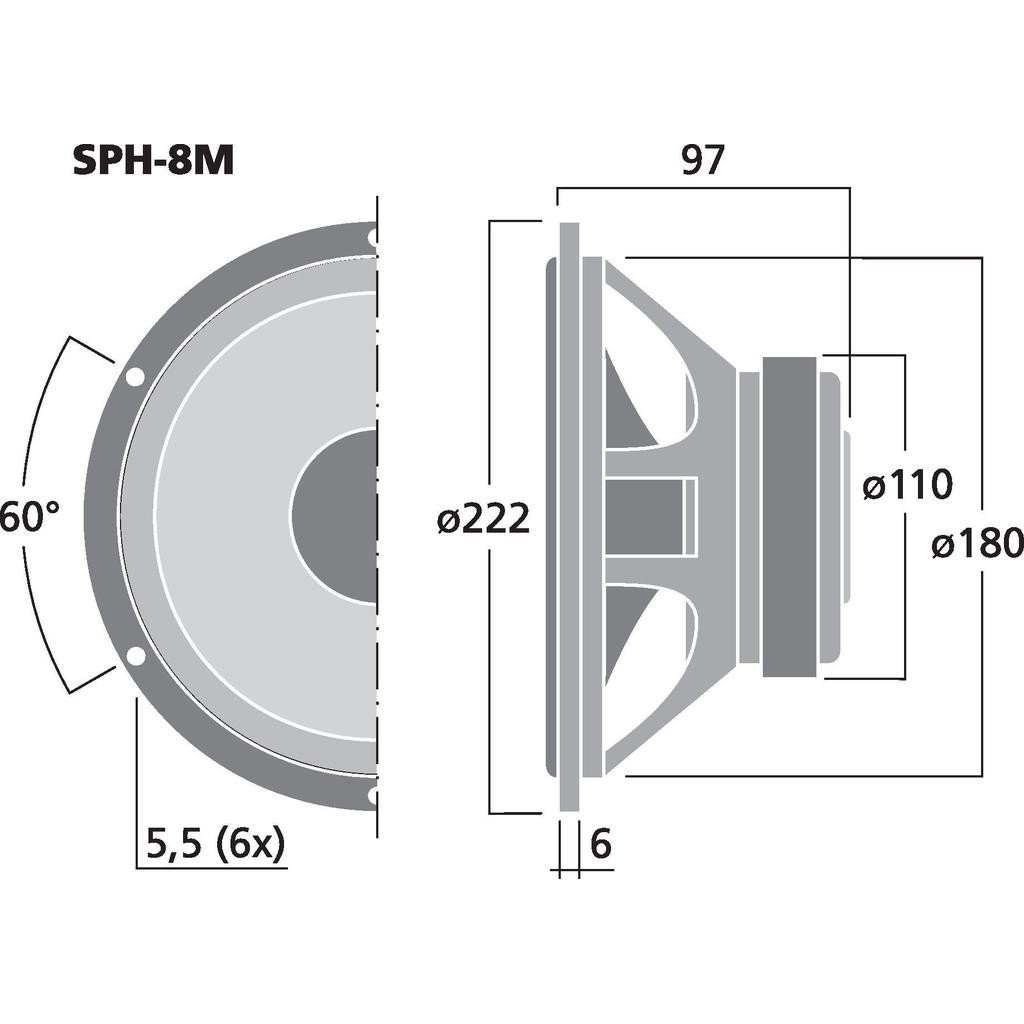

  • Dimensions: Ø 222 mm x 97 mm
  • Outside diameter: Ø 222 mm
  • Width: Ø 222 mm
  • Depth: 97 mm
  • Admissible ambient temperature: 0-40 °C
  • Weight: 2.1kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.1 kg
Dimensions9.7 × 22.2 × 22.2 cm
Speaker Size

8″

Wattage (RMS)

100W

Condition

New

Colour

Black

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

Magazine Reviews

Hobby HiFi 06/2011
Perfectly linear and well-balanced. Of neat workmanship, an excellent bass-midrange speaker for 2-way applications.
