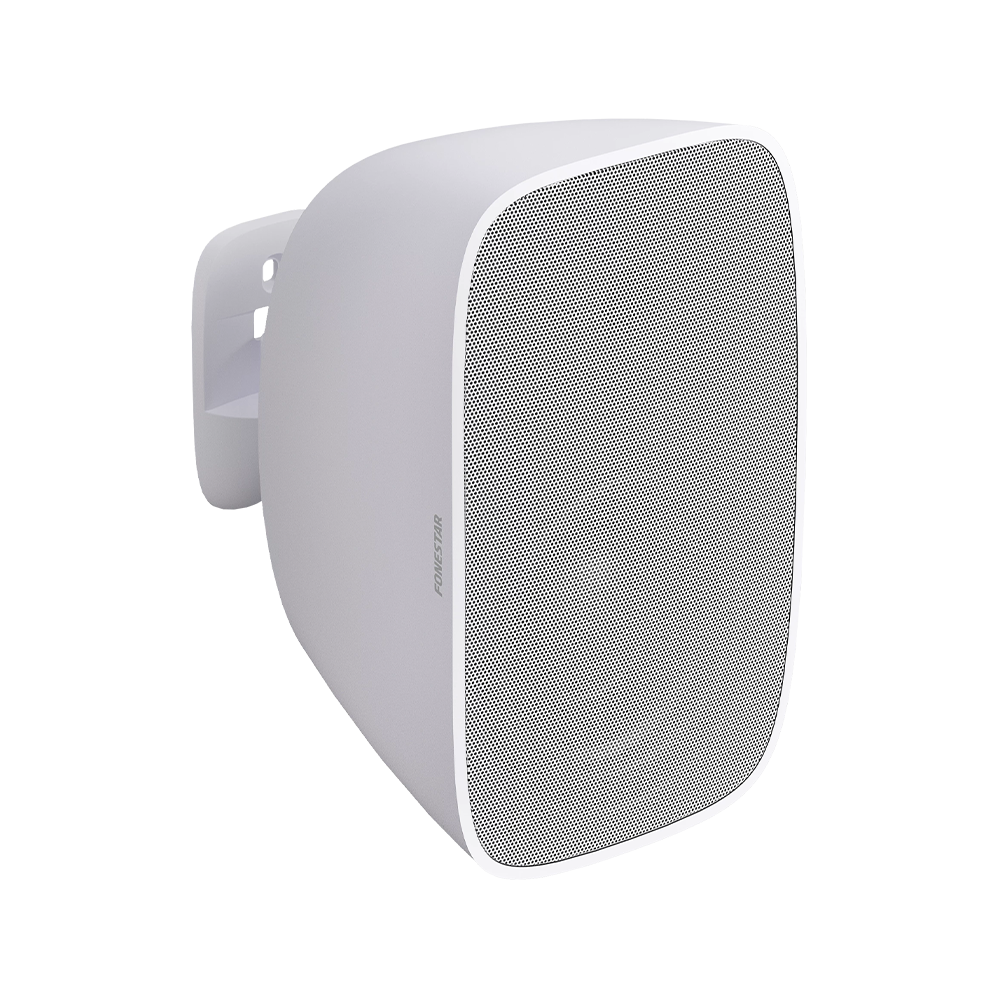

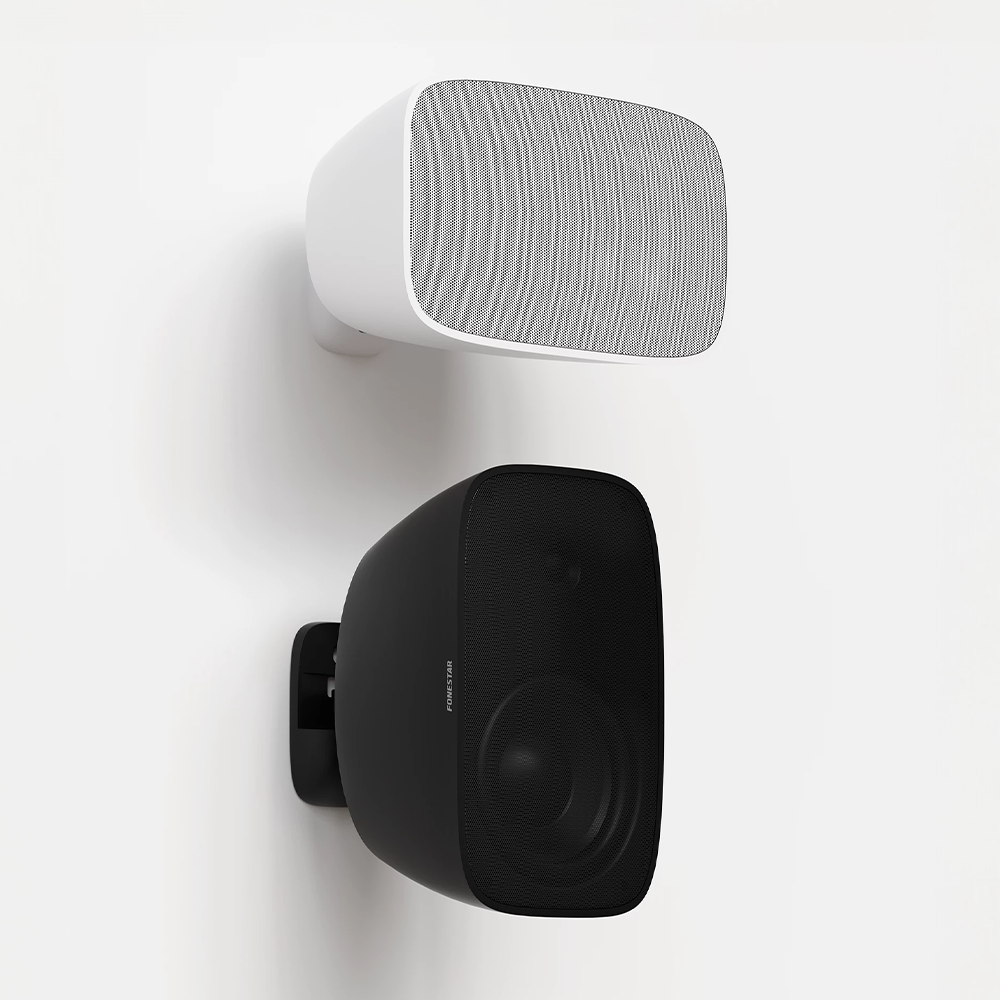

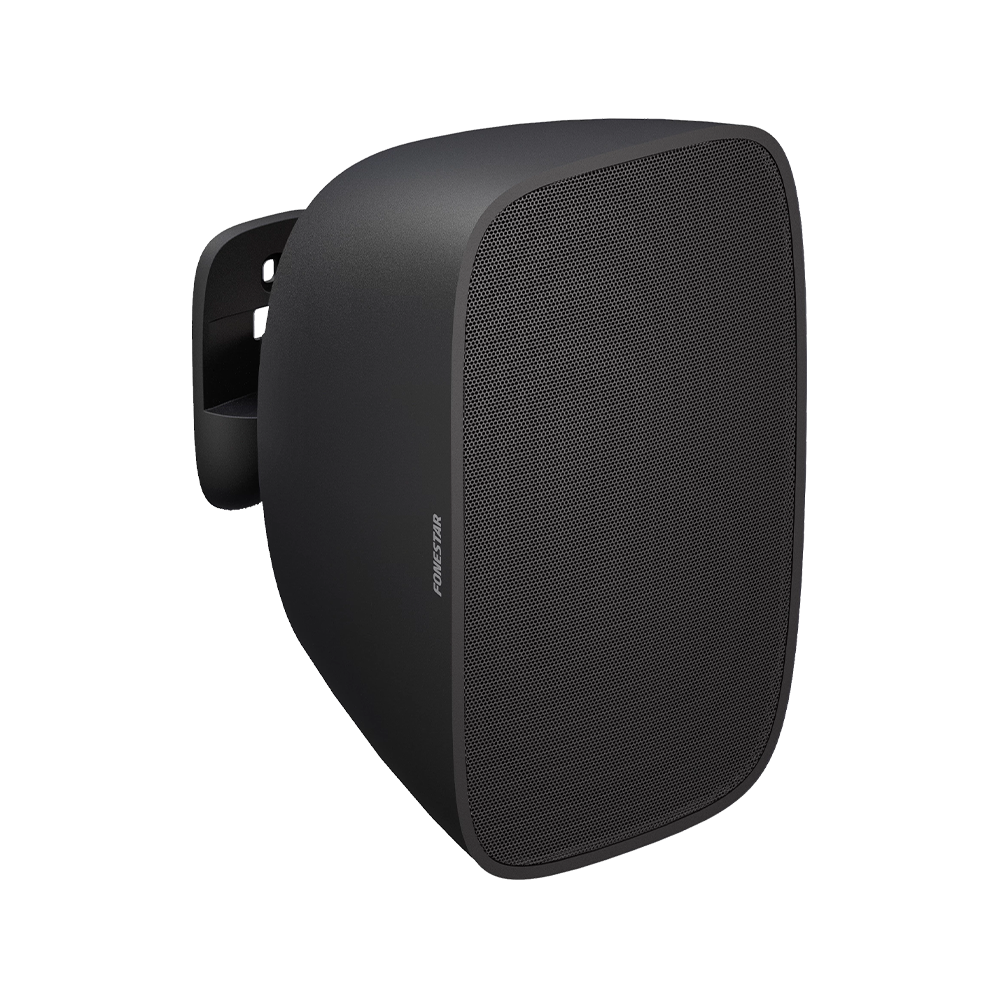

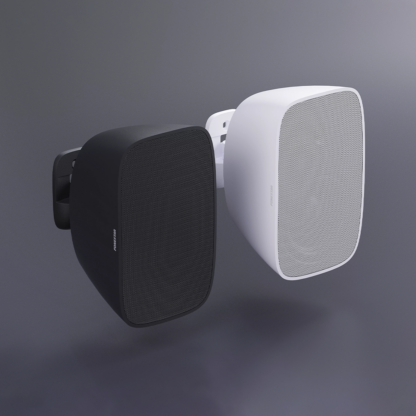

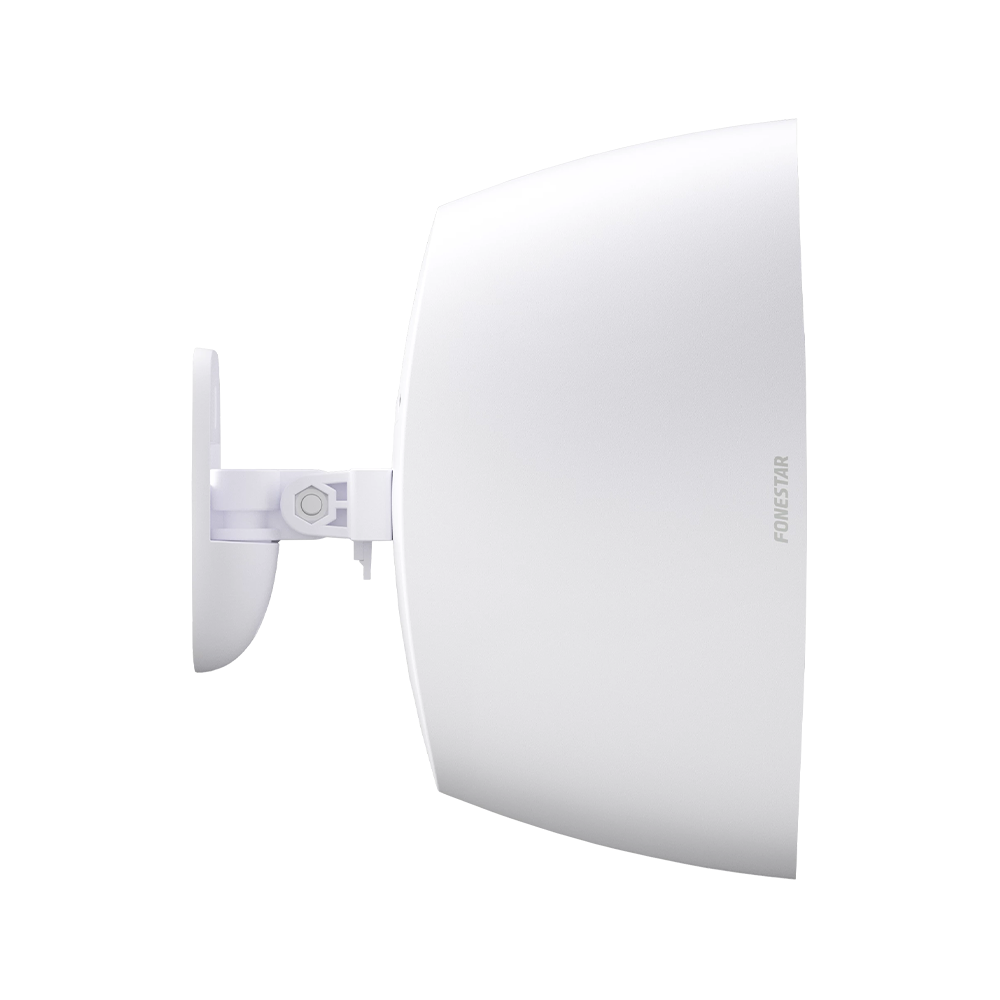

Fonestar SONORA-5T Series Wall Cabinet Speakers



Black or white 5¼” 40W 100v line or 8Ω cabinet speaker

100V Line
Low Impedance 8 Ohms



Fonestar SONORA-5T series black or white high power weatherproof 5¼” 40W 100v line or 8Ω cabinet speaker

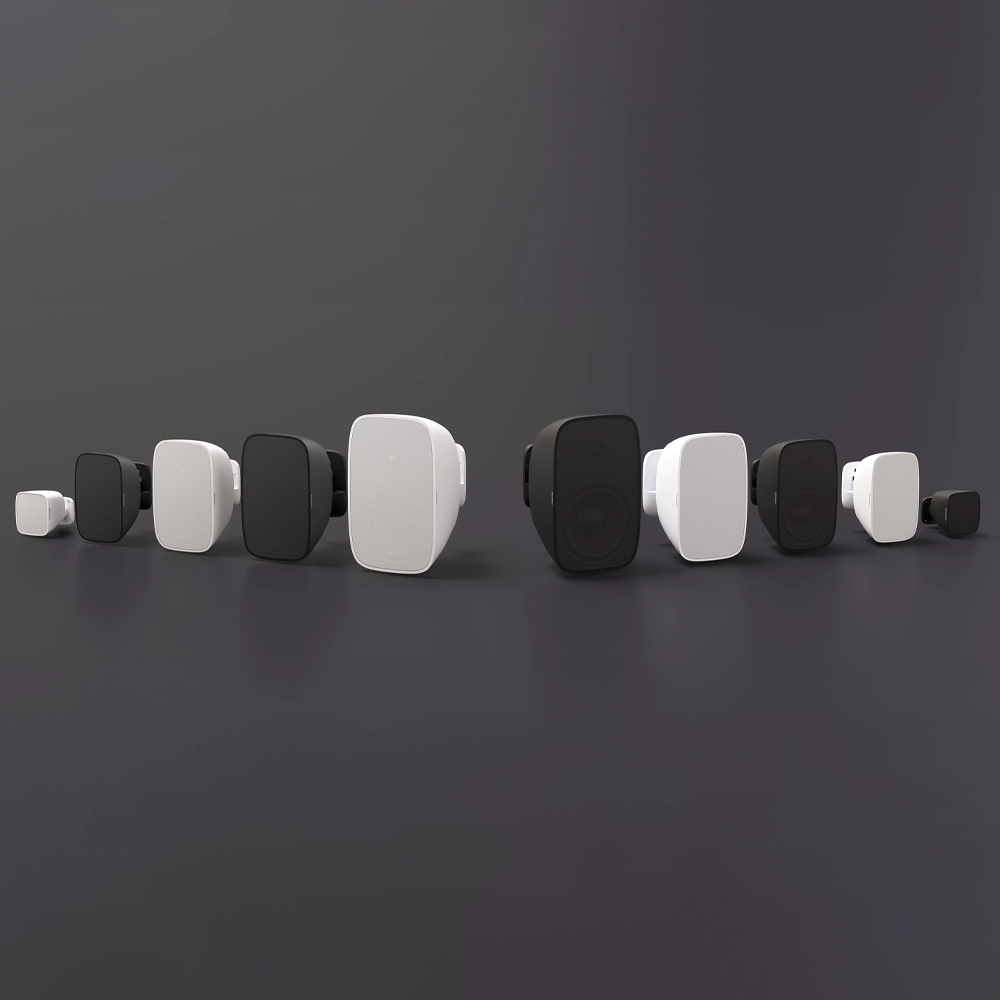

Sound reinforcement loudspeaker with 100 V line transformer and low impedance. Based on our extensive experience in the sound sector, FONESTAR has created SONORA. SONORA is a series of speakers specially designed for PA, musical and background sound applications. Its excellent finish and elegant design allow perfect integration in any space. They are fully prepared for outdoor and marine environments use as they have a powder-coated aluminium grille and are waterproof (IP-66). Besides, SONORA delivers high sound quality with clear, distortion-free sound, with a wide frequency response. They include all the necessary accessories for easy and quick installation: weatherproofed adjustable fixing mount, stainless steel screws and steel safety cable. For public address and ambient sound applications in public places such as restaurants, cafés, supermarkets, shopping centres, etc.

  • Features:
    • Low impedance loudspeaker with 100 V line transformer.
    • Prepared for outdoor use, waterproof and rustproof materials.
  • Power (8Ω): 80 W max., 40 W RMS
  • Speakers:
    • 1 x 5 ¼” polypropylene woofer
    • 1 x 1″ tweeter
  • Frequency Response: 80-20,000 Hz
  • Impedance:
    • 40 W RMS@100 V (250 Ω)
    • 20 W RMS@100 V (500 Ω)
    • 10 W RMS@100 V (1,000 Ω)
    • 5 W RMS@100 V (2,000 Ω)
    • Low Z: 8 Ω
  • Sensitivity: 86 dB @ 1 W/1 m
  • Maximum SPL: 99 dB @ max. W/1 m
  • Coverage Angle: H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
  • Protections:
    • IP-66 in compliance with EN 60529
    • IEC 60068-2-11 Enviromental Test (Salt mist)
  • Material:
    • ABS

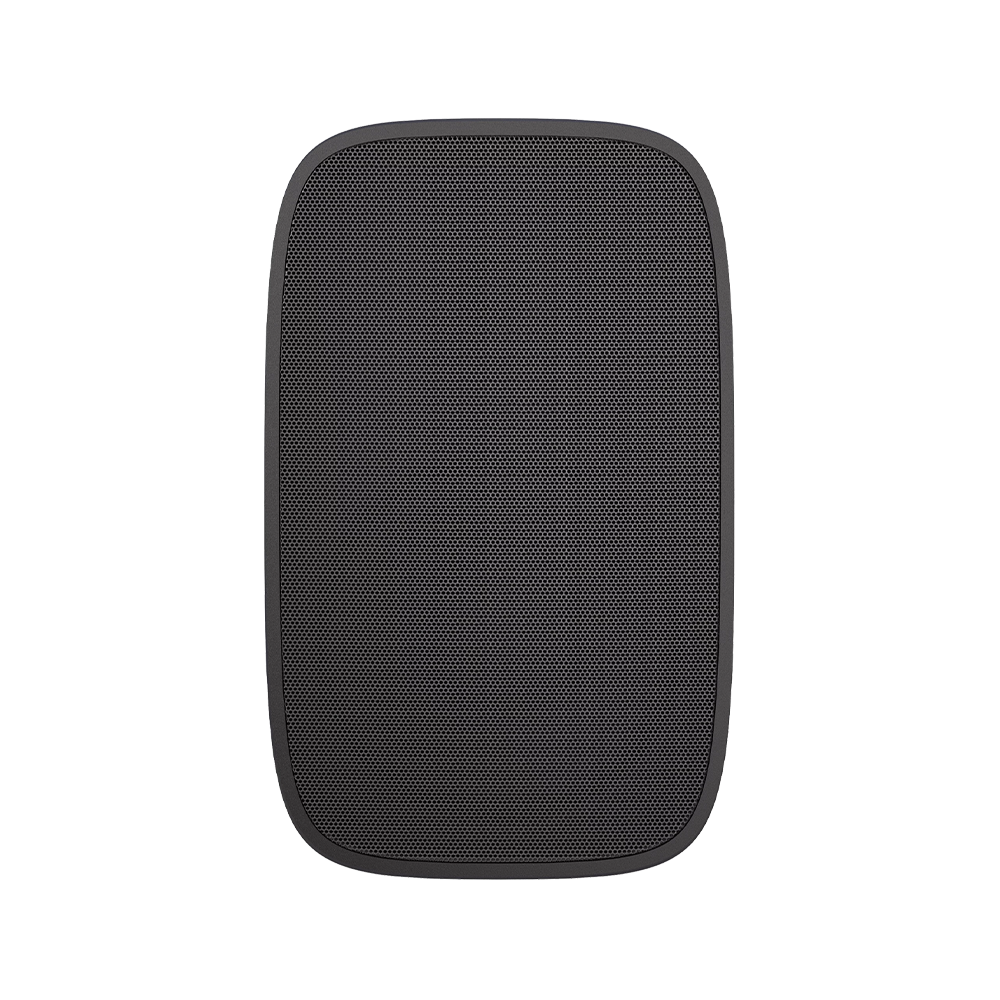

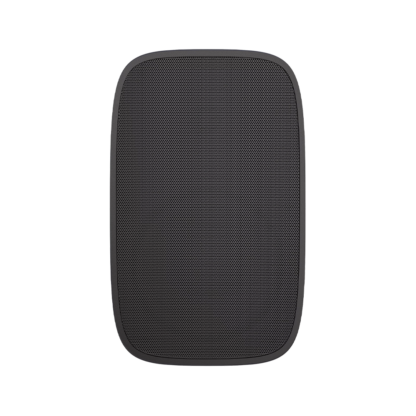

    • Aluminium mesh grille
    • Mount with weatherproof treatment
    • Stainless steel screws

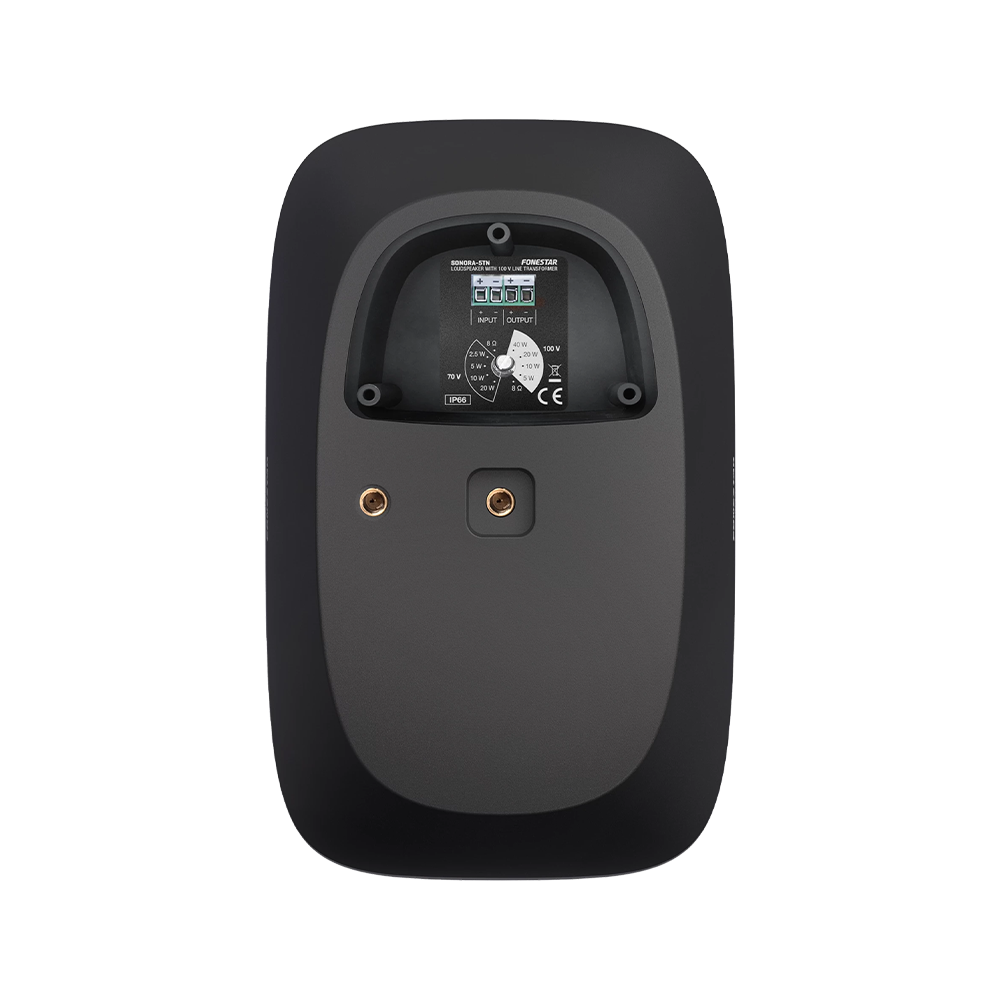

  • Switch: W selector in high Z and low Z

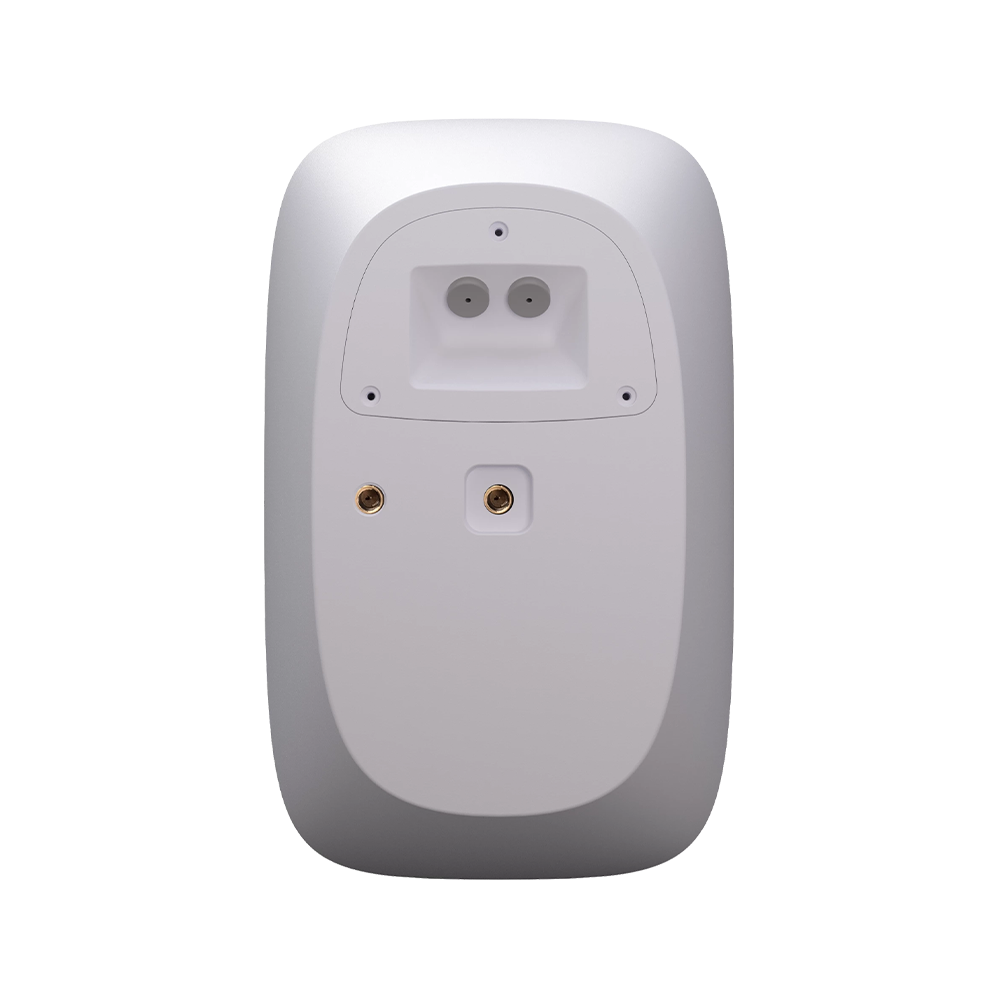

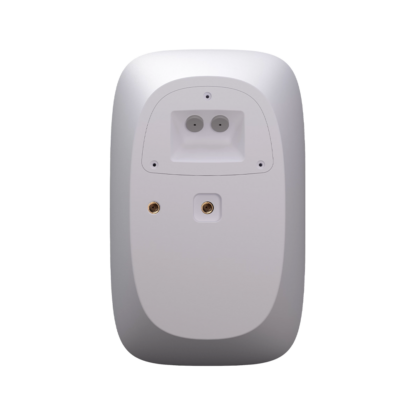

  • Connectors: Euroblock in and out for cable 0.25 – 2.5 mm² cross section
  • Temperature Range: -10ºC ~ 60ºC

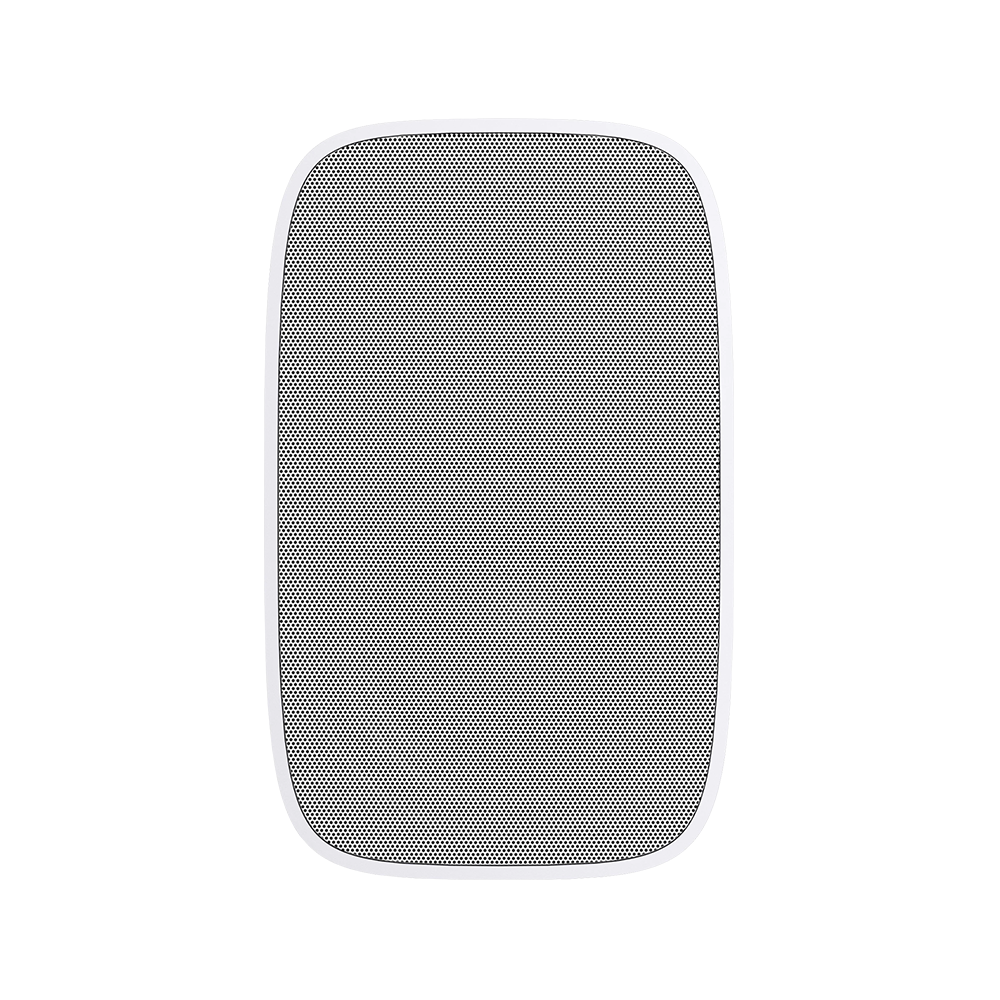

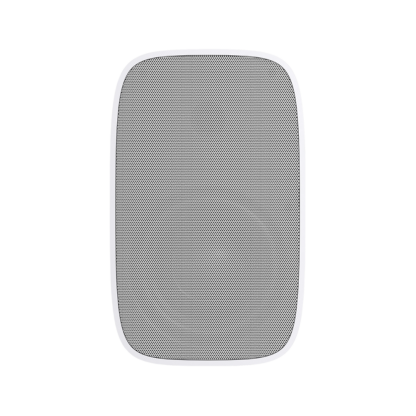

  • Colour: Black (RAL 9005) or White (RAL 9003)
  • Dimensions:
    • Loudspeaker: 162 x 263 x 147 mm depth
    • Mount wall plate: 68 x 110 mm
    • Loudspeaker with mount: 216 mm depth
  • Weight: 2.2 kg
  • Accessories:

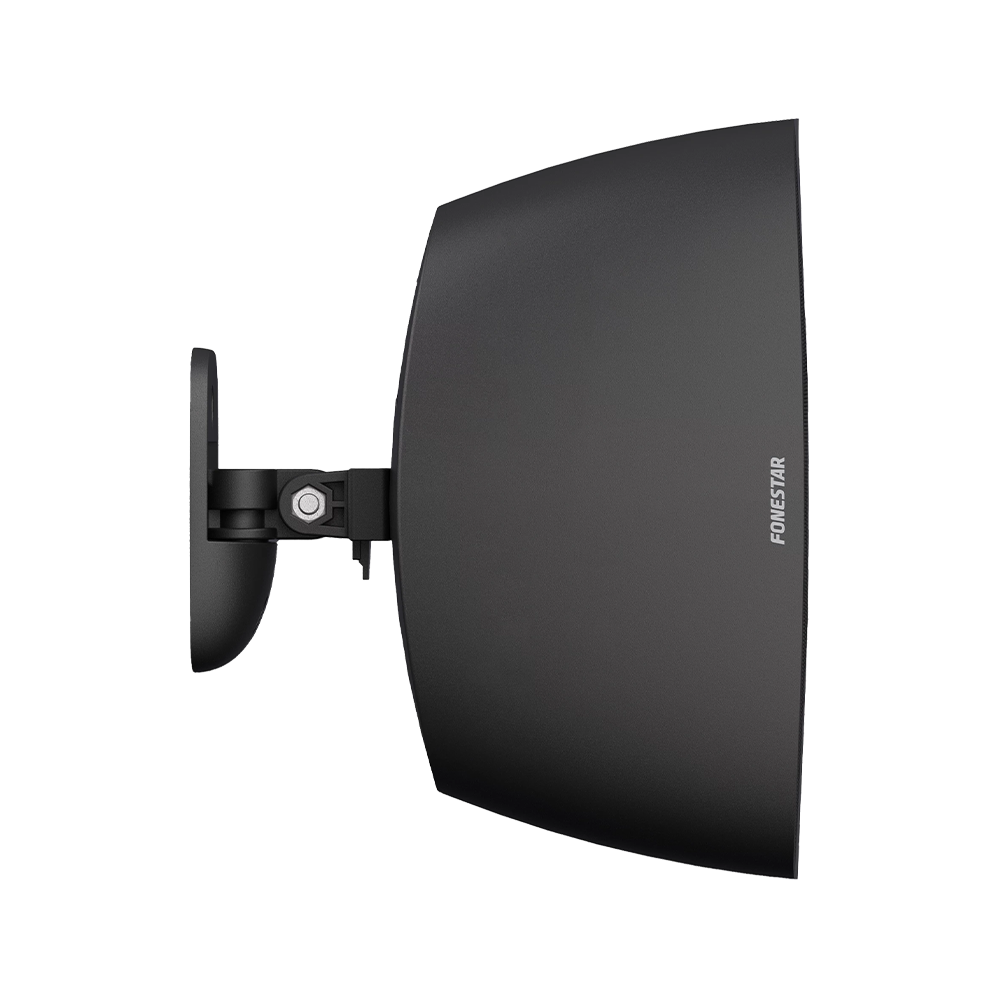

    • Adjustable mounting bracket ± 60º in all directions.
    • Steel safety cable

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.2 kg
Dimensions14.7 × 16.2 × 26.3 cm
Wattage (RMS)


Speaker Size

5 ¼″


IP Rating



Screw Terminals


Black, White





Thanks to their customers, Fonestar are the reference for public address sound systems and microphones for PA installations in Spain and Portugal and now, they are in the UK. Fonestar are manufacturers and developers of products and solutions. Fonestar have an ambition; to be their customers’ long-term partners, to provide solutions using technological innovation, new product ranges and exclusive designs.
