Fonestar SONORA-516 Series Wall Cabinet Speakers

SKU: SONORA-516

£53.09£54.67

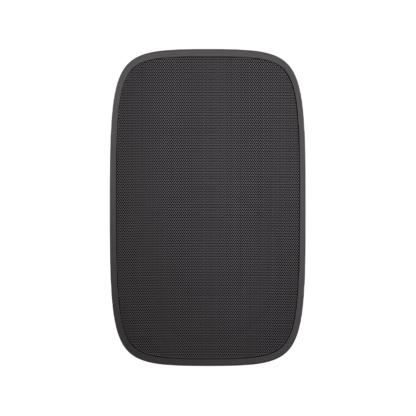

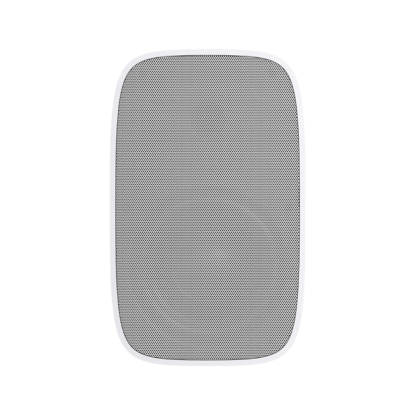

Black or white 5¼” 40W 16Ω cabinet speaker

Low Impedance 8 Ohms
IP66

PDF

Description

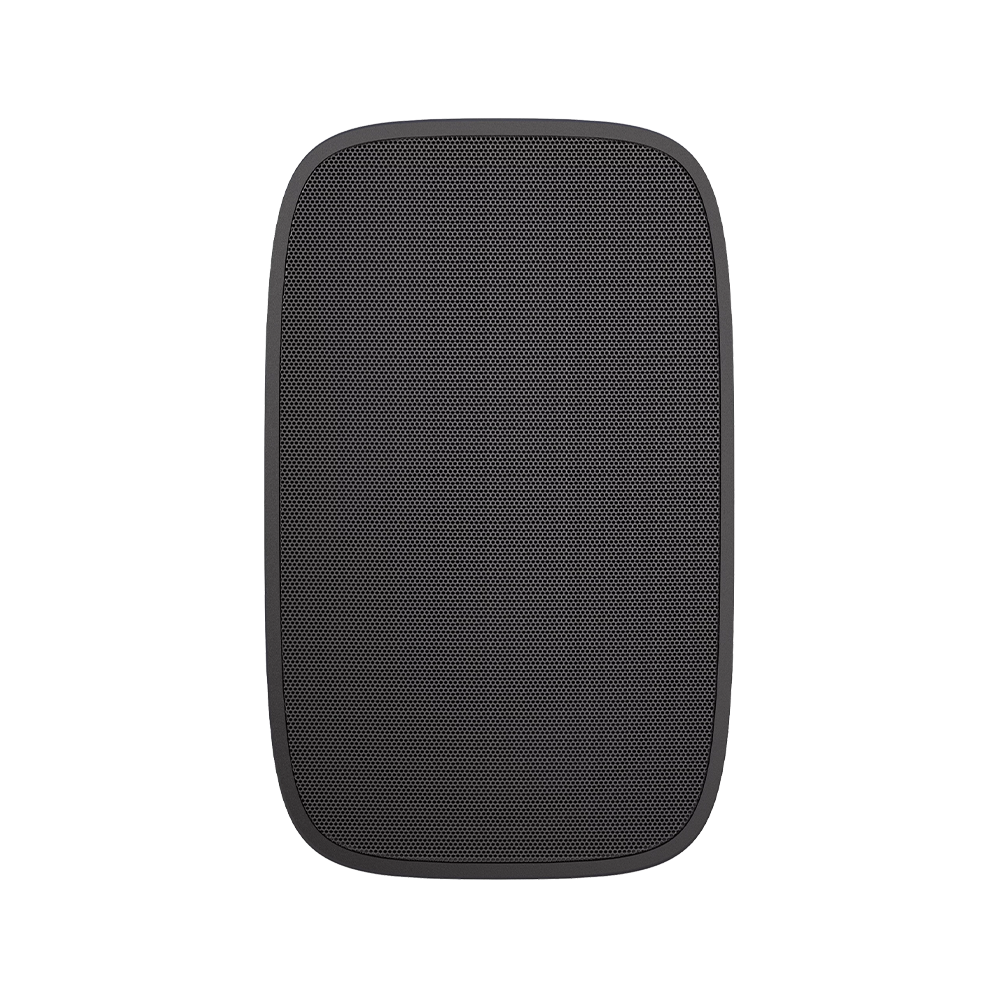

Fonestar SONORA-516 series black or white high power weatherproof 5¼” 40W 16Ω cabinet speaker

Sound reinforcement loudspeaker with 100 V line transformer and low impedance. Based on our extensive experience in the sound sector, FONESTAR has created SONORA. SONORA is a series of speakers specially designed for PA, musical and background sound applications. Its excellent finish and elegant design allow perfect integration in any space. They are fully prepared for outdoor and marine environments use as they have a powder-coated aluminium grille and are waterproof (IP-66). Besides, SONORA delivers high sound quality with clear, distortion-free sound, with a wide frequency response. They include all the necessary accessories for easy and quick installation: weatherproofed adjustable fixing mount, stainless steel screws and steel safety cable. For public address and ambient sound applications in public places such as restaurants, cafés, supermarkets, shopping centres, etc.

  • Features:
    • Low-impedance loudspeaker.
    • Prepared for outdoor use, with IP-66 protection.
  • Power (16Ω): 80 W max., 40 W RMS
  • Speakers:
    • 1 x 5 ¼” polypropylene woofer
    • 1 x 1″ tweeter
  • Frequency Reponse: 80-20,000 Hz
  • Impedance: 16 Ω
  • Sensitivity: 86 dB at 1 W/1 m
  • Maximum SPL: 99 dB @ max. W/1m
  • Coverage Angle: H/V: 200º/200º@500Hz, 135º/135º@1kHz, 100º/120º@2kHz, 60º/80º@4kHz (-6 dB)
  • Protections:
    • IP-66 in compliance with EN 60529
    • IEC 60068-2-11 Enviromental Test (Salt mist)
  • Material:
    • ABS
    • Aluminium mesh
    • Weather-resistant mount
    • Stainless steel screws

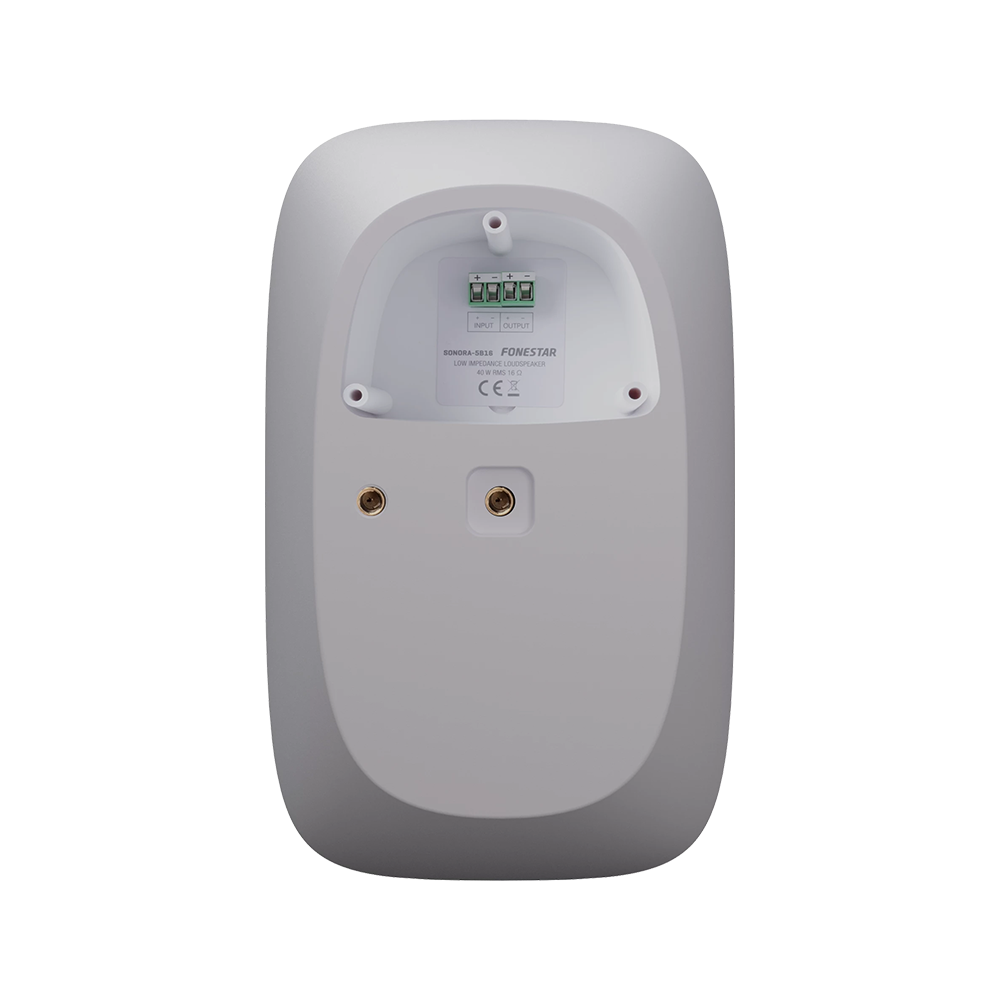

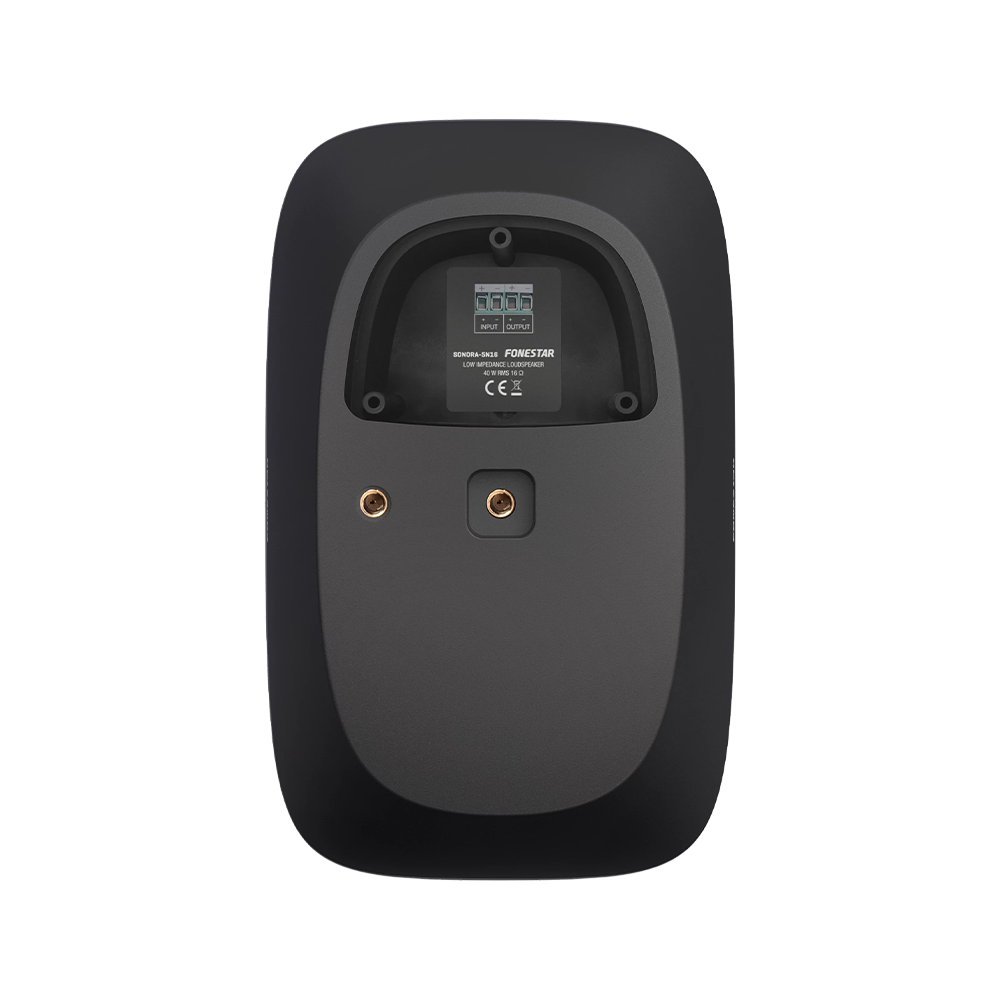

  • Connectors: Euroblock
  • Temperature Range: -10ºC ~ 60ºC

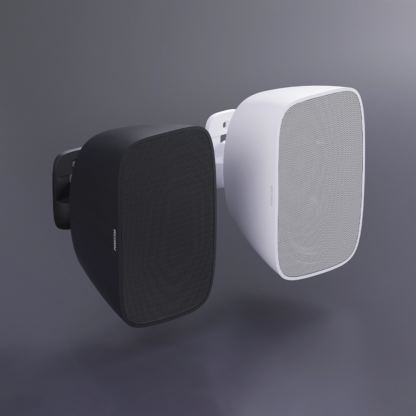

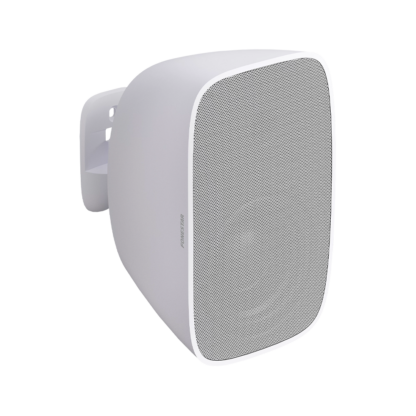

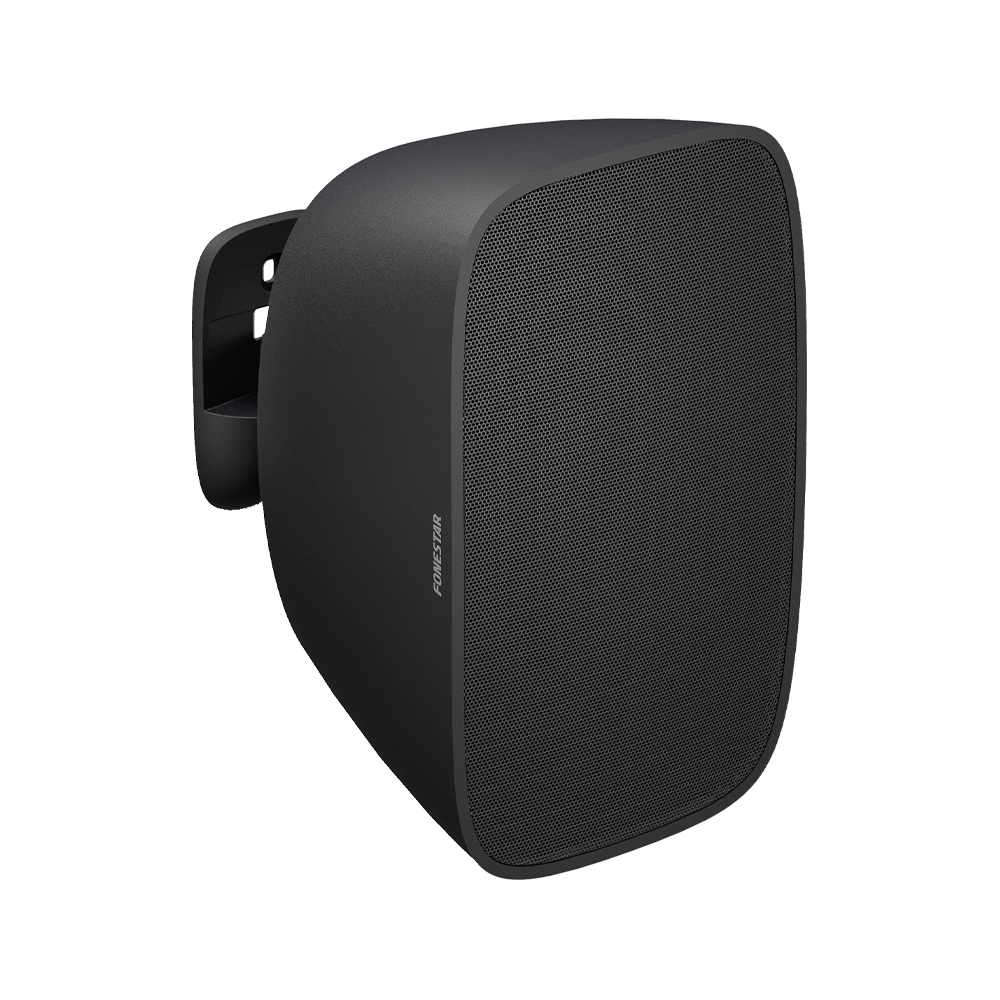

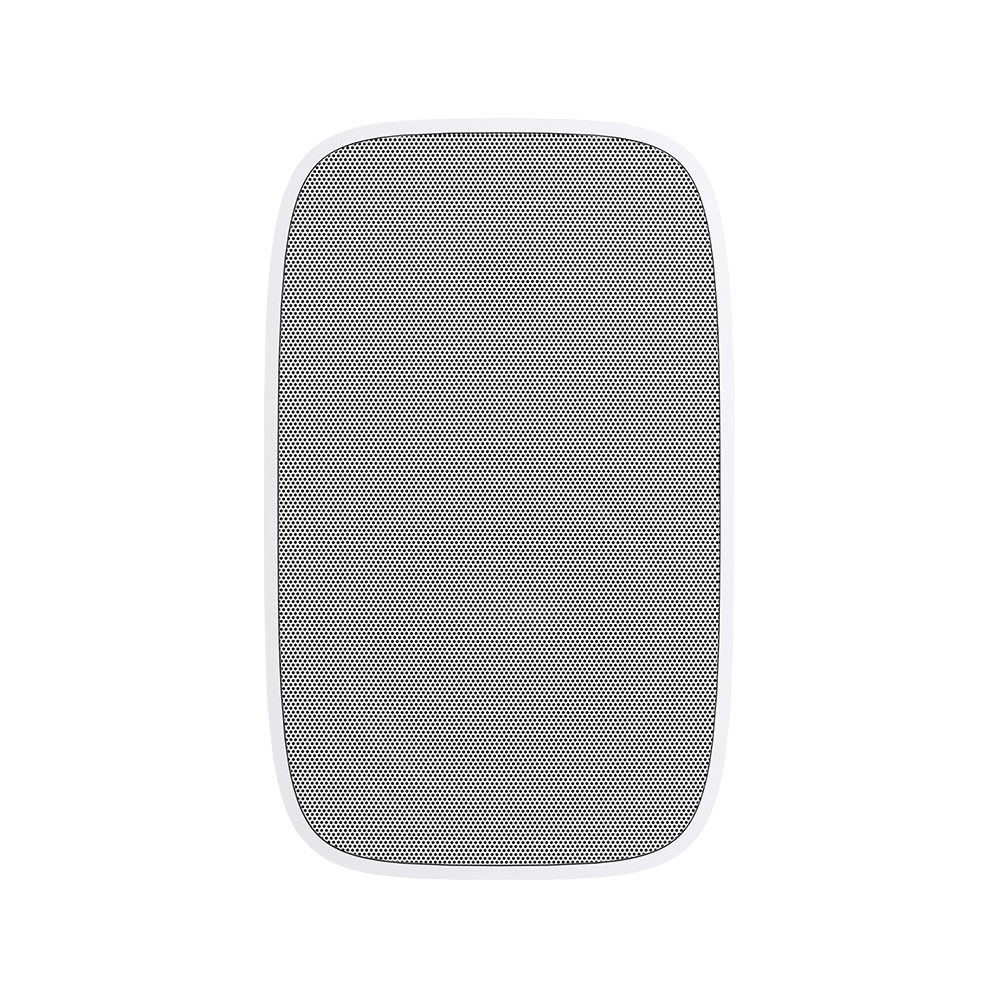

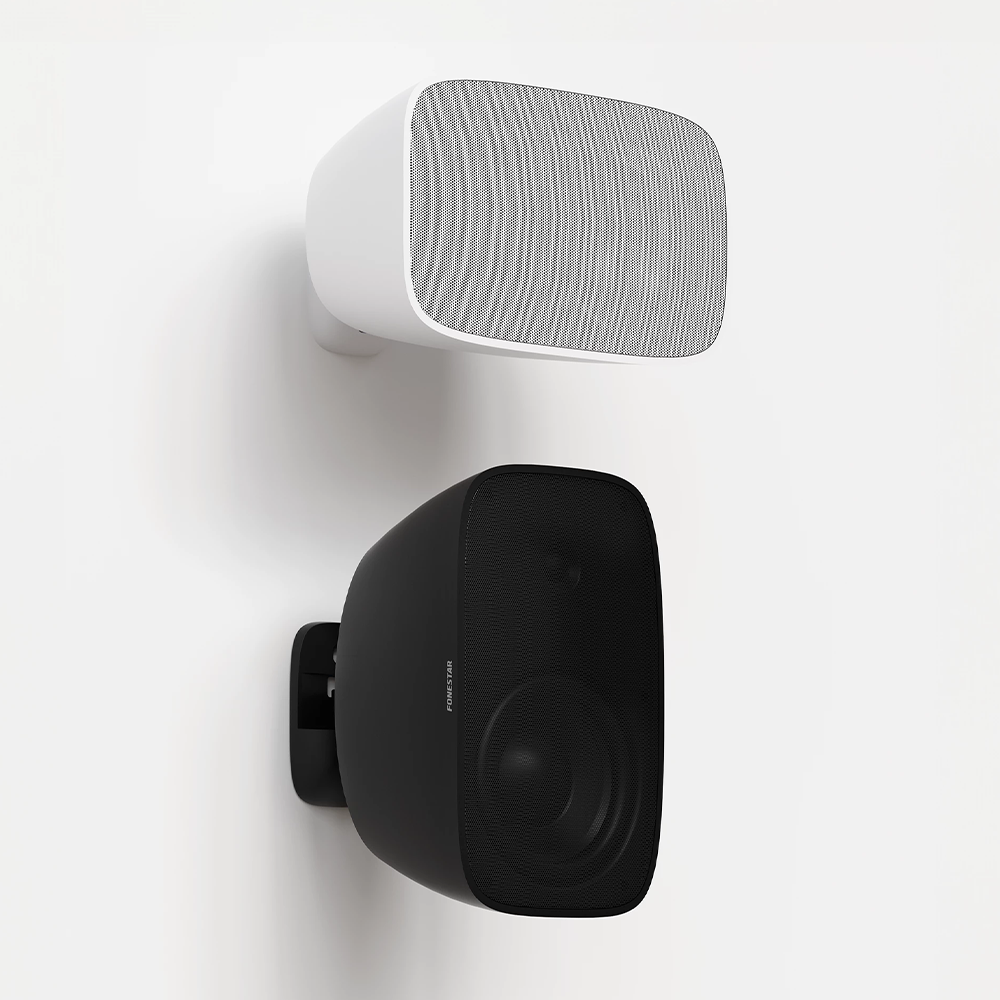

  • Colour: Black (RAL 9004) OR White (RAL 9003)
  • Dimensions: 162 x 262 x 147 mm depth
  • Weight: 1.65 kg
  • Accessories:

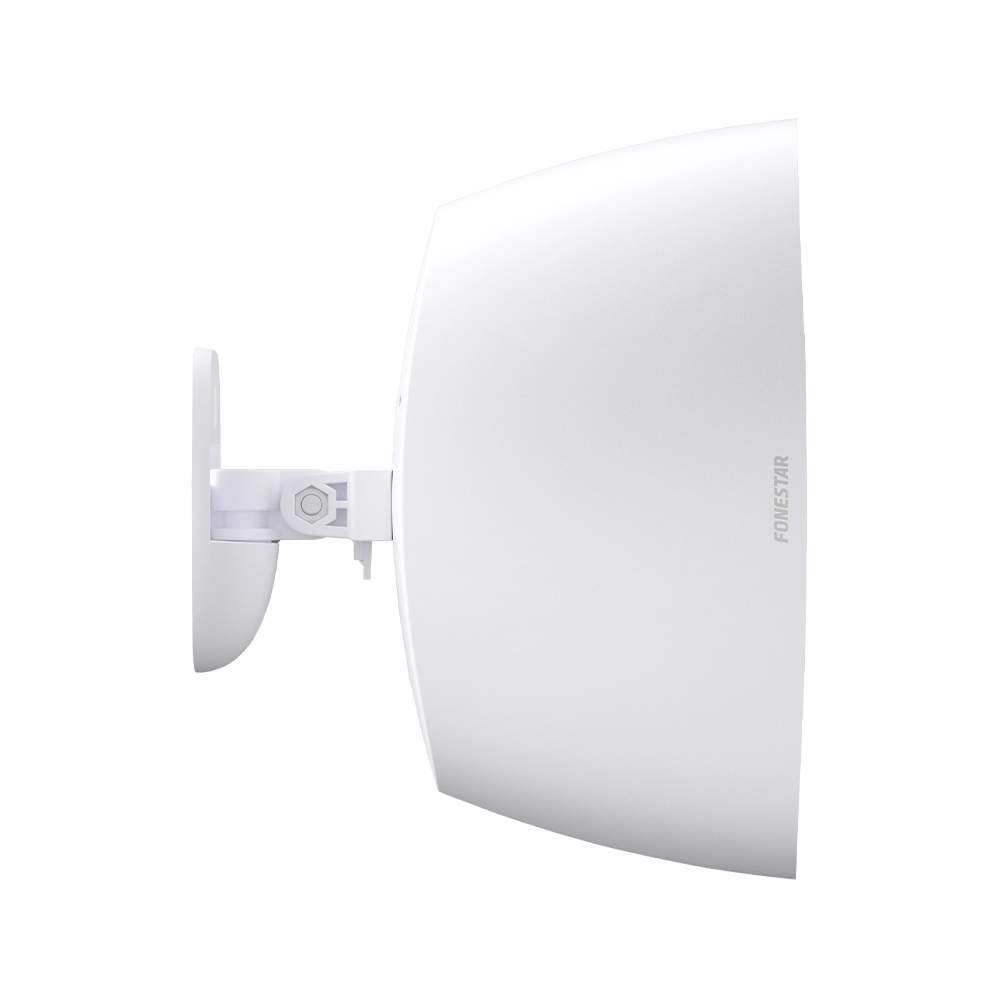

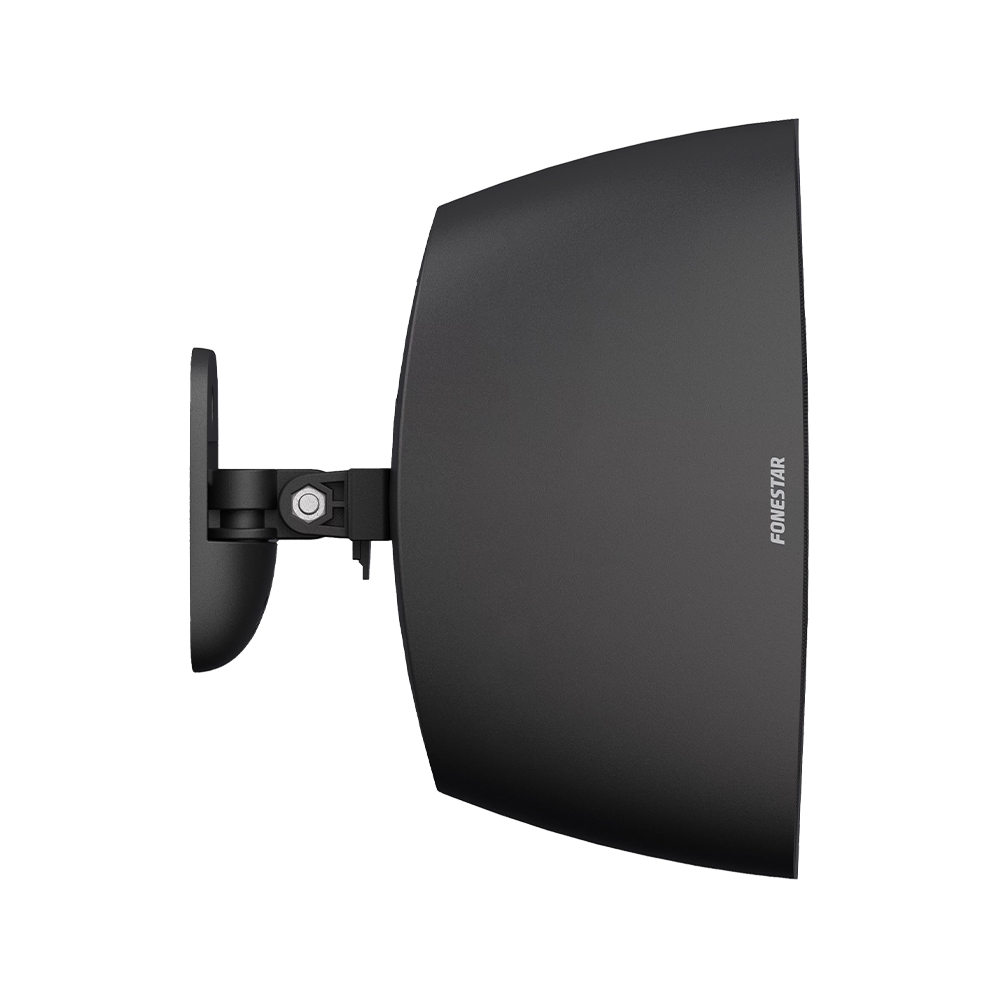

    • Adjustable mounting bracket ± 60º in all directions
    • Steel safety cable

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.65 kg
Dimensions14.7 × 16.2 × 26.3 cm
Wattage (RMS)

40W

Speaker Size

5 ¼″

Impedance

16Ω

IP Rating

IP66

Connection

Screw Terminals

Colour

Black, White

Condition

New

Brand

Fonestar

#WeAreFonestar
Thanks to their customers, Fonestar are the reference for public address sound systems and microphones for PA installations in Spain and Portugal and now, they are in the UK. Fonestar are manufacturers and developers of products and solutions. Fonestar have an ambition; to be their customers’ long-term partners, to provide solutions using technological innovation, new product ranges and exclusive designs.
