Monacor PA-4125DX/DT Dante® Amplifier

Description

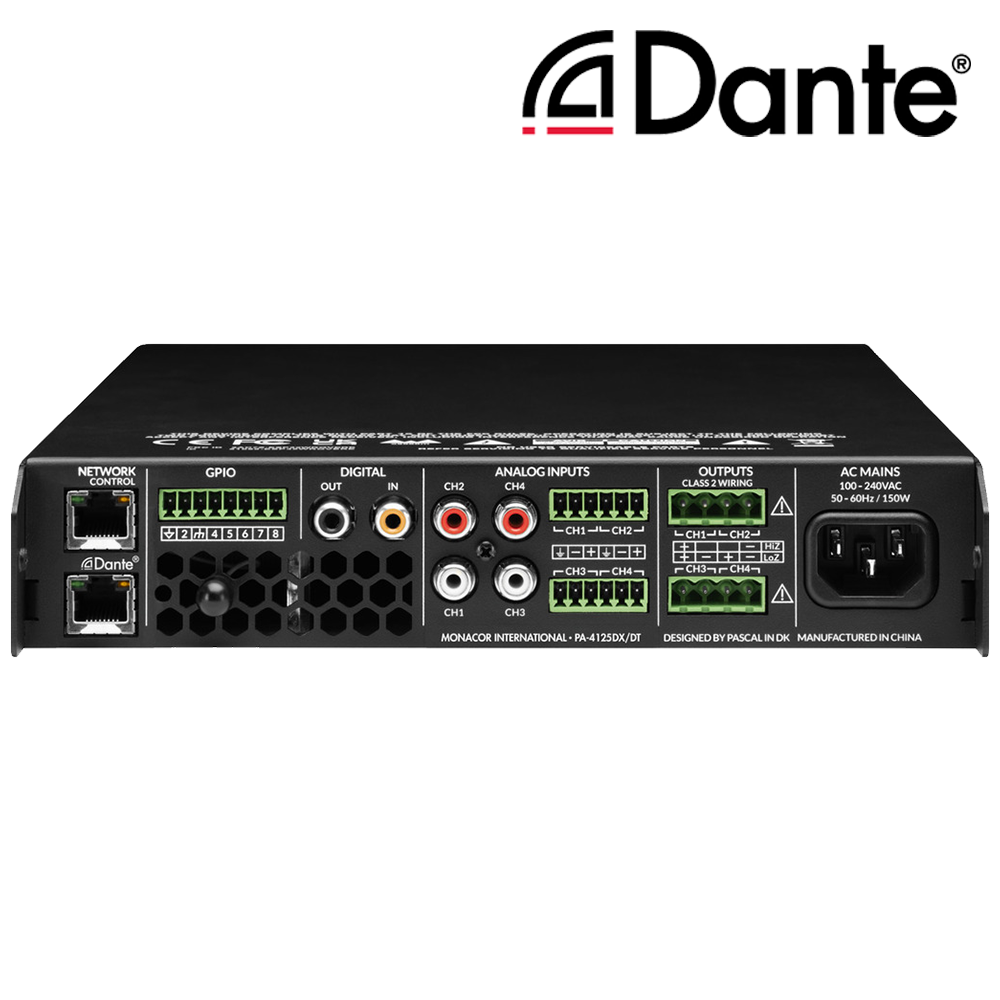

Monacor PA-4125DX/DT 4-zone 500W Dante® amplifier

Dante®-enabled 4-zone multi-functional amplifier class D technology with DSP and professional features for general multi-room PA applications.

Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

• Dante® interface (4 transmission channels, 4 receiver channels)
• 4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
• 100 V or 4/8 Ω operation
• 4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
• 1 digital input/output via S/PDIF RCA jacks
• 4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
• GPIO interface for remote volume control and standby
• Network connection via LAN or WLAN
• Convenient operation and configuration via user interface HTML5
• High-pass/low-pass filter with various filters
• Parametric equalizer
• Output with separate FIR filters
• Speaker matching: 10 ms
• Switchable output phase
• Adjustable compressor/limiter
• Adjustable delay
• Mix inputs
• Talkover with priority routing
• Built-in sine wave noise generator
• Parametric 5-band equalizer for input
• Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

System requirements Dante®: Windows 7/8.1/10 or MacOS 10.9.5/10.10.5/10.1

The brand Dante® as well as the Dante® software which may have been integrated into these products are licensed by Audinate Pty Ltd.

Specifications

• Peak output power: 500 W
• Power rating: 500 W
  • 4 Ω: 4 x 125 W
  • 8 Ω: 4 x 125 W
  • 100 V: 2 x 250 W
• Channels: 5
• Zones: 4
• Inputs: 1.2 V, bal. (line), 1.9 mV, bal. (mic)
• Integrated limiter: yes
• Equalizer
  • Bass: via DSP
  • Midrange: via DSP
  • Treble: via DSP
• S/N ratio: > 106 dB
• THD: < 0.05%
• Power supply: ˜ 100-240 V/50-60 Hz/150 W
• Mains voltage: ~ 100-240 V
• Mains frequency: 50-60 Hz
• Power consumption:
  • Operation: 150 W, 1/8 output power
  • Standby: < 0.5 W
• Admissible ambient temperature: 0-40 °C
• Dimensions:
  • Width: 220 mm
  • Height: 44 mm
  • Depth: 320 mm
  • Rack units: 1U
• Weight: 1.95 kg
• Connections:
  • 4 x RCA line
  • plug-in screw terminals (mic/line)
  • 2 x RCA (digital in/out)
  • plug-in screw terminals GPIO
  • plug-in screw terminals speakers
  • 1 x RJ45 network connection
  • 1 x RJ45 Dante®

Click here for Audinate Dante® online training and certification

Please note:
32-bit applications, including the current version of the DSP controller, are no longer supported under the MacOS version 10.15 (Catalina). The controller software is currently being updated for 64-bit MacOS Catalina. Users of older MacOS versions as well as Windows users are not affected by this change.
Apple’s announcement will give you further information on the change to 64-bit technology

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
