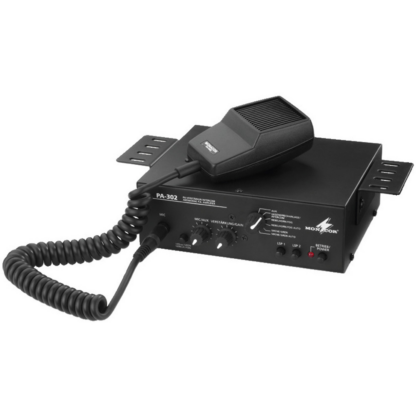

Monacor PA-302 Intercom Amplifier

Monacor PA-302 14w RMS mono public address intercom mixer amplifier will run from a 12v car battery and can be connected to low impedance loudspeakers that are rated between 4 and 8 ohms total load

• 1 microphone input and 1 line input, adjustable
• 2 speaker outputs, switchable
• Built-in speaker
• Can also be operated as an intercom system
• Supplied with hand-held push-to-talk microphone
• Siren and fog horn, automatic fog horn
• Metal housing
• Supplied with mounting brackets
• 12/24 V battery operation, automatic switching
• Channels: 2
• Power rating: 14 W into 4 ohms
• Peak music power output (PMAX): 20 W
• Inputs: 3 mV (mic), 50 mV (line)
• Frequency range: 20-20,000 Hz
• S/N ratio: 65 dB
• THD: < 0.5%
• Power supply: 12-15 V/2 A DC or 24 V/1 A DC
• Admissible ambient temperature: 0-40 °C
• Dimensions: 175 x 60 x 170 mm
• Width: 176 mm
• Height: 60 mm
• Depth: 170 mm
• Weight: 1.5 kg

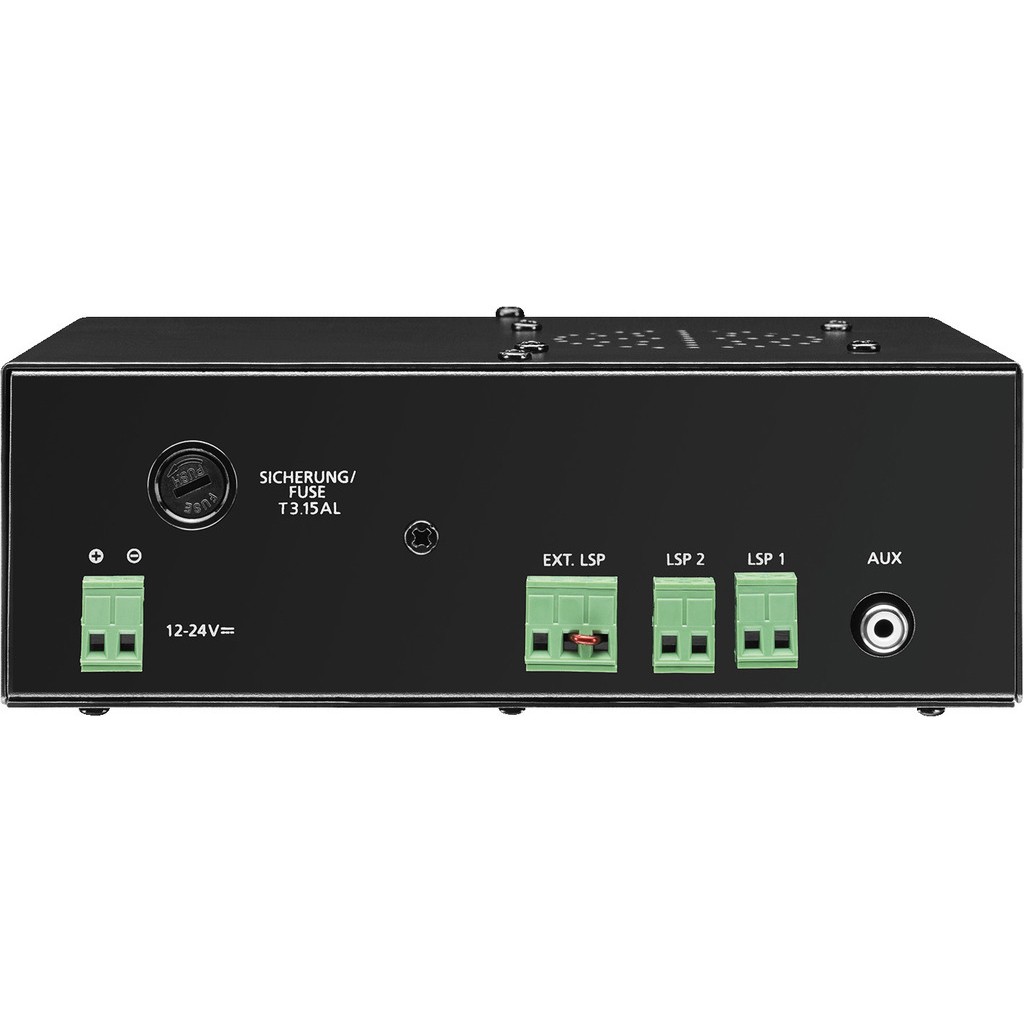

• Connections: 1 x 6.3 mm jack (mic input), 1 x RCA (line input), 2 x 2-pole plug-in screw terminal (speakers), 1 x 3-pole plug-in screw terminal with jumper (external speaker)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
