Description

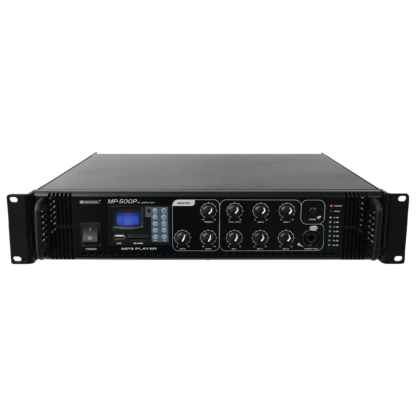

Omnitronic MP-500P 500w PA mono mixer amplifier with Bluetooth, MP3 media player and IR remote control
- SD card slot and USB port
- 3 microphone inputs (6.3 mm jack, unbalanced) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 x line output (stereo RCA)
- Chime, switchable
- Treble and bass control
- LED level meter
- Master volume control
- Highly efficient air flow from front to rear via temperature-controlled fan
- (19″) 48.3 cm rack installation 2U
- Audio player has IR remote control and LCD display
- Box includes 1 x user manual, 1 x amplifier, 1 x remote control
- Power supply: 230 V AC, 50 Hz
- Output power: 500 W RMS
- Power connection: Fixed power supply cord with Schuko type F safety plug and UK adaptor
- Frequency range: 80 – 14000 Hz
- S/N ratio: >75 dB Microphone / >85 dB line
- THD: <0.5 % at 1 kHz
- Output Impedance: 4-16 ohms or 100v line
- Output: Class AB
- Controls: Power on/off
- Protection: Overvoltage / Short-circuit

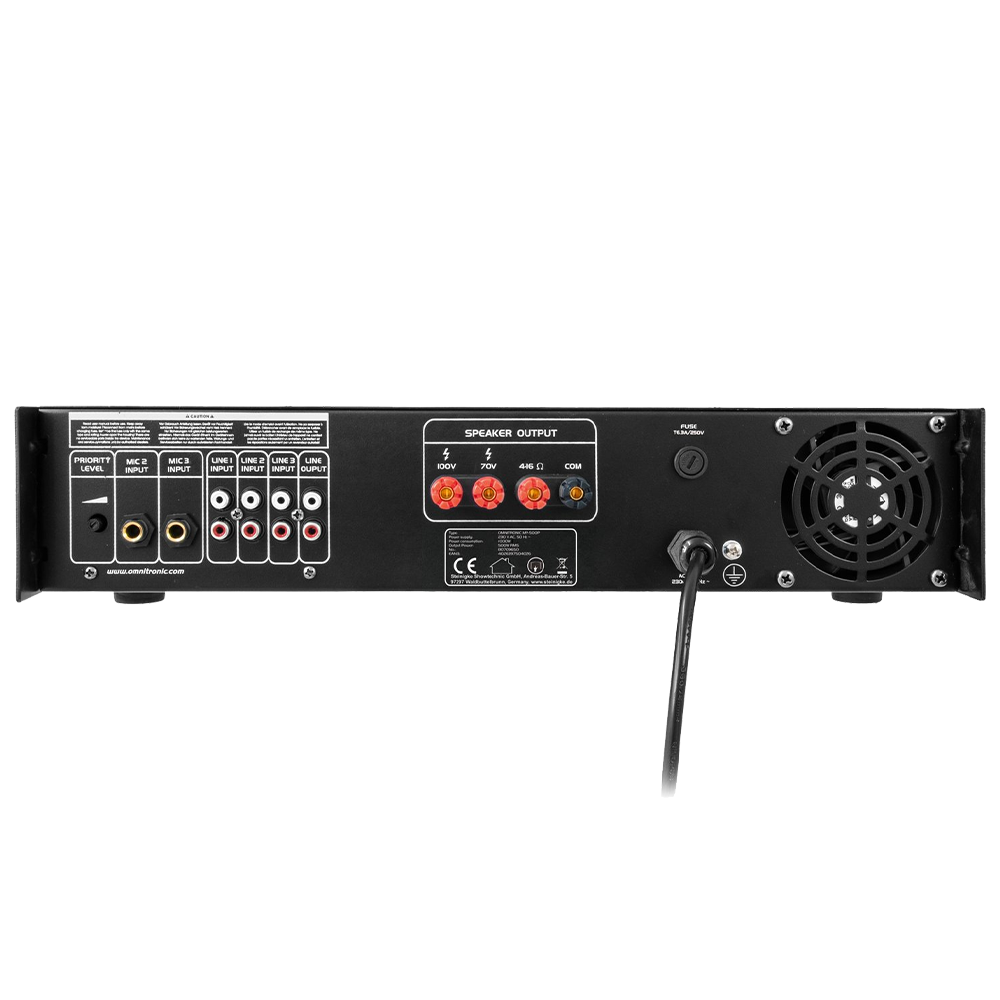

- Input:
Microphone 1: 3-pin XLR-F/6.35mm jack combination socket
Microphone 2 & 3: 6.3 mm plug (unbalanced)
Line 1, 2 & 3: Twin RCA Phono - Output
Line: Twin RCA Phono
Speaker: Via screw terminal - Equalizer: Master volume, bass and treble controls
- Housing design: (19″) 48.3 cm rack installation 2U
- Dimensions:
Width: 48.3 cm
Depth: 40 cm
Height: 8.9 cm - Weight: 14.55 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
