Description

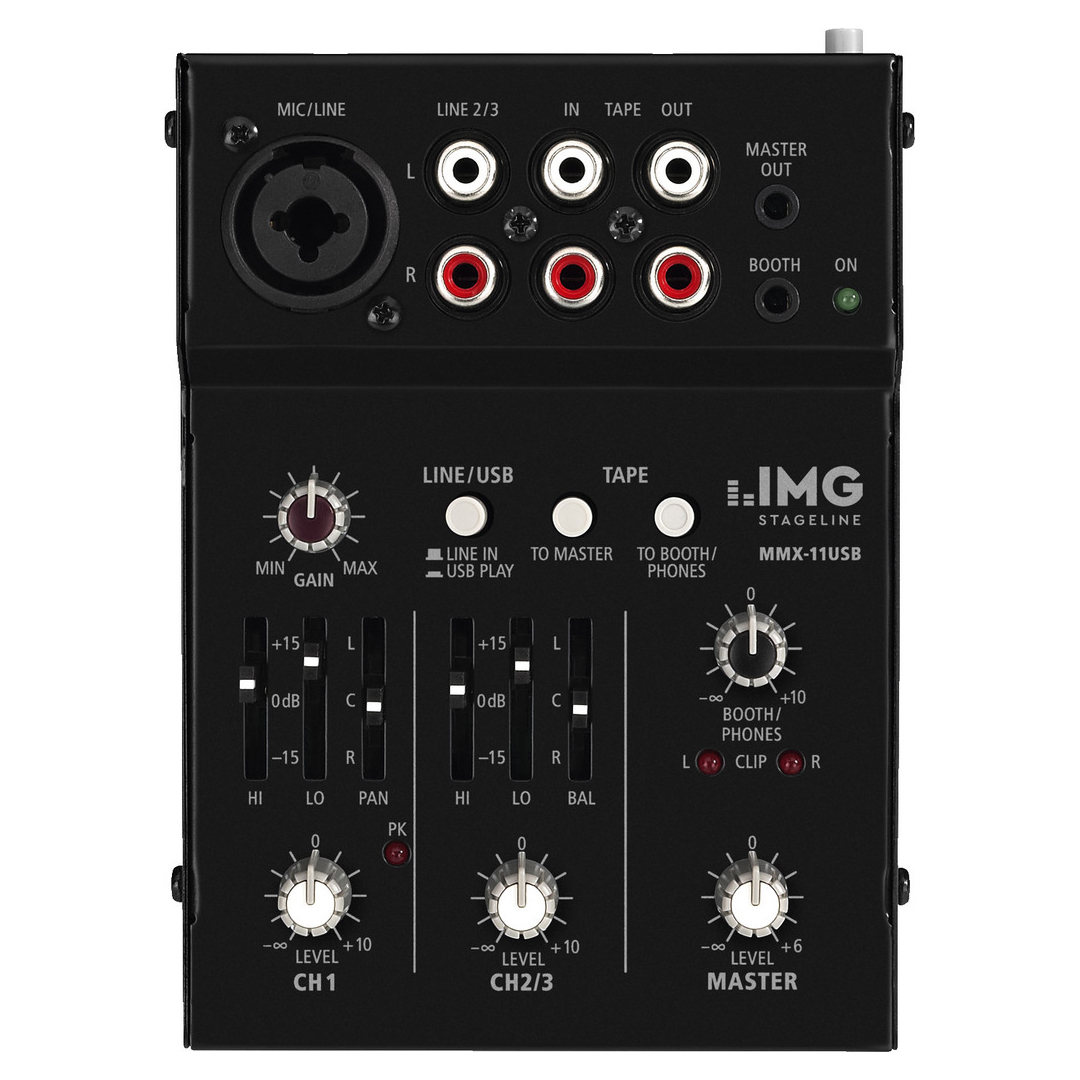

IMG Stageline MMX-11USB 2 channel miniature stereo audio mixer with 3 inputs and USB interface
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB type B port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 1 mono input channel with gain control, 2-way equalizer and pan pot, peak LED
- 1 stereo input channel with level control, 2-way equalizer and balance control
- Tape record/play connections
- 1 x 3.5 mm stereo output (master)
- Adjustable headphone output
- +20 V phantom power, permanent
- Clip LED
- Robust metal housing of compact size
- No. of channels: 2
- No. of inputs: 3
- Mic input: 0.5 mV, 1 x 3-pole XLR
- Line input: 150 mV (stereo), 1 x RCA L/R, 2 mV (mono), 6.3 mm jack
- Tape (play): 420 mV, 1 x RCA L/R
- Master output: 6 V max., 1 x 3.5 mm jack
- Booth output: 6 V max., 1 x 3.5 mm jack
- Tape (rec): 1 x RCA L/R
- USB: yes
- Frequency range: 20-20,000 Hz
- THD: < 0.05%
- S/N ratio: 81 dB, weighted
- Equalizer:
Bass: ±15 dB/80 Hz
Treble: ±15 dB/12 kHz - Phantom power: +20 V
- Power supply: via USB interface or via enclosed power supply
- Operating voltage (possible alternative): DC 5 V
- Power supply (possible alternative): DC 500 mA
- Admissible ambient temperature: 0-40 °C
- Width: 102 mm
- Height: 45 mm
- Depth: 140 mm
- Weight: 430 g
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
