Equinox Microbar Multi System Lighting System

Description

Equinox Microbar Multi System lighting system

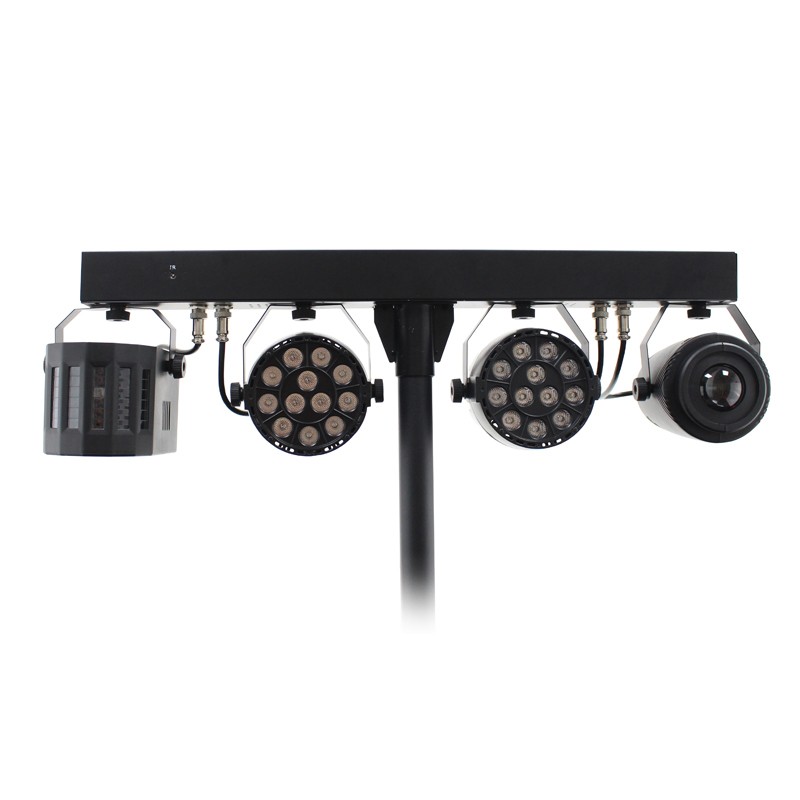

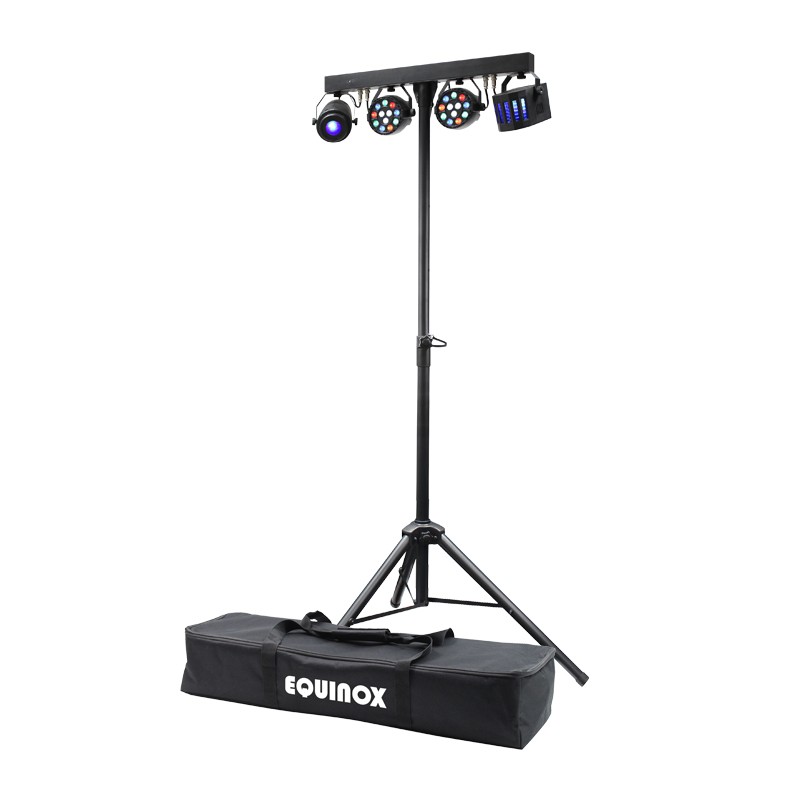

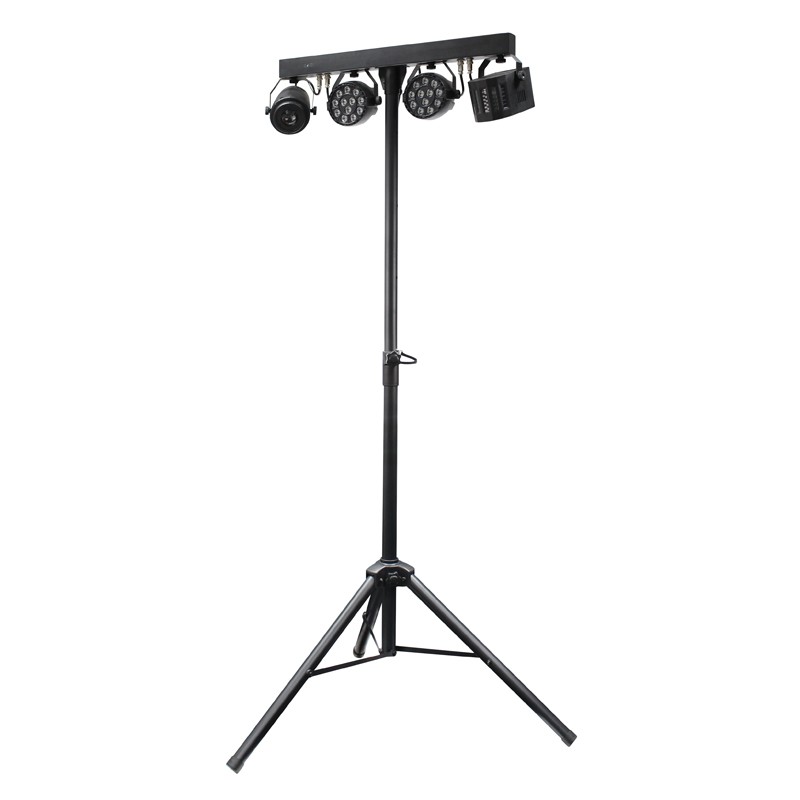

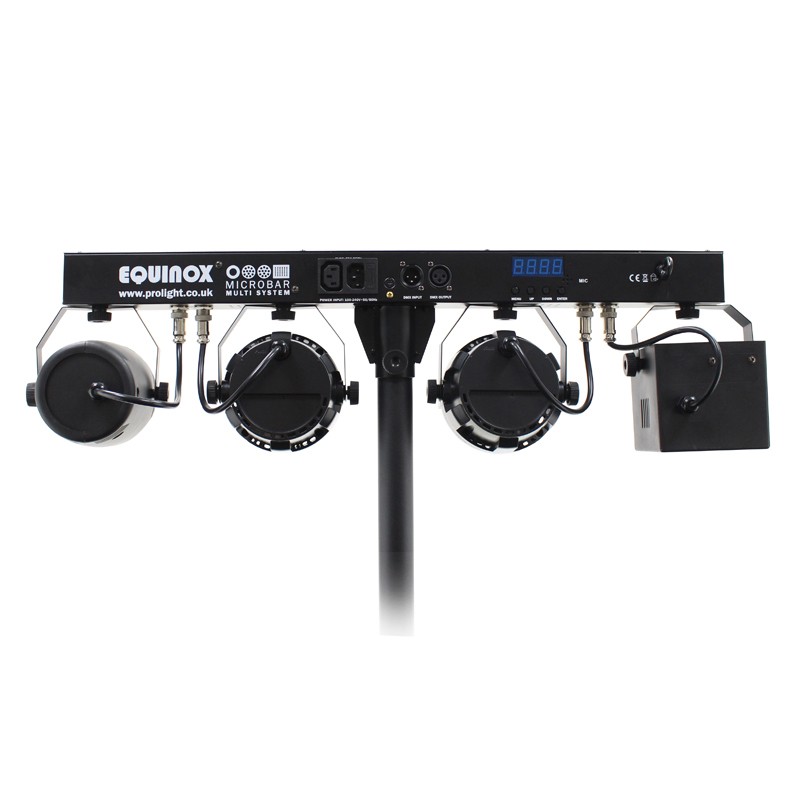

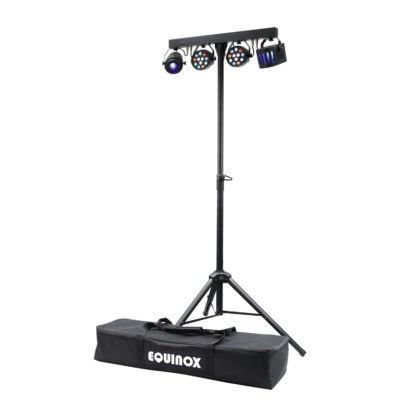

A compact, all-in-one lighting package, the Equinox EQLED136 Microbar Multi System includes a robust, heavy duty stand, heavy duty road bag, IR remote, 2 multi-colour LED Par panels and 2 light effects fitted to a powered T-bar. The 4 LED units are of a micro size and lightweight design. The user has control over colour, auto, sound active and DMX modes, via the LED display and push buttons. The IR remote gives instant and simple control over several control modes: blackout, auto, sound and colour

• 2 pars each containing 12 x 1W LEDs (R: 3, G: 3, B: 3, W: 3) plus 2 effects each containing 1 x 10W quad-colour LED (RGBW)
• Beam angle: 25° (pars)
• DMX channels: 3/6 or 15 selectable
• Auto, sound active and master/slave modes plus built-in programs
• 0-100% dimming and variable strobe
• 4 push button menu with LED display
• 3-Pin XLR input/output
• IEC power input and output
• IR remote control
• Height adjustable stand
• Carry bag included
• Power consumption: 55W
• Power supply: 100~240V, 50/60Hz
• Fuse: F3A 250V
• Stand height: 1600 – 1850mm
• Top hat: 35mm
• Dimensions (without stand): 200 x 750 x 165mm
• Weight: 5.7kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
