Citronic LOSUB-15A Active Subwoofer

Description

Citronic LOSUB-15A low profile 15″ 600W active subwoofer

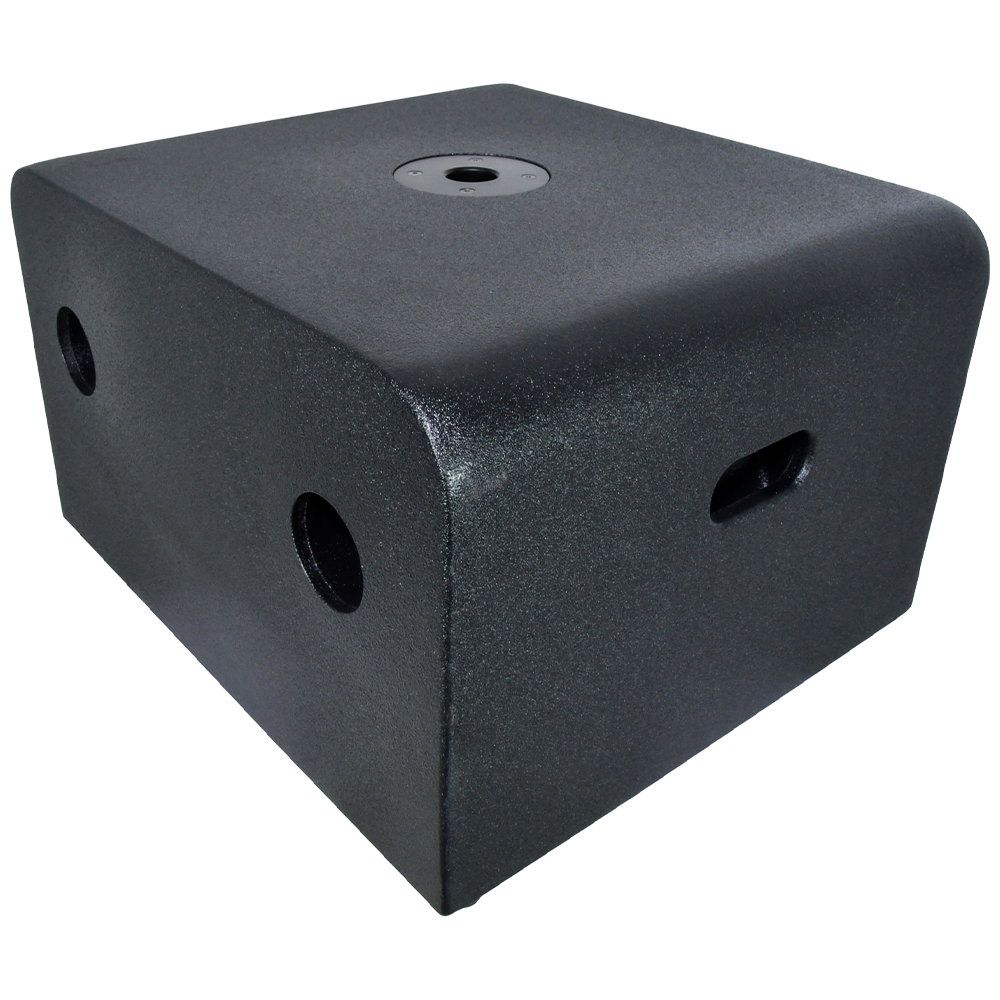

LOSUB is designed to offer a high power subwoofer unit with compact dimensions compared with traditional subs. Employing a downward angled baffle, the LOSUB creates a pressure zone at ground level and ports this forward, meaning that the driver is positioned to operate in a smaller enclosure. Sitting on the ground, the cabinet is just 36cm high and has a 35mm pole mount for adding a satellite full-range speaker. This low profile also enables the cabinet to fit under or beside furnishings and in narrow spaces for installation. The input section has 2 independent inputs and outputs for stereo link to a pair of active tops in a 2.1 configuration and there is an adjustable low pass filter and boost function to provide the right amount of sub output as needed. Whether is it for space-saving during transit or storage or for building into discreet spaces for installation, the LOSUB provides hefty power without eating up all your room.

• Semi-directional ported design
• Compact dimensions
• Stereo in/out for 2.1 operation
• Power supply: 230Vac, 50Hz (IEC)
• Construction: MDF enclosure with polyurea finish

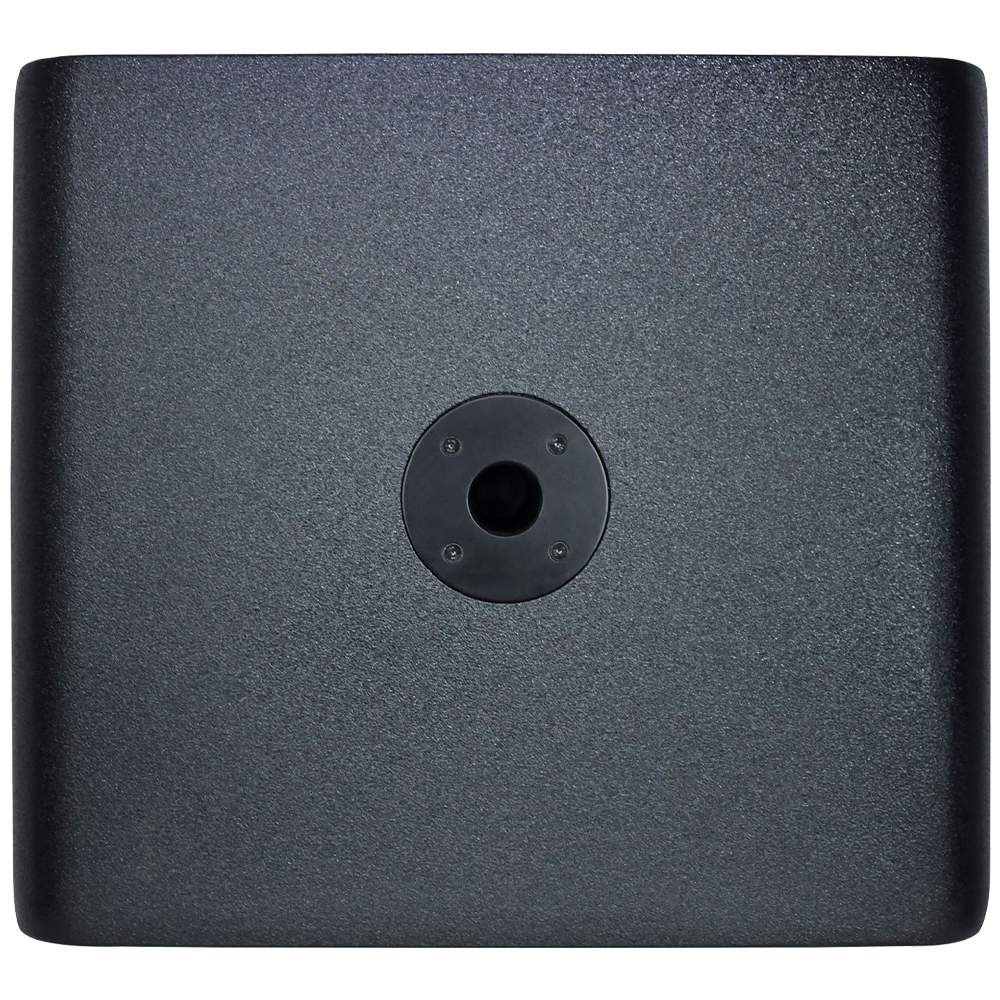

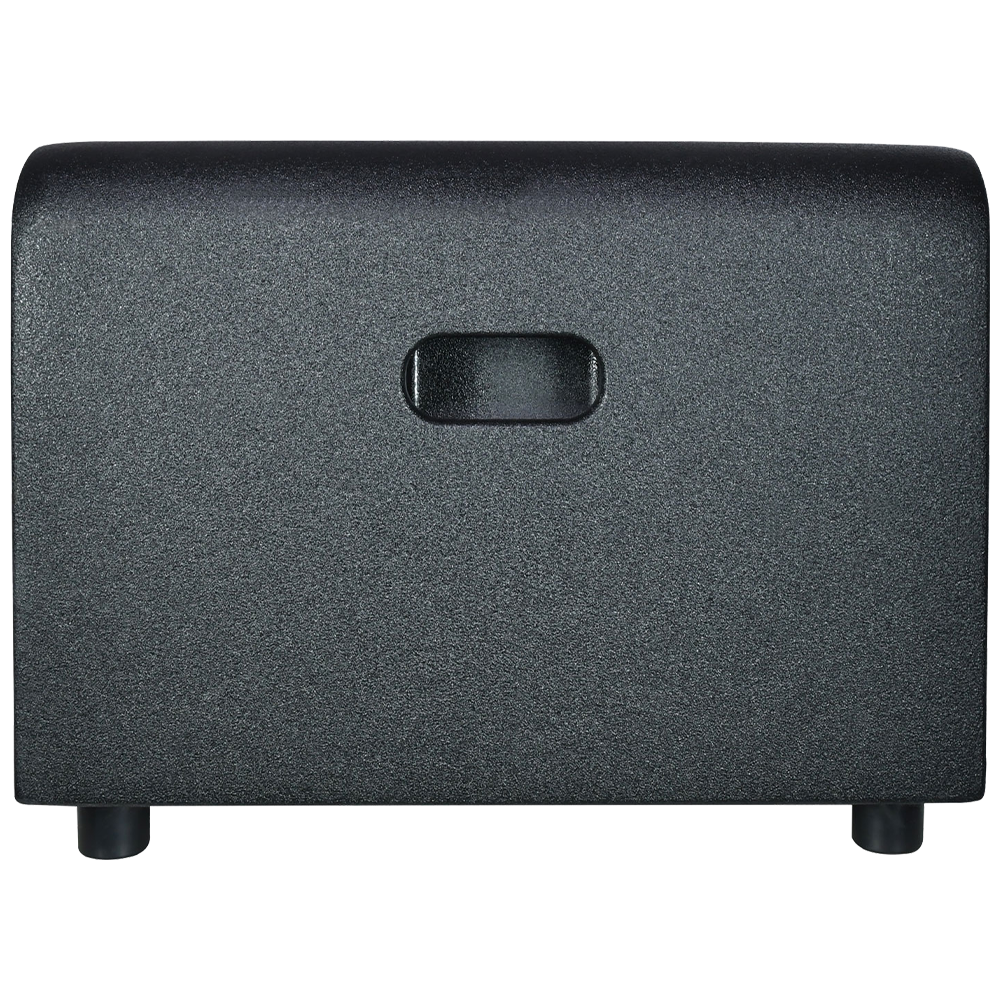

• Hardware: Routed handles & 35mm pole mount socket
• Amplifier construction: Class-D (fixed DSP)

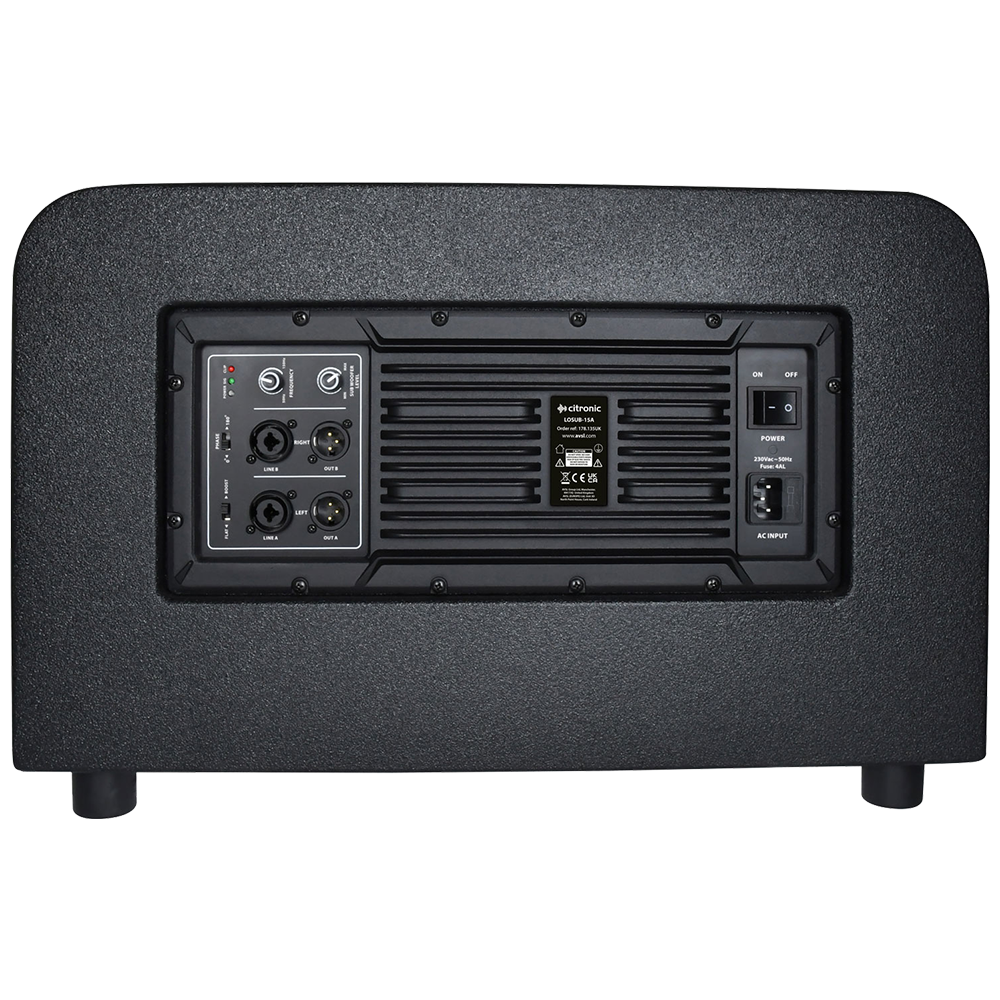

• Inputs: 2 x balanced XLR / 6.3mm jack
• Outputs: 2 x balanced XLR
• Controls: Flat/boost, phase switch, frequency, subwoofer level

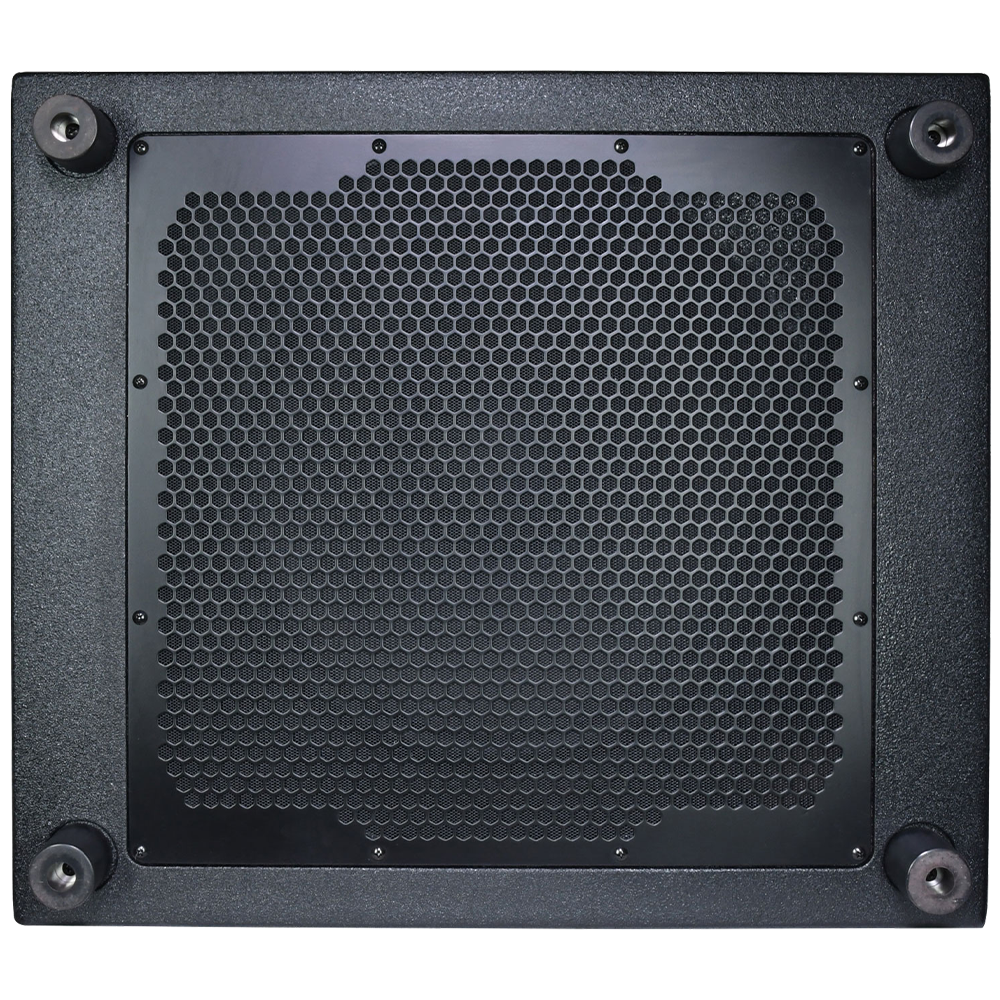

• Driver: 380mmØ (15″) sub woofer
• Voice coil: 75mmØ (3″)
• Magnet: 2.835kg (100oz)
• Output power:
  • RMS: 600W
  • Max: 1200W
• Frequency response: 40 – 120Hz
• Sensitivity @ 1W/1m: 96dB
• SPL max.: 127dB
• Dimensions: 550 x 480 x 360mm
• Weight: 24kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
