IMG Stageline L-RAY/1000 Theatre Speaker

SKU: 252090

£1,456.42 £1,747.70 incl. VAT

Powered line array speaker

Available on back-order



IMG Stageline L-RAY/1000 professional active line array loudspeakers for the smaller auditorium and theatre with PC software for PC’s running Windows XP or higher

PLEASE note that these line array speakers are available as special order only – they are not stocked in the UK. Please ask for delivery times

These active line arrays impress with perfect sound, professional adjusting and suspension facilities, high-quality workmanship and an amazing level of stability and sound radiation

Professional active PA speaker array with DSP software – 1,000w PPMO – 700w RMS (350 + 350w)

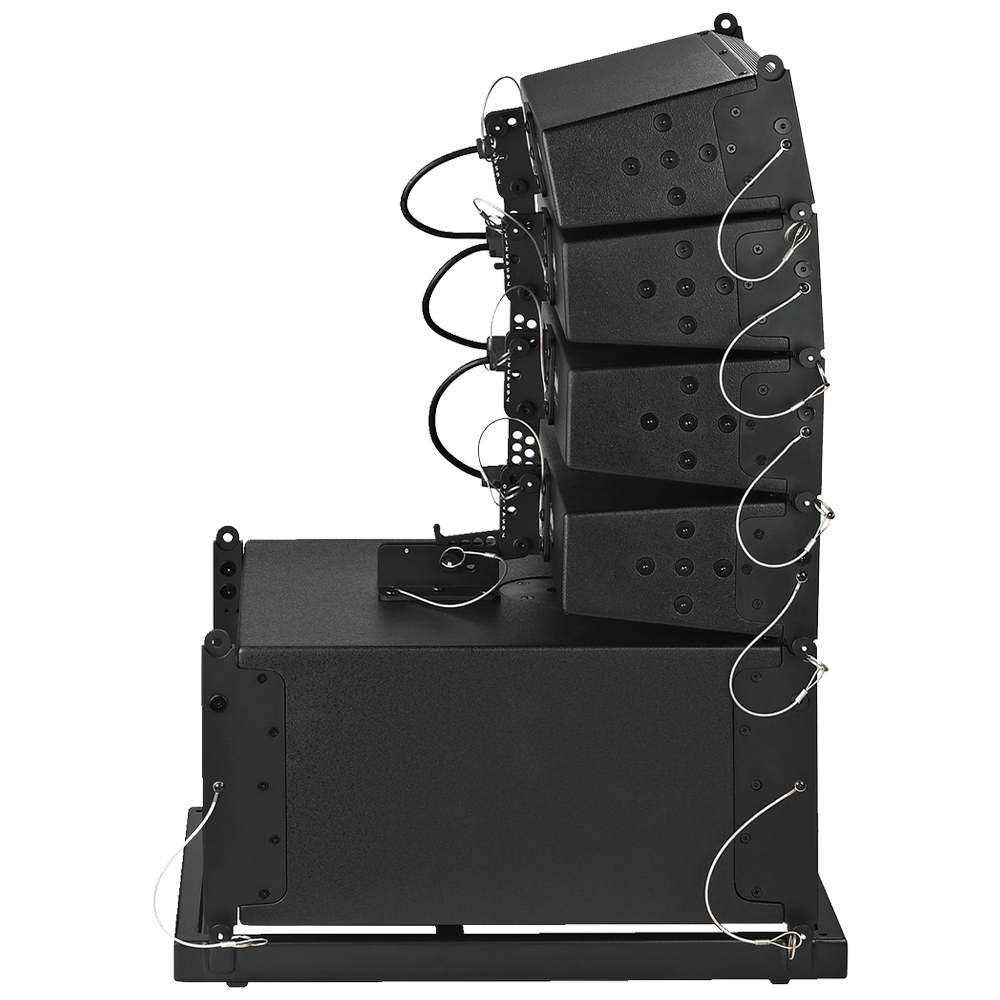

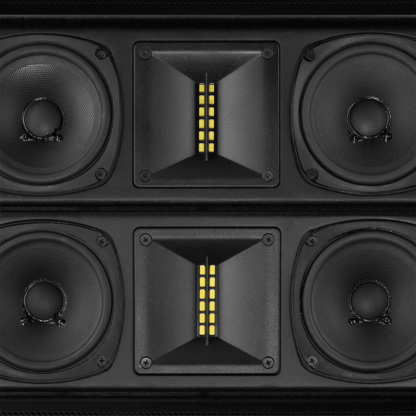

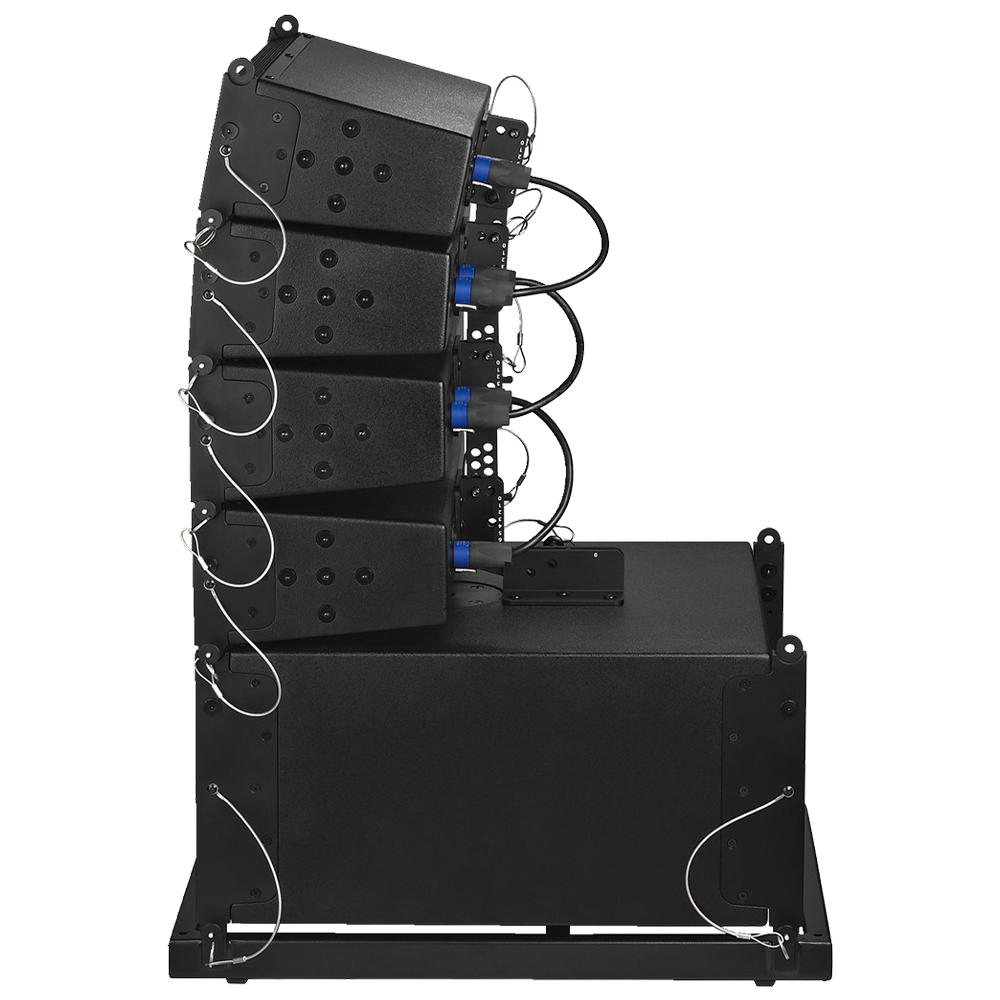

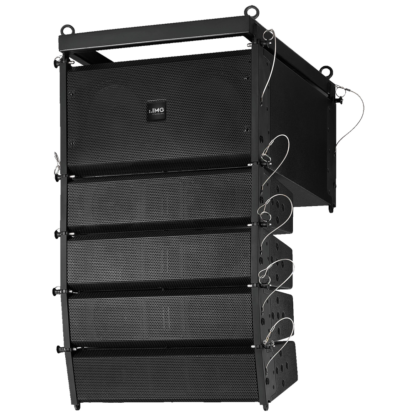

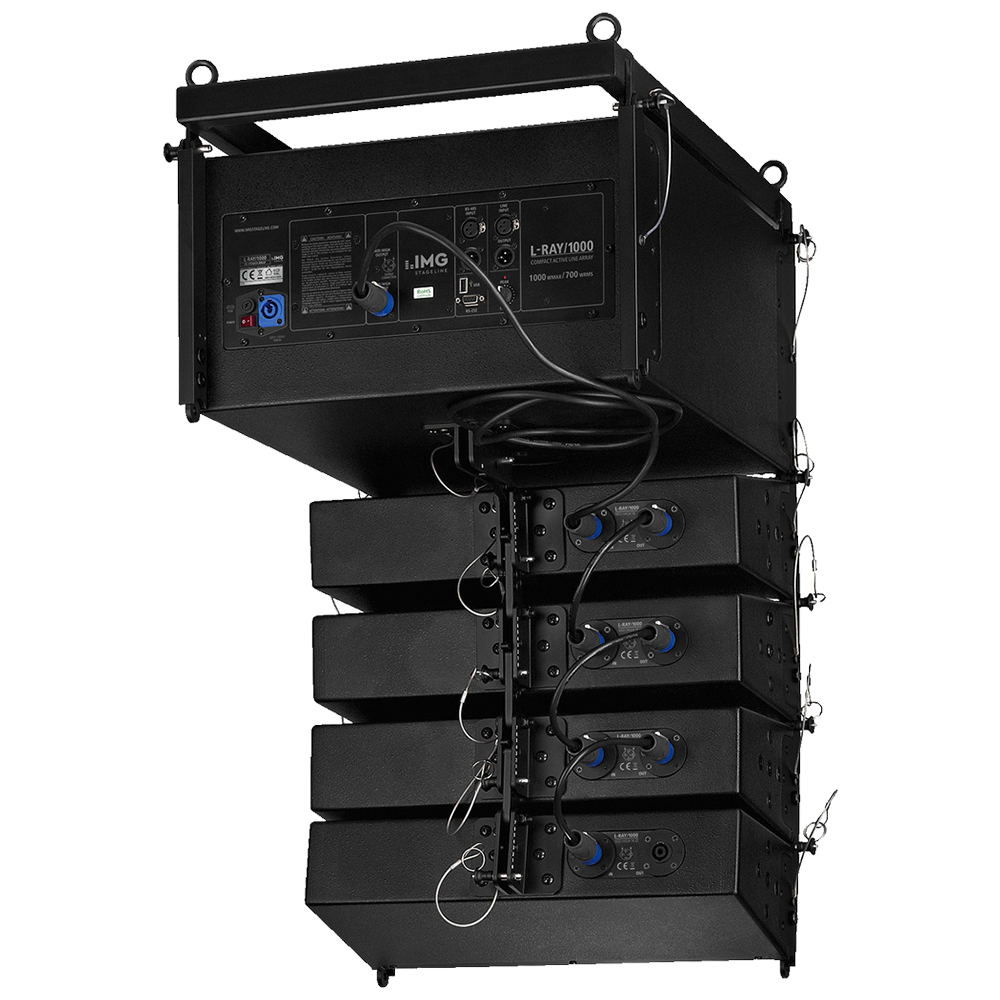

A compact array of high power capability with 4 mid-high range speaker units and a dual bass module, each section with its own 350w RMS power amplifier and controlling software (the configuration of the system is supported by a Windows PC but can operate as a stand-alone unit) Supplied with extensive and variable equipment for suspended mounting systems (Flyware), clusters with up to 4 x L-RAY/1000 are possible. The mid-high range systems are each equipped with 2 x 10 cm (4″) high-performance speakers and a ribbon tweeter for a perfect reproduction that is rich in detail. The dynamic characteristics are absolutely stunning while the basic setting quality is perfect for many applications. Despite its compact size, the bass module with two 20 cm (8″) bass speakers provides an amazingly deep bass reproduction and a high level stability which is only possible by using special bass speakers of very high power capability and the extensive optimisation of the DSP software

The software allows the following adjustments (min. system requirement is a Windows PC with WIN98 or higher, with CD drive and interface)

  • Designed for Music – Theatre – Studio
  • 2 x 8″ bass speakers
  • 8 x 4″ full range speakers
  • 4 x ribbon tweeters
  • overall size 495 x 850 x 610mm
  • Parametric equalizer (6 bands)
  • Filters (high-pass or low-pass up to 36 dB/oct. with various characteristics)
  • Level
  • Compression and limiting
  • Delay
  • Supplied as a single array only – NOT packed in pairs

Up to 10 L-RAY systems can be addressed via one RS-485 data bus. With the optional USB/RS-485 converter DA-70157, it is possible to connect a PC or notebook with USB interface to the serial RS-485 interface

On delivery, the software of the system is matched to a perfect base linearity and the system can be used immediately in ‘flat mode’. Otherwise, the software adjustments are extremely easy to adjust and the software is intuitive

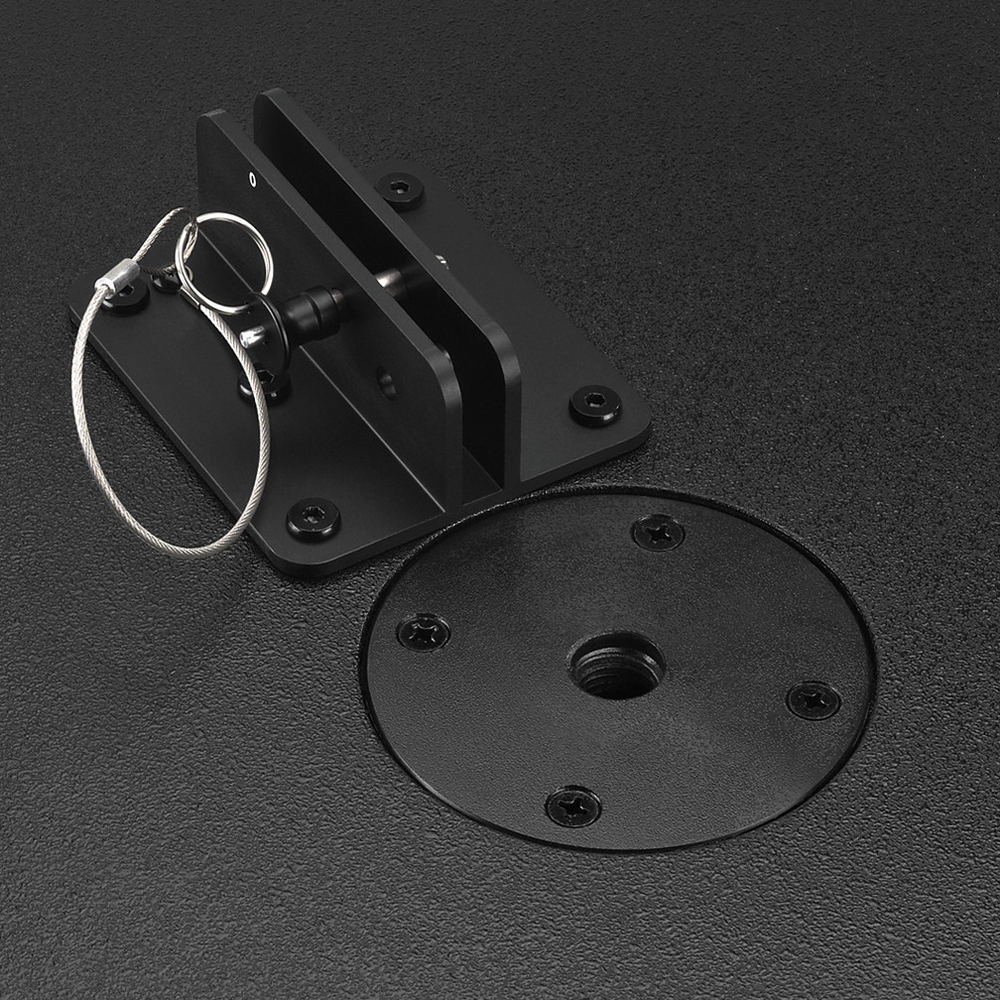

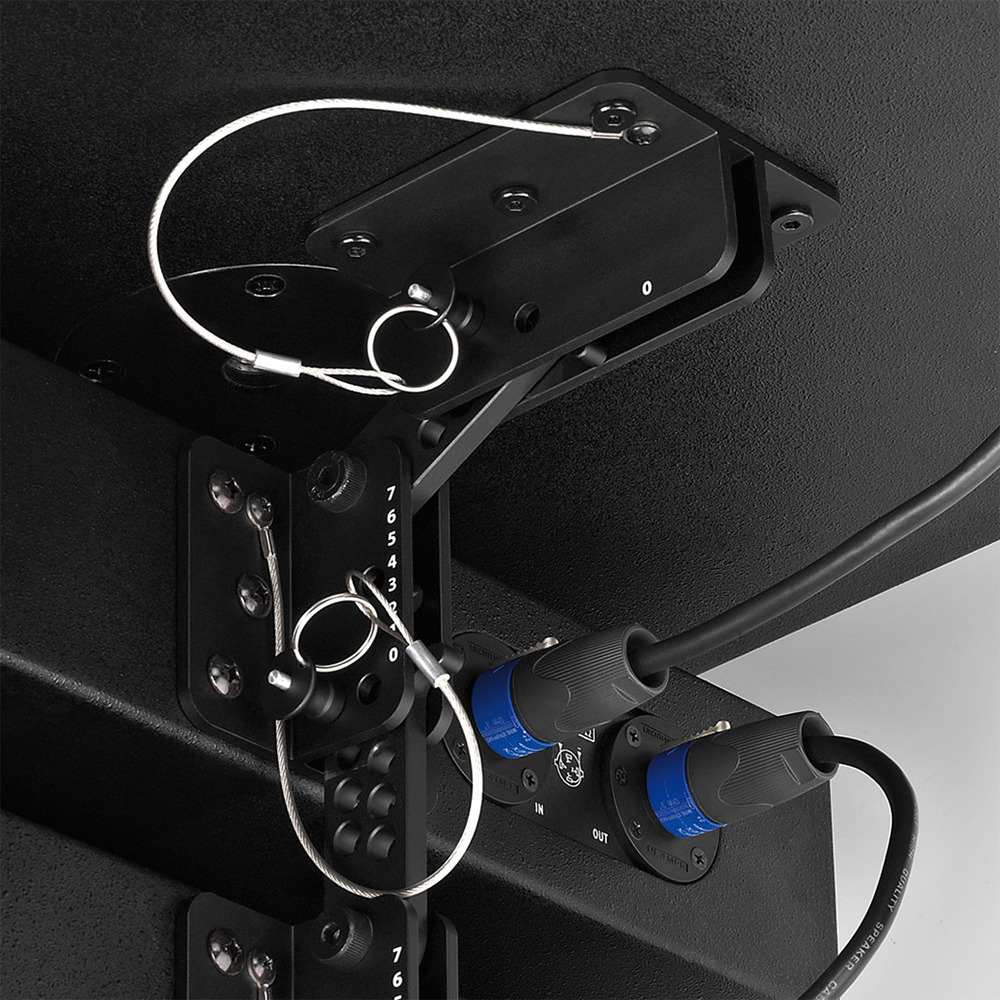

Neutrik Speakon system connection cables are supplied as are adjusting elements for the alignment of the system and solid eyelet bolts for suspension. Connection to the mains is via a PowerCon® jack (e.g. with mains cable AAC-115P – available separately)

The stable wooden cabinets feature powder coated grilles which protect against ball rebound etc.

The L-RAY/1000 systems are a very high-quality solution for every PA application where both perfect tonality and perfect radiation across the room are required. The advantages of the system particularly take effect with fixed installations in clubs and discotheques as well as mobile stage applications of medium size. For larger PA applications, the use of several L-RAY in a cluster is recommended

These powered speakers are available as L-RAY/1000SW in black

For professional installation only. The flying of these loudspeakers must meet all current safely regulations

  • Active/passive: active
  • Frequency range: 50-25,000 Hz
  • Amplifier power: 700 W (350 W + 350 W)
  • Max. power: 1,000 W
  • THD: < 0.1%
  • S/N ratio: 80 dB
  • Input signal: 1-10 V/30 kΩ
  • System: compact line array
  • Bass speaker: 2 x 20 cm (8″)
  • Midrange speaker: 8 x 10 cm (4″)
  • Tweeter: 4 x magnetostatic speaker
  • Speaker size: 20 cm (8″)
  • Sensitivity: 98 dB/W/m
  • Max. rated SPL: 121 dB
  • Radiation angle, horizontal: 120°
  • Radiation angle, vertical: 30°-90° var.
  • Material (housing/cabinet): wood
  • Colour: black
  • Admiss. ambient temp.: 0-40 °C
  • Power supply: ˜ 230 V/50 Hz/1,400 VA
  • Width: 495 mm
  • Height: 850 mm
  • Depth: 610 mm
  • Weight: 47.88 kg

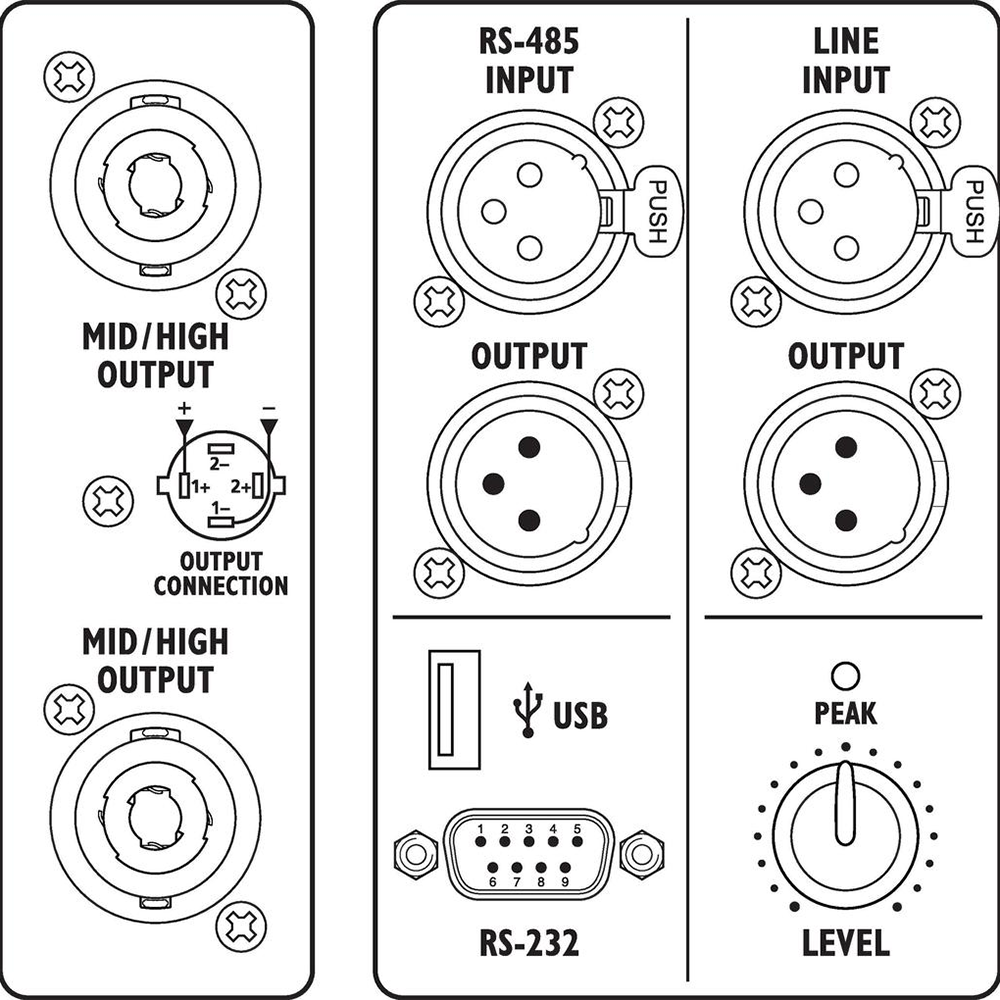

  • Inputs: XLR jack (line), NEUTRIK SPEAKON (speaker), PowerCon (power supply)
  • Outputs: XLR par. out (line), NEUTRIK SPEAKON par. out (speaker)
  • Other features: interface for DSP programming: USB, RS-232, RS-485 IN & OUT, supplied with software which is both extremely easy to use and very efficient


IMG Stageline

Professional Event Technology. With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing consoles and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality.

Additional information

Weight47.88 kg
Dimensions61 × 49.5 × 85 cm
Output (RMS)




User Manuals

Magazine Reviews

Xound 01/2009
The L-RAY/1000 gives a convincing performance. The system provides a detailed reproduction of absolutely low distortion up to the highest frequencies, even at high volume levels. A real pleasure with perfect speech intelligibility. Excellent price-performance ratio!
Remarkable features for this price class. The L-RAY/1000 provides a clear and precise sound with a little help from the system controller and impresses by remarkable level reserves.
tools4music 03/2008
Beside an unobtrusive appearance, the L-RAY/1000 also provides a pleasant sound with a good speech intelligibility and convincing operating ranges. It is quite amazing what this little system is capable of.
Dirk Wedell, PROSOUND 04/2008
The L-RAY from IMG Stage Line is a useful tool which is available at a favourable price and works exactly as you need it.
