Citronic H2400 Hybrid Stereo Power Amplifier

SKU: 172.125

£402.99 + VAT    £483.59 incl. VAT

2 x 600W into 8Ω low impedance stereo hybrid power amplifier

In stock

Low Impedance 2 Ohms
Low Impedance 4 Ohms
Low Impedance 8 Ohms
Stereo

PDF

Description

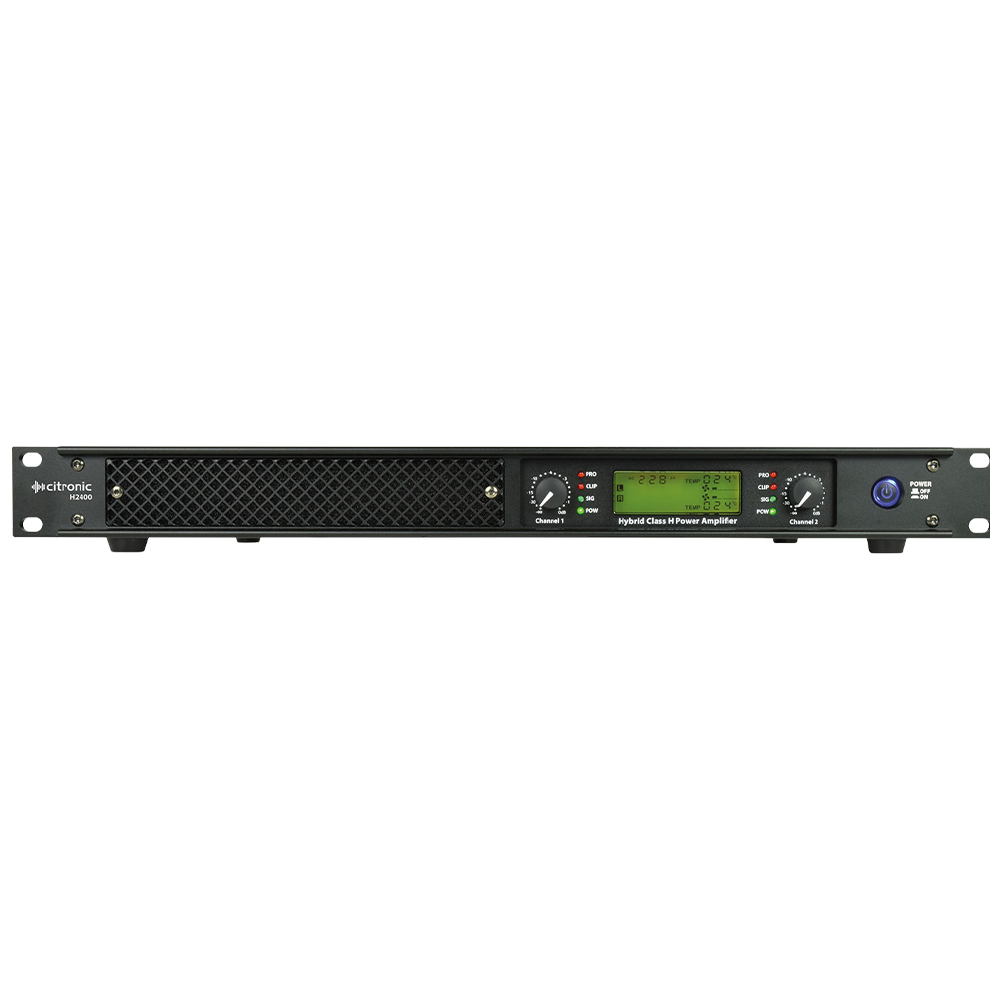

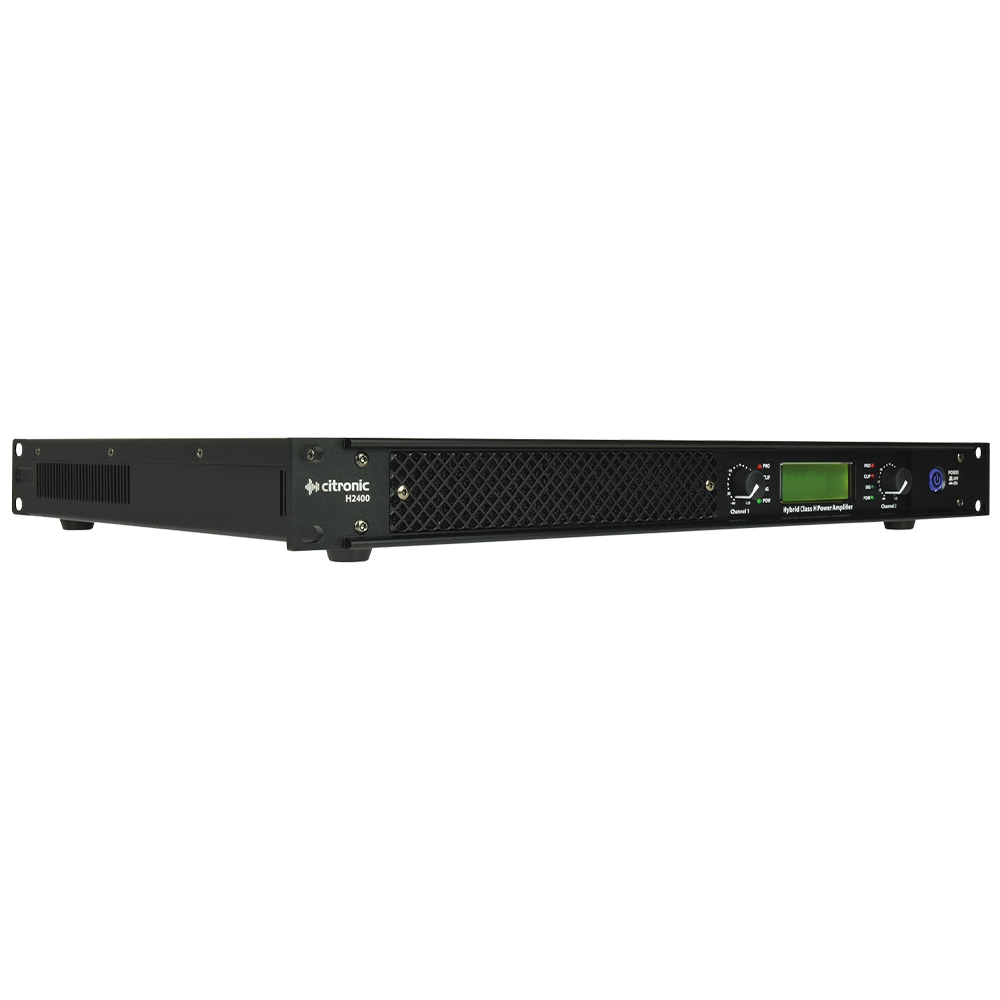

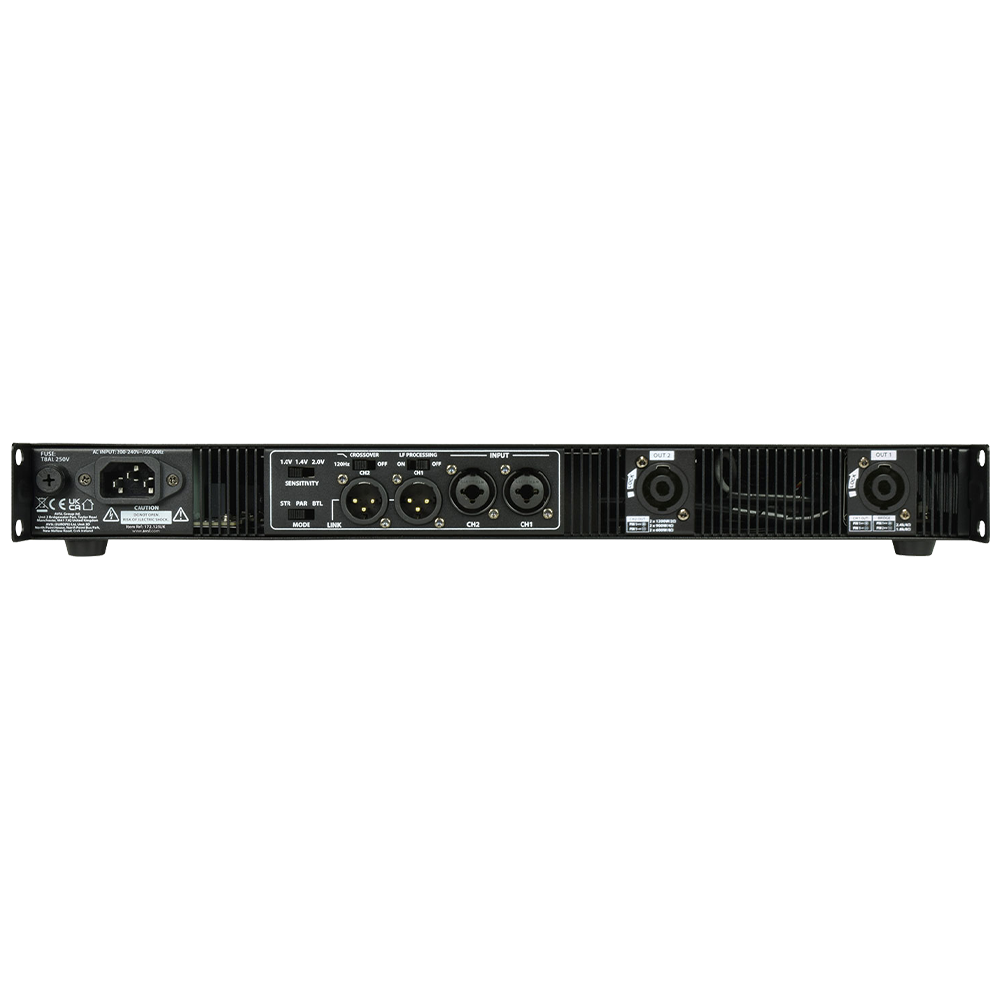

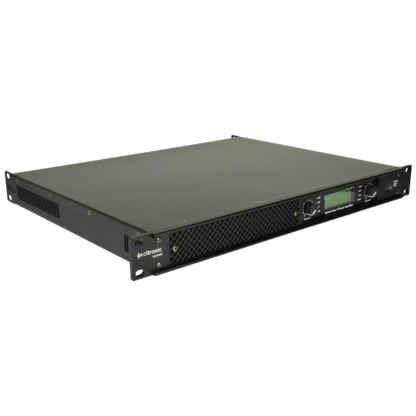

Citronic H2400 2 x 600W hybrid class H power amplifier

Lightweight power amplifiers in a 19″ rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

  • Hybrid class-H circuit design
  • Digitally controlled and monitored power section
  • Switchable 120Hz low-pass crossover
  • Backlit LCD status display
  • Full internal thermal and overload protection
  • Stable down to 2 Ohms (4 Ohms bridged)
  • Weight: 7.0kg
  • Power (RMS):
    • Bridge @ 4 Ohms: 2400W (40ms burst 1kHz sine)
    • Bridge @ 8 Ohms: 1800W
    • 2 Ohms: 2 x 1200W (40ms burst 1kHz sine)
    • 4 Ohms: 2 x 900W
    • 8 Ohms: 2 x 600W
  • Fuse: T8AL 250V
  • Dimensions: 483 x 361 x 44 mm (1U)
  • Power supply: 200-240Vac, 50Hz (IEC)
  • Amplifier construction: Hybrid Class-H
  • Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush
  • Frequency response: 20Hz-20KHz ±0.5dB
  • Crossover: Switchable full range or fixed 120Hz low-pass filter
  • THD +N: 0.2%
  • S/N ratio: -95dB
  • Damping factor: >700
  • Input sensitivity: 1.0V – 1.4V – 2.0V switchable
  • Input impedance: 20KΩ (balanced), 10KΩ (unbalanced

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight7 kg
Dimensions36.1 × 48.3 × 4.4 cm
Output (RMS)

1200W

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, SpeakON (SPK)

Impedance

2Ω, 4Ω, 8Ω

Colour

Black

Condition

New

Brand

Citronic

A brand with history, Citronic is still going strong after 40 years. It has evolved to become a leader in the professional audio market and is now the ideal choice for installers, hire companies and mobile DJs. The comprehensive Citronic range offers reliable and durable products from loudspeakers through to DJ headphones. As a DJ and PA industry pioneer, Citronic developed many of the features that have since become industry standards. The Citronic philosophy has always been to push the barriers of quality and innovation, yet maintain a reputation for “out of the box” reliability with fully featured and affordable products. Over the last 10 years Citronic has taken strides to grow from a humble 30 products to over 200. This versatile range now covers simple home DJ plug & play set-ups and fully featured outboard equipment, right through to high-powered installations. This allows Citronic to service many sectors of the entertainment industry including pubs, nightclubs, hotels and studios, as well as supplying distinctive products DJs. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • H-series 1U power amplifier
  • IEC power lead(s)
