DMX

Equinox Gigabar MKII lighting system

£203.00 £243.60 incl. VAT

All-in-one lighting system

Frequently Bought Together

IMG Stageline DLT-123 DMX terminator

DMX resistance terminating plug

DMX icon

PDF

Description

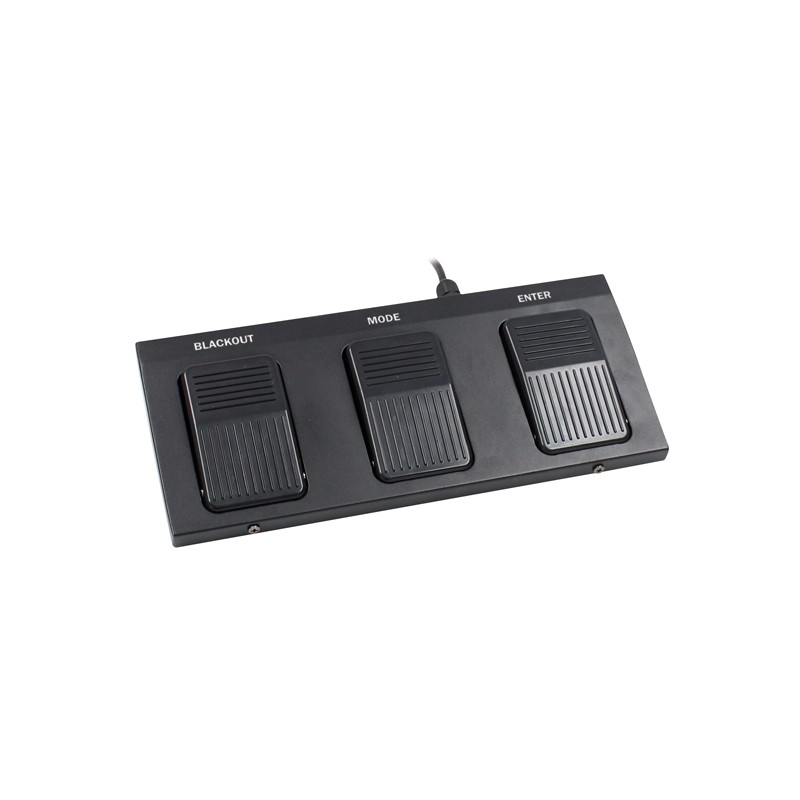

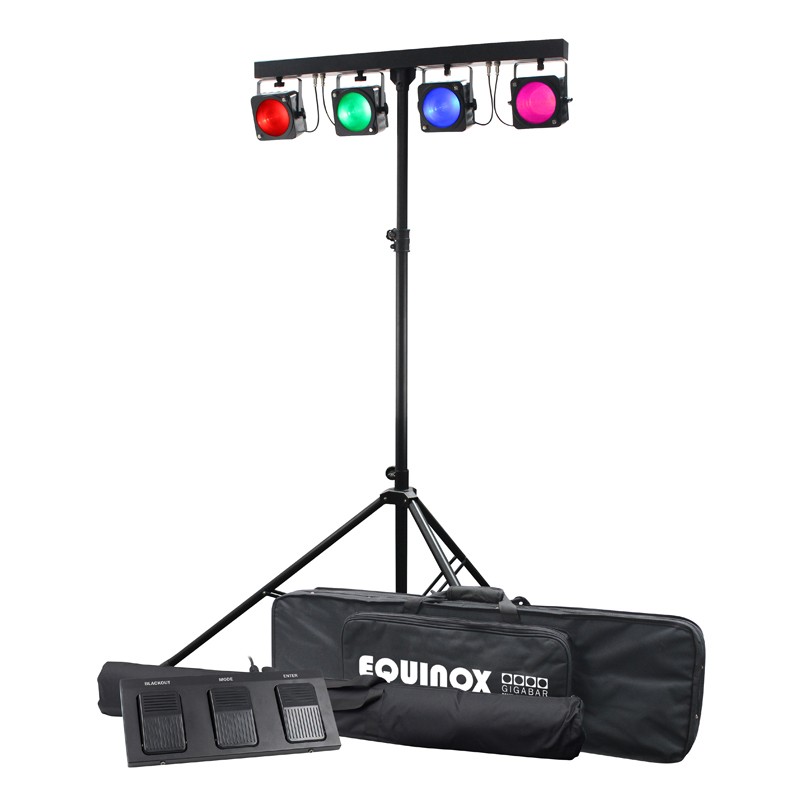

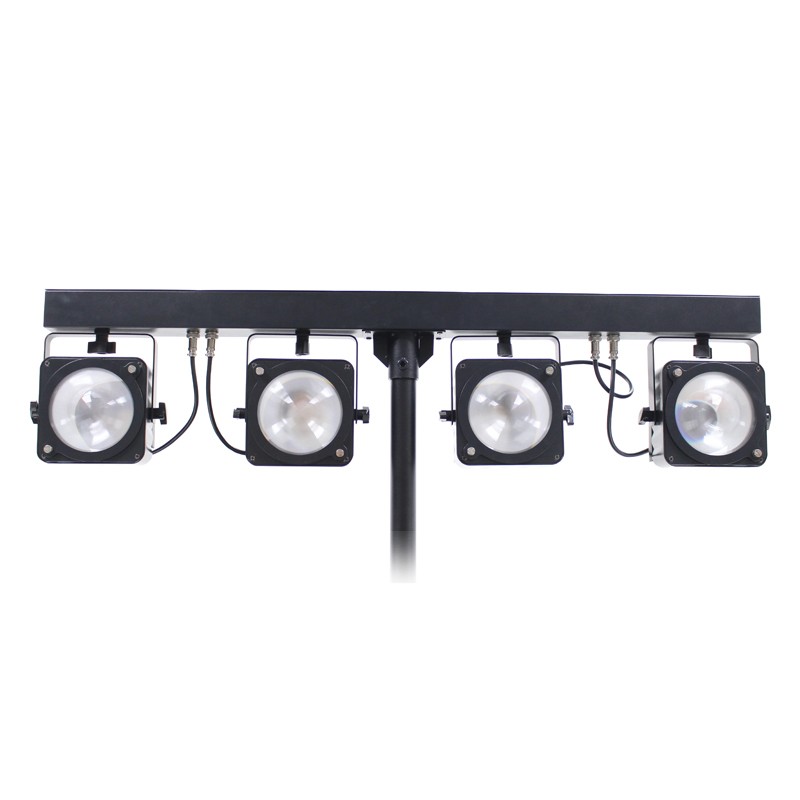

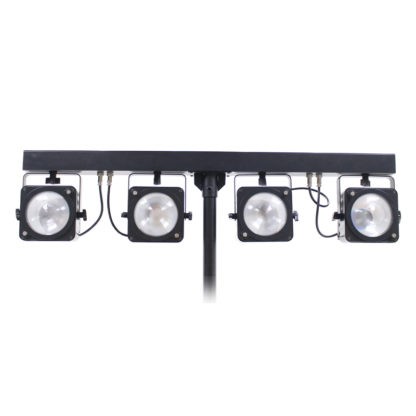

Designed to be an all-in-one lighting package, the Equinox EQLED66 Gigabar MKII all-in-one lighting system includes a robust stand, road bag, foot controller and 4 multi-colour LED Par panels fitted to a powered T-bar. The multidirectional par panels create a multitude of effects and are independently adjustable for maximum room or stage coverage. The foot controller gives instant and simple control over several control modes. With the convenience and ease of fast set-up and take-down this system is ideal for mobile entertainers

  • Gigabar MKII all-in-one lighting system
  • 4 x 30W tri-colour COB LEDs (RGB)
  • Beam angle: 95°
  • Beam angle with supplied lens: 30°
  • 1,120 Lux @ 2m (per par, full on)
  • DMX channels: 1/3/7/12 or 16 selectable
  • Auto, sound active and master/slave modes plus built-in programs
  • 0-100% dimming and variable strobe
  • 4 push button menu with LED digital display

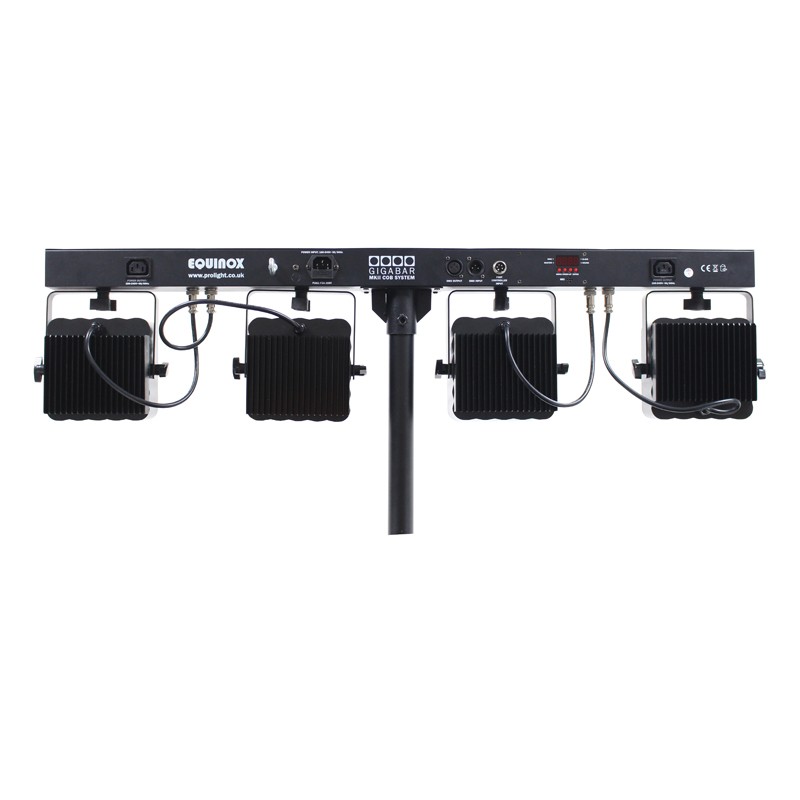

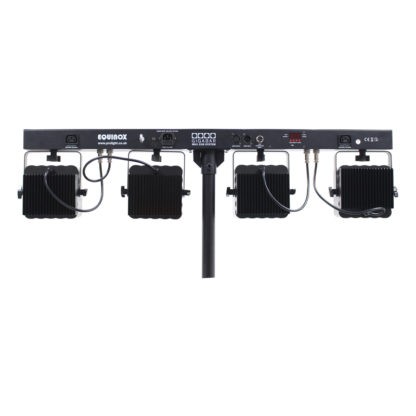

  • 3-Pin XLR input/output
  • 5-Pin input for included foot controller
  • IEC power input
  • 2 x IEC power outputs (unswitched)

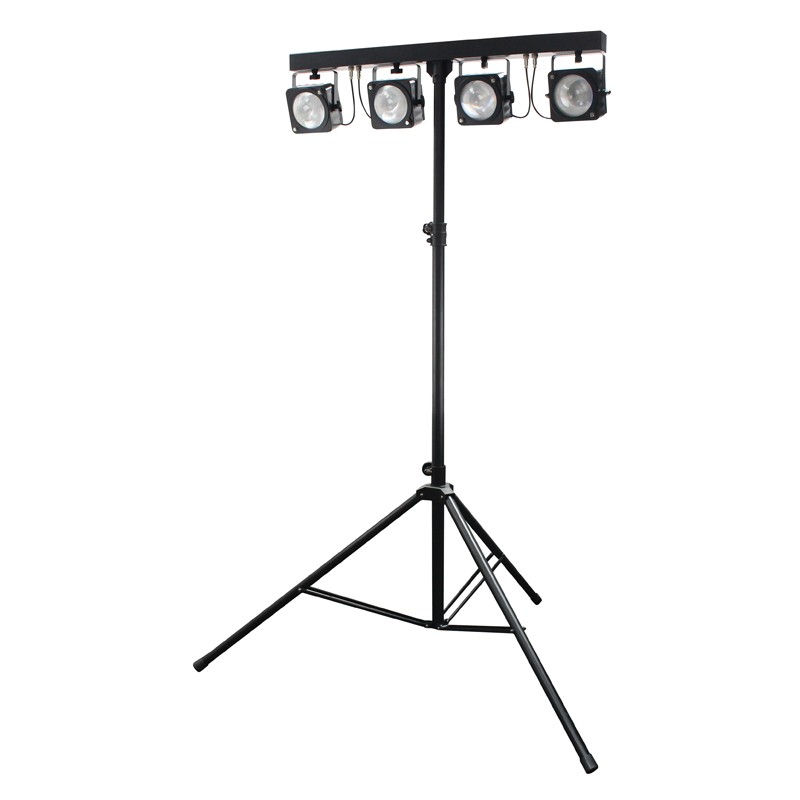

  • Height adjustable stand included
  • Carry bag included
  • All metal design
  • Convection cooled
  • Power consumption: 130W
  • Power supply: 100~240V, 50/60Hz
  • Fuse: F3A 250V
  • Stand height: 1340mm – 2100mm
  • Dimensions of bar: 235 x 990 x 90mm
  • Dimensions of foot controller: 40 x 320 x 140mm
  • Weight: 12.5kg

Brand

Equinox

The longstanding Equinox brand has evolved over the years to become the go to lighting, effects and truss brand in the mobile DJ industry. The product range also lends itself to a variety of applications including entertainers, events, exhibitions, pubs, weddings and marquees. Equinox is not only a provider of great lighting solutions, they are supported by an array of other products including special effects, mirror balls, stand and truss solutions, booths, cases, bags, controllers and fluid to name but a few.

Additional information

Weight12.5 kg
Dimensions9 × 99 × 23.5 cm
Light Colour

RGB

Colour

Black

User Manuals
