Description

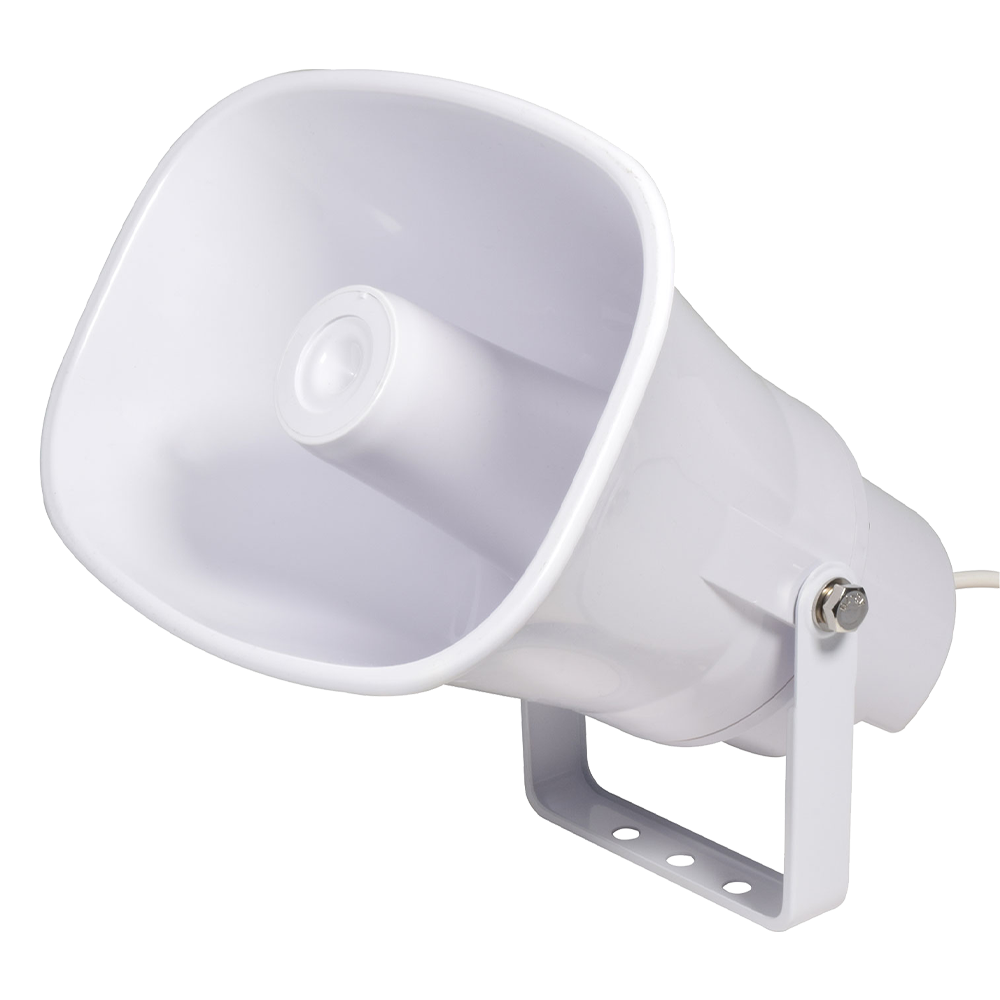

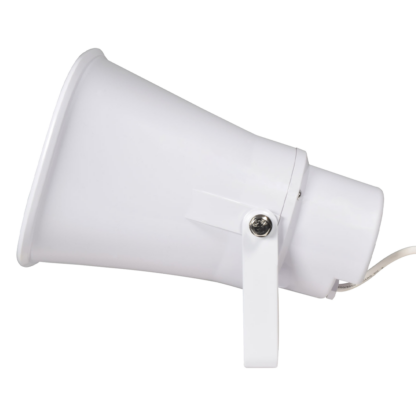

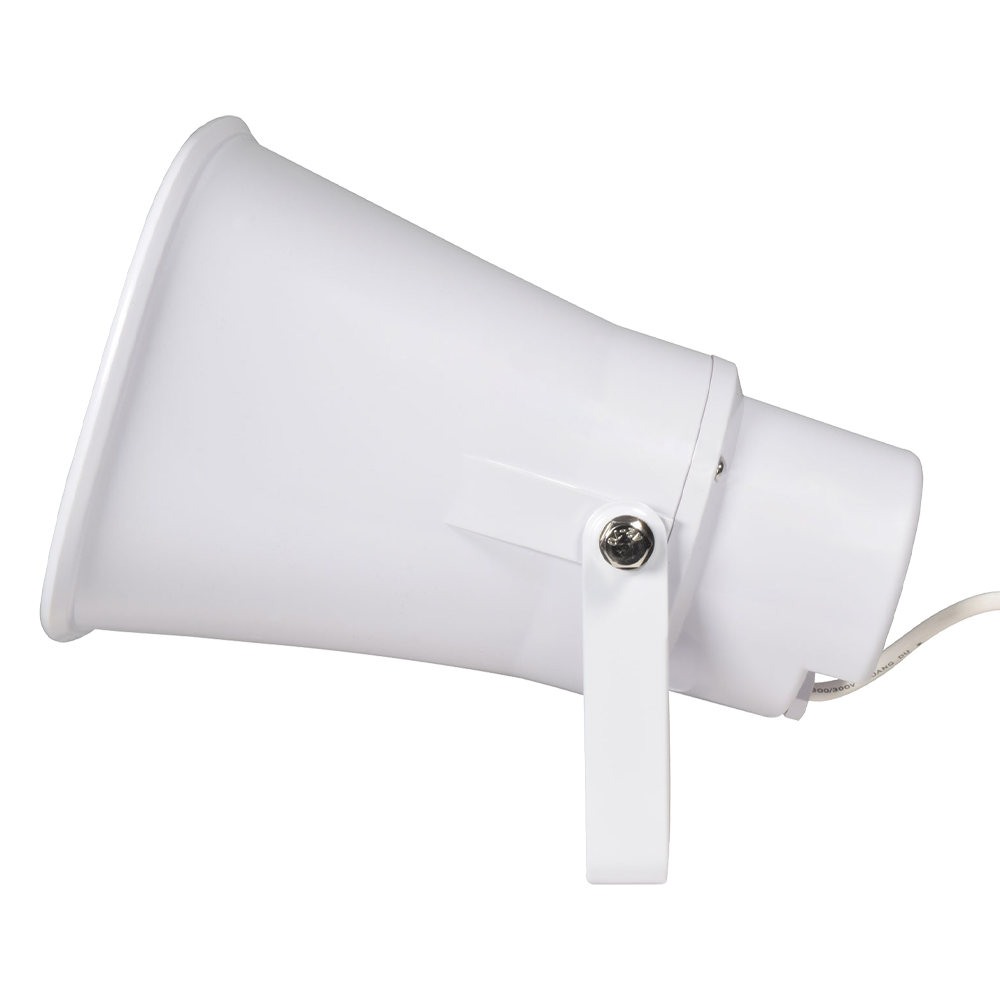

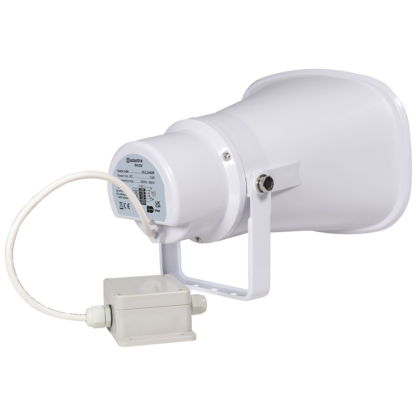

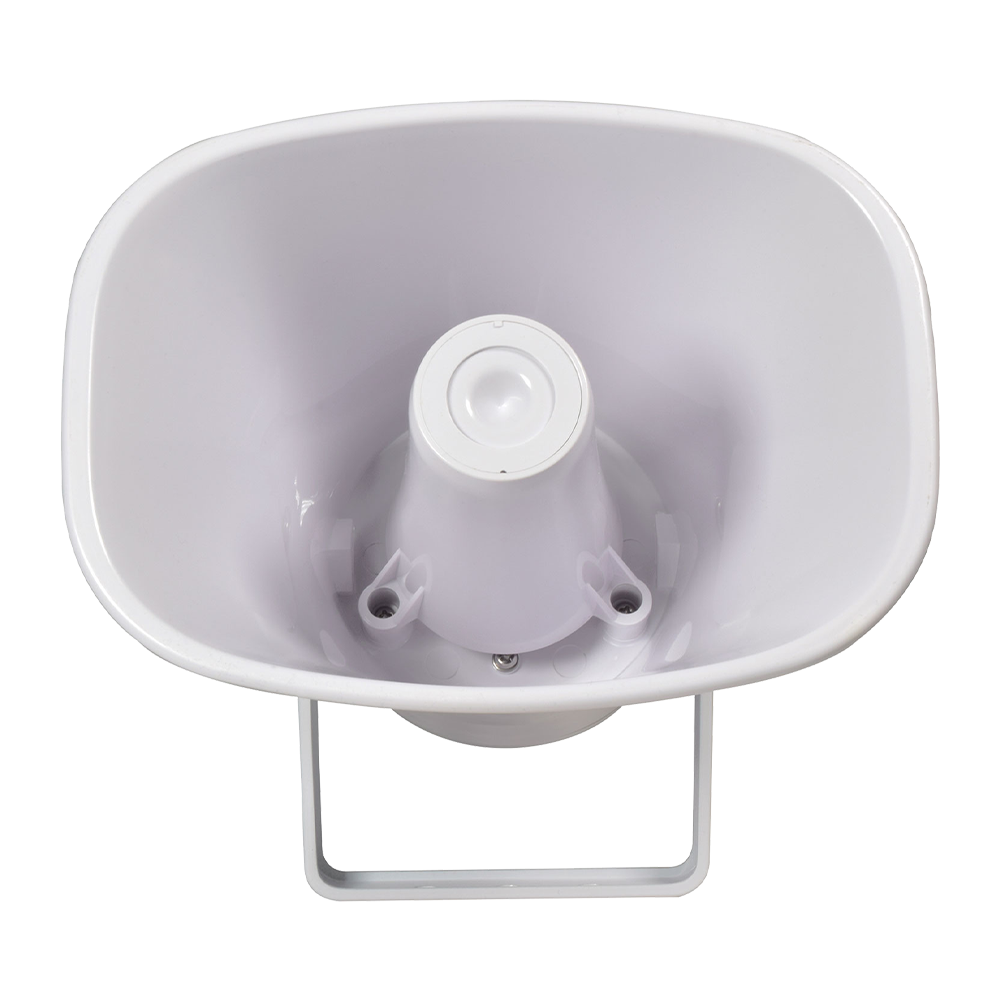

Adastra FH15V 15w 100v line EN54-24 IP66 rated fire horn speaker
Moulded ABS weatherproof horn speakers with EN54-24 fire rating. Low impedance (8 Ohm) or 100V operation with switchable volume tappings (70V settings also included). Hard-wired with a fire-resistant cable and junction box, fitted with a ceramic screw terminal block and thermal fuse. Surface mounting via a stainless adjustable U-bracket. Designed for voice announcements and alerts in commercial PA installations.
- EN54-24 fire systems certification
- IP66 weatherproof
- 5VB fireproof ABS material
- 100V, 70V or 8 Ohm operation
- Ceramic terminals and thermal fuse
- Construction: 5VB fire-rated ABS housing, stainless metal bracket
- IP rating: IP66
- Fire rating: EN54-24 certified

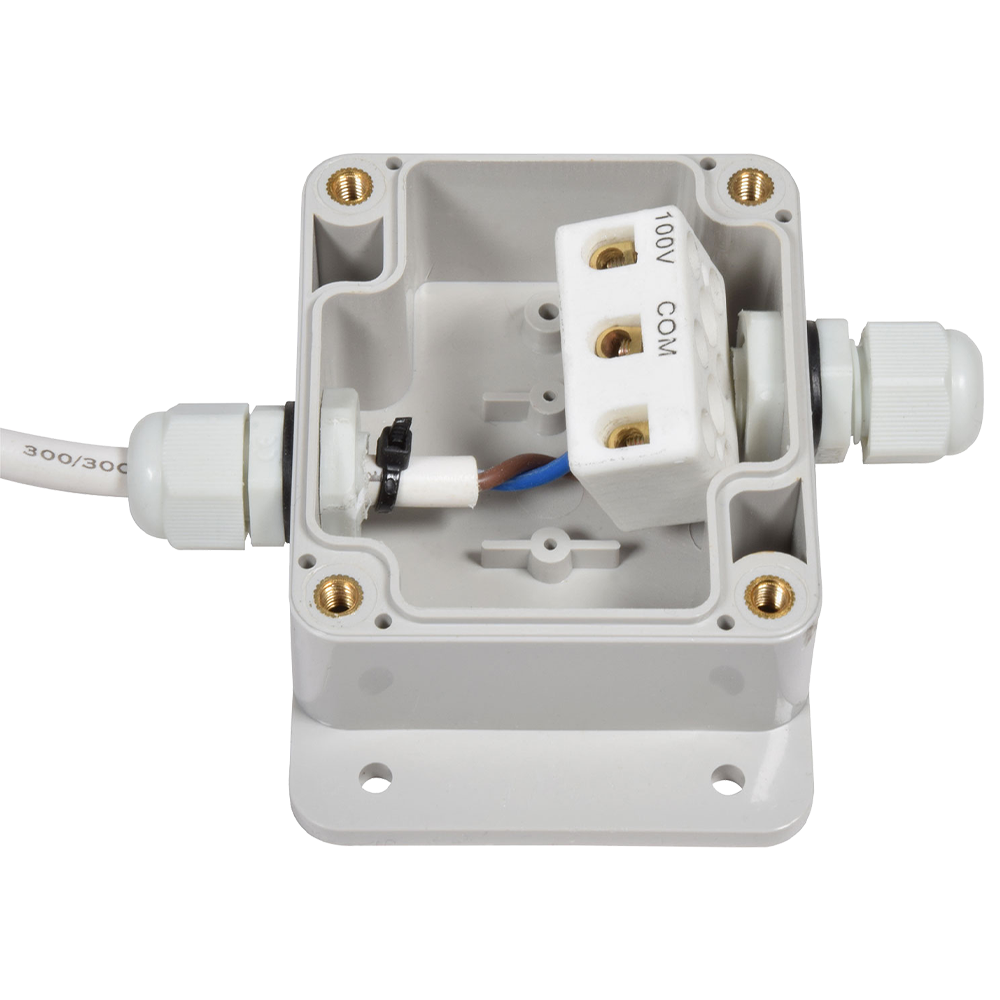

- Connection: Hard-wired fire-resistant cable, ceramic terminal block
- Circuit protection: Thermal fuse
- Power rms : 8 Ohms: 15W

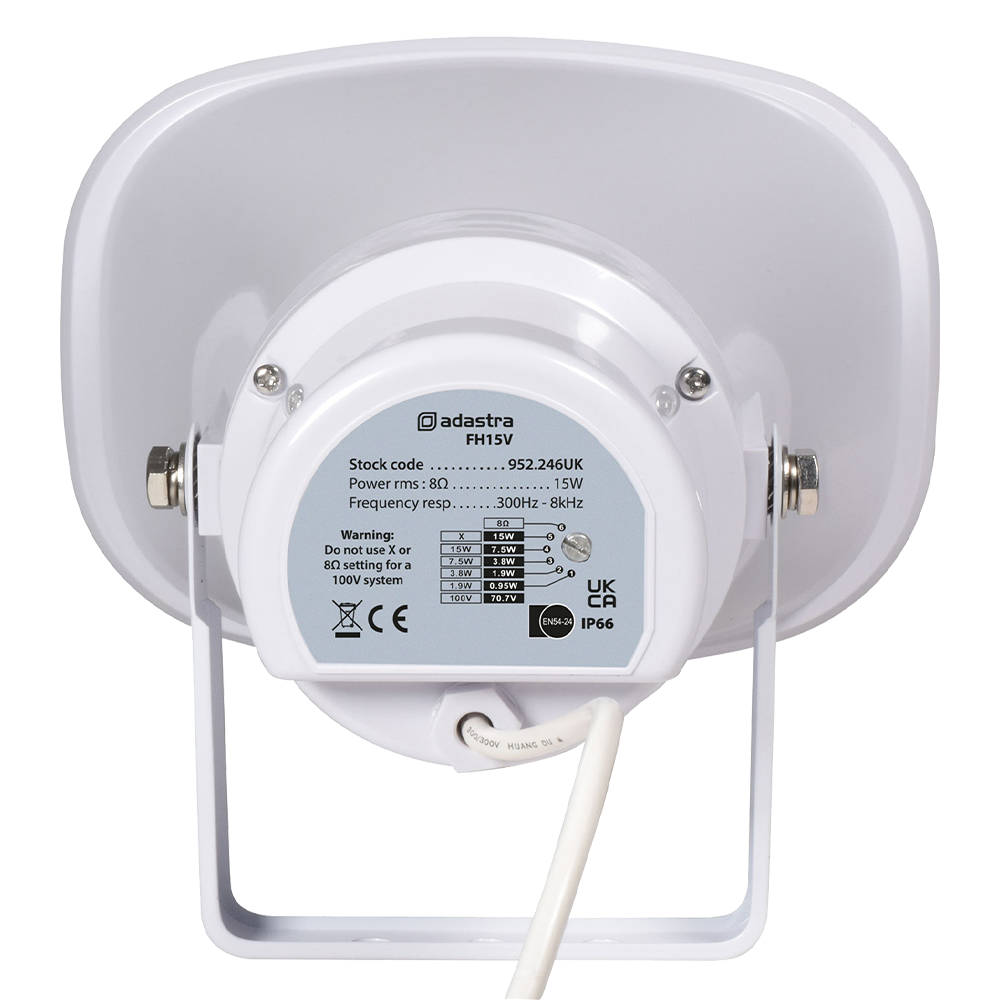

- Tappings: 1.9W, 3.8W, 7.5W, 15W (100V) & 8 Ohms
- SPL @ 1W/1m: 105dB
- Frequency response: 300Hz – 8kHz
- Dimensions: 250 x 220 x 162mm
- Weight: 1.53kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
Wiring guide
