Adastra FH40V 40w 100v line EN54-24 IP66 rated fire colum speaker

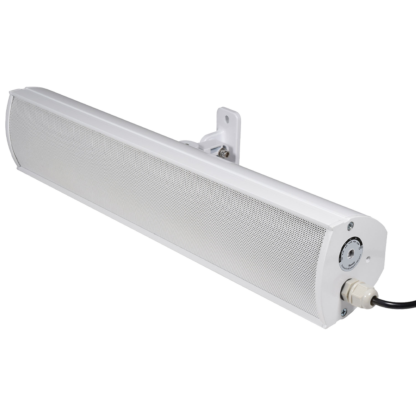

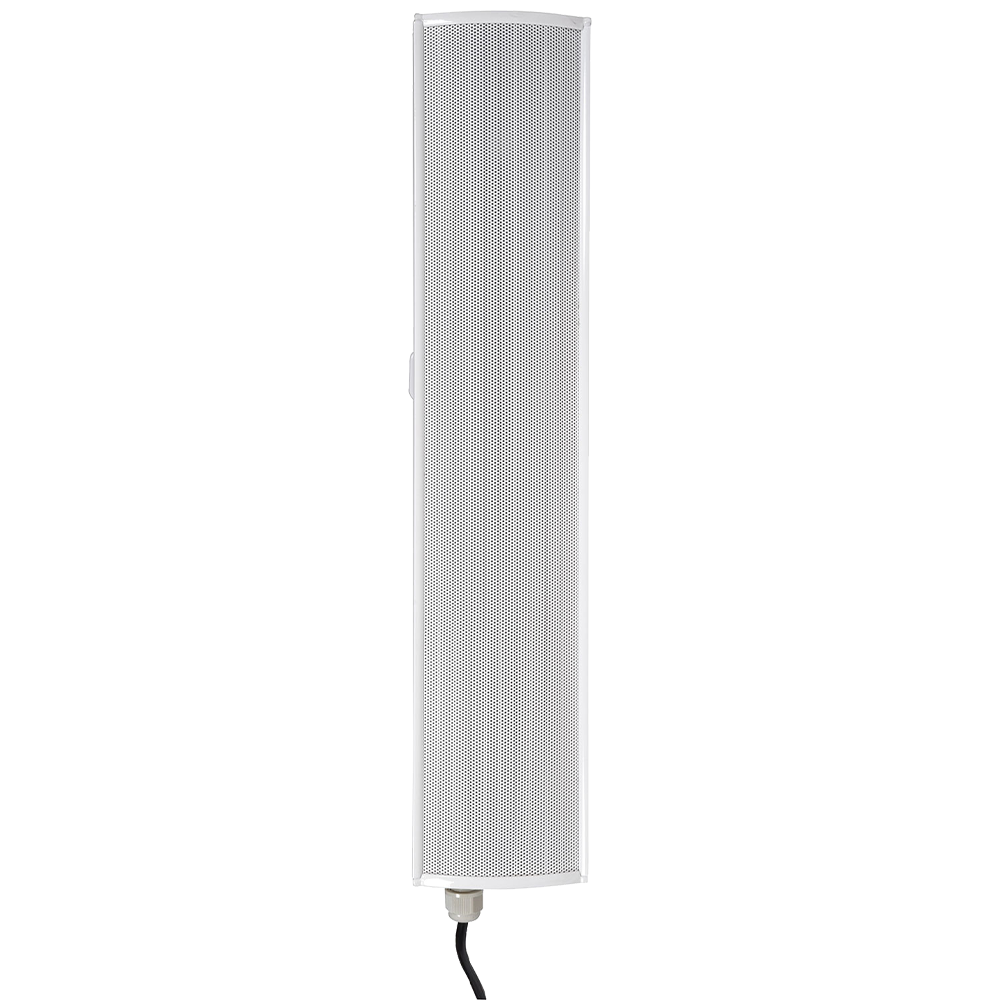

100v line column speaker with a heavy-duty die-cast aluminium alloy housing & grille and fully rotatable rear wall-mount bracket. Water-resistant to IP66 for outdoor use and certified to EN54-24 for compliance with fire voice evacuation systems. Protection for use in these systems includes a fireproof cable and 95°C thermal fuse. Output has a frequency response suitable for music playback in addition to voice announcements. The F40V can be operated in 100V or 70.7V systems, as well as a standard 8 Ohm speaker. Designed to provide an uncompromised sound quality in PA systems that are relied upon for emergency and evacuation alerts.
- EN54-24 certified for use in fire evacuation systems
- IP66 weatherproof

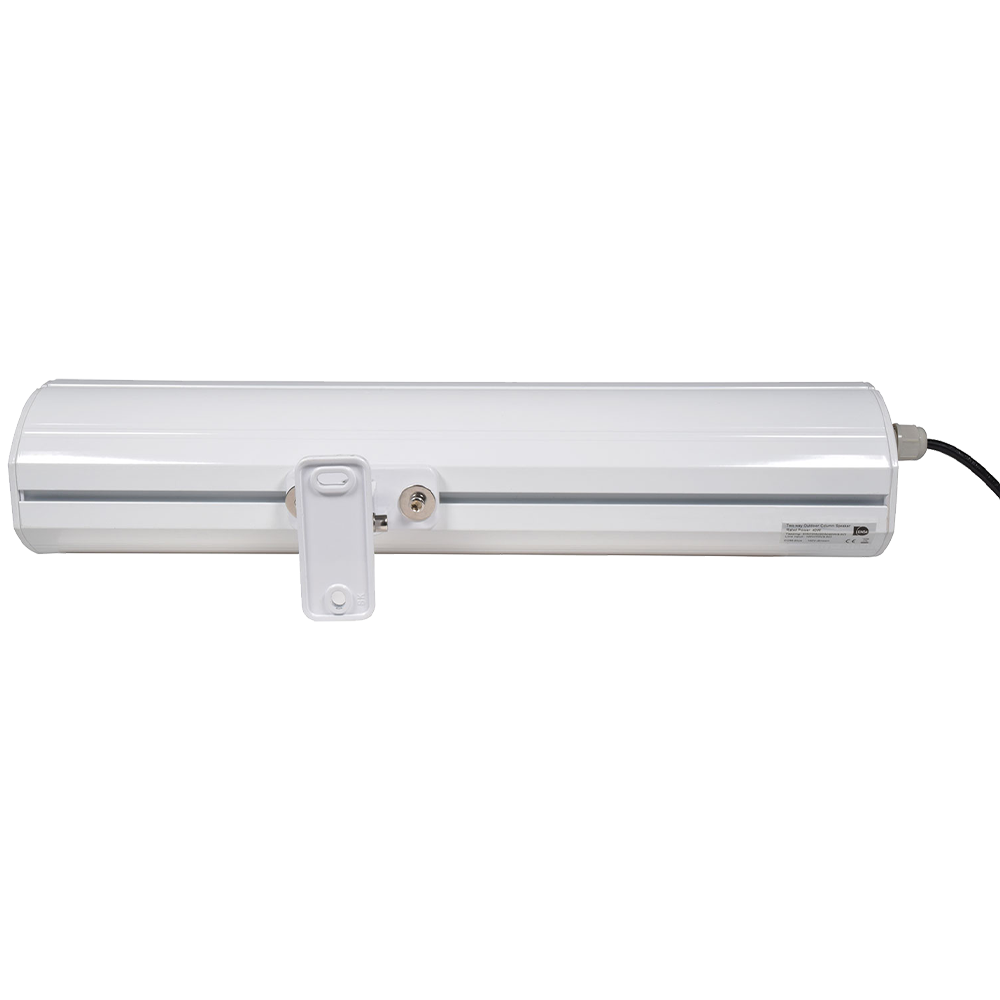

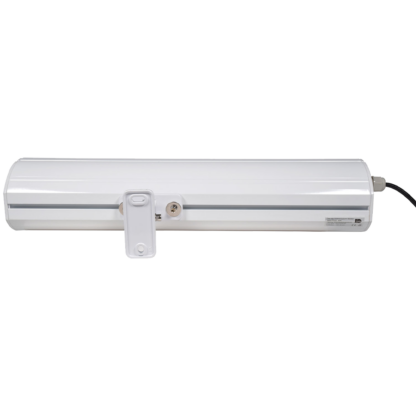

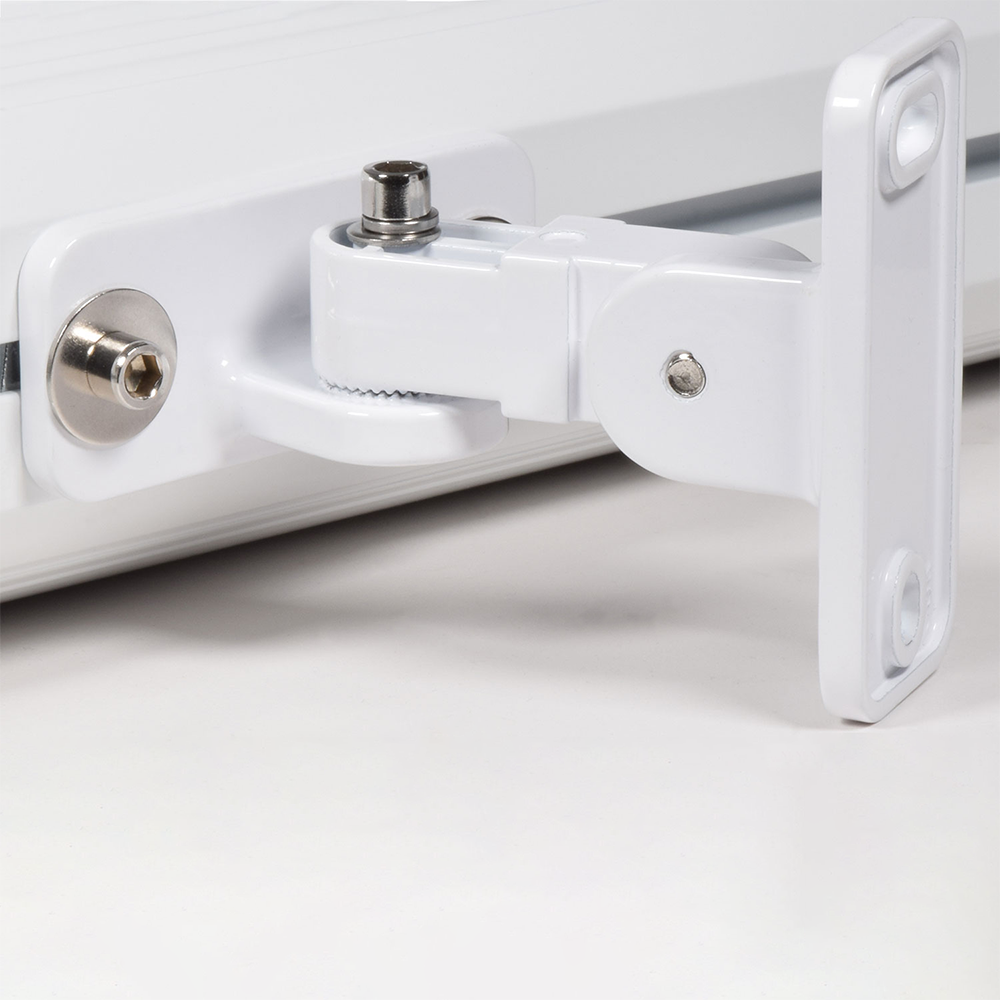

- Integral fully rotatable mounting bracket
- 100V, 70V or 8 Ohm operation
- Construction: Powder coated aluminium alloy housing and grille
- IP rating: IP66
- Fire rating: EN54-24 certified
- Power rms : 8 Ohms: 40W

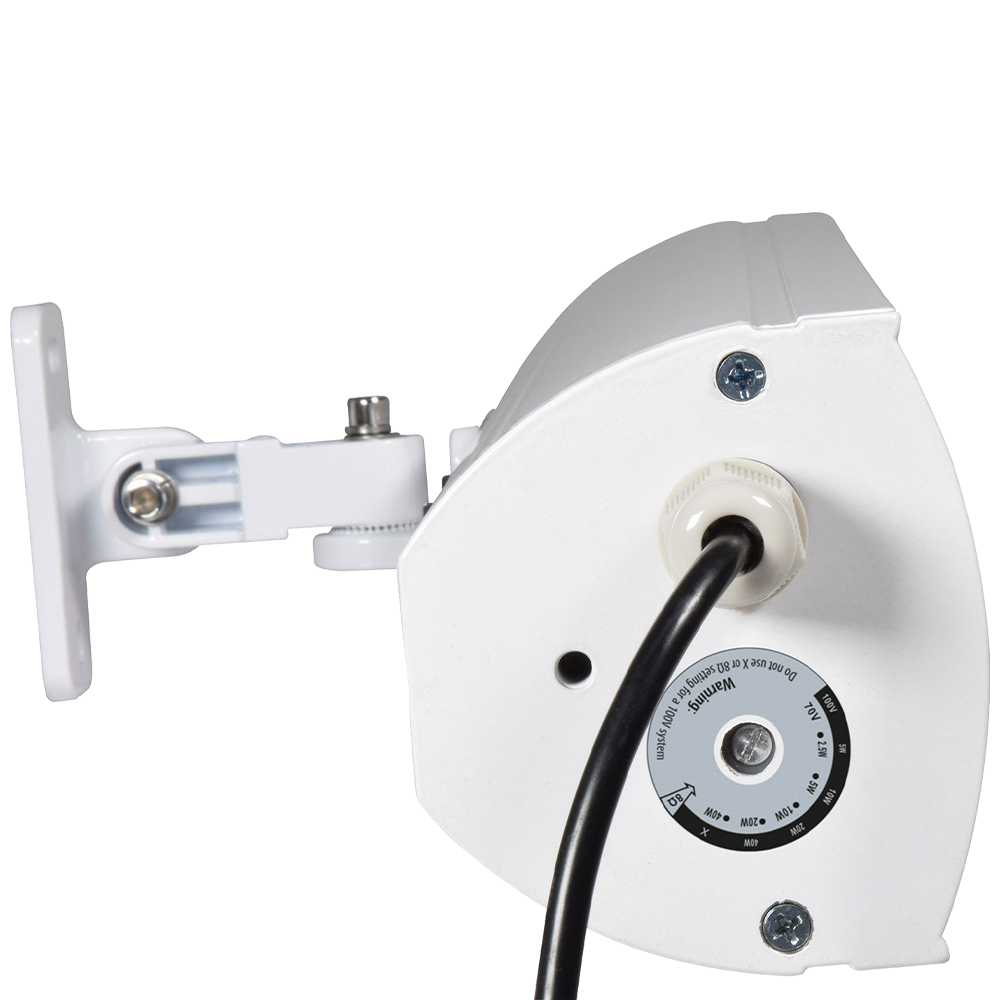

- Tappings: 5W, 10W, 20W, 40W (100V) & 8 Ohms
- SPL @ 1W/1m: 96dB
- Frequency response: 150Hz – 18kHz
- LF drivers: 4 x 75mmØ (3″) woofers
- HF driver: 1 x 63mmØ (2.5″) tweeter
- Connection: Hard-wired fire resistant cable via IP66 gland
- Circuit protection: Thermal fuse
- Dimensions: 500 x 175 x 97mm
- Weight: 3.87kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
Wiring guide
