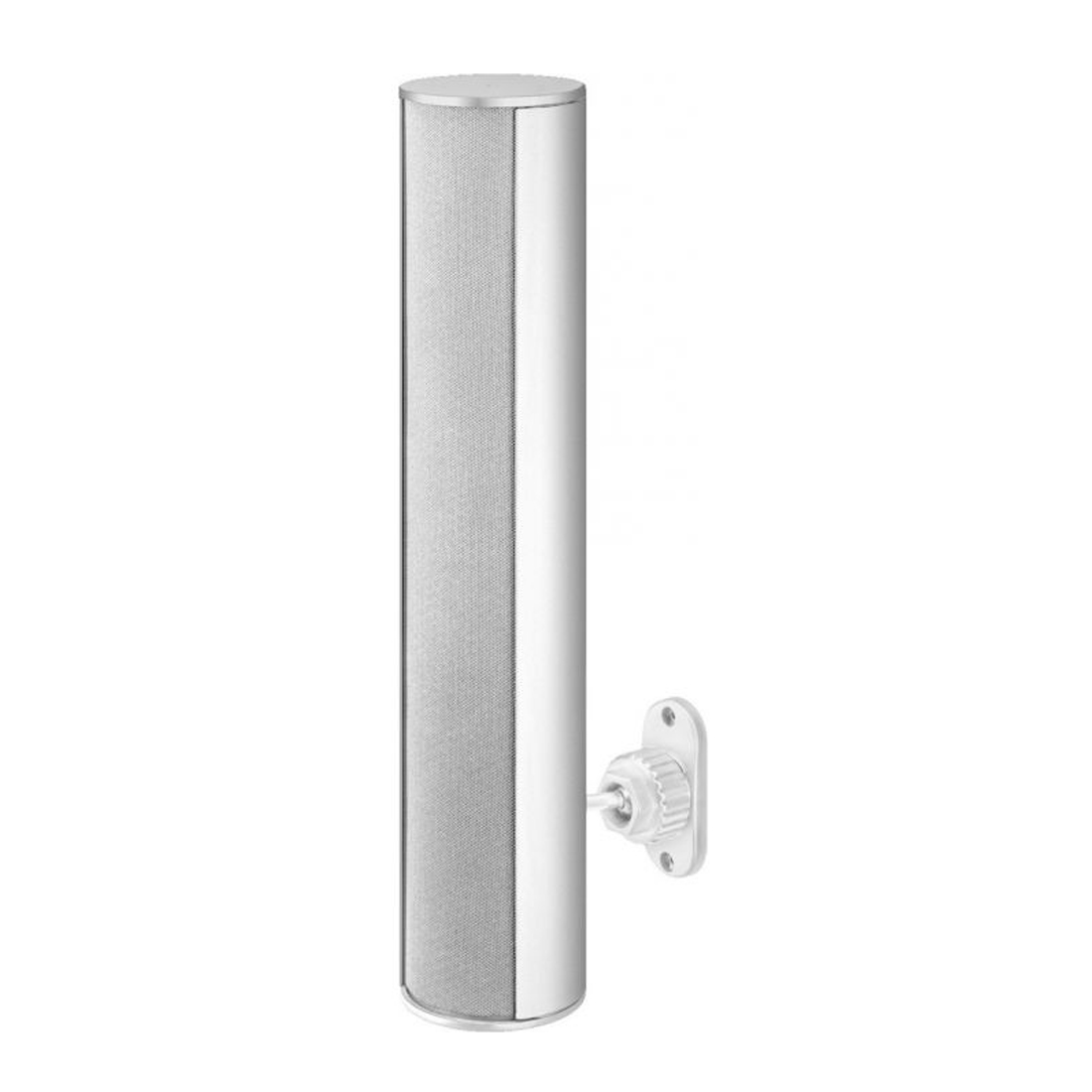

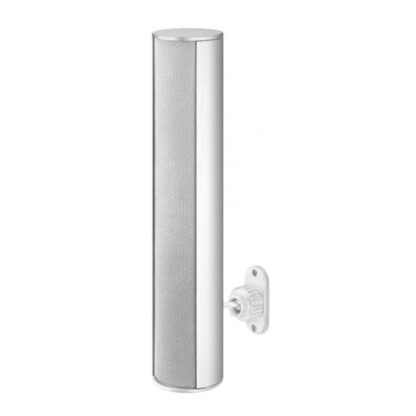

Monacor ETS-8060TW/WS Column Speaker

Description

Monacor ETS-8060TW/WS PA hi-fi 20w 100v line or 8Ω column speaker

• High-quality 2-way column speaker with excellent sound characteristics
• 100 V line or 8 Ω operation
• 4 x 5 cm (2″) full range speaker with paper cone
• 25 mm (1″) centrally arranged dome tweeter
• 3 power taps: 20/10/5 W
• Power capability: 40 W in 8 Ω operation
• Connection is made via cable with high-strength cable gland (length: 2 m)
• Robust aluminium cabinet of an appealing design with cloth-covered plastic front protective grille
• Supplied with pivoting and tiltable wall bracket

Technical Specifications:

• 100v line or low impedance
• Active/passive: passive
• Transmission method: 100 V
• Power rating (RMS): 20/10/5 W (100 V) and 40 W (8 Ω)
• Impedance: 8 Ω
• Frequency range: 160-20,000 Hz
• Full range speaker: 4 x Ø 50 mm
• Tweeter: 1
• Number of speakers: 5
• Sensitivity: 89 dB/W/m
• Max. rated SPL: 107 dB
• Beam angle H: 180°/V: 40°
• Radiation angle, horizontal: 180°
• Radiation angle, vertical: 40°
• Housing material: aluminium
• Colour: white
• Mounting device: wall bracket
• Admissible ambient temperature: 0-40 °C
• Dimensions: 85 x 430 x 70 mm
• Width: 85 mm
• Height: 430 mm
• Depth: 70 mm
• Weight: 2.5 kg
• Inputs: cable
