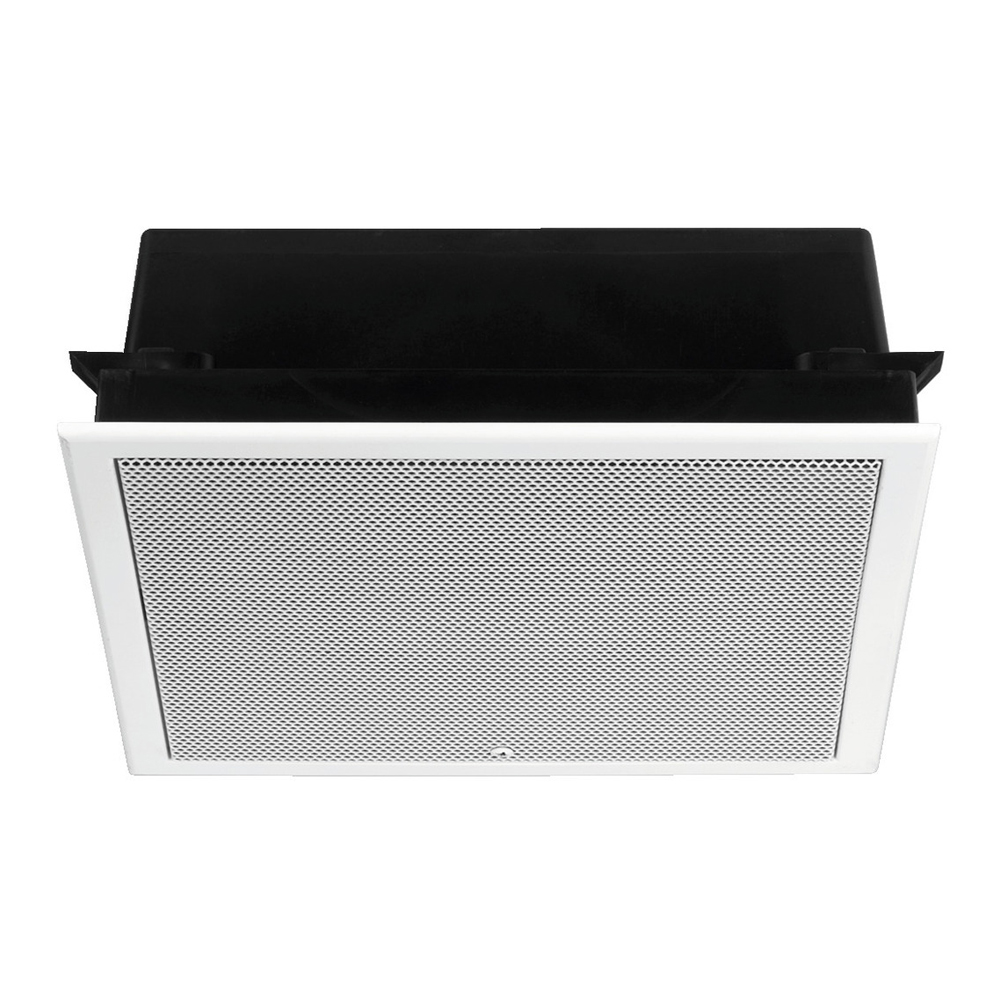

Monacor ESP-5U Wall Speaker

Description

Monacor ESP-5U 6w 100v line flush-mount PA wall and ceiling speaker

• 100 V line operation via audio transformer with 3 power taps
• Wide bandwidth radiation for a pleasant music reproduction
• 13 cm speaker of high efficiency (94 dB/W/m)

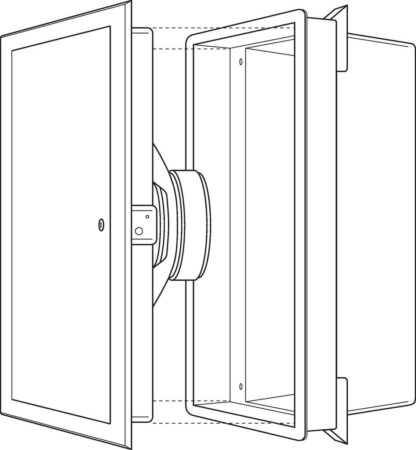

• Plastic tray for flush mounting in walls or solid ceilings
• Required hole in wall: approx. 242 x 242 x 100 mm
• Metal front grille with plastic frame

Technical specifications:

• Transmission technology: 100 V
• Frequency range: 100-19,000 Hz
• Power rating (RMS): 6/3/1.5 W
• SPL: 94 dB/W/m

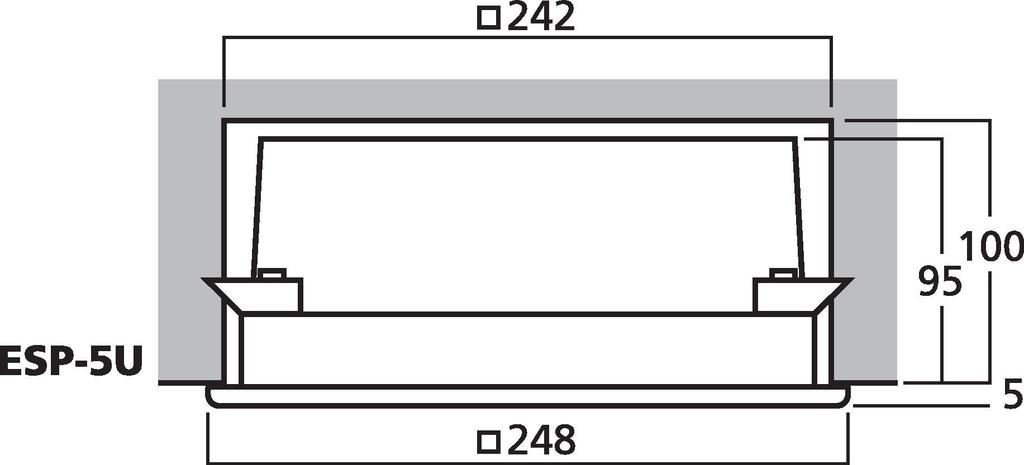

• Mounting cutout: 242 x 242 mm
• Mounting depth: 100 mm
• Dimensions: 248 x 248 x 100 mm
• Width: 248 mm
• Height: 248 mm
• Depth: 100 mm
• Colour: white/black
• Admissible ambient temperature: 0-40 °C
• Weight: 1.4 kg
• Packing unit: 1
• Size of speaker: 130 mm

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
