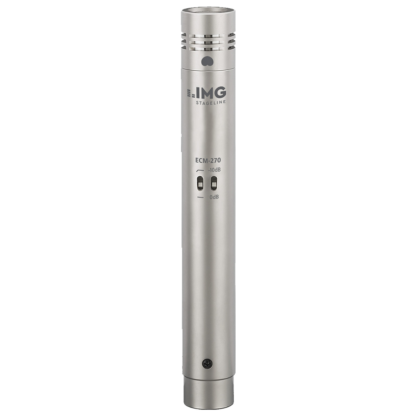

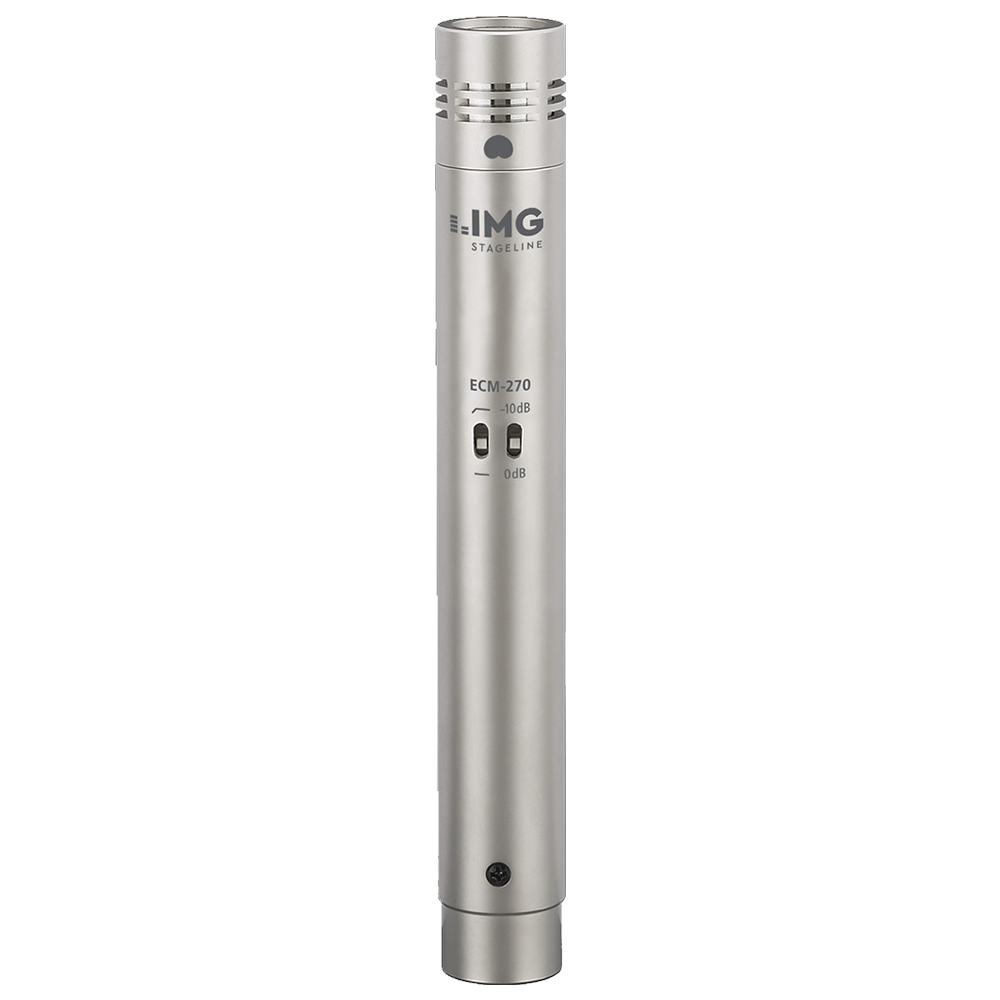

IMG Stageline ECM-270 instrument microphone

£59.60 £71.52 incl. VAT

Cardioid condenser instrument microphone

In stock

Frequently Bought Together

IMG Stageline EMA-200 phantom power supply

Twin phantom power supply



Professional quality IMG Stageline ECM-270 back-electret condenser microphone requiring phantom power. This is an ideal microphone for overhead pickup of voice or instruments in Churches and similar venues. For recording – home studio as well as PA use.  Supplied complete with anti-shock mic holder, windshield and protective case

  • Back electret cartridge of cardioid characteristic
  • Low cut switch
  • 10dB attenuation, switchable
  • Electronically balanced output
  • Robust brass body of high quality

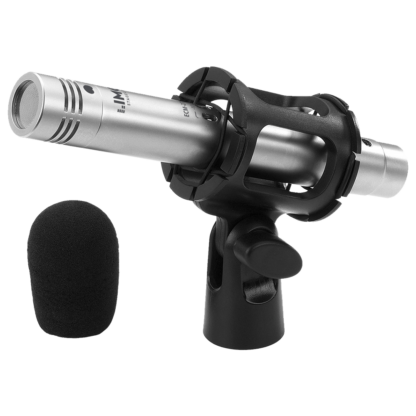

  • Supplied accessories: robust hard-sided case, microphone windshield, microphone holder (spider) for 16mm ( 5/8 “) stand
  • Type: electret microphone
  • Transmission method: cable
  • Polar pattern: cardioid
  • System: back electret
  • Audio frequency range: 50-18,000 Hz
  • Nominal impedance: 200 Ω
  • Sensitivity: 5.6 mV/Pa
  • S/N ratio: > 60 dB
  • Maximum sound pressure: 135 dB
  • Power supply: DC current 48 V, phantom power
  • Material (housing/cabinet): brass
  • Admiss. ambient temp.: 0-40 °C
  • Dimensions: Ø 20 mm x 150 mm
  • Weight: 140 g
  • Connection: XLR, bal.


IMG Stageline

Professional Event Technology. With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing consoles and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality.

Additional information

Weight0.14 kg
Dimensions15 × 2 × 2 cm

3 Pin XLR (Male)



User Manuals
