Phantom Power

Monacor ECM-10 boundary microphones

SKU: 232720 | 232730

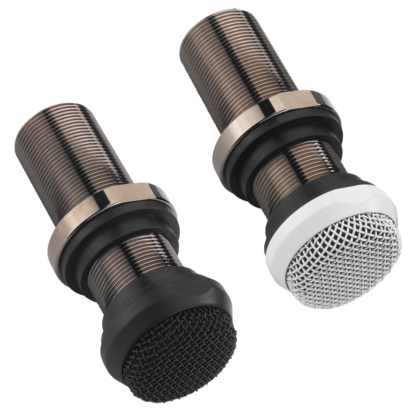

Black or white boundary condenser microphone




Monacor ECM-10 boundary condenser microphones designed for use in ceilings and other boundary surfaces where just the 30mm bezel is visible. These microphones require a 9 to 48v phantom power supply supplied by your mixer or amplifier or by a stand alone power supply such as the EMA-200

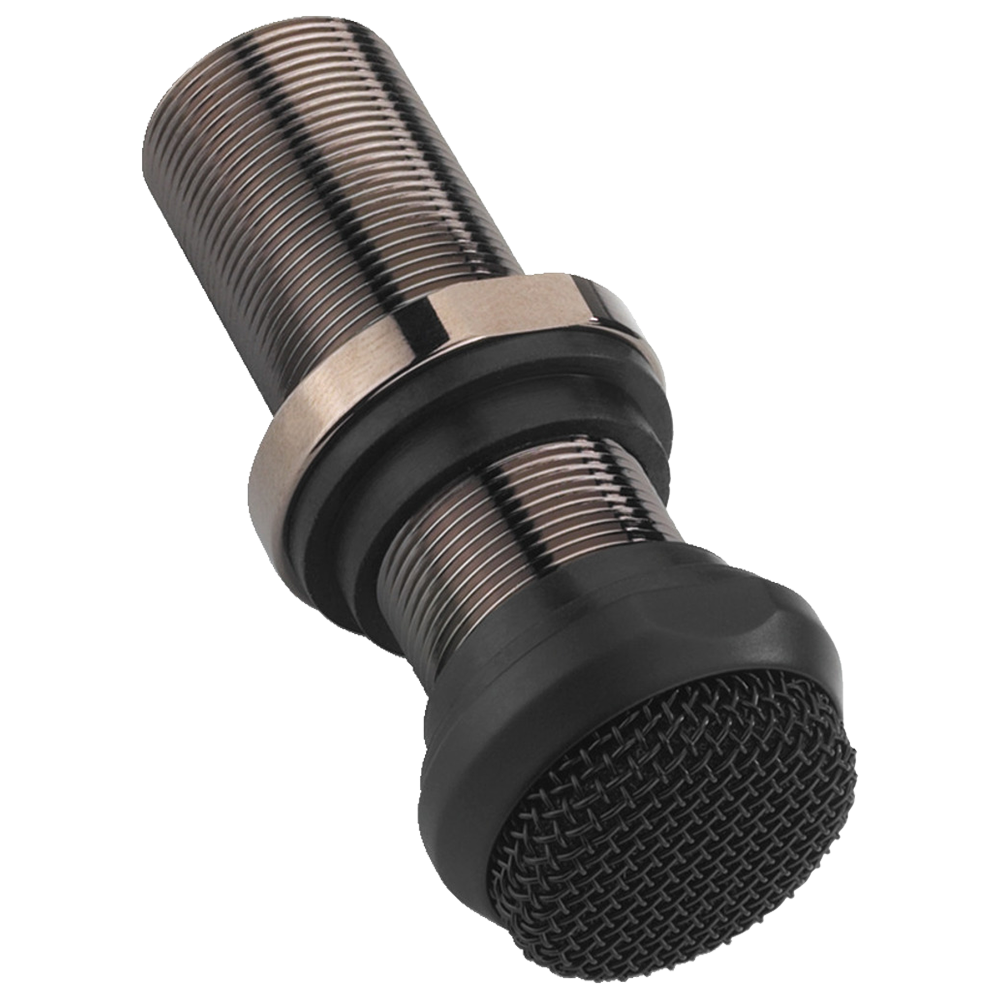

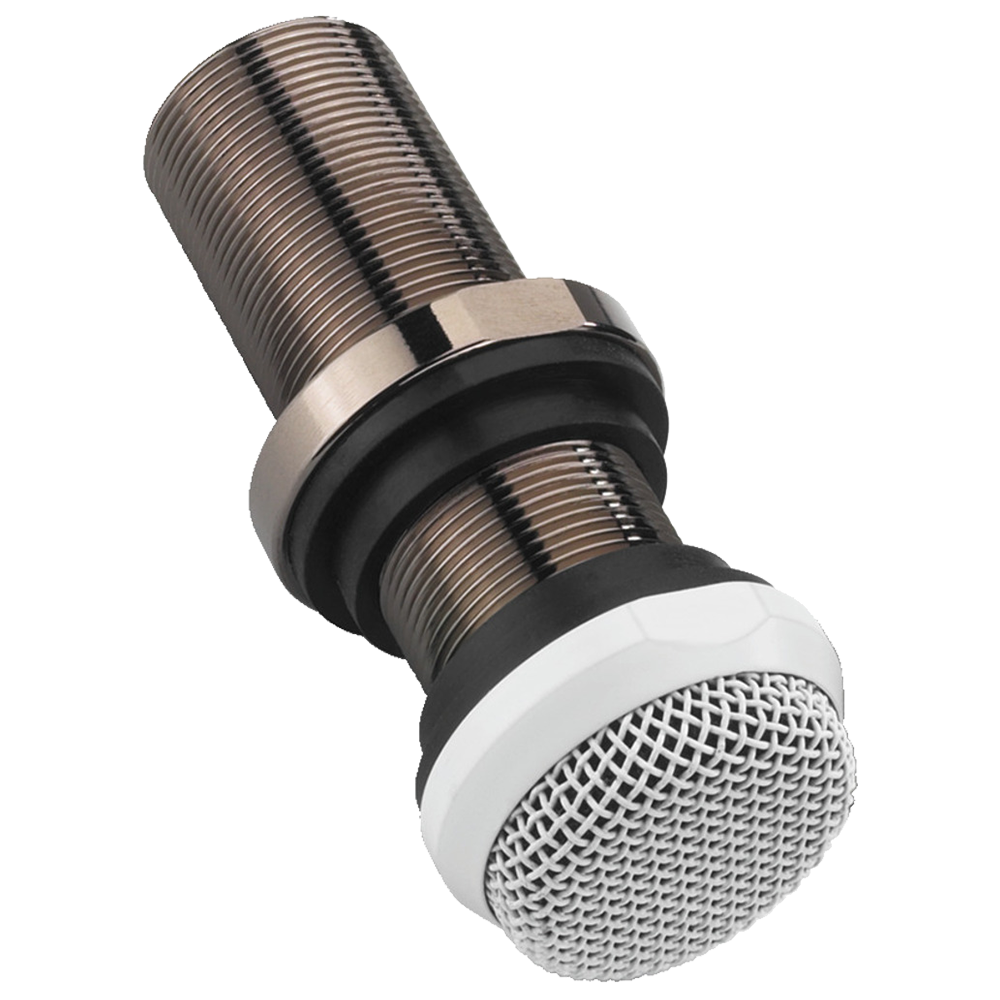

  • Black (SW) or white (WS) cartridge cover
  • Especially suitable for PA applications and induction loops
  • Metal housing
  • Type: built-in microphone
  • Transmission method: cable
  • Polar pattern: omnidir.
  • System: electret
  • Audio frequency range: 30-17,000 Hz
  • Nominal impedance: 300 Ω
  • Sensitivity: 2.3 mV/Pa
  • Maximum sound pressure: 110 dB
  • Power supply: DC current  9-48 V, phantom power
  • Material (housing/cabinet): metal
  • Admiss. ambient temp.: 0-40 °C

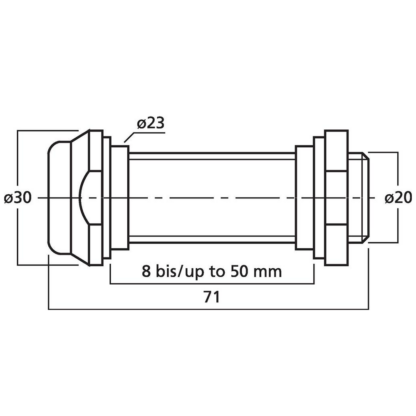

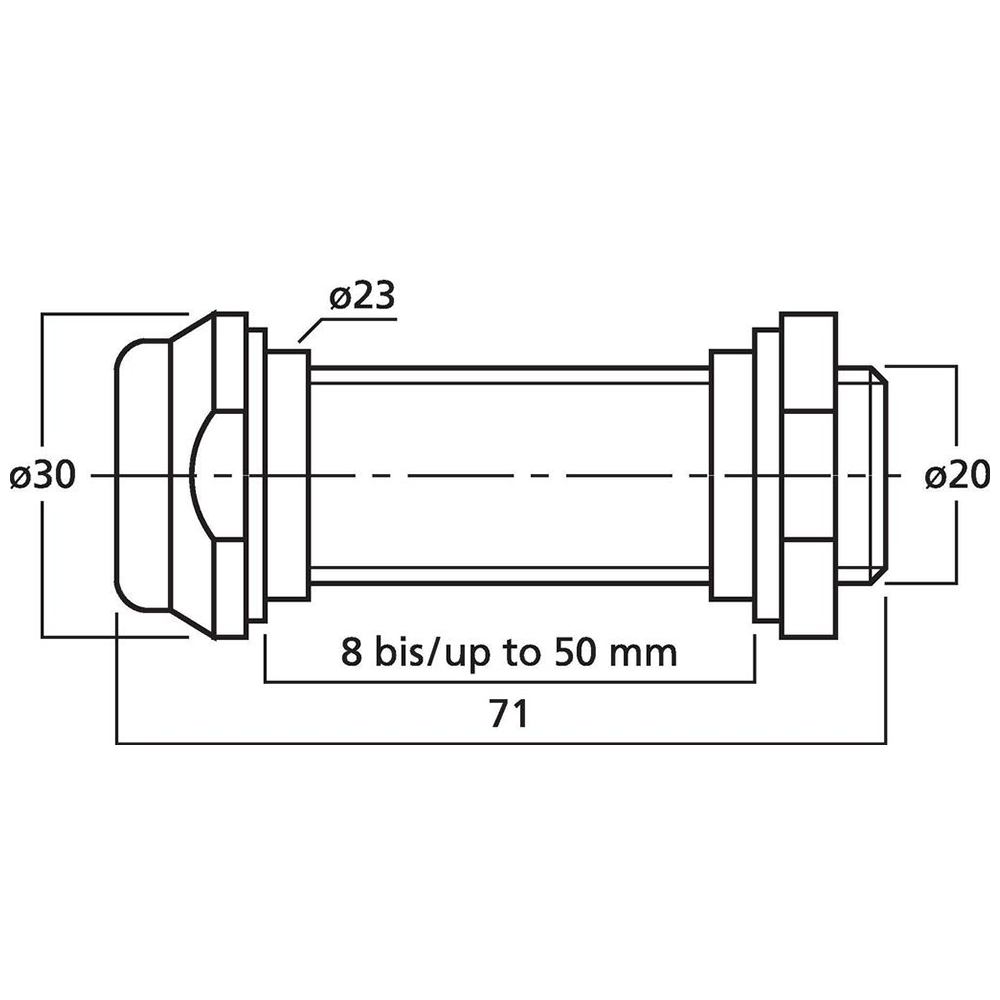

  • Dimensions: Ø 30 mm x 71 mm
  • Weight: 90 g
  • Connection: XRL, bal.



One of Europe’s largest distributors of PA sound and lighting equipment. Here at Monacor UK, we understand sound reinforcement in a very comprehensive sense. We therefore offer our customers a diverse range of products for all of their sound and lighting needs. In addition to classic systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing consoles, our portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as inductive sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor UK has the right solution for you.

Recommended Products

Sound Services customers come back time and time again for these recommended products - some are great value for money, others have proven track records for build quality and reliability and some are just our own personal favourites.

Additional information

Weight0.09 kg
Dimensions3 × 3 × 7.1 cm

3 Pin XLR (Male)


Black, White
