W Audio DQM 800H wireless microphone system

£278.60 £334.32 incl. VAT

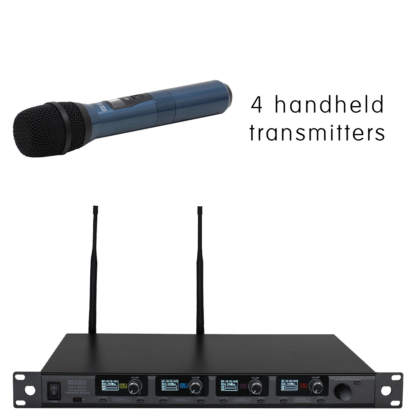

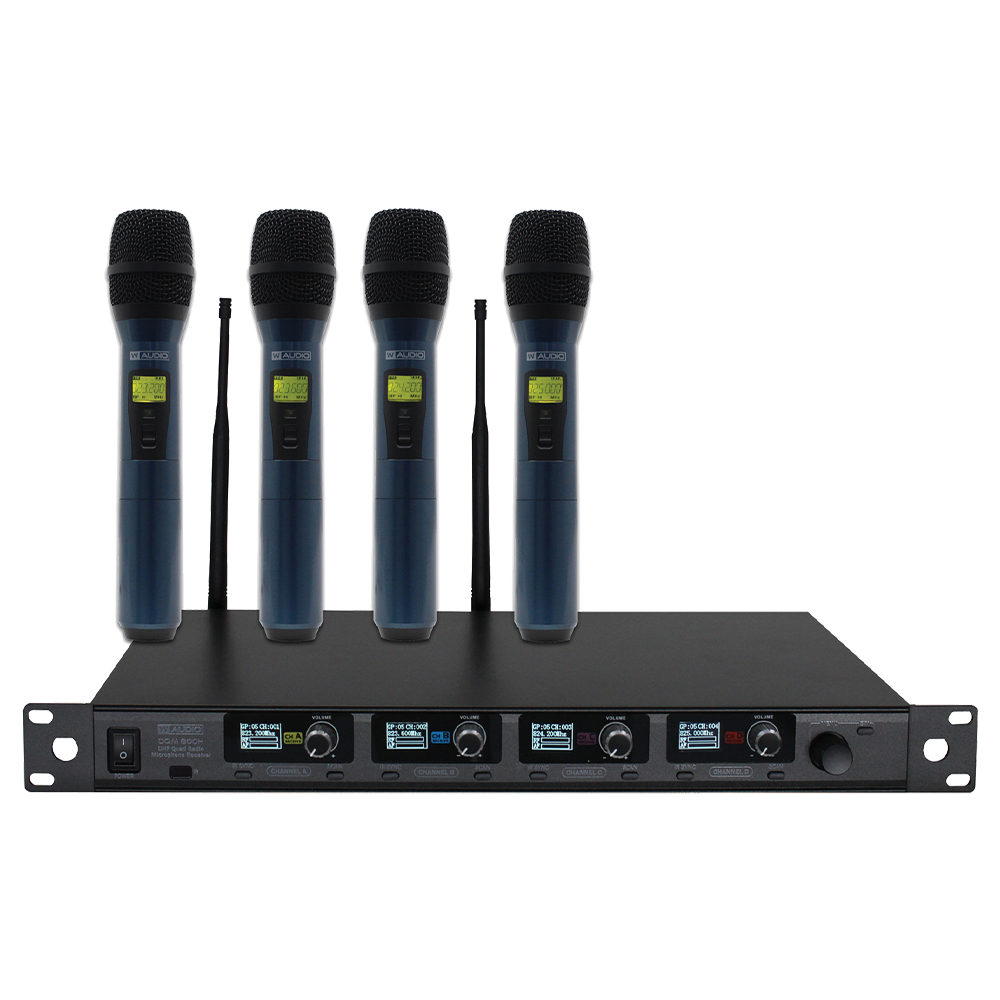

UHF Ch 65 & 70 quad radio microphone system with handheld transmitters




W Audio DQM 800H twin diversity wireless microphone systems on Ch 65 (823-832MHz) and Ch 70 (863-865 MHz)

DQM series wireless microphones are quad UHF handheld systems designed for the professional user and utilises a diversity, full width receiver for the ultimate in RF stability. It has a tuning bandwidth up to 9MHz+2Mhz with 99 selectable frequencies for the 823-832Mhz CH65 and 863-865Mhz CH70 band. These systems offer crystal clear sound reproduction and rock solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.

  • UHF band, Phase Lock Loop (PLL) offering stable RF transmission
  • Frequency groups and a group of users set their own frequencies and storage, multiple sets of compatible frequency presets
  • OLED display offers a wide viewing angle while remaining bright in darkened conditions
  • Frequency, Channel, RF and AF signal strength meters
  • 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
  • Combined use Jog Dial button operation for fast menu navigation
  • Integrated antenna splitter for reduced RF interference

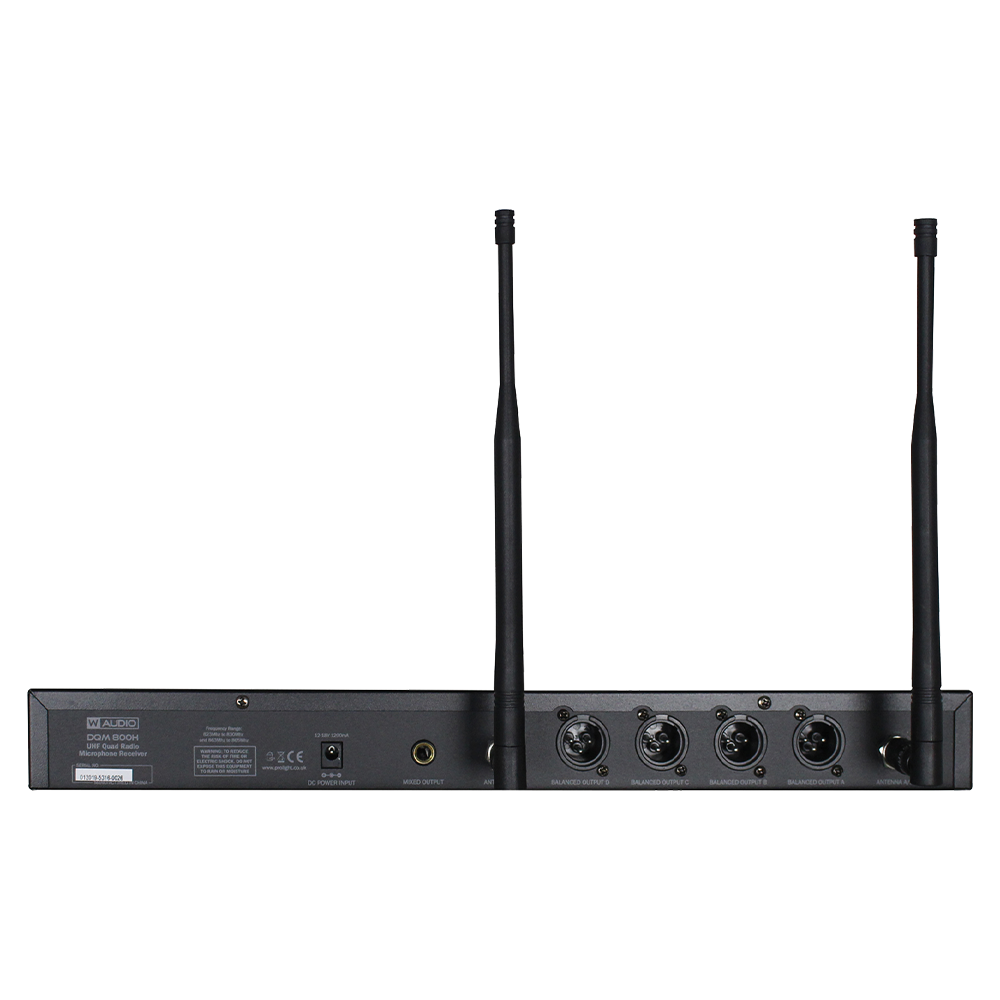

  • Balanced XLR output for each channel plus unbalanced mixed output
  • Automatic frequency SCAN function
  • IR infrared frequency synchronisation via infrared interface
  • Noise locking
  • Mute circuitry for reduced noise
  • Flat frequency response: 50Hz-16KHz
  • Dynamic, cardioid handheld microphone capsule

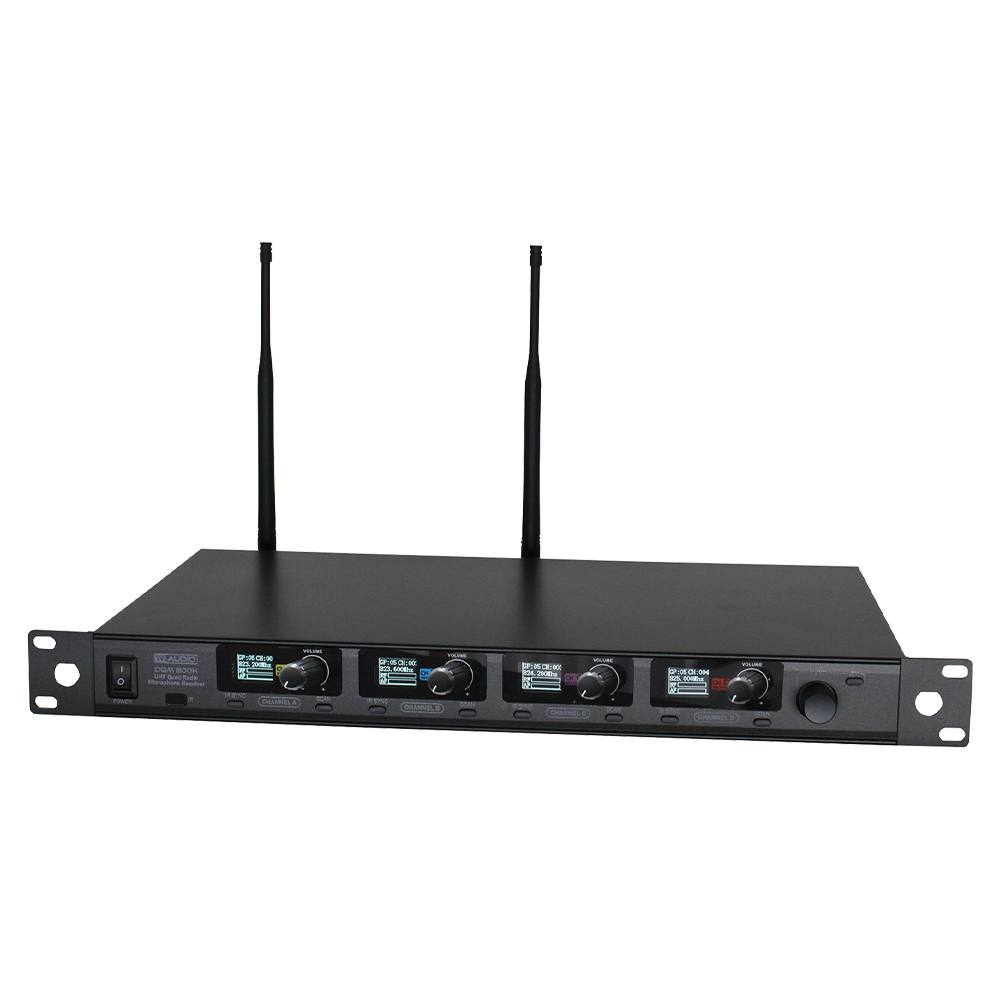

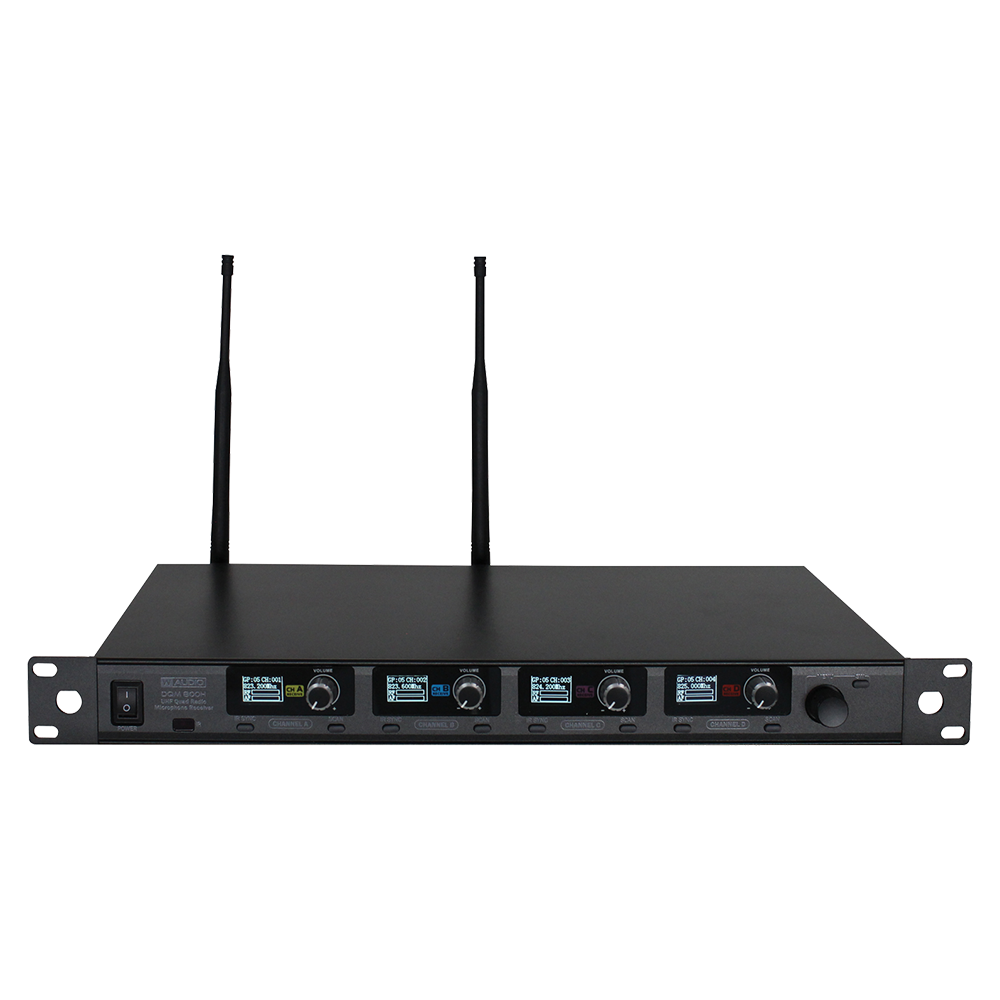

  • 1U full width rack mount receiver
  • Receiver specifications:
    Power supply: 4V 1.2A (adaptor supplied)
    Dimensions (H x W x D): 45 x 482 x 215mm
    Weight: 2.0kg

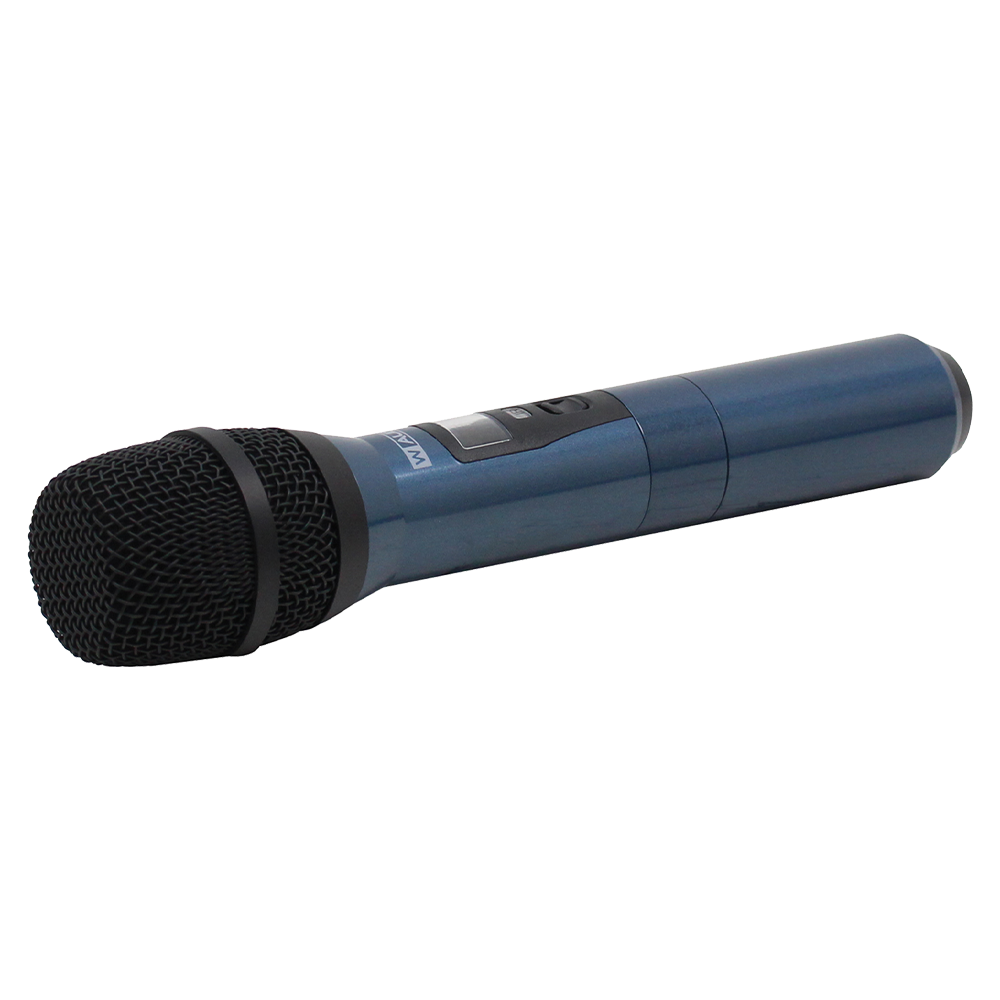

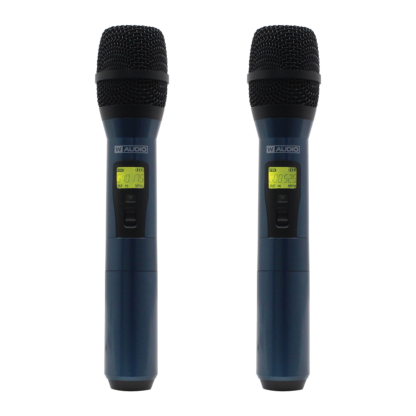

  • Handheld Transmitter:
    Battery type: AA 1.5V DC Alkaline (not supplied)
    Dimensions (H x W x D): 250 x 45 x 45mm
    Weight: 0.4kg

Wireless microphone systems need to be connected to a public address PA sound system to work


W Audio

Audio by name, audio by nature! The longstanding W Audio brand offers entry-level sound solutions, high-quality compact systems and all the accessories you could possibly need, making it the ideal choice for small to medium venues, stages, mobile DJs, entertainers and bands. This comprehensive product range includes loudspeakers, bass enclosures, amplifiers and mixers, wireless microphone systems, cables, stands and brackets, and is built to withstand wear and tear in both installation and portable applications.
W Audio

Additional information

Weight2 kg
Dimensions21.5 × 48.2 × 4.5 cm
