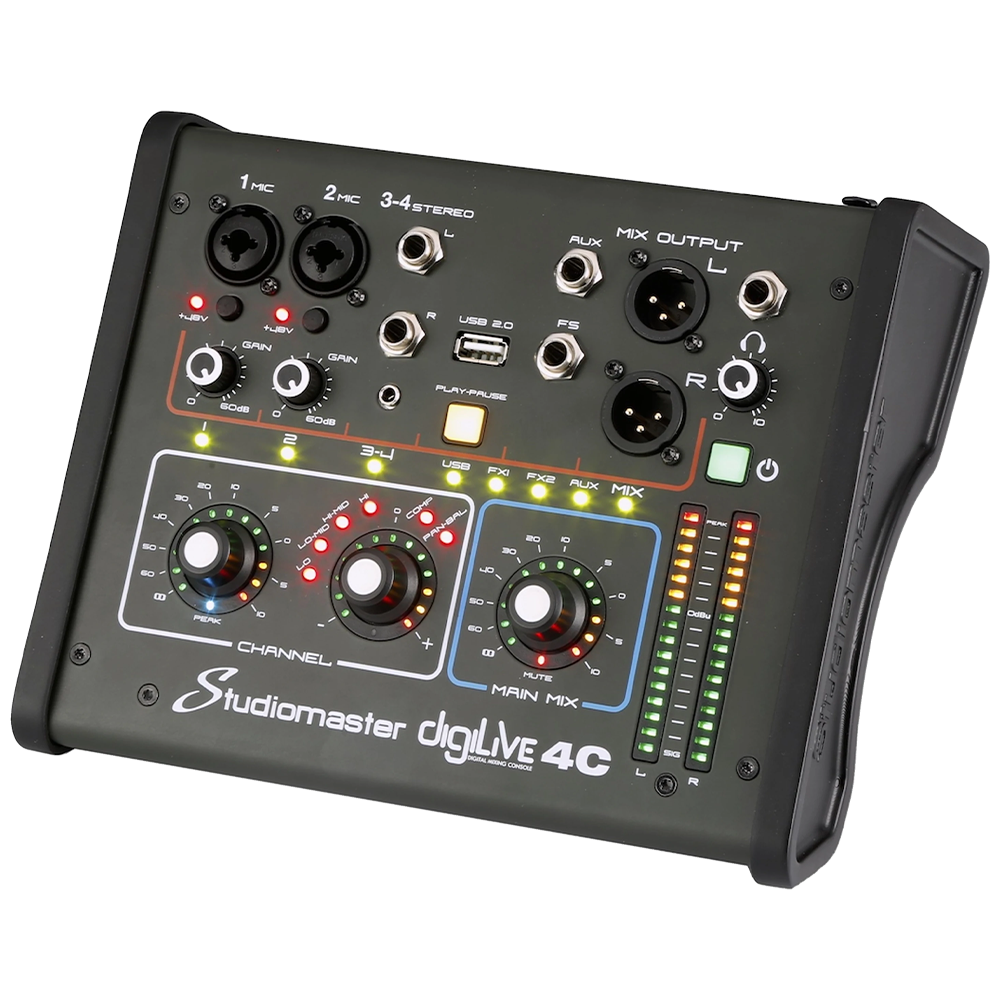

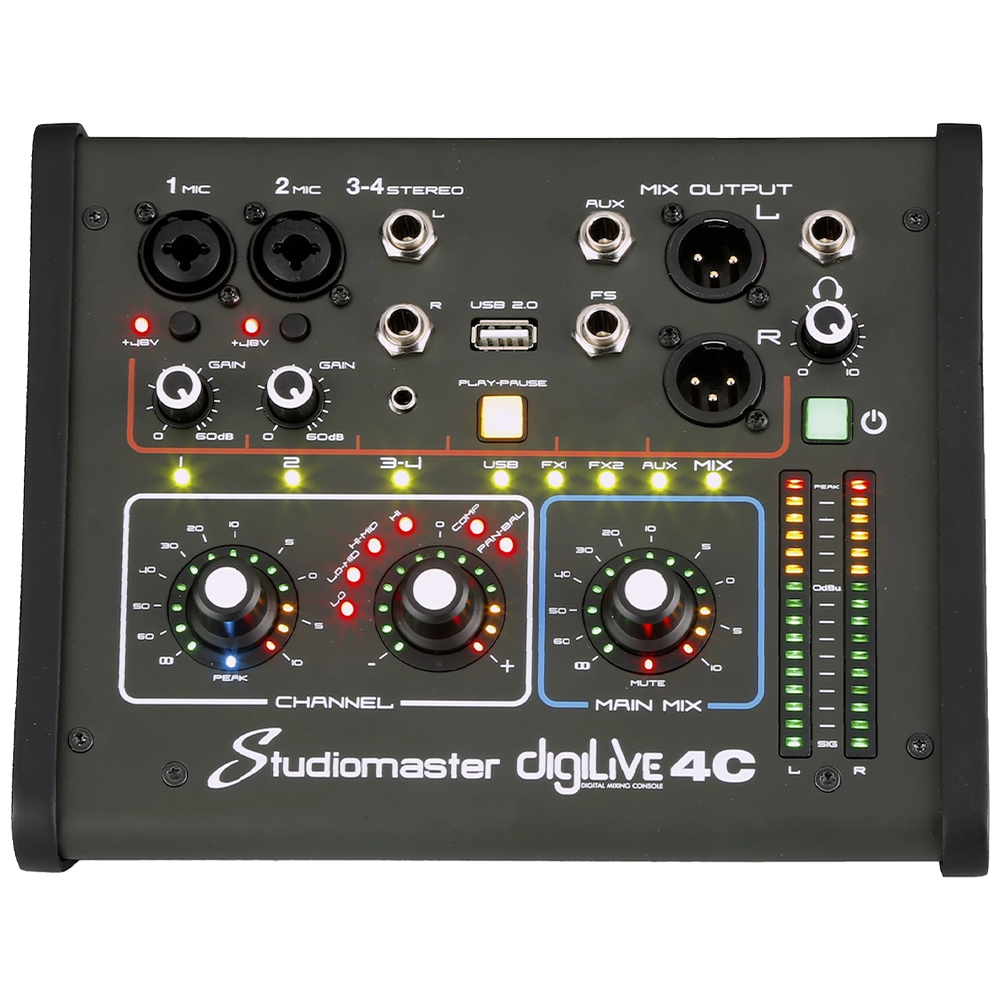

Studiomaster DigiLive 4C WiFi Mixer

Studiomaster have redefined the concept of “Compact Form Factor” with the innovative DigiLive Series, and the DigiLive 4C is a prime example of that redefinition. This ultra-compact 4-input digital mixer, featuring 2 mic inputs and 1 stereo input, is packed with powerful professional-grade features, making it ideal for live performance, rehearsal spaces, or portable setups.

The DigiLive 4C offers a unique and intuitive control interface that gives users complete control from the front panel, with a smooth, analogue-style feel. For even greater flexibility, full control is also available remotely via Wi-Fi or LAN, using a phone, tablet, or laptop. Should a wireless connection fail, the onboard controls act as a reliable failsafe, ensuring uninterrupted operation.

Its versatile connectivity includes balanced inputs and outputs, along with an assignable footswitch input and 2 effect busses for added creative control. The internal DSP section is surprisingly comprehensive, providing tools such as Parametric EQ, Graphic EQ, Compressor/Gate, and high-quality digital effects including Reverb and Delay. These features allow users to tailor their mix in detail, without overwhelming complexity.

The built-in MP3 section supports simultaneous playback and recording, enabling overdubbing for harmonies, performance tracks, or backing layers—ideal for solo performers or creative studio work.

Compact yet powerful, the DigiLive 4C is designed to take the effort out of mixing and let the artist focus fully on their performance.

• Inputs: 4 analogue input
• MIC Input: 2 MIC/LINE COMBO XLR/JACK
• LINE Input: 1 STEREO Jack/3.5mm mini Jack
• Master Output: 2 Left/Right balanced XLR
• Internal busses:
  • 2 stereo FX / 1 mono AUX /
  • stereo PFL / Main Mix
• Stereo Monitor: 1 TRS Jack output
• Headphone: 1 TRS Jack output
• Control Interface: Full mix from 3 rotary encoders
• Sample Frequency: 48kHz
• AD/DA: 48kHz, 24-bit
• DSP: 40-bit float point, SHARC processor
• Remote control: Cross platform – Any device with Wi-Fi / Lan and web browser
• Effects: 2-programmable DELAY and REVERB
• Digital input/outputs
• USB Interface: 2 for playback/recording, scene storage and system updates
• Network: yes via WIFI external module or RJ45 LAN connection
• Power: 90-240V ~ 50/60Hz power supply 12VDC output
• Dimension (W x H x D): 220 x 90 x 180mm
• Net Weight: 1.5kg
