COM230SET 15 + 15w Desk Paging PA Sound System for Smaller offices and Shops

Description

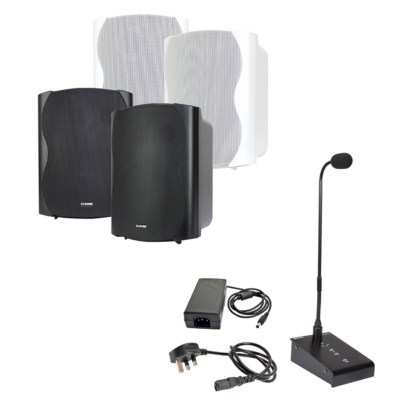

COM230SET Desk Paging Sound System comprising of a two zone 15 + 15w amplifier housed in the microphone base this system is supplied with 1 or 2 pairs of black or white speakers (2 or 4 speakers)

Allowing up to two speakers on each output zone this system is a small, versatile and cost effective way to address up to two waiting rooms or offices etc.

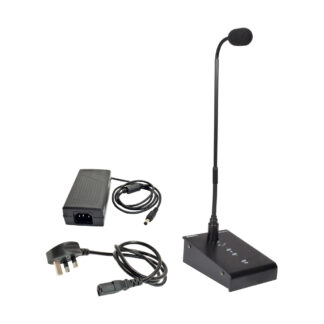

Adastra COM230 desk paging station with 2-zone 15w + 15w amplifier

Desktop paging station with gooseneck microphone mounted via XLR into a base unit with a built-in dual amplifier. Each amplifier output has screw terminal speaker connections and can power a single 8 Ohm speaker or two 8 Ohm speakers wired in parallel (4 Ohm minimum load each output) and can be operated as a stereo Left + Right amplifier or as 2 separate zones. An AUX input on 3.5mm jack can accept a stereo line input for background music with its own volume control and is present on both channels permanently. A separate volume control governs the microphone level and there is a pre-set override that temporarily mutes the AUX input when announcements are being made. The paging process involves selecting one or both output channels via the buttons on the top panel and then pressing the “Page” button, which gives the option of paging just a single area or all areas where the speakers are installed. A simple and easy-to-use solution for where space is limited or an uncomplicated paging system is required.

This package must be wired as a low impedance 4-8Ω sound system – please see user manuals tab

• Independent volume controls for AUX and MIC
• Independent paging to each speaker output
• In-line low voltage DC power adaptor supplied
• Power supply 16Vdc, 4A power adaptor (included)
• Output power @ 4 Ohms 2 x 30W
• Output power @ 8 Ohms 2 x 15W
• Microphone : connector XLR
• Auxiliary input Stereo 3.5mm jack
• Speaker outputs Screw terminals (removeable Euroblock)
• Dimensions 450 x 140 x 100mm (assembled)
• Weight 552g
• Use terminal block to extend speaker cable
• Do not short speaker cables together

BGS 25T Speakers

• Power taps @ 100V: 2W, 4W, 8W, 16W
• 2 way speaker system with crossover network
• Rotary selector switch for 100V line tappings or 8 Ohms operation
• Wall mounting bracket supplied
• Spring terminal connection
• Supplied in pairs
• Available in black or white
• Input: 100V, 8Ω
• Connections: 2 x binding terminals
• Impedance: 5KΩ, 2.5KΩ, 1.25KΩ, 625Ω
• Power (RMS): 25W @ 8Ω
• Sensitivity (1W/1m): 88dB
• Maximum SPL (Rated W/1m): 95dB
• Frequency response: 70Hz-18kHz
• Drivers: 4″ LF, 1″HF
• Dimensions: 210 x 160 x 130mm
• Weight: 2.1kg (each)

System Includes:

• 1 x Desk microphone with integral two-zone 30w amplifier and power supply
• 2 x Black or white cabinet speakers – see options
• 50m speaker cable

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
