Description

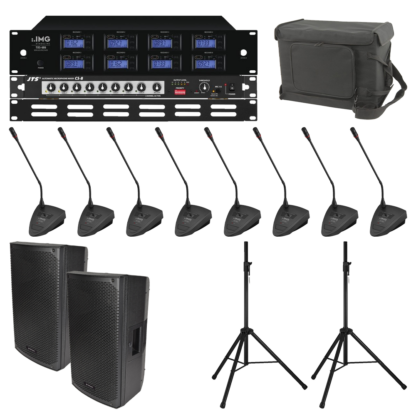

Complete CCS-1 wireless microphone conference system with automatic mixer and two active speakers
System includes:
- 1 x IMG Stageline TXS-686 receiver
- 8 x IMG Stageline TXS-606DT/2 desk microphone transmitters
- 8 x XLR leads
- 1 x JTS CS-8 automatic mixer
- 1 x 1U blank panel
- 1 x Chord RACKBAG4U 4U rack bag
- 2 x Citronic CAB-10L active speakers
- 1 x 20m XLR to XLR speaker link lead
- 1 x STS-1 speaker stand set
This wireless microphone system offers great value for money and is ideal for schools, colleges, stage, amateur dramatics, entertainers and smaller theatres
IMG Stageline TXS-686 receiver
- 1,000 selectable UHF frequencies on channels 46, 47 and 48 (672.000-696.975 MHz) 10 groups with 100 channels each
- ACT function for transmitting the selected frequency to pocket transmitter TXS-606LT or hand-held microphone TXS-606HT via infrared signal
- Automatic scan
- True diversity system with removable antennas (BNC connection)
- Volume and squelch can be adjusted for each channel
- LCD for group/channel, antenna A/B, RF transmitting level, AF audio level and additional LED level display for audio level of each channel
- Balanced XLR outputs
- 6.3mm output for mixed signal outputs
- Stable metal housing
- Supplied with PSU
- 482mm (19″) 2u rack installation
- Carrier frequency range: 672.000-696.975 MHz
- Audio frequency range: 30-18,000 Hz
- Channels: 8
- THD: < 0.5%
- Dynamic range: 100 dB
- RF S/N ratio: 105 dB
- Admissible ambient temperature: 0-40 °C
- Audio signal receiver: 350 mV/600 Ω (jack) 25 mV/600 Ω (XLR, balanced)
- Power supply receiver: via encl. plug-in power supply
- Width receiver: 482 mm
- Height receiver: 90 mm
- Depth receiver: 195 mm
- Weight receiver: 4.4 kg
- Connections receiver: 8 x XLR, balanced, 1 x 6.3 mm jack, unbalanced
IMG Stageline TXS-606DT/2 desk microphone transmitters
- Desk microphone transmitter with goosenect and PTT switch
- Electret microphone cartridge, cardioid polar pattern
- 350 mm gooseneck, removable
- 1,000 selectable UHF frequencies (672.000-696.975 MHz), can be synchronised with receivers TXS-606, TXS-626, TXS-646 or TXS-686 via ACT function
- Adjustable sensitivity
- Switchable transmitting power (high: 25 mW/low: 2.5 mW)
- LCD for indicating group/channel, audio level and battery status
- Power supply via 2 x 1.5 V battery AA size (not supplied)
- Type: desktop microphone transmitter
- Transmission method: wireless
- Polar pattern: cardioid
- System: electret
- Carrier frequency range: 672.000-696.975 MHz
- Transmitting power: 25 mW/2.5 mW
- Power supply: 2 x 1.5 V battery AA size
- Operating time: > 8 h
- Audio frequency range: 30-18,000 Hz, ±3 dB
- Dimensions: 120 x 65 x 178 mm (without gooseneck)
- Weight: 600 g

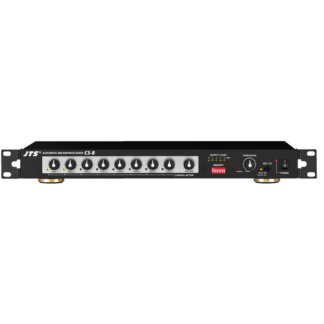

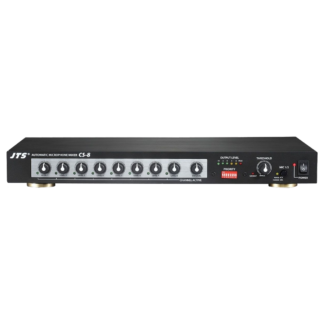

JTS CS-8 automatic mixer
The Automatic Microphone Mixers of the CS series are THE perfect aid for concepts with multiple microphones, e.g. in conference rooms, churches or language laboratories. The main task of the mixer is to open the respective microphone channel when required and to close it again when the speaker has finished the presentation. This intelligent adjustment for the individual microphone channels allows for a silent and precise control which ensures that the audience hears every single word. This greatly improves the overall sound resulting in a clear, transparent reproduction and minimises acoustic feedback and irritating background noise. The CS mixers feature a last-in function in order to maintain a pleasant atmosphere with a soft ambient sound also during the breaks in conversation rather than just cutting off the sound.
- Automatic microphone mixer
- 4 channels
- 3 operating modes: auto mode, priority or 4/1-channel mixer
- Balanced XLR inputs, switchable mic/line
- 12 V phantom power
- Mix output, switchable mic/line
- Trigger outputs for external devices, e.g. warning devices, cameras or speakers
- Status LEDs
- Several devices can be combined via link connections (supplied with cable)
- Desktop metal housing
- 482 mm (19″) rack installation with supplied mounting brackets
- Mic input 0.2 mV/4.7 kΩ
- Line input 60 mV/20 kΩ
- Aux output 1 V/200 Ω
- Frequency range 35-20,000 Hz
- THD < 0.06%
- S/N ratio > 70 dB
- Power supply via encl. plug-in power supply
- Admissible ambient temperature 0-40 °C
- No. of channels 8
- No. of inputs 8
- Phantom power +48 V
- Width 420 mm
- Height 44 mm
- Depth 199 mm
- Weight 2.3 kg
Chord RACKBAG4U 4U rack bag
19″ rack case in a padded bag with front and rear flaps for access and ventilation. Equipment is protected by an inner wooden frame and secured by metal rack strip front and rear. Also fitted with carrying handle, shoulder strap and zipped outer pocket.
- Sturdy internal wooden frame
- Rack strip front and rear
- Securing straps inside flaps
- Zipped external pocket
- Rack mounting depth: 350mm
- Rack height: 4U (176mm)
- Rack mounting depth: 328mm
- External dimensions: 550 x 380 x 250mm
- Weight: 4.86kg

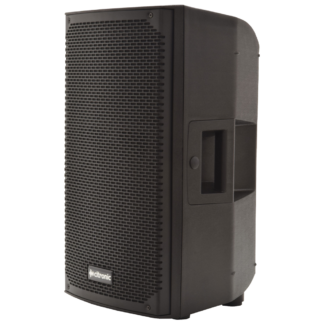

Citronic CAB-10L active speakers
Active PA speakers with Bluetooth wireless connection and stereo link capability, housed in a compact and lightweight moulded polypropolene enclosure. Custom designed low and high frequency drivers are powered by a class D digital amplifier circuit for powerful and energy-efficient performance. A switchable mic/line input and separate line input are provided along with a Bluetooth receiver for playback from a smart phone or tablet. The BT section also has a link function which allows wireless connection to another CAB series speaker to form a stereo pair
These versatile speakers achieve maximum sound output with minimal size, weight and setup time
- Supplied singly – two CAB Series speakers can be wirelessly linked to form a stereo pair
- Bluetooth receiver with stereo link capability
- Digital amplifier for lightweight & efficient performance
- Integral top and side carry handles
- 2 inputs with separate volume control
- 35mm pole mount
- Frequency response: 58Hz – 19kHz
- Output power: 220w RMS
- Max. SPL: 132dB
- Main driver: 250mmØ (10″) woofer
- Voice coil: 38mmØ (1.5″)
- Crossover frequency: 3.2kHz
- Dimensions: 530 x 310 x 300mm
- Weight: 11.2kg
Sound Services deliver this complete conference sound system without extra charge to most mainland UK addresses
This equipment requires an annual fixed site wireless microphone licence when used in the UK.
Please note that a maximum of 12 x TXS-606 series wireless microphone transmitters can be used with the appropriate number of TXS-606, TXS-626, TXS-646 or TXS-686 receivers at any one time.
Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.
Wireless microphone systems need to be connected to a public address PA sound system to work.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
