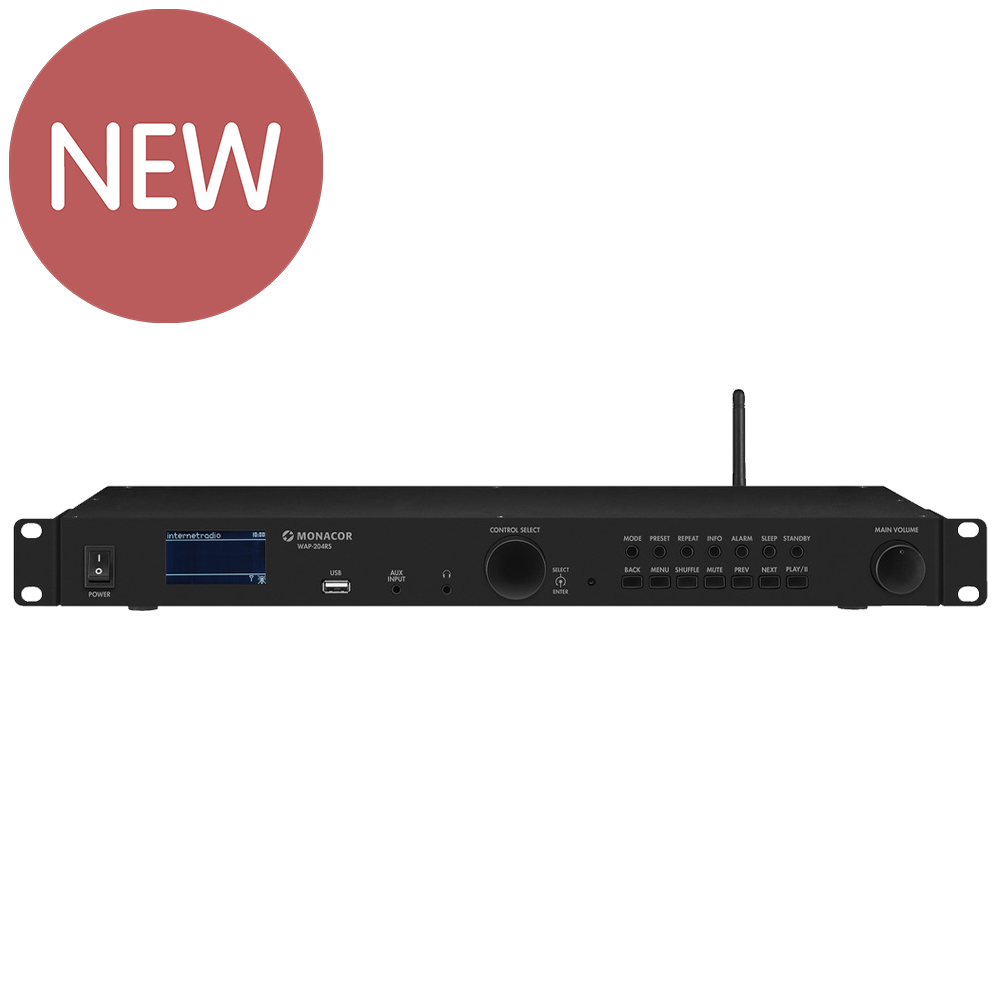

Monacor WAP-204RS Internet Radio and Media Player

Description

Monacor WAP-204RS internet radio, FM RDS and DAB+ tuner and MP3 media player

• Bluetooth interface
• Network connection via LAN jack or WLAN
• Access to more than 20,000 radio stations worldwide
• Station scan by genre, station name, location
• FM RDS reception function
• Reception of interference-free ‘digital radio’ (DAB+)
• USB host input for directly playing MP3 files
• Easy operation via jog dial
• Large illuminated matrix display
• Equalizer with factory presets and user presets
• Shuffle play and repeat folder via USB
• Summer time/winter time selection
• Sleep timer and alarm clock function with snooze
• Can be remote-controlled via infrared remote control, RS-232 interface or UNDOK™ app
• Aux input on the front panel (3.5 mm stereo jack)
• Headphone output (3.5 mm stereo jack)
• 75 Ω FM antenna input, coaxial
• RP-SMA antenna connection
• RS-232 interface

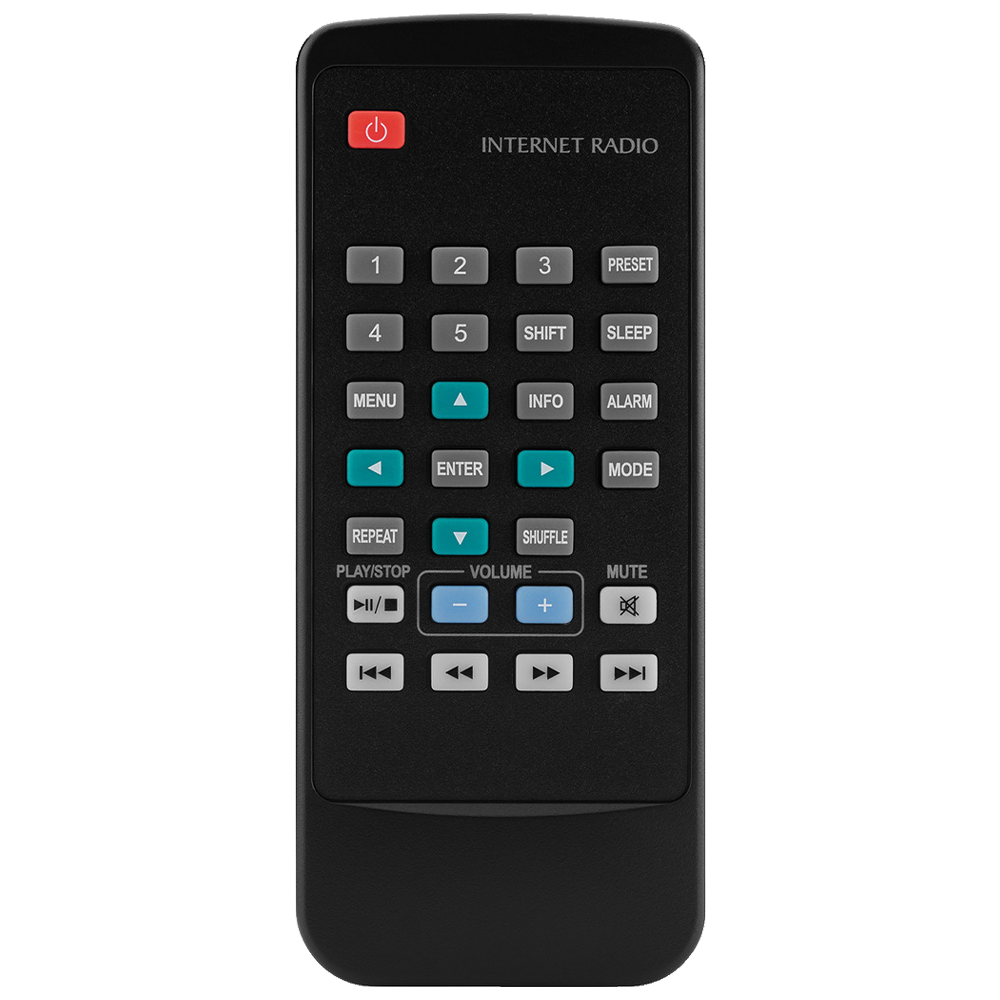

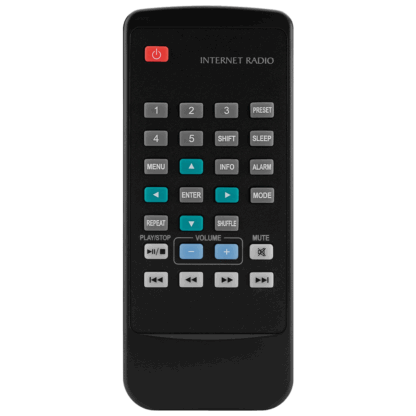

• Supplied with infrared remote control, rod antennas and FM wire antenna
• 482 mm (19″) rack installation, 1 RU, removable mounting brackets
• Description: Internet radio, FM RDS und DAB+ tuner, MP3 player
• Media: Bluetooth, FM, DAB+, MP3, LAN/WLAN
• Output, analogue: 750 mV
• Power supply: ˜ 230 V/50 Hz/20 VA, DC 15 V/300 mA
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 20 VA
• Operating voltage (possible alternative): DC 15 V
• Power supply (possible alternative): 300 mA
• Admissible ambient temperature: 0-40 °C
• Dimensions: 482 x 44 x 245 mm
• Weight: 2.7 kg

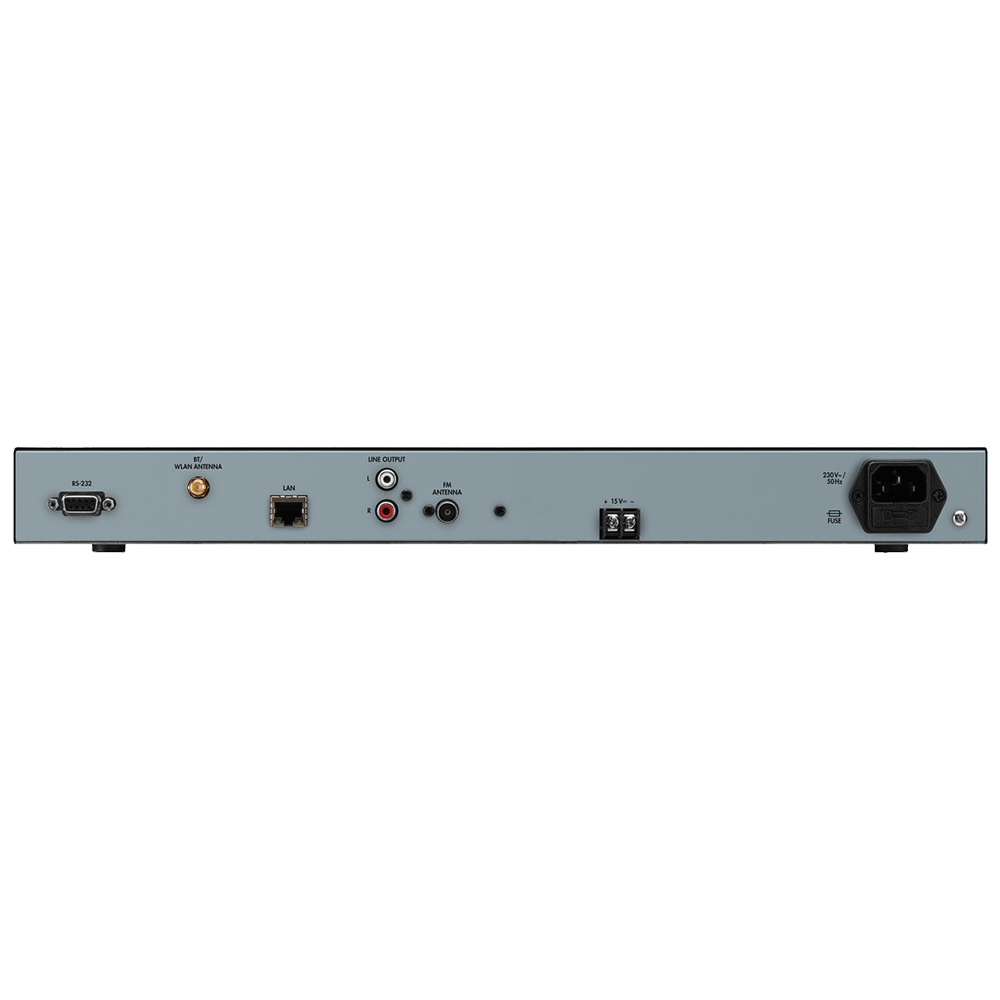

• Connections:
  • 1 x 3.5 mm stereo jack (aux in),
  • 1 x RCA L/R (line out),
  • 1 x 3.5 mm stereo jack (headphones),
  • 1 x RJ45 (LAN)
  • 1 x WLAN/Bluetooth antena
  • 1 x RS-232 interface

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
