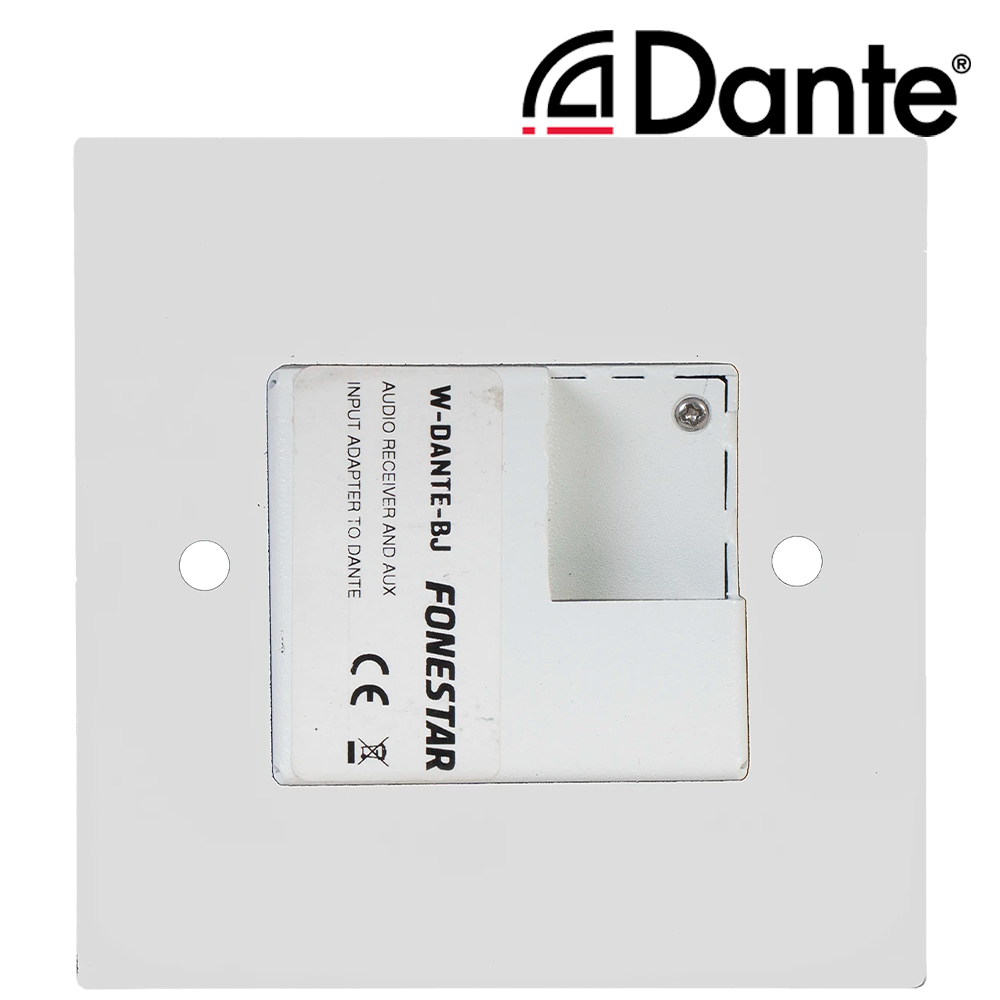

Fonestar W-DANTE-BJ Dante® Wall Plate

Description

Fonestar W-DANTE-BJ Dante® Bluetooth and auxiliary wall plate

Smart connectivity for professional audio systems

The W-DANTE-BJ is a wireless audio receiver with DANTE digital output, designed to integrate efficiently into professional installations. Its compact and robust format, compatible with standard European wall boxes, makes it a versatile and discreet solution. It includes a stereo RCA auxiliary input and automatically prioritizes the wireless signal when both sources are active. It also allows remote management and configuration via PC software, facilitating integration into distributed audio systems.

Advantages of the W-DANTE-BJ receiver

This device combines technical features ideal for professional AV installations:

• DANTE digital transmission: output via RJ-45 Ethernet port with a minimum latency of 2 ms
• High audio quality: 48 kHz sampling rate, 24-bit AD/DA converter, signal-to-noise ratio >100 dB and THD <0.005%
• Advanced management: wireless network name and password customization, player settings and remote control via software
• Optimized installation: powered via PoE (802.3af) with low consumption of just 2 W and compatible with round or square wall boxes
• Durability and reliability: metal housing and operational temperature range from -10 ºC to 40 ºC, with up to 95% relative humidity (non-condensing)

Why choose the W-DANTE-BJ wireless audio receiver and AUX to DANTE input adapter?

Choosing the W-DANTE-BJ ensures a professional, flexible and reliable solution for your installation projects:

• Perfect for demanding environments: its low profile, high-quality conversion and seamless integration make it ideal for conference rooms, corporate buildings and educational spaces
• Time and resource saving: thanks to PoE power and remote setup, installation and maintenance are simplified
• Full compatibility: supports both wireless and analog inputs, adapting to various technical scenarios

Specifications

• Features:
  • Wireless audio receiver
  • Auxiliary input
  • 2-channel DANTE digital audio transmitter (L and R)
  • Wireless audio input priority
  • PC software: customisation of wireless connection name and password, settings and remote control of the player
  • PoE power supply
  • Durable metal housing
  • For square and round universal standard case
• Inputs:
  • 1x Wireless audio receiver
  • 1x AUX. 2x RCA connector, 250 mV
• Outputs:
  • 1 Ethernet communication port
  • RJ-45 connector
• Frequency response: 20 – 20K Hz (+/- 0.2 dB)
• Distortion: THD-N: <0.005% @ 4 dBu
• Sampling frequency: 48 KHz
• AD – DA converter: 24 bits
• Latency: 2 ms
• S/N ratio: >100 dB
• Controls: Touch button for selecting the operating mode
• Temperature: Operation: -10ºC ~ 40ºC
• Humidity: 95% RH maximum (non-condensing)
• Power supply: PoE (802.3af)
• Power consumption: 2 W
• Dimensions: 86 x 86 x 44 mm depth
• Weight: 0.2 kg
• Optional: DOT-BOX-WH: surface-mounting box
