Description
The VH300 and VH600 systems are designed for small to medium venues that need reliable, clear sound without complexity. Whether it’s a village hall, church, school assembly or function room, this comprehensive package gives you a rack-mounted mixer with Bluetooth and media playback, a clean Class-D amplifier and full-range passive cabinets — all paired with a wireless microphone system for speech and announcements. Simple to set up, simple to operate, and built to last.
System includes:
- Stereo 150+150W power amplifier
- Media mixer with Bluetooth
- Dual licence-free handheld wireless microphone system

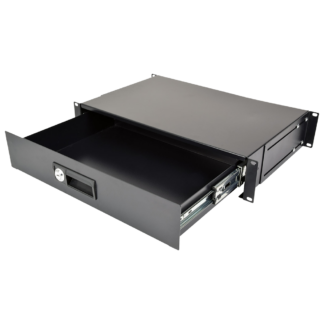

- 2U rack drawer for convenient microphone and accessory storage

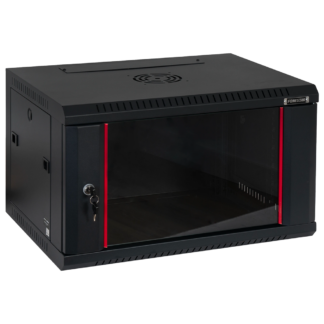

- 6U wall-mount rack – rack fixings included
- 1U blanking panel for aesthetic tidiness
- Two high power music cabinet speakers and wall-mount brackets
- All required cables and connectors
Amplifier
Stereo power amplifier in a lightweight 1U rack-mountable housing. Class-D circuit architecture efficiently converts power into impactful audio for driving medium to large speaker cabinets. Custom cool guide technology ensures consistent and reliable operation and an inbuilt limiter circuit engages at peak output to prevent speaker overload. Options for parallel and bridge mode with selectable input levels and 75Hz low cut filter allow for different configurations to handle even the most demanding of sound reinforcement duties.
Media Mixer
Rack-mountable 1U mixer with built-in media player and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable +20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo record output. Media player operating modes include 3.5mm Aux input, USB audio player, FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right outputs are fed to XLR with an additional mono summed output on 6.3 jack. Versatile yet easy to use as a main mixer for background music, public address and house PA systems.
Wireless Microphone Set
DTM 800H twin wireless microphone system with 2 x handheld transmitters on Channel 70 (863-865 MHz) with 20 selectable frequencies these systems utilise a true diversity, full width 19″ rack mountable receiver for the ultimate in RF stability. Outstanding vocal reproduction and stable wireless connectivity allow freedom of movement on stage. These systems offer crystal clear sound reproduction and rock solid reliability. Metal bodied handheld transmitters feature ergonomic design with a rugged housing to stand up to the rigours of the road.
Speakers
Premium full-range passive speaker cabinets with a polyurea coated wooden enclosure and powder-coated steel grille. A high power-handling main driver and efficient titanium diaphragm HF compression driver combine with the tuned enclosure to deliver a balanced output of all frequencies. The rear panel has 2 parallel inputs for Speakon connection, also enabling linking onto additional speakers. Each cabinet has 2 side handles and a 35mm pole-mount socket for stand mounting. The rear of the cabinet has 2 different bevels for angled placement at ground level or for suspended arraying, multiple M8 flying points are inset on each cabinet. Recommended for use with Citronic PLX, D and H series amplifiers for a wide range of professional high power sound reinforcement situations.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
