Fonestar SKY-5T Ceiling Speaker

Description

Fonestar SKY-5T 12W 5″ 100V line low profile ceiling speaker

Design by Fonestar products are the result of in-depth research and active listening to our customers, turning their needs into competitive solutions. Stylish design and acoustic versatility in a 5‘’ ceiling speaker. The SKY-5T is a 100 V line transformer ceiling loudspeaker designed to combine aesthetics and functionality in professional sound system engineering and installation projects. Its frameless, low-profile grille in rust-resistant aluminium provides a discreet, modern finish. In addition, it is detachable, twist-lockable and customisable, allowing the logo to be removed and painted to suit the environment.

This loudspeaker is designed to meet the needs of demanding installers and technical projects thanks to advanced features

• Efficient installation: quick-connect terminals for 0.4 to 4 mm² cables, anti-fall system and safety hook for easy mounting in ceilings up to 30 mm thick
• Guaranteed durability: high-strength materials, such as UV-protected ABS and painted aluminium grille, meet dust, water and neutral salt spray resistance standards (IP-44)
• Excellent acoustic performance: wide response range (55-20,000 Hz), optimised coverage angles and sound pressure of up to 98 dB, ideal for indoor and outdoor PA projects

The SKY-5T stands out for its combination of performance, reliability and design

• High-quality sound thanks to its 5‘’ dual-cone polypropylene diaphragm and adjustable impedance settings (833 Ω to 3.333 Ω)
• Application flexibility with support for challenging environments (-20 °C to 70 °C, 95 % max. humidity)

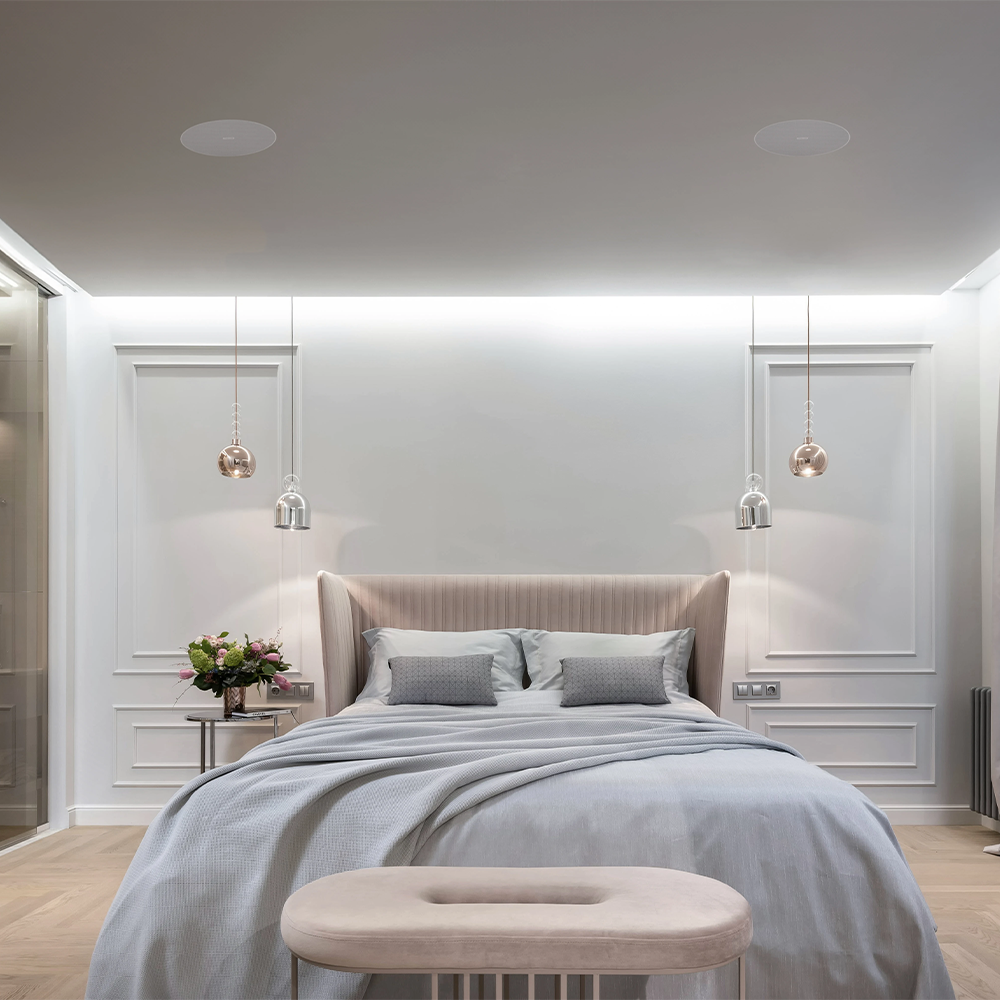

• Easy maintenance and customisation, suitable for multiple environments, from offices to commercial spaces
• The SKY-5T is the perfect choice for those seeking quality, style, and functionality in in-ceiling loudspeaker solutions

Specifications

• Features:

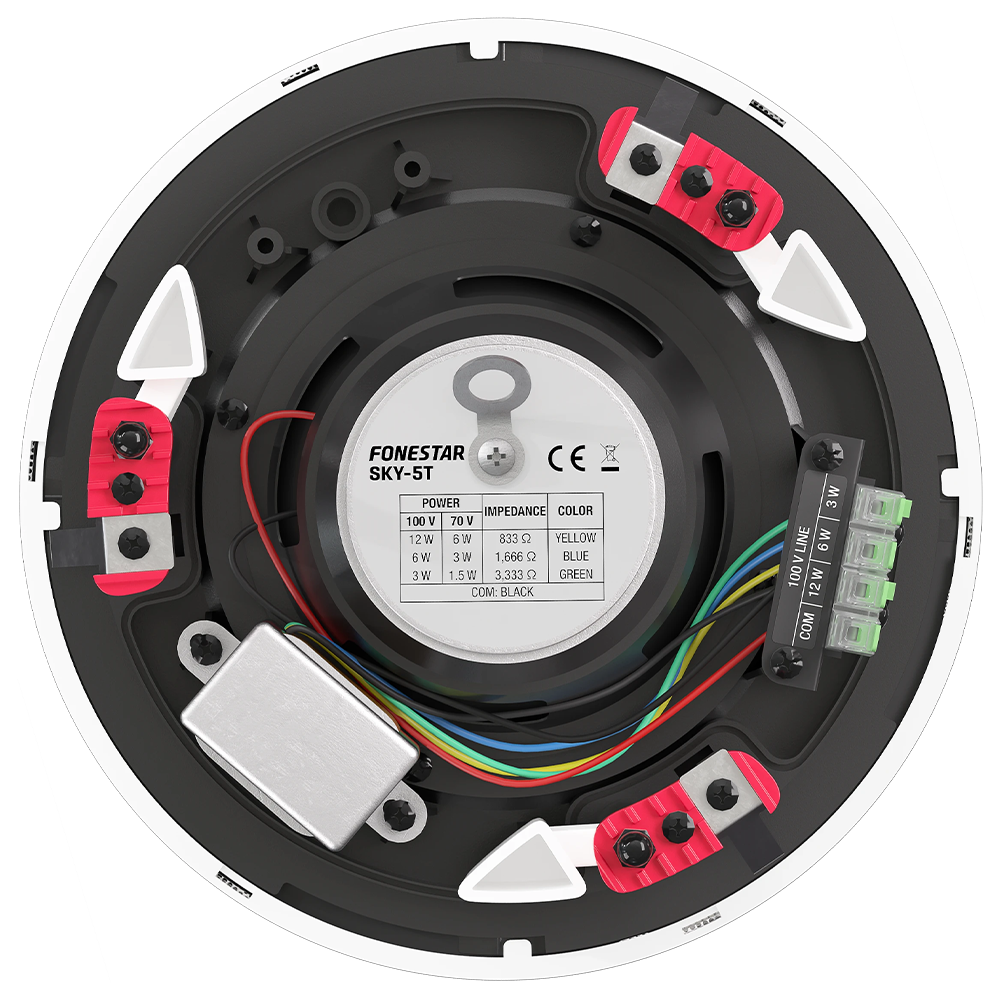

  • Ceiling loudspeaker with 100 V line transformer

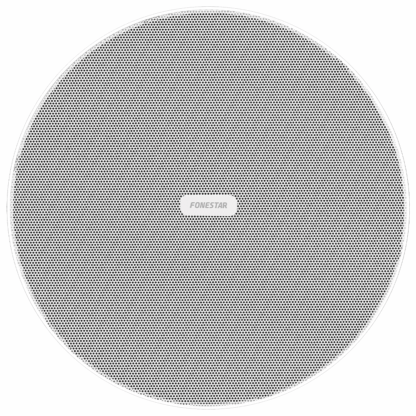

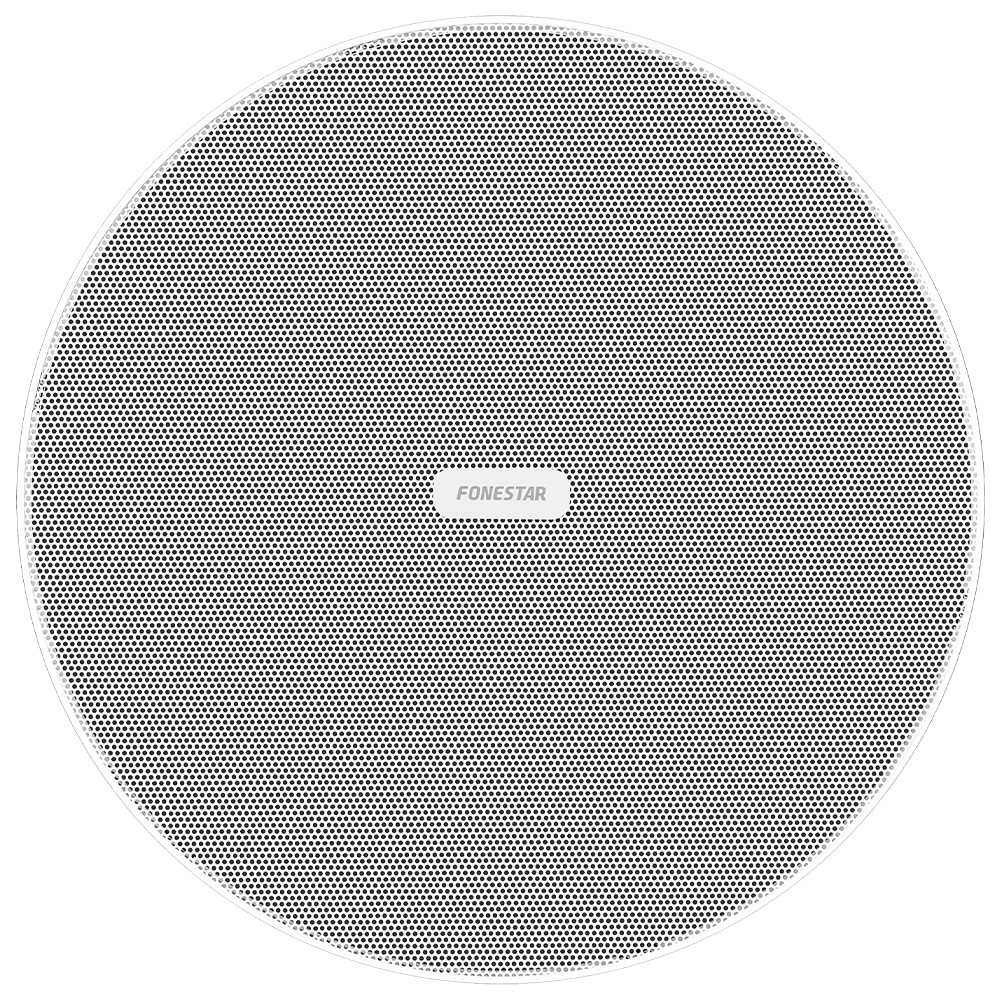

  • Low profile frameless grille, constructed from rust resistant aluminium. Detachable, turn-lockable grille. The logo can be removed and painted

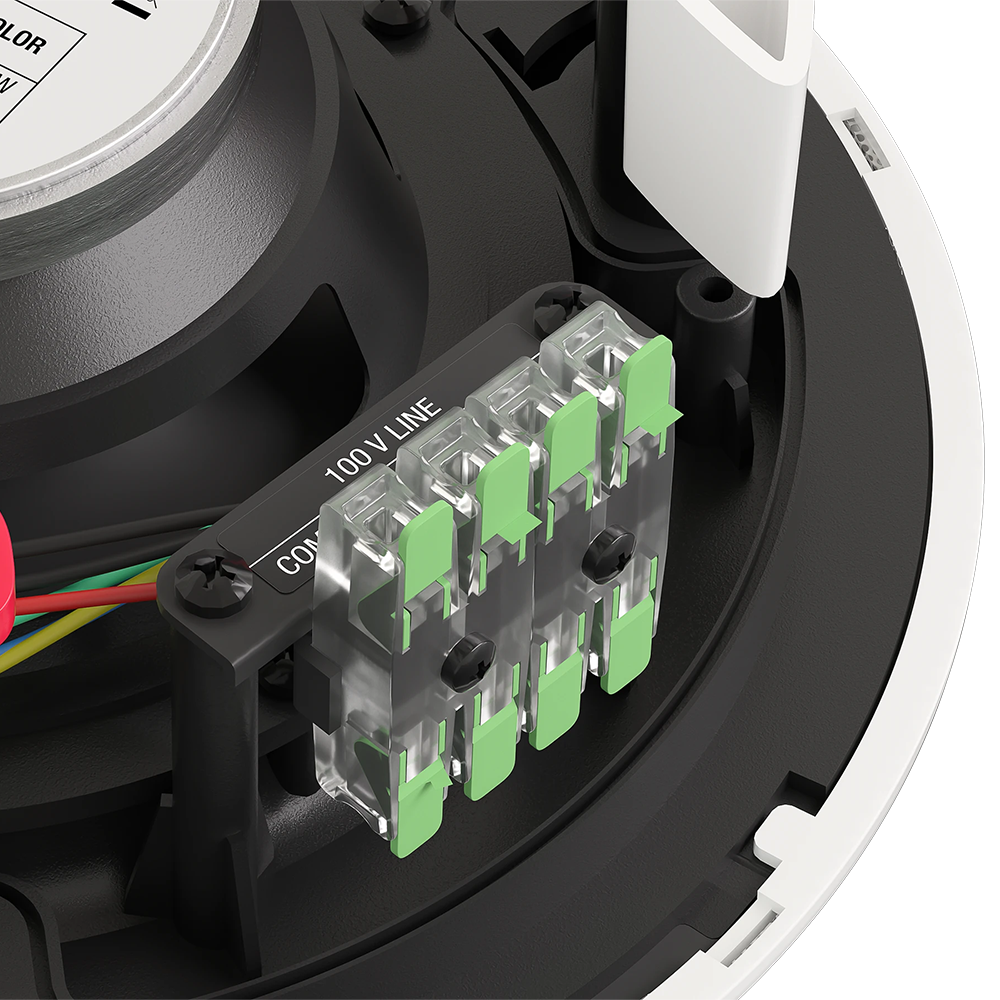

  • Fast connection terminals and high conductivity
  • Anti-fall system for installation assistance
  • Hook for safety cable

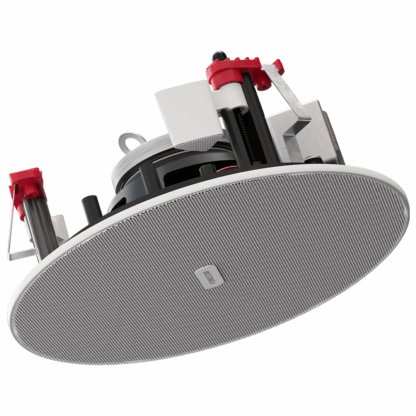

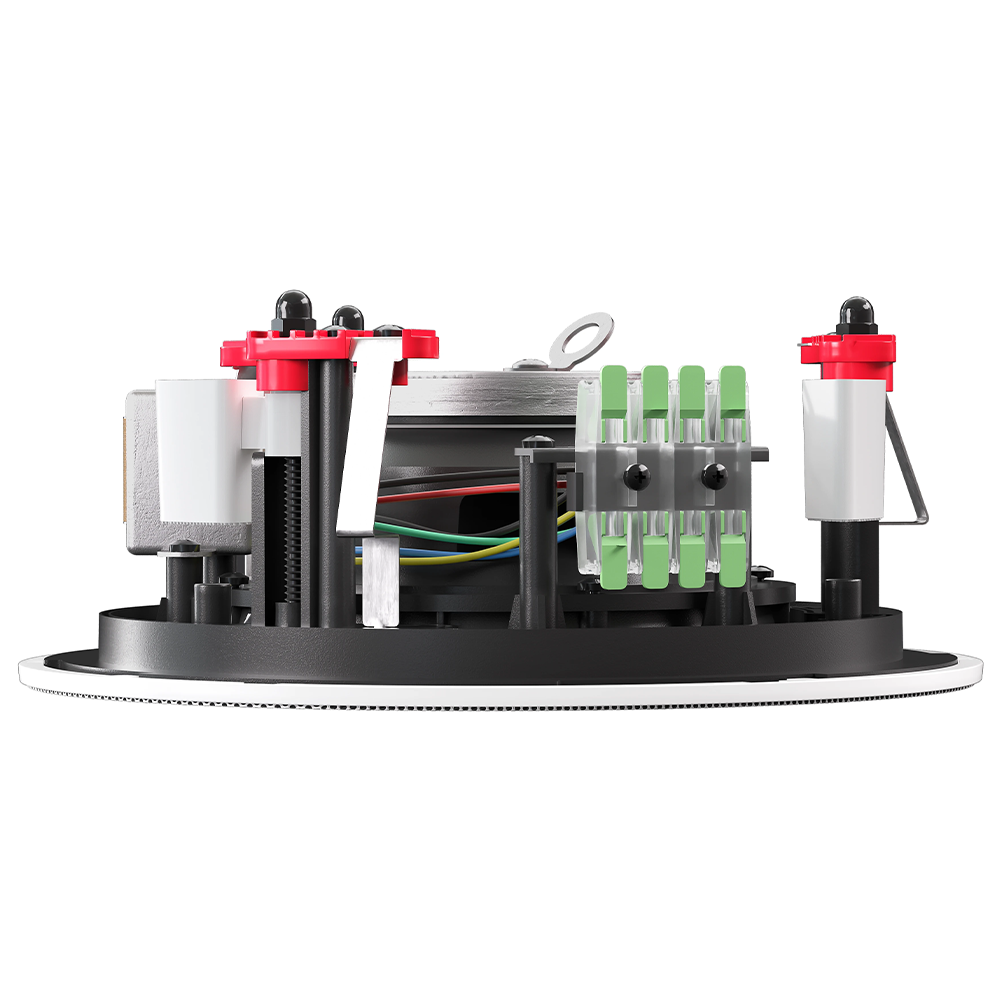

  • Stable, worm-gear ceiling brackets
  • Protection against dust and water
• Power:
  • 12 W RMS
  • 16 W MAX.

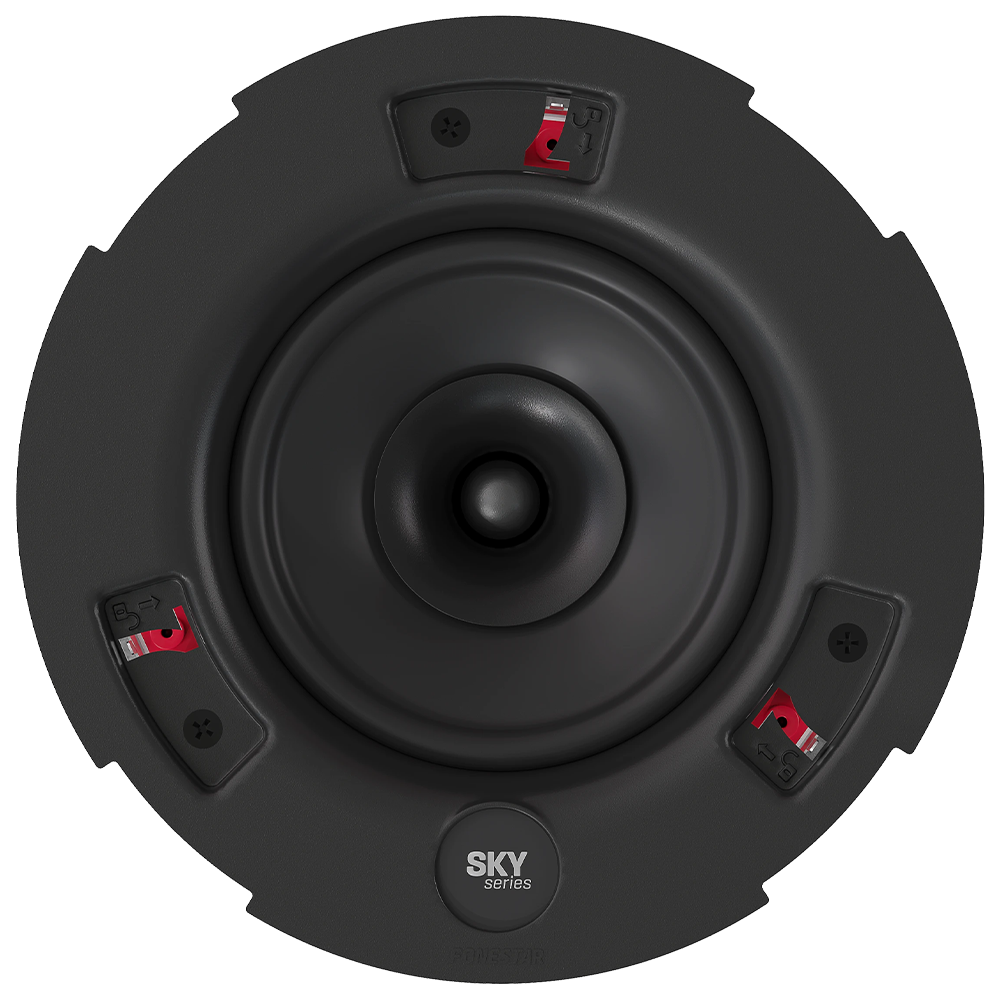

• Speaker: 5” polypropylene double cone diaphragm
• Frequency response:
  • 55-20,000 Hz @ -10 dB
  • 70-20,000 Hz @ -3 dB
• Impedance:
  • 12 W RMS@100 V (833 Ω)
  • 6 W RMS@100 V/70 V (1.666 Ω/816 Ω)
  • 3 W RMS@100 V/70 V (3.333 Ω/1,633 Ω)
  • 1.5 W RMS@70 V (3.266 Ω)
• Sensitivity: 85 dB @ 1 W/1 m
• Sound pressure:
  • 97 dB @ max. W/1m Continuous
  • 98 dB @ max. W/1m Peak
• Dispersion angle: 90º@1kHz (- 6 dB)
• Protections:
  • IP44 in compliance with IEC 60529
  • EN ISO 9227:2006 Neutral Salt Spray Test
• Material:
  • ABS (UV resistant)
  • Liquid paint aluminium grille
• Connectors:
  • Highly conductive quick-connect terminals
  • For 0.4 ~ 4 mm² cross section cable
• Operation temperature: -20ºC ~ 70°C (48 h)
• Storage temperature: 10ºC ~ 40°C
• Maximum humidity: 95%
• Colour: White (RAL 9003)
• Dimensions:
  • Total loudspeaker: 214 mm Ø x 85 mm height
  • Grille section: 5 mm
  • Recessed height: 80 mm
  • Installation hole: 180 mm Ø
  • Maximum ceiling thickness: 30 mm
• Weight: 0.8 kg
• Accessories : Installation template
