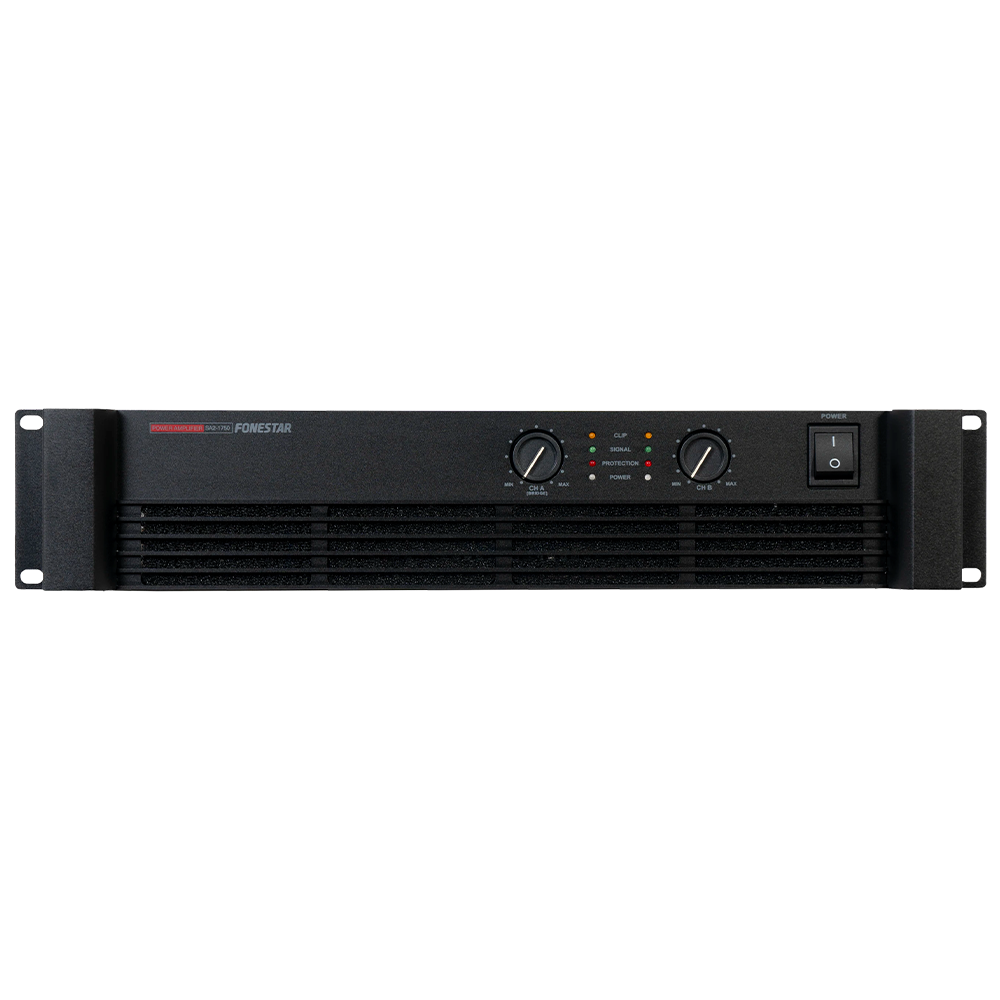

Fonestar SA2-3400 Power Amplifier

Description

Fonestar SA2-3400 2 x 1,275W at 4Ω stereo power amplifier

The SA2 series amplifiers deliver high power and sound quality with high performance and stability. Operating and power modes: Stereo and parallel up to 880 + 880 RMS@2 Ω, Bridge mode up to 1.750 W RMS@4 Ω. High reliability with soft start, temperature protection, short circuit, overload, clip limiter, continuous voltage, ultrasound and RF. Incorporates 2 variable speed fans. Audio inputs with XLR connection and volume control of each channel. Speaker outputs with speaker connector. Very user-friendly and minimal set-up time. Designed for professional use in different mobile events such as discos, concerts, festivals, meetings, etc.,as well as for fixed installations in discotheques, pubs, auditoriums, etc.

• Power:
  • Stereo / parallel:
    • 850 + 850 W RMS@8 Ω
    • 1,275 + 1,275 W RMS@4 Ω
    • 1,700 + 1,700 W RMS@2 Ω
  • Bridge mode:
    • 2,550 W RMS@8 Ω
    • 3,400 W RMS@4 Ω
• Protection: Soft start, temperature, short circuit, overload, clip limiter, direct voltage, ultrasound and RF, 2 variable speed fans

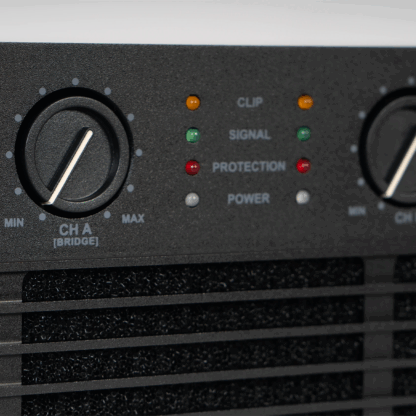

• Controls:
  • Volume per channel
  • Stereo/parallel/bridge operating mode selector
  • Sensitivity selector
  • GND lift earth disconnection
  • 30Hz high pass filter

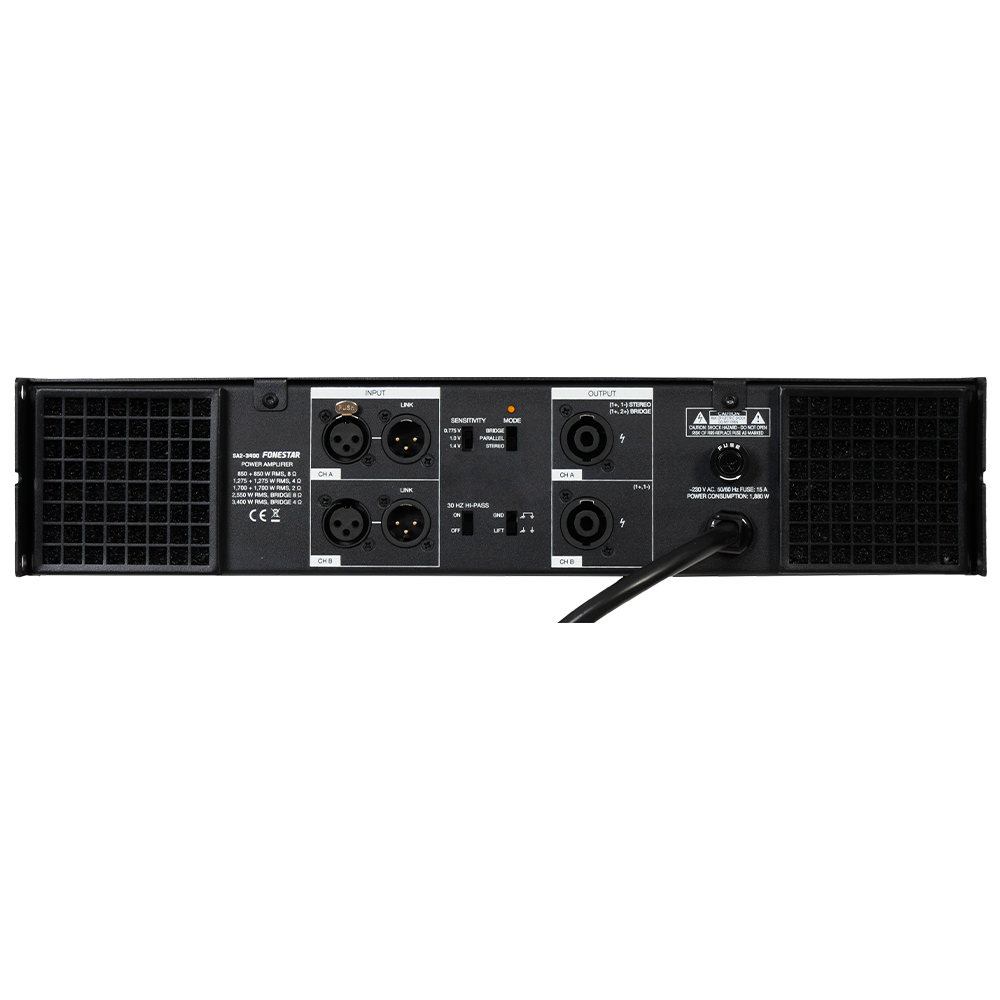

• Inputs: 2 balanced XLR auxiliary line inputs
• Frequency response: 20-20,000 Hz
• Distortion: Harmonic: <0.08%
• Damping factor: 400
• S/N ratio: > 95 dB
• Outputs: 2 speaker outputs
• Power supply: 230 V AC, 1,880 W maximum
• Dimensions: 483 x 89 x 488 mm depth, 2 U 19″ rack
• Wieght: 21.8 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
