Fonestar SA2-1750 Power Amplifier

Description

Fonestar SA2-1750 2 x 675W at 4Ω stereo power amplifier

The SA2 series amplifiers deliver high power and sound quality with high performance and stability. Operating and power modes: Stereo and parallel up to 880 + 880 RMS@2 Ω, Bridge mode up to 1.750 W RMS@4 Ω. High reliability with soft start, temperature protection, short circuit, overload, clip limiter, continuous voltage, ultrasound and RF. Incorporates 2 variable speed fans. Audio inputs with XLR connection and volume control of each channel. Speaker outputs with speaker connector. Very user-friendly and minimal set-up time. Designed for professional use in different mobile events such as discos, concerts, festivals, meetings, etc.,as well as for fixed installations in discotheques, pubs, auditoriums, etc.

• Power:
  • Stereo / Parallel:
    • 450 + 450 W RMS@8 Ω
    • 675 + 675 W RMS@4 Ω
    • 880 + 880 W RMS@2 Ω
  • Bridge mode:
    • 1,350 W RMS@8 Ω
    • 1,750 W RMS@4 Ω
• Protection: Soft start, temperature, short circuit, surge, clip limiter, continuous voltage, ultrasound and RF, 2 variable speed fans

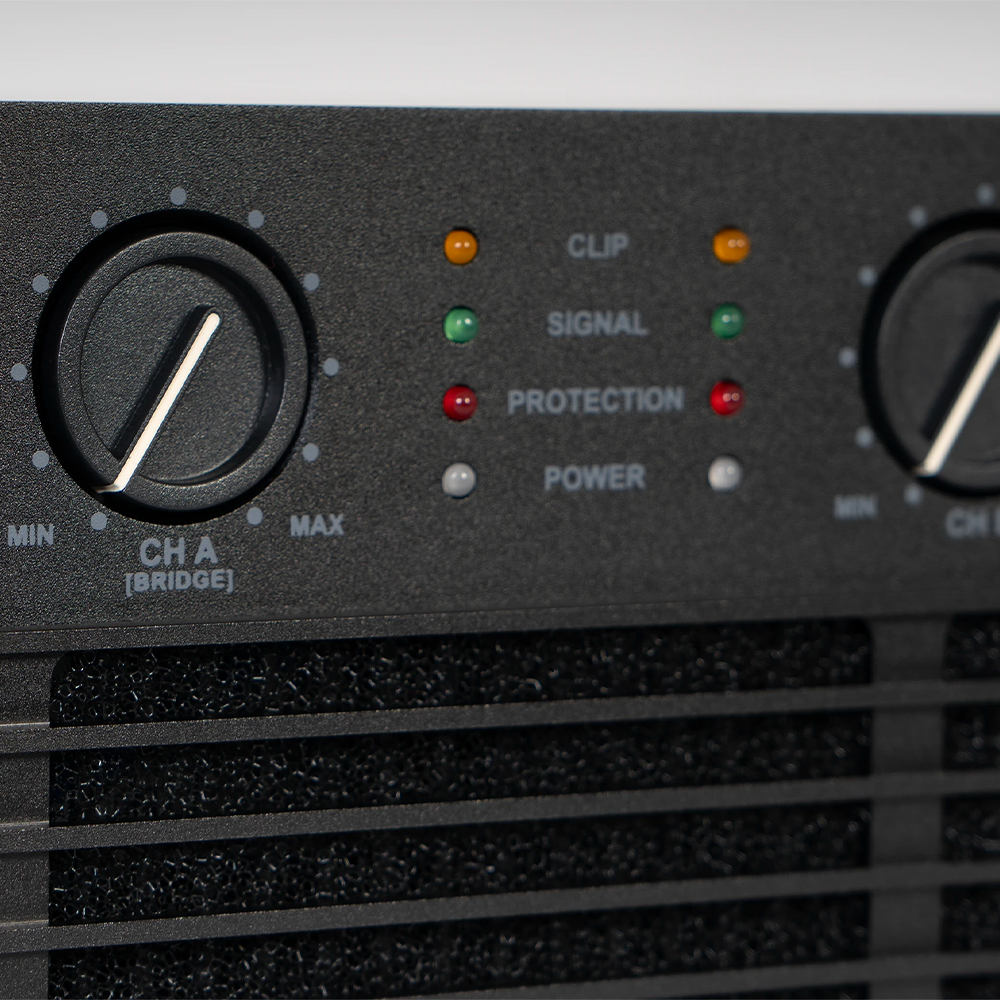

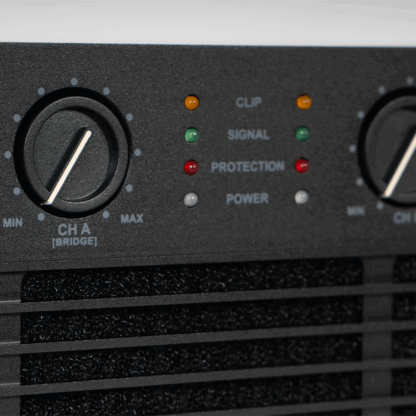

• Controls:
• Volume per channel
  • Stereo/parallel/bridge operating mode selector
  • Sensitivity selector
  • GND lift earth disconnection
  • 30 Hz high pass filter

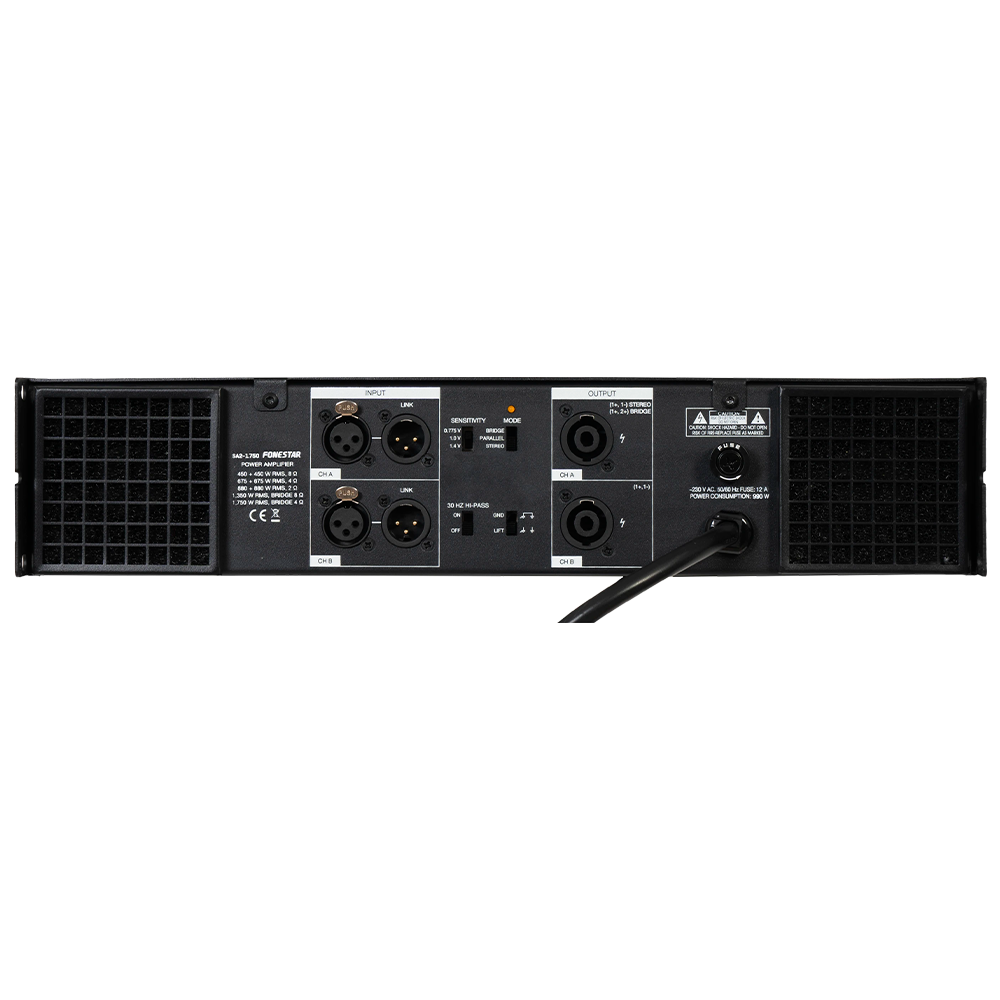

• Inputs: 2 balanced aux line inputs XLR
• Frequency response: 20-20,000 Hz
• Distortion: Harmonic: < 0.05%
• Damping factor: 400
• S/N ratio: > 90 dB
• Outputs: 2 loudspeaker outputs
• Power supply: 230 V AC, 990 W maximum
• Dimensions: 483 x 89 x 488 mm depth
• Weight: 17.6 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
