Monacor SA-230/SW Stereo Mixer Amplifier

Description

Monacor SA-230/SW 2 x 20w RMS @ 8Ω stereo mixer amplifier

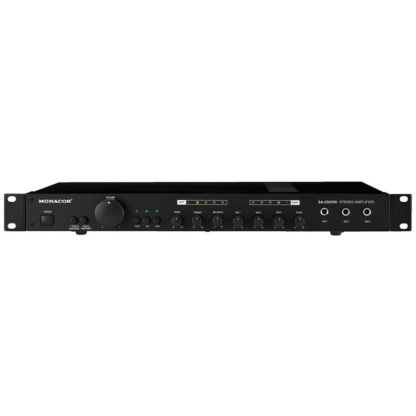

The clearly arranged user controls of the SA-230/SW makes listening to and making music really enjoyable. One of the three stereo line sources and three mono microphone sources can be mixed together. When combined with karaoke CDG’s, CDs or DVDs, features like “one-touch karaoke” or “vocal partner” are available. Adjustable digital echo effect can be added to the microphone channels. The fanless cooling of the amplifier ensures silent operation. The latest protective circuits provide protection against overload, overheating and short circuit

• Silent operation due to fanless cooling
• 3 switchable stereo line inputs
• 3 mono microphone inputs with individual gain control
• Adjustable digital echo on microphone inputs
• Karaoke feature
• Vocal partner feature
• LEDs indication of level and active line inputs
• Controls for volume, bass, treble, balance and digital echo
• Stereo record output
• 482 mm (19″) rack installation, 1u, with supplied mounting brackets
• Line Inputs: 175 mV/8 kΩ
• Mic Inputs: 2.5 mV/3.5 kΩ
• Frequency response: 20-20,000 Hz
• S/N ratio: 62 dB
• Digital echo: 200 ms
• Equalizer:
  Bass: ±10 dB
  Treble: ±10 dB
• Power supply: 230v AC
• Admissible ambient temperature: 0-40 °C
• Dimensions: 432 x 45 x 275 mm
• Weight: 4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
