Penn Elcom R2293-10-2UK 2U Rack Drawer

Description

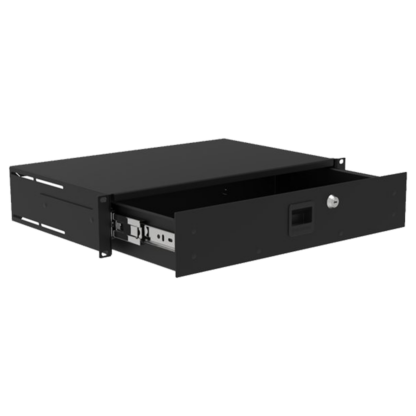

Penn Elcom R2293-10-2UK 2U locking 19″ rack drawer

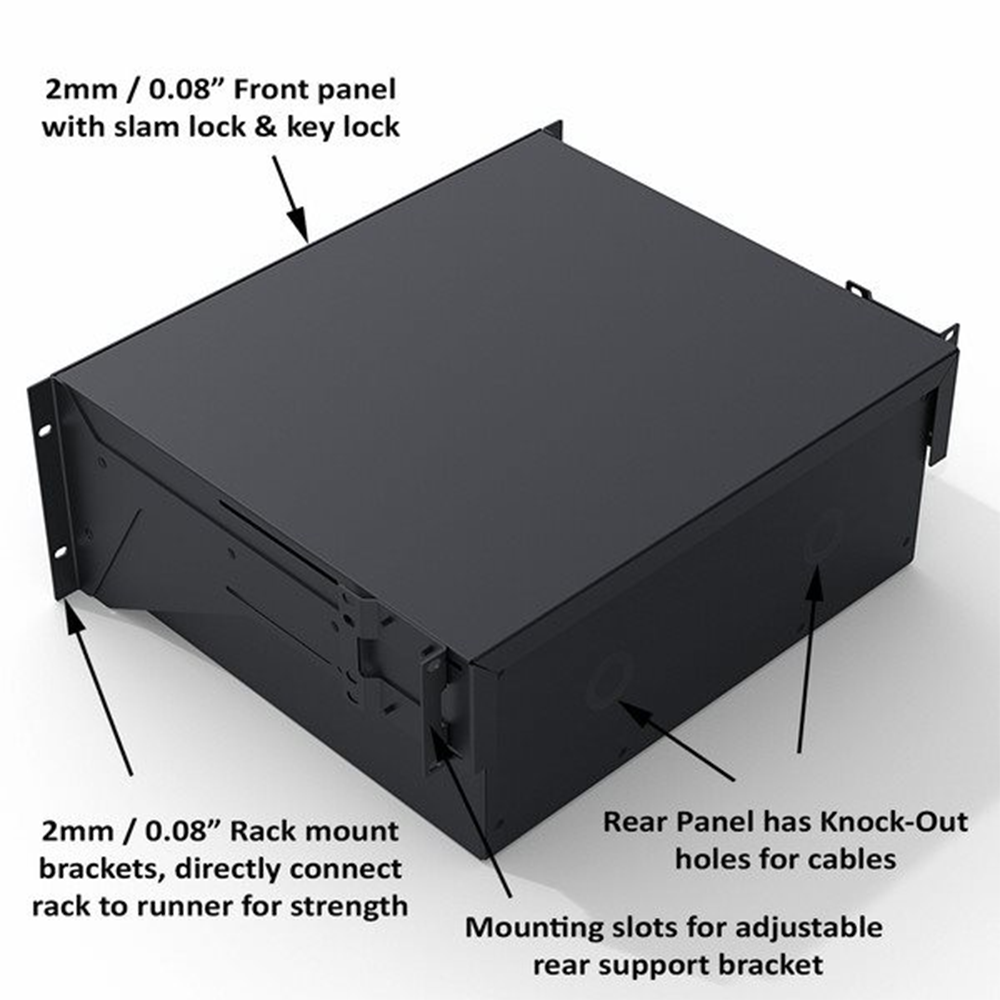

285mm / 10” Deep, 2U Tour Grade Heavy Duty Rack Drawer with Slam Lock and Key Lock

• Tour Grade / Heavy Duty Rack Drawer With Space-Saving Flat Front Panel
• Reinforced Rack Mounting Ears
• M25 / M40 Cable Gland Knock-Outs for Cable Access at the Rear
• Support Brackets Included R2292-RSB-KIT
• With Slam latch and Keylock (comes with 2 keys)

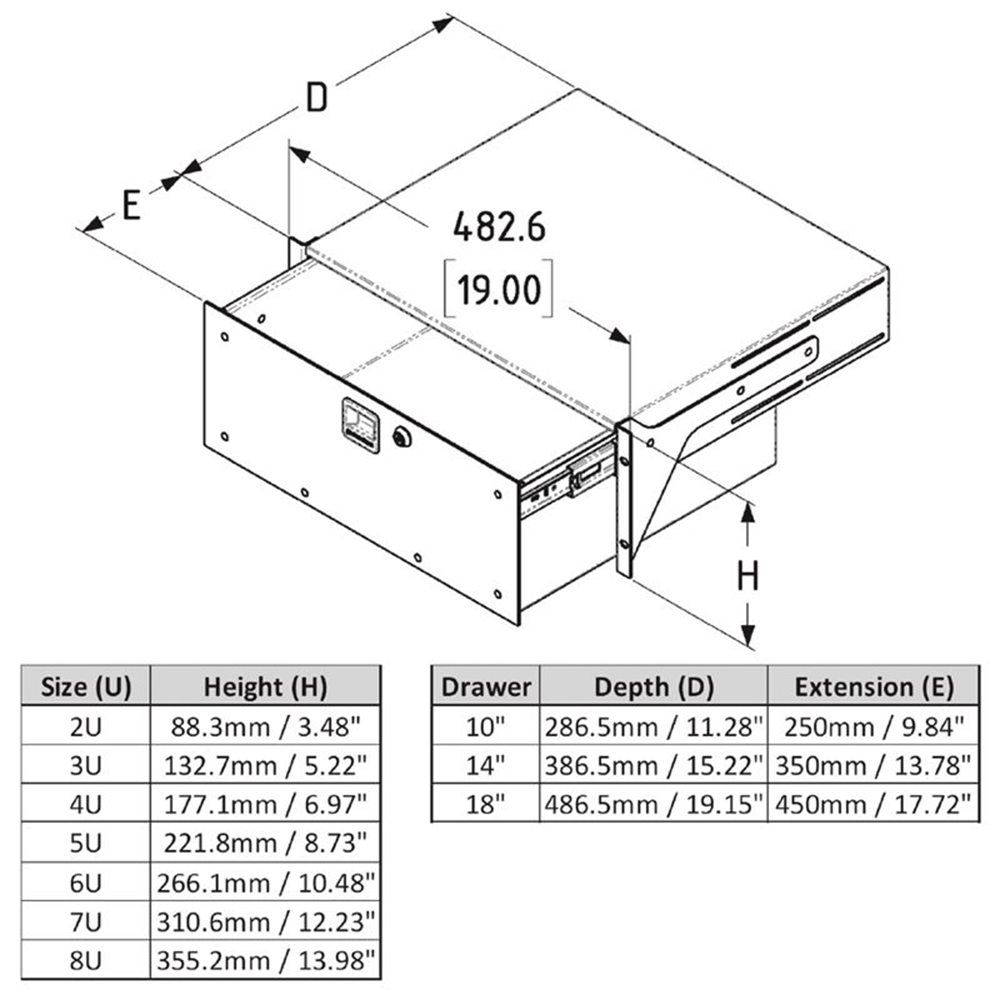

• External Dimensions:
  • External Depth: 286.5mm
  • External Width: 482.6mm
  • External Height: 88.3mm
• Internal Dimensions:
  • Internal Depth: 275mm
  • Internal Width: 409mm
  • Internal Height: 74mm
• Load Capacity: 22kg
• Material: Steel
• Size (U): 2U
• Weight: 4.39kg
• Depth: 28.5cm
• Finish: Black

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
