Description

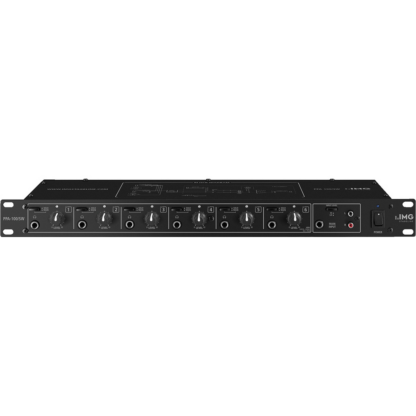

IMG Stageline PPA-100/SW 6 way stereo headphone amplifier with 6 separate headphone amplifiers, each with level control and signal/clip LED. Each headphone amplifier has main/solo switching and solo input which is switchable as the common main input source. Main input with low/high sensitivity selector switch for matching the input signal accurately
- 6 separate headphone amplifiers, each with 1 level control and 1 signal/clip LED as well as main/solo switching
- 1 input (solo) per amplifier, switchable to the common main input
- Main input with low/high selector switch for matching the input signal

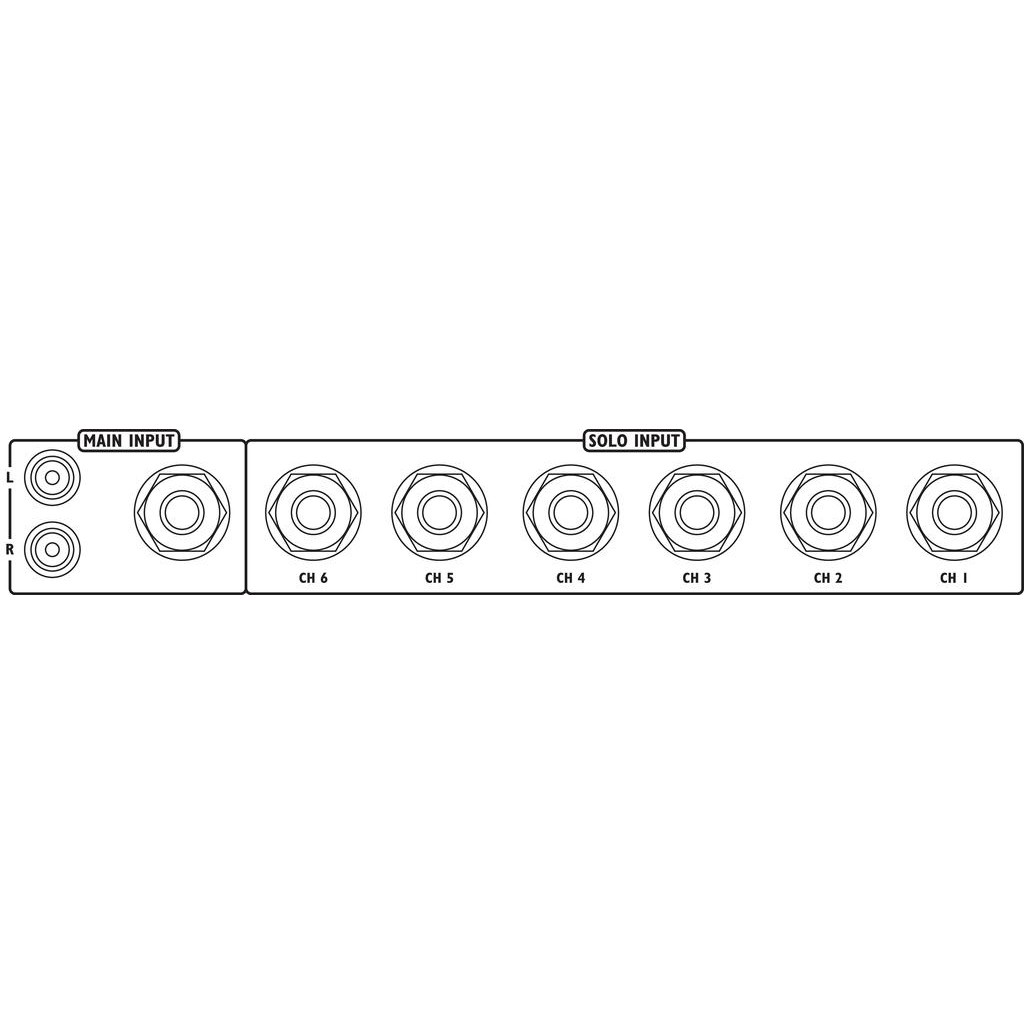

- Inputs: solo (stereo) 6 x 6.3mm jack, main (stereo) 2 x 6.3mm jack, 2 x RCA L/R
- Outputs: headphones (stereo) 6 x 6.3mm jack
- Type: headphone amplifier
- Frequency range: 5-30,000 Hz
- Input signal: 250 mV/50 kΩ (solo), 250 mV/50 kΩ (main low), 2.2 V/60 kΩ (main high)
- Output signal: 2 x 16 mW/8 Ω, 2 x 45 mW/32 Ω, 2 x 75 mW/600 Ω
- S/N ratio: > 60 dB
- Channel separation: 50 dB
- THD: < 0.02%
- Admissible ambient temperature: 0-40 °C
- Power supply: ˜ 230 V/50 Hz/11 VA
- Dimensions: 482 x 44 x 185 mm, 1 RS
- Weight: 2.3 kg
- Inputs: 2 x RCA L/R (main), 2 x 6.3 mm jack (main), 6 x 6.3 mm jack (solo)
- Outputs: 6 x 6.3 mm jack (headphones)
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
