Description

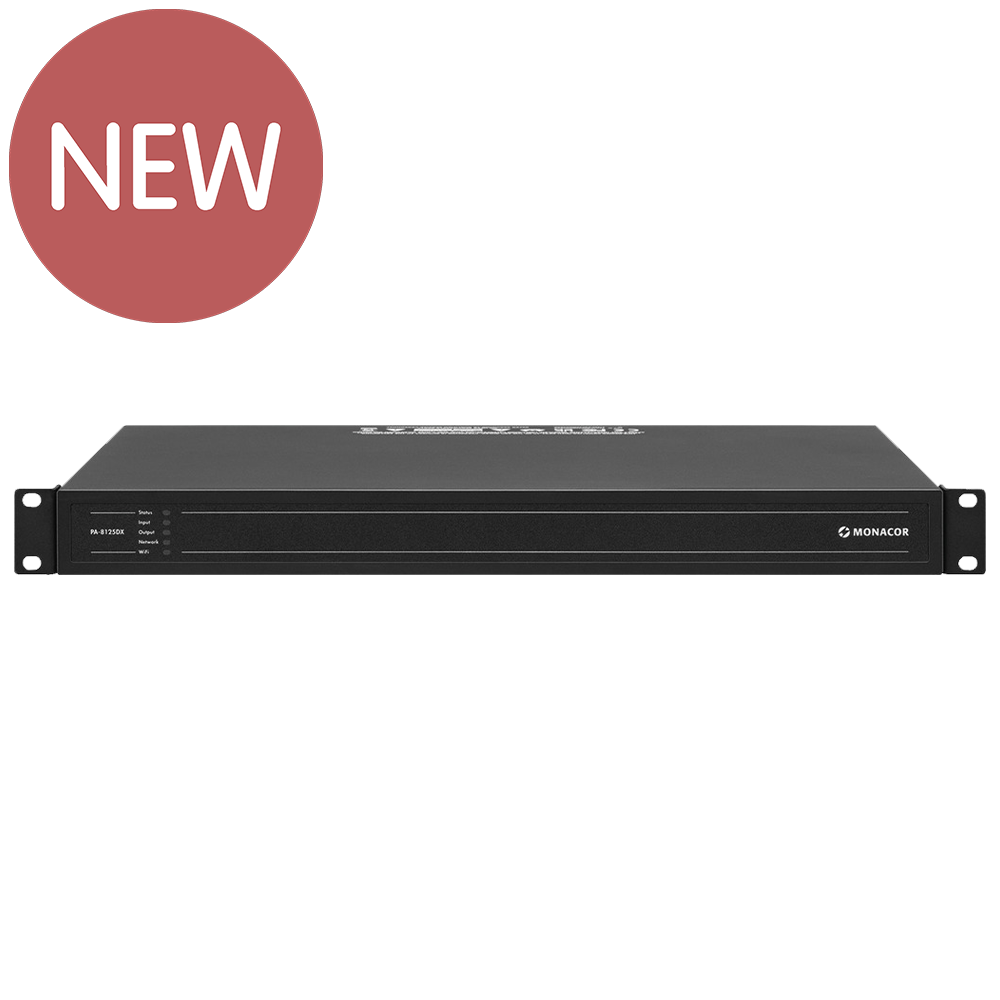

Monacor PA-4125DX 1,000W (4 x 250W @ 100V line or 8 x 125W @ 8Ω) mixer amplifier with DSP
8-zone multifunctional mixing amplifier, class D technology with DSP and professional features for general multi-room PA applications. Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).
- 8 x 125 W (4/8 Ω) or 4 x 250 W (100 V)
- 100 V or 4/8 Ω operation
- 8 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
- 1 digital input/output via S/PDIF RCA jacks
- 8 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
- GPIO interface for remote volume control and standby
- Network connection via LAN or WLAN

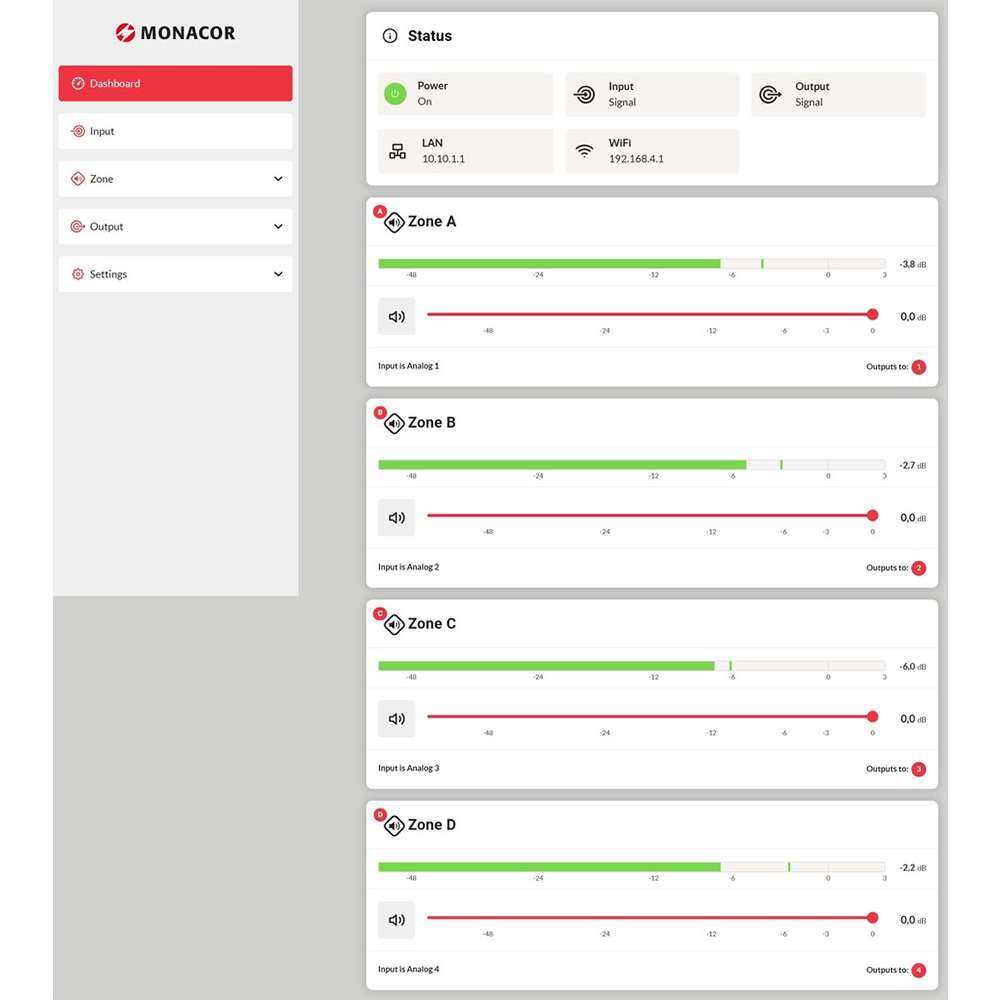

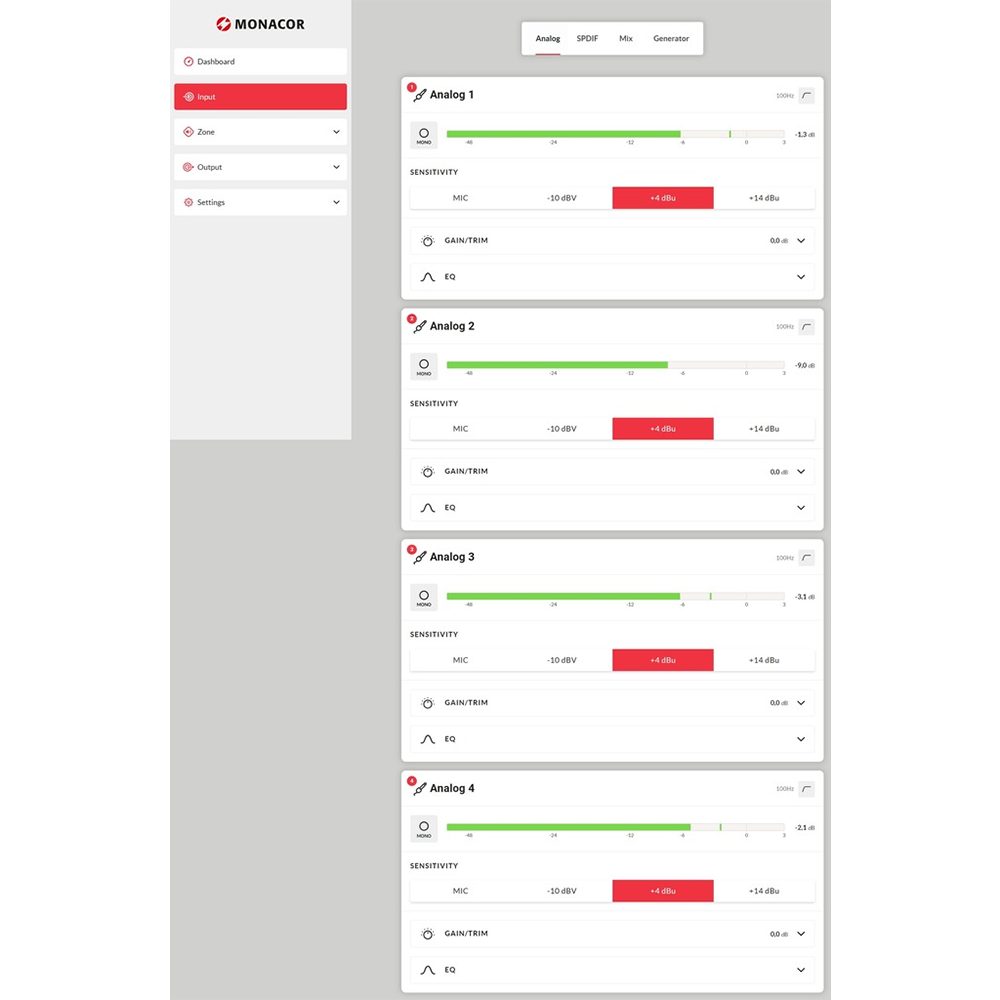

- Convenient operation and configuration via user interface HTML5
- High-pass/low-pass filter with various filters

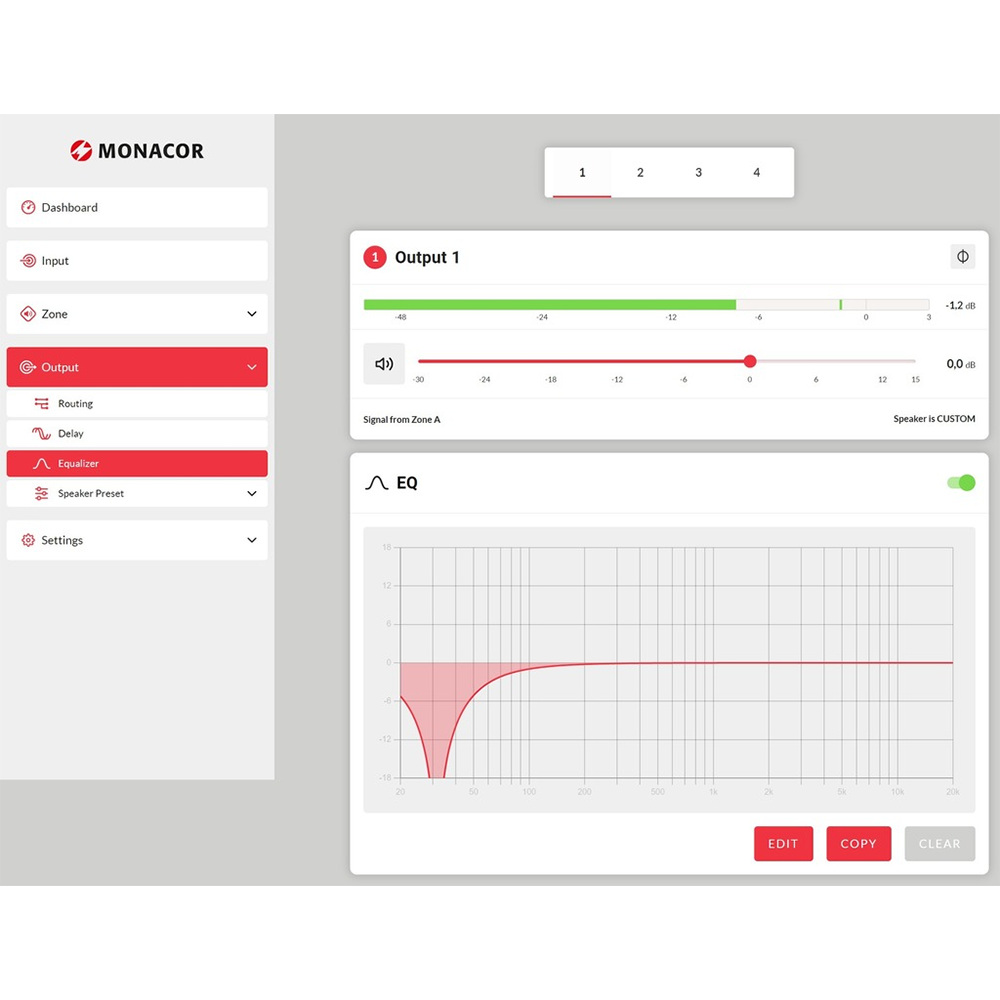

- Parametric equalizer
- Output with separate FIR filters
- Speaker matching: 10 ms
- Switchable output phase
- Adjustable compressor/limiter
- Adjustable delay
- Mix inputs

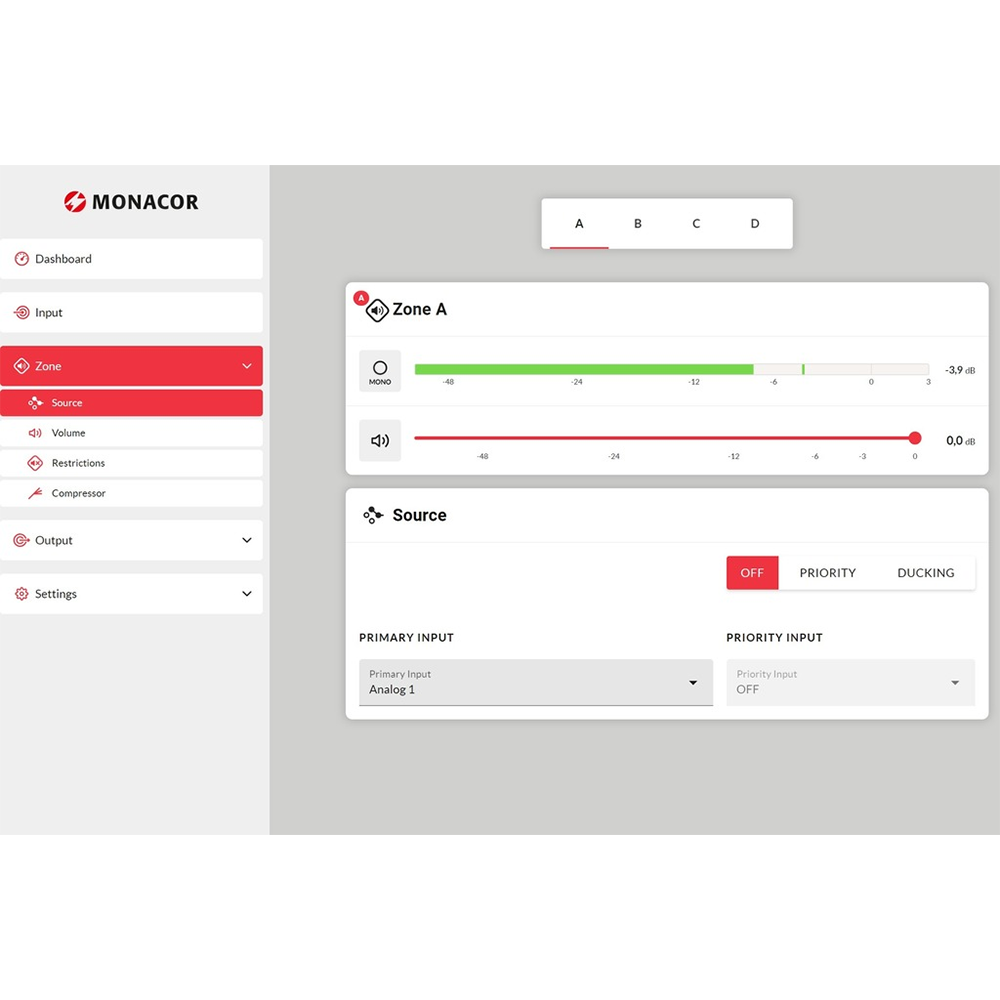

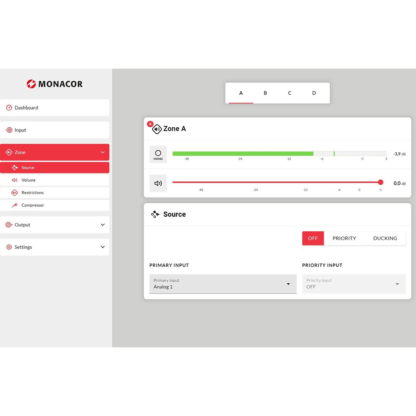

- Talkover with priority routing
- Built-in sine wave noise generator
- Parametric 5-band equalizer for input
- Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload
Specifications
- Peak output power: 1,000 W
- Power rating: 1,000 W
- Power rating at 4 Ω: 8 x 125 W
- Power rating at 8 Ω: 8 x 125 W
- Power rating at 100V: 4 x 250 W
- Channels: 9
- Zones: 8
- Inputs:
- Line: 1.2 V, balanced
- Mic: 1.9 mV, balanced
- Integrated limiter: yes
- Equalizer:
- Bass: via DSP
- Midrange: via DSP
- Treble: via DSP
- S/N ratio: > 106 dB
- THD: < 0.05%
- Power supply: ˜ 100-240 V/50-60 Hz/195 W
- Mains voltage: ~ 100-240 V
- Mains frequency: 50-60 Hz
- Power consumption, operation: 195 W, 1/8 output power
- Power consumption, standby: < 0.5 W
- Admissible ambient temperature: 0-40 °C
- Width: 484 mm
- Height: 45 mm
- Depth: 320 mm
- Rack units, RU: 1
- Weight: 3.8 kg

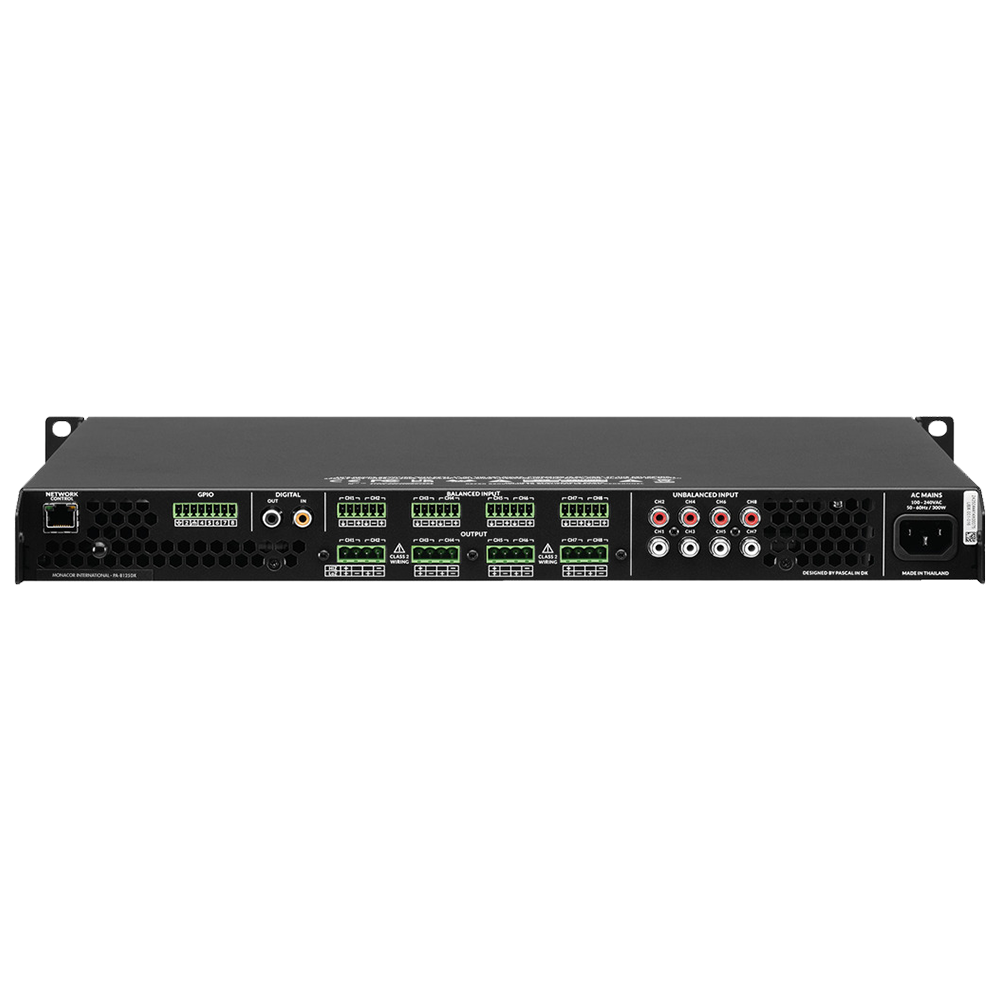

- Connections:
- 8 x RCA line
- plug-in screw terminals (mic/line)
- 2 x RCA (digital in/out)
- plug-in screw terminals GPIO
- plug-in screw terminals speakers
- 1 x RJ45 network connection
Note: after first switching on the device, the firmware must be updated to minimum version 1.6.4.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
