Fonestar MX-824 Microphone Mixer

Description

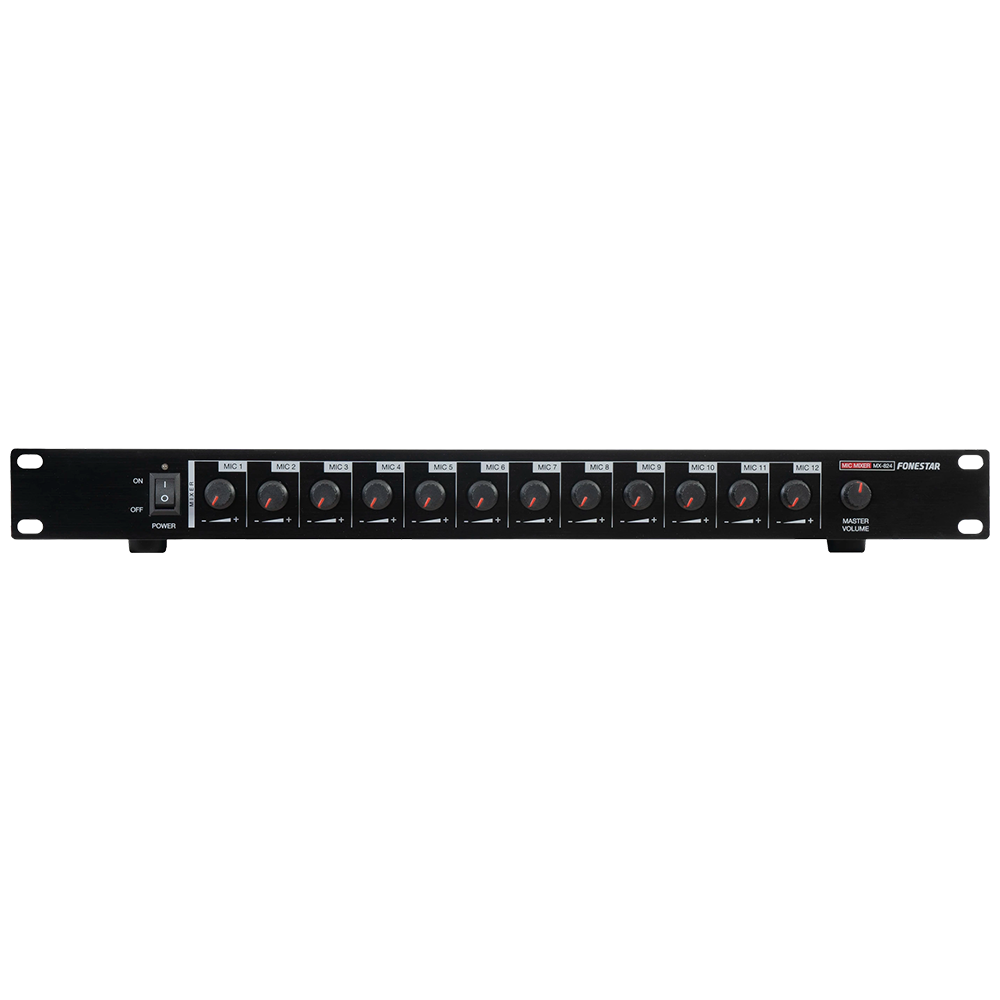

Fonestar MX-824 12-channel microphone mixer

12-channel microphone mixer with independent volume control and 48V phantom power supply. The number of microphones in a PA system can easily be increased.

• Features: Professional 12-channel mixer / preamp. Phantom power.

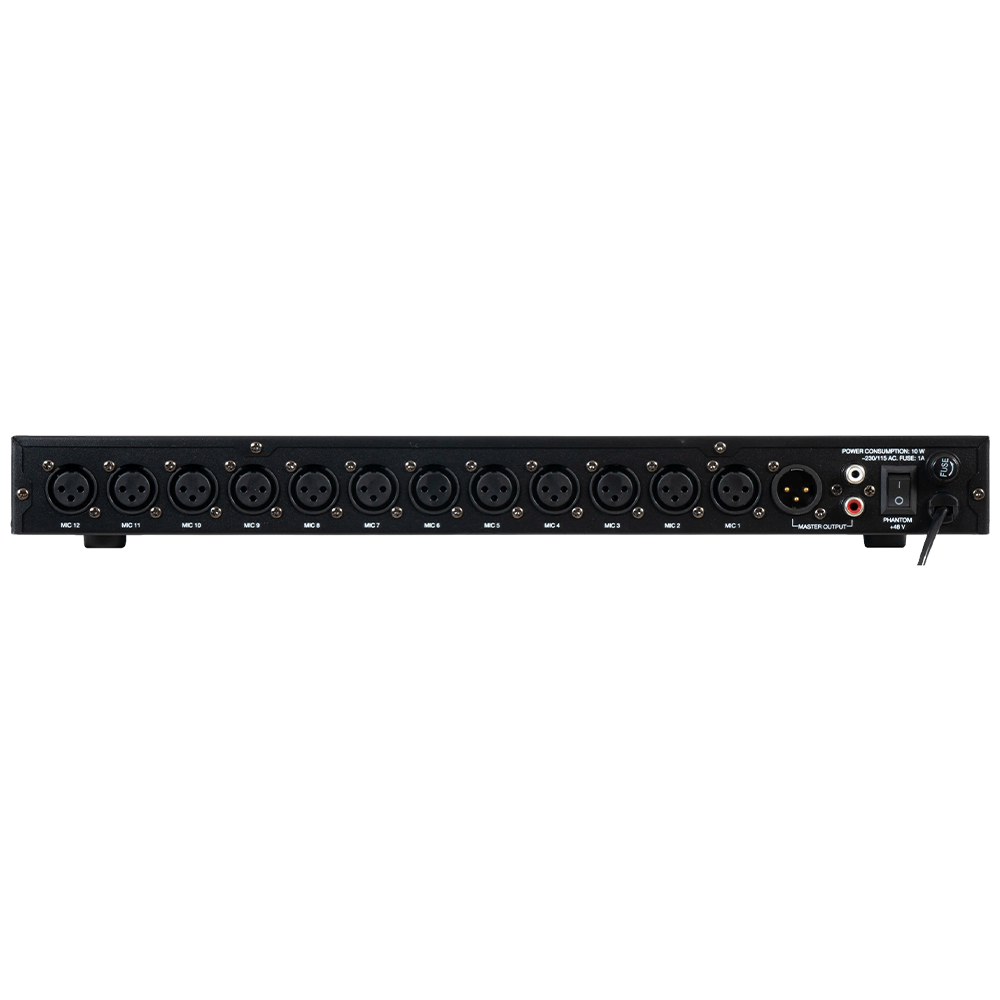

• Inputs: 12 balanced mics, XLR 600 Ω 2.5 mV
• Outputs: 1 balanced master XLR 600 Ω 7 mV and unbalanced 2 x RCA 4,700 Ω 150 mV

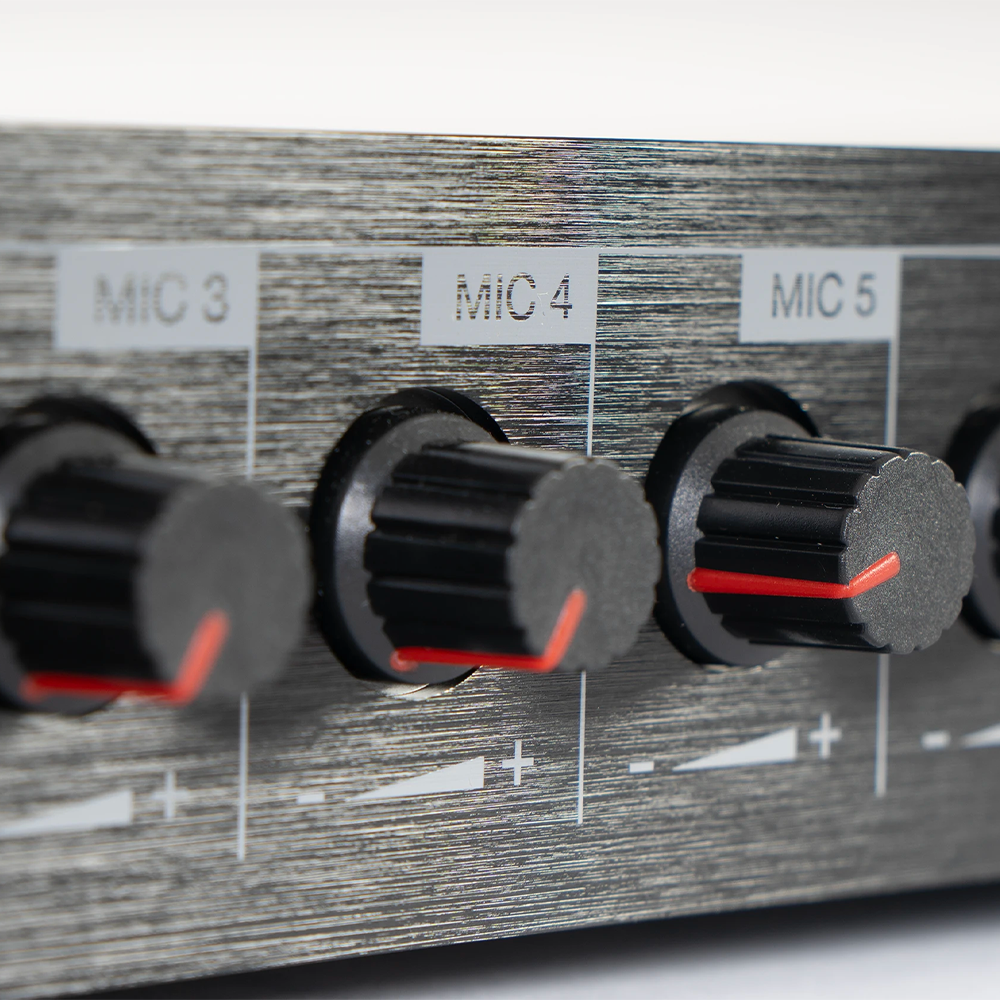

• Controls: Volume per master input and output
• Frequency response: 50-20,000 Hz
• S/N ratio: > 60 dB
• Phantom power: 48 V on mics 1 to 12, selectable
• Power supply: 230/115 V AC, 10 W
• Dimensions: 483 x 44.5 x 225 mm depth. 1 U 19″ rack
• Weight: 2.7 kg
• Accessories:
  • 1 RCA cable
  • 1 XLR cable

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
