Fonestar MAX-240Z Zone Mixer Amplifier

Description

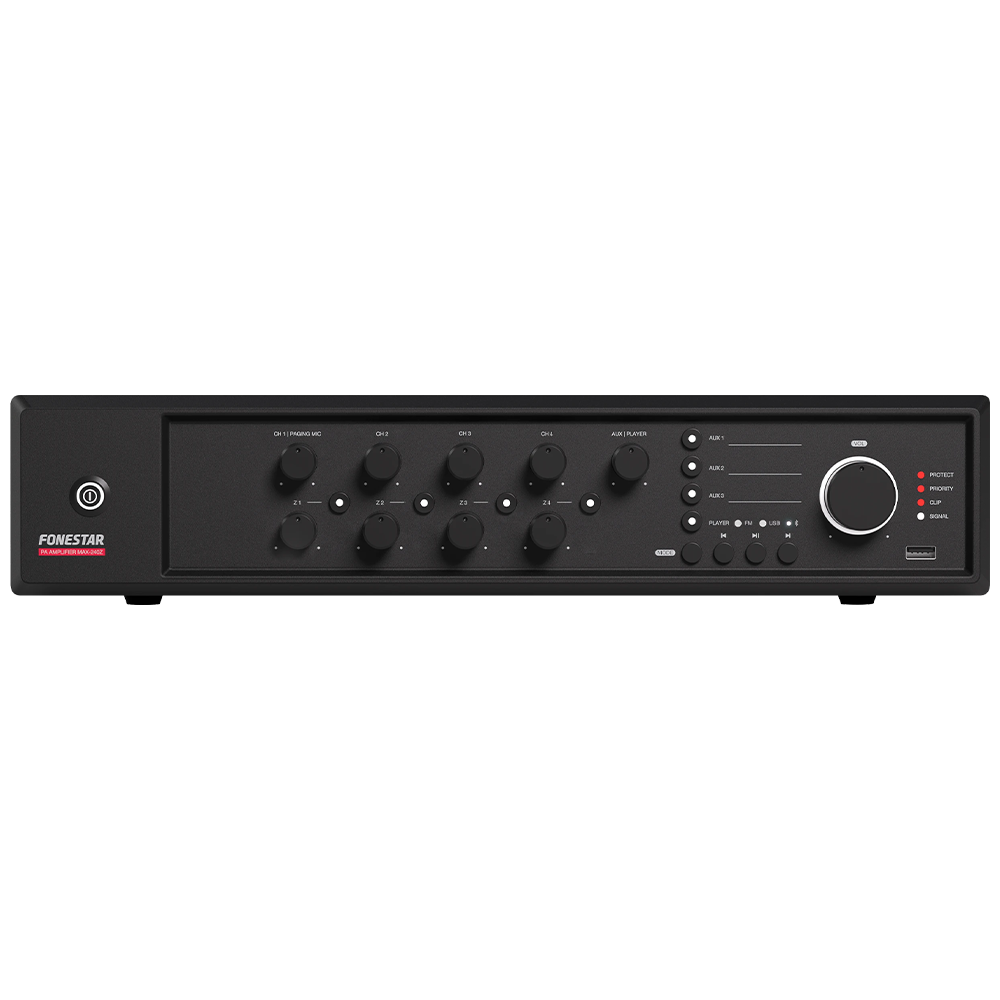

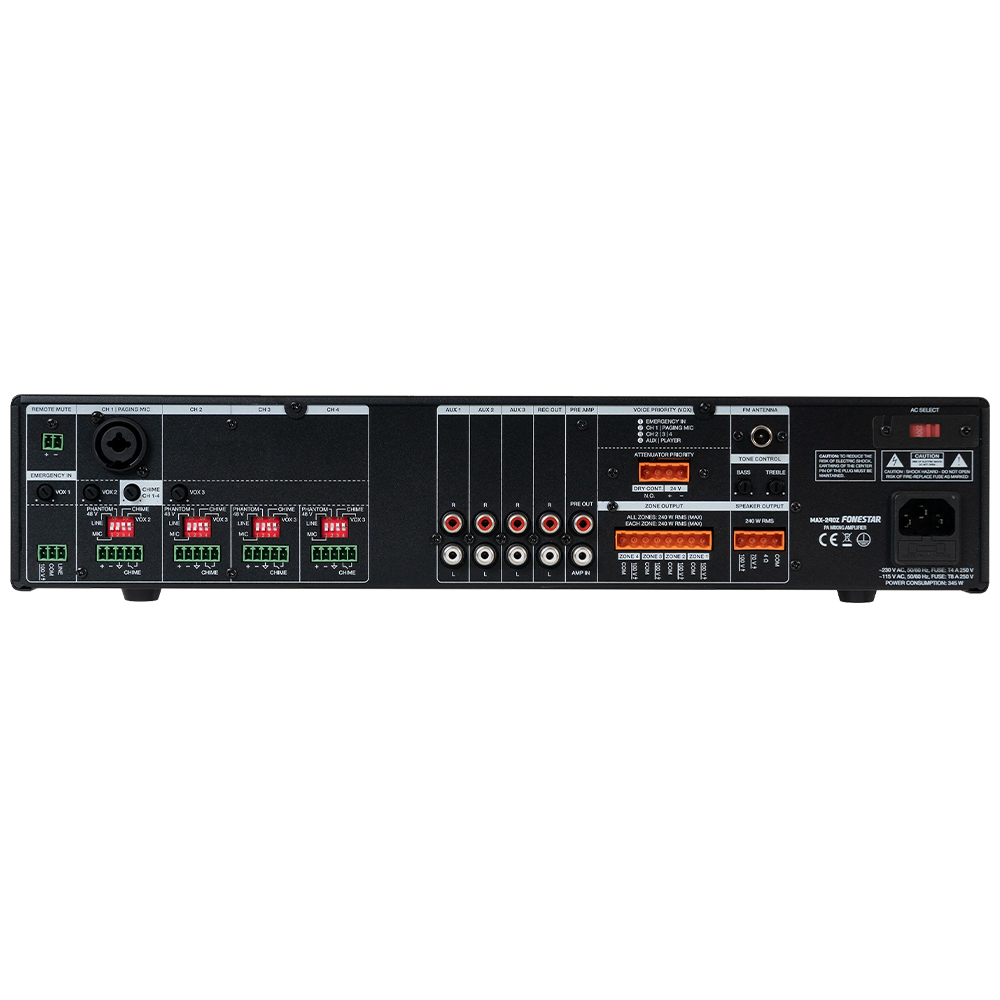

Fonestar MAX-240Z 240W 100V line 4-zone mixer amplifier with Bluetooth

PA amplifier with Bluetooth®/USB/FM player and speaker zone selector. Designed by Fonestar, unique, elegant and innovative. It uses a modern class D amplifier of high efficiency and reliability to offer the best sound performance. It can cover any space with sound for long working days. Output zones allow different volume levels to be selected, customising the sound level of each zone. Messages can be sent to zones with zone microphone. The best solution for PA and background music installations with a large number of 100 V line loudspeakers. It also has a low impedance output for transformerless loudspeakers. Features a built-in player as a source of background music. Microphone inputs allow for ring tone announcements. They have priority attenuating auxiliary inputs and activate the priority of attenuators (24V) and 3rd wire output with priority. Combo and Euroblock connectors with secure, long-lasting and low-maintenance connection. The amplifier offers user-friendly operation. It can be used as a desktop or rack-mounted amplifier. Perfect for PA and piped music systems with 100 V or low impedance line loudspeakers. Commercial premises, educational centres, monuments, exhibitions, bars, restaurants, etc.

• Features:
  • Class D PA amplifier and SMPS switch-mode power supply
  • Bluetooth/USB/FM player
  • ZONEMIC-6 zone microphone input
  • Input for remote wall panel
  • Microphone input with mix, gain and priority level control
  • Ringtone generator (Chime)
  • 3 auxiliary inputs
  • Emergency input and mute for connection to alarm and evacuation systems
  • 24 V attenuator priority
  • 3rd wire output (100 V) with attenuator priority
  • Tone controls
  • 100 V, 70 V and 4 Ω outputs
  • 4 outputs zones with volume control and Off
• Power: 240 W RMS
• Frequency response: 45-22,000 Hz (-10 dB)
• Distortion: THD+N: <0.5% at 1 kHz
• S/N ratio: Mic >75 dB, Line >83 dB, Aux >81 dB
• Protections: Soft start, overcurrent, overload, temperature and short circuit
• Inputs:
  • Zone microphone ZONEMIC-6, RJ45, up to 200 m cable length
  • Remote wall panel, RJ45, 2 x 250 mV RMS (-12 dBV)
  • CH 1, 2, 3 and 4 balanced mic/line with Phantom 48V. Combo connector (XLR + 6.3 mm) and euroblock. Ring tones by contact closure
  • Mic signal level: 5’6 mV RMS (-45 dBV) / 600 Ω
  • Line signal level: 250 mV RMS (-12 dBV) / 100k Ω
  • 3 x AUX. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV) / 47,000 Ω.
  • 1 x emergency. Euroblock connector. Signal level: line 326 mV RMS (-10 dBV) or 100 V line
  • Mute (Emergency Priority) by contact closure. Euroblock connector
  • 1 Amp-in. RCA connector. Signal level 1’2 V RMS (+ 1’5 dBV)
• Output:
  • 1 REC. 2 x RCA connector. Signal level 316 mV RMS (-10 dBV). Pre-master.
  • 1 Pre-out. RCA connector. Signal level 1.2 V RMS (+1.5 dBV)
  • 100 V, 70 V or 4 Ω speaker output, or 4 x 100 V speaker zones with 7-position volume selector and OFF. Euroblock connector
  • 1 Attenuator priority, 24 V 100 mA and contact closure. Euroblock connector
  • 1 3rd priority wire for attenuators (100 V)
• Impedance: 4 Ω, 100 V line (42 Ω) and 70 V (20 Ω), euroblock
• Functions:
  • Input priority (in attenuation order):
    · 100 V Emergency Input with selectable signal level (VOX)
    · Mute by contact closure
    · ZONEMIC-6 zone microphone
    · Remote wall panel
    · Channel 1 with selectable signal level (VOX)
    · Channels 2 | 3 | 4 with shared selectable signal level CH 2-3-4 (VOX)
    · Auxiliary Inputs | Player
  • Power ring light on volume control, AUX input, zone and player indicators.
  • Power, signal, clip, priority activation and protection indicator lights
  • Induction cooling, fanless. Silent and maintenance-free
• Player:
  • Bluetooth/USB/FM player for background music playback
  • Bluetooth 5.3
  • Autoplay, starts playback automatically when switched on
  • Memory of the last selected mode
  • Playback mode memory (random, repeat)
• Controls:
  • Microphone volume
  • Master volume
  • Aux or player input selector
  • Zones with power on and 7 volume positions
  • Tone: bass and treble (+/- 10 dB 100 Hz and 10k Hz)
  • Mic/line/phantom selector, call tones and priority
  • Call tone level (chime)
  • Priority activation signal level (VOX)
• Temperature:
  • Operation: -10º ~ 40ºC
  • Storage: -20º ~ 60ºC
• Maximum humidity: 90%
• Power supply:
  • 230/115 V AC 50-60Hz
  • Power consumption: 345 W
  • AC fuse 230 V 4 A / 115 V 8 A
• Dimensions: 430 x 89 x 320 mm depth. 2 U 19” rack
• Weight: 8.8 kg
• Includes:
  • FM antenna
  • Bluetooth antenna.
  • Power cable
  • Rack mounts
• Optional: ZONEMIC-6: Zone microphone
