Description

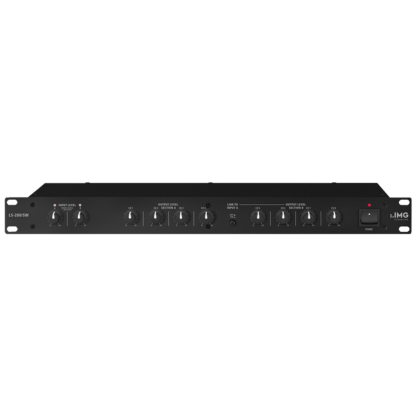

IMG Stageline LS-280/SW 2 in 8 out stereo line splitter and signal distributor allowing one mixing desk etc. to feed up to 4 stereo slave amplifiers
- 2 separate inputs
 - Two selectable operating modes: Stereo XLR inputs with each channel feeding 4 XLR outputs or Mono XLR input feeding 8 XLR outputs

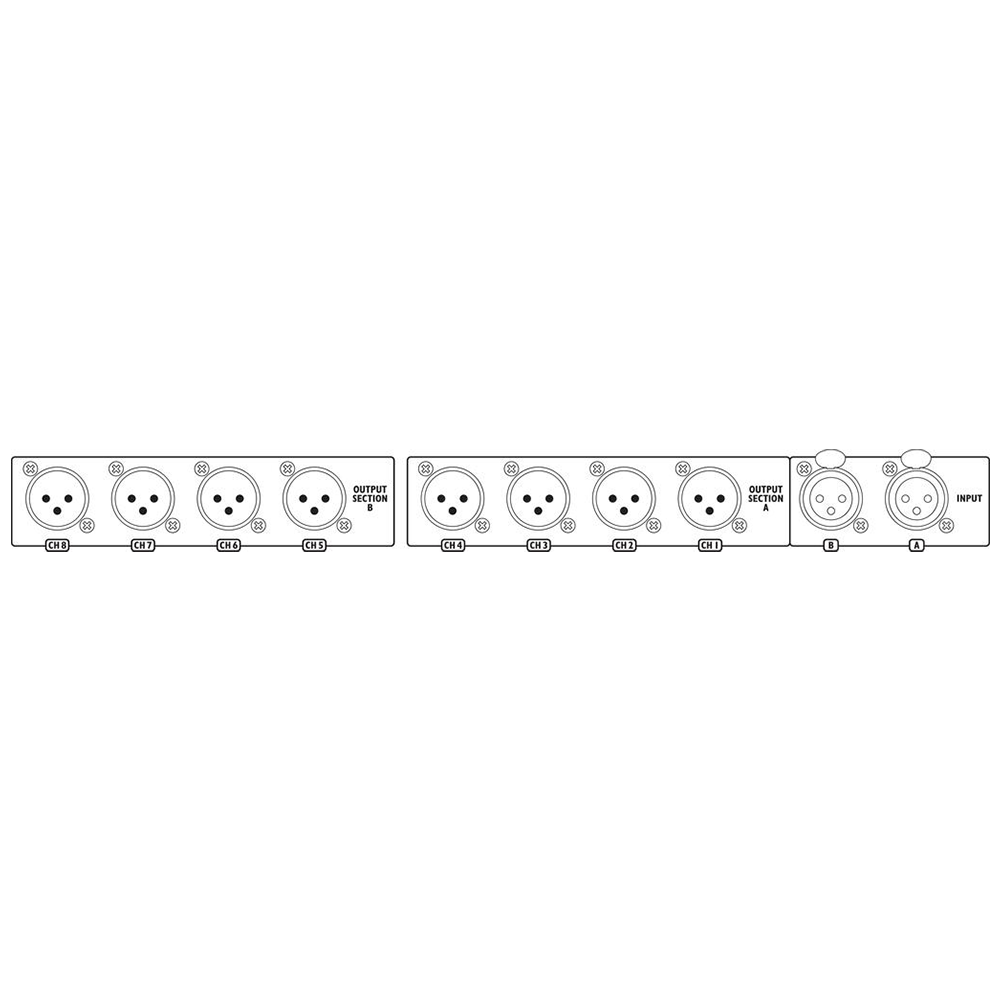

 - XLR connection and gain control for each input and output
 - Signal and peak indication for the inputs via dual LEDs
 - Line inputs, 2 x mono: 100mV/15kΩ
 - Line outputs 8 x mono: 1V/100Ω
 - Frequency response: 20-20,000Hz
 - THD: < 0.03%
 - S/N ratio: 70dB, unweighted
 - Power supply: 230v AC
 - Dimensions: 482 x 48 x 205 mm, 1u RS
 - Weight: 2.3kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
