Adastra KV5 Ceiling Speaker

SKU: 125.105

£45.45 + VAT    £54.54 incl. VAT

White 5.25″ 20W 8Ω two-way low-profile ceiling music speaker

In stock

Low Impedance 8 Ohms

PDF

Description

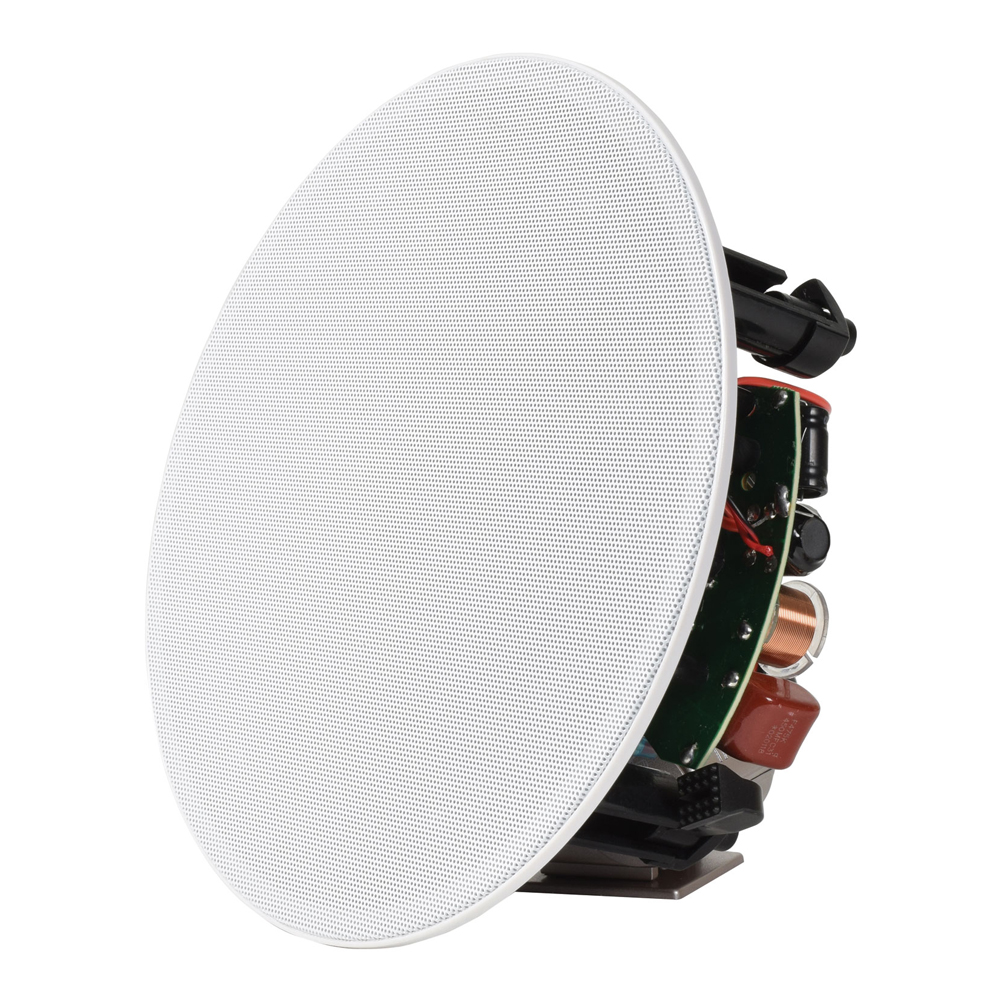

Adastra KV5 5¼” 20W 2-way low profile 8Ω ceiling speaker

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

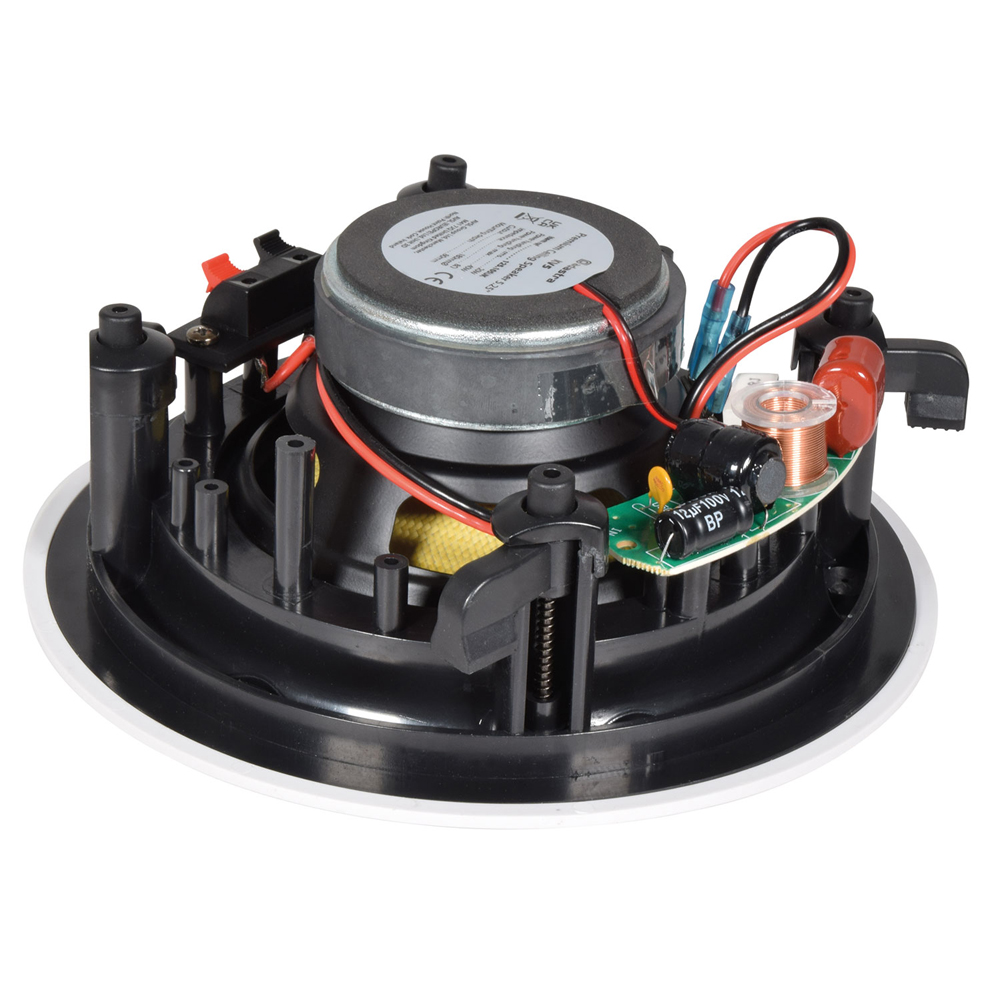

  • Full 2-way passive crossover

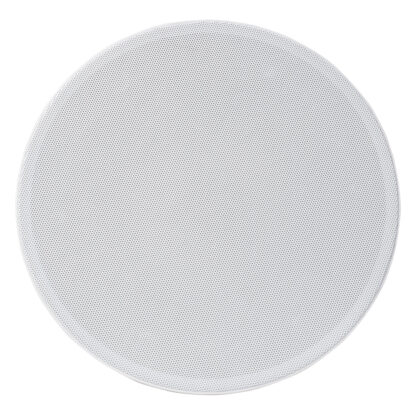

  • Magnetic low profile steel grille

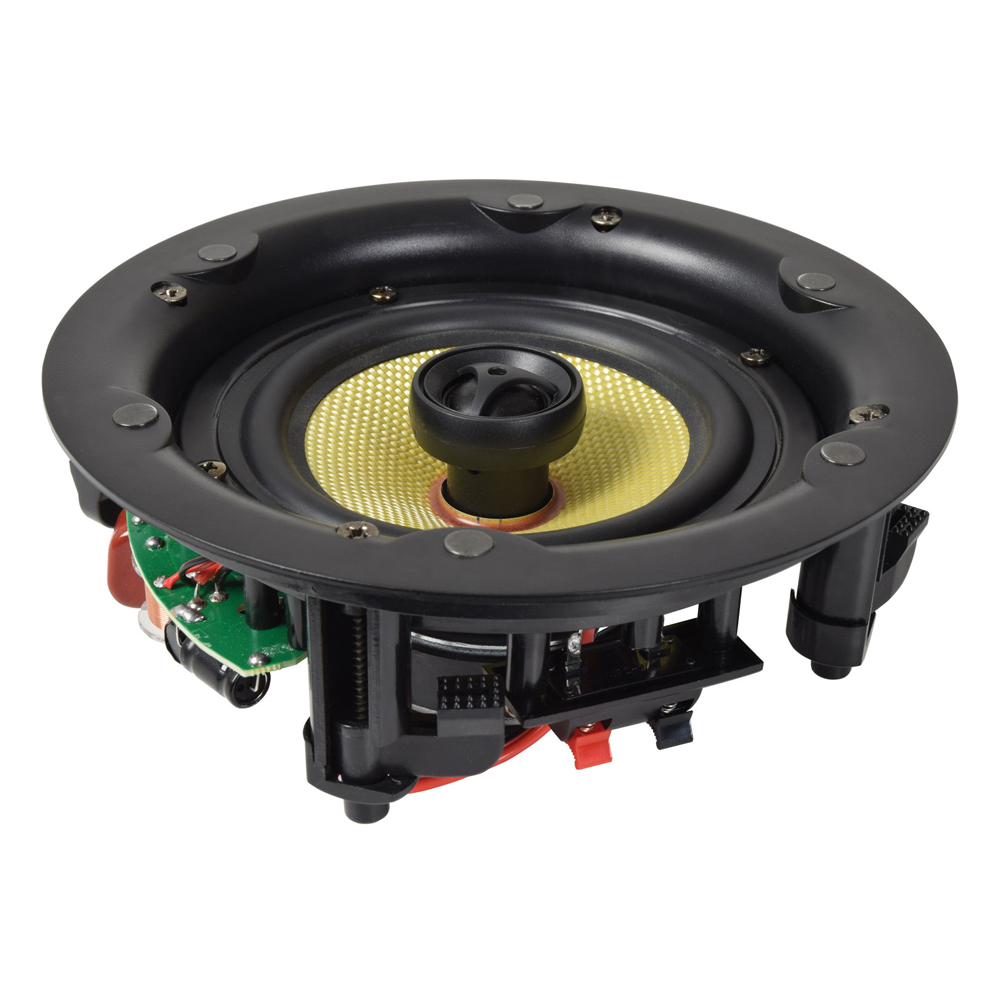

  • Heavy duty glass-aramid cone
  • Braced ABS basket with integral wave guide
  • Supplied individually
  • Construction: ABS basket & powder coated steel grille
  • Impedance: 8 Ohms
  • Dispersion angle: 120°
  • Power handling : max: 40W
  • Main driver: 135mmØ (5.25″) glass-aramid diaphragm
  • Magnet weight: 270g
  • HF driver: 25mmØ (1″) ASV diaphragm
  • Power handling : rms: 20W
  • SPL @ 1W/1m: 89dB
  • Max. SPL: 100dB
  • Frequency response: 80Hz – 20kHz
  • Cutout: 180mmØ
  • Mounting depth: 80mm
  • Dimensions: 80 x 206mmØ
  • Weight: 1.054kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight1.054 kg
Dimensions20.6 × 20.6 × 8 cm
Wattage (RMS)

20W

Speaker Size

5 ¼″

Connection

Spring Terminals

Colour

White

Condition

New

Brand

Adastra

Adastra was founded in 1949 and has earned a reputation for high quality public address sound products. Meeting the needs of the commercial PA sector for over 60 years the Adastra name is known for quality and value. Adastra is the choice for 100v line PA sound, zone paging PA and induction loop equipment. The Adastra range includes mixer & slave amplifiers, ceiling, cabinet & horn loudspeakers, desk paging & handheld microphones, equipment racks, cables, stands and accessories. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

What's in the Box?

  • KV series premium ceiling speaker
