IMG Stageline FLAT-M100 Active Stage Monitor

SKU: FLAT-100M

£287.27 + VAT    £344.72 incl. VAT

Black 2 x 4″ 100w personal active PA stage monitor speaker

In stock

PDF

Description

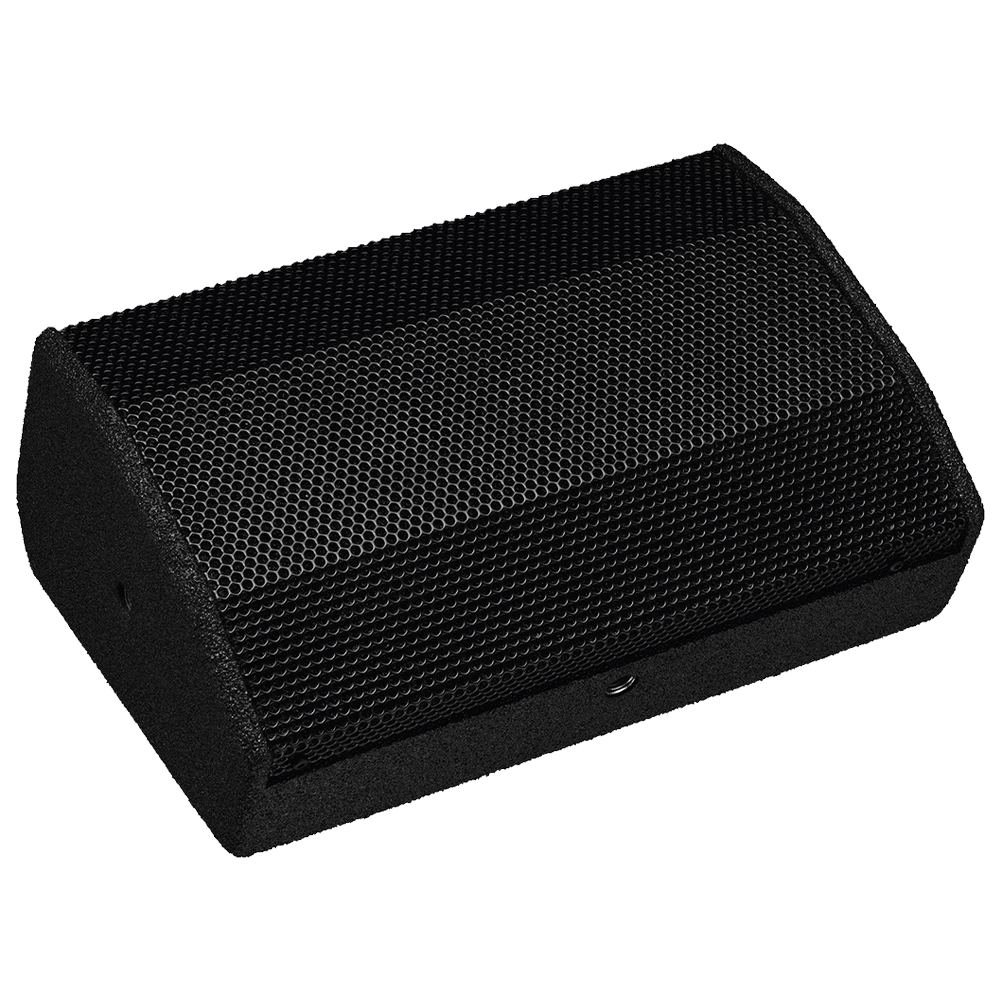

IMG Stageline FLAT-M100 100w active PA stage monitor speaker system

Compact, lightweight, practical and yet amazingly powerful. The active speaker system FLAT-M100 is suitable for monitoring, side fill, front fill and rear fill applications due to its clear and powerful reproduction. It is also suitable wherever a powerful sound is required, despite limited space being available.

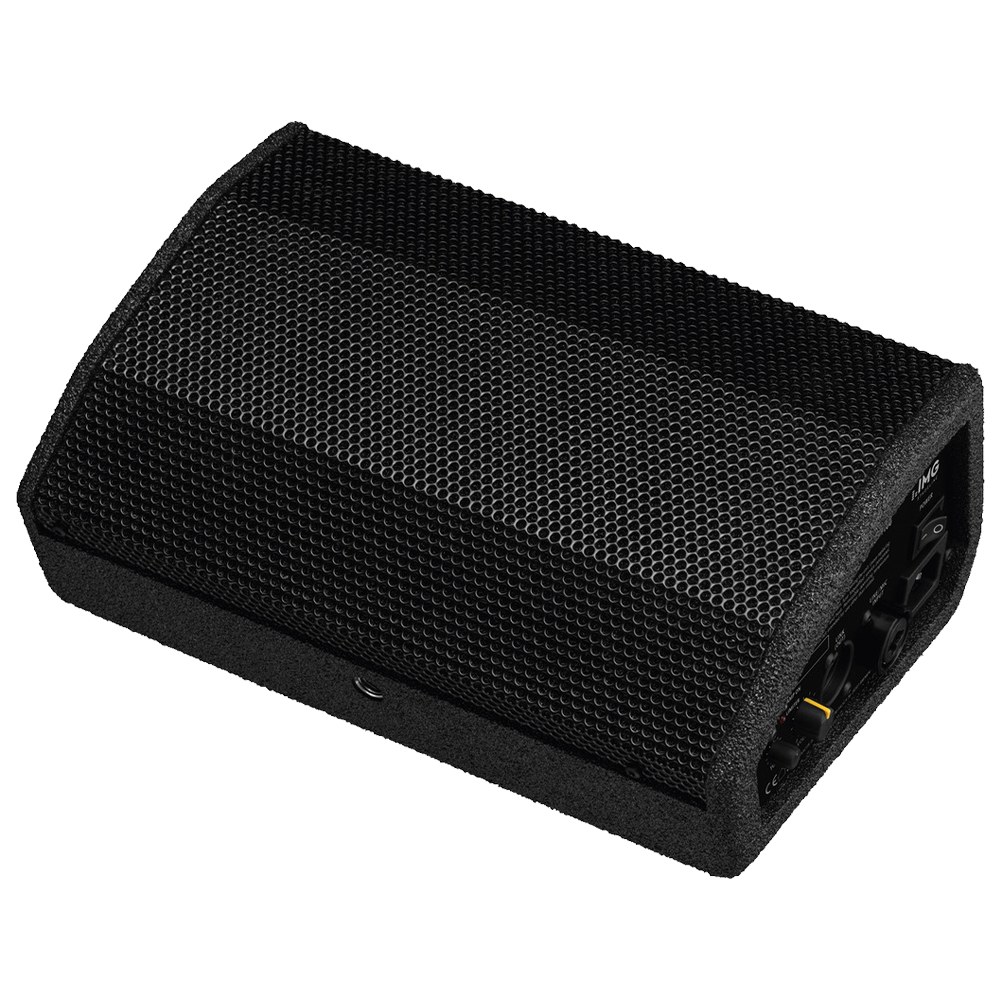

  • Flat and very compact full range system
  • Fitted with 2 x 10 cm (FaitalPRO, 2 x 4″) full range speaker with neodymium magnets
  • Class D amplifier system
  • Sound pressure at nominal power: 116 dB

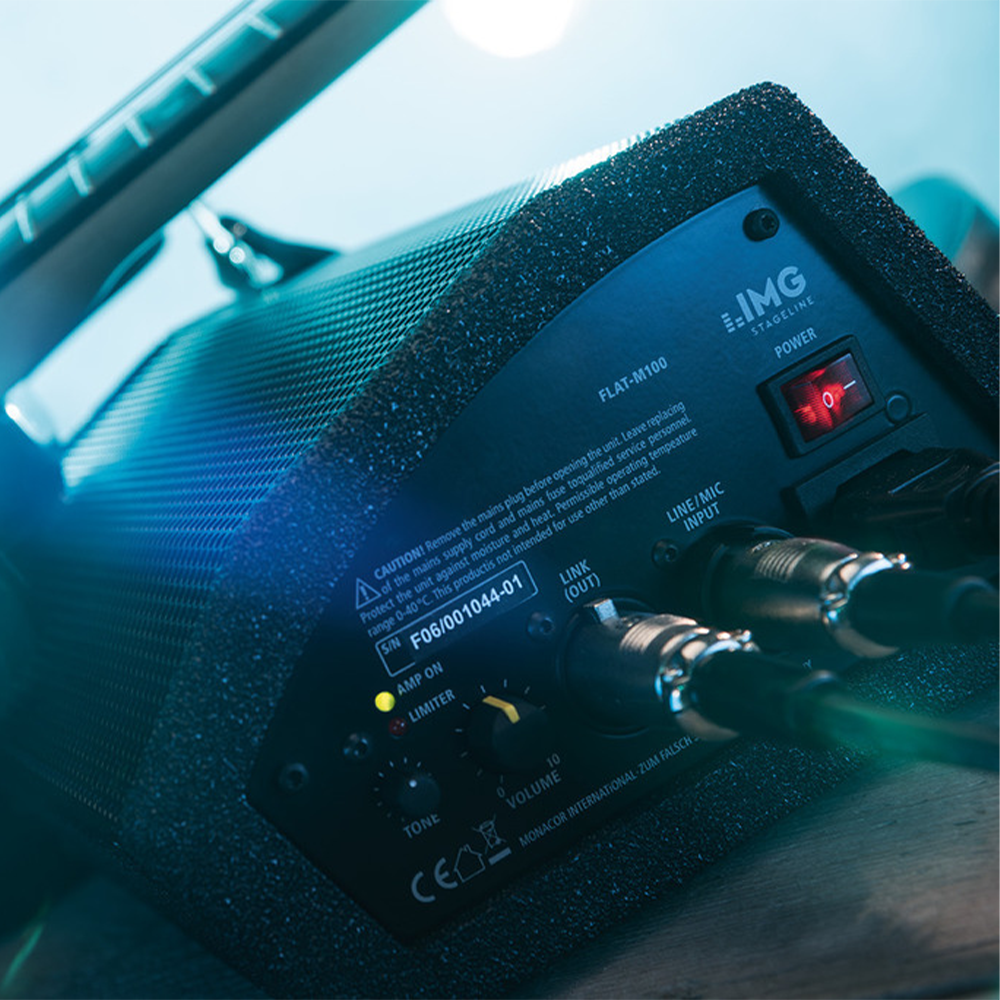

  • Indication of signal and limiter
  • Volume control and tone control
  • Balanced line/mic input and feed-through output

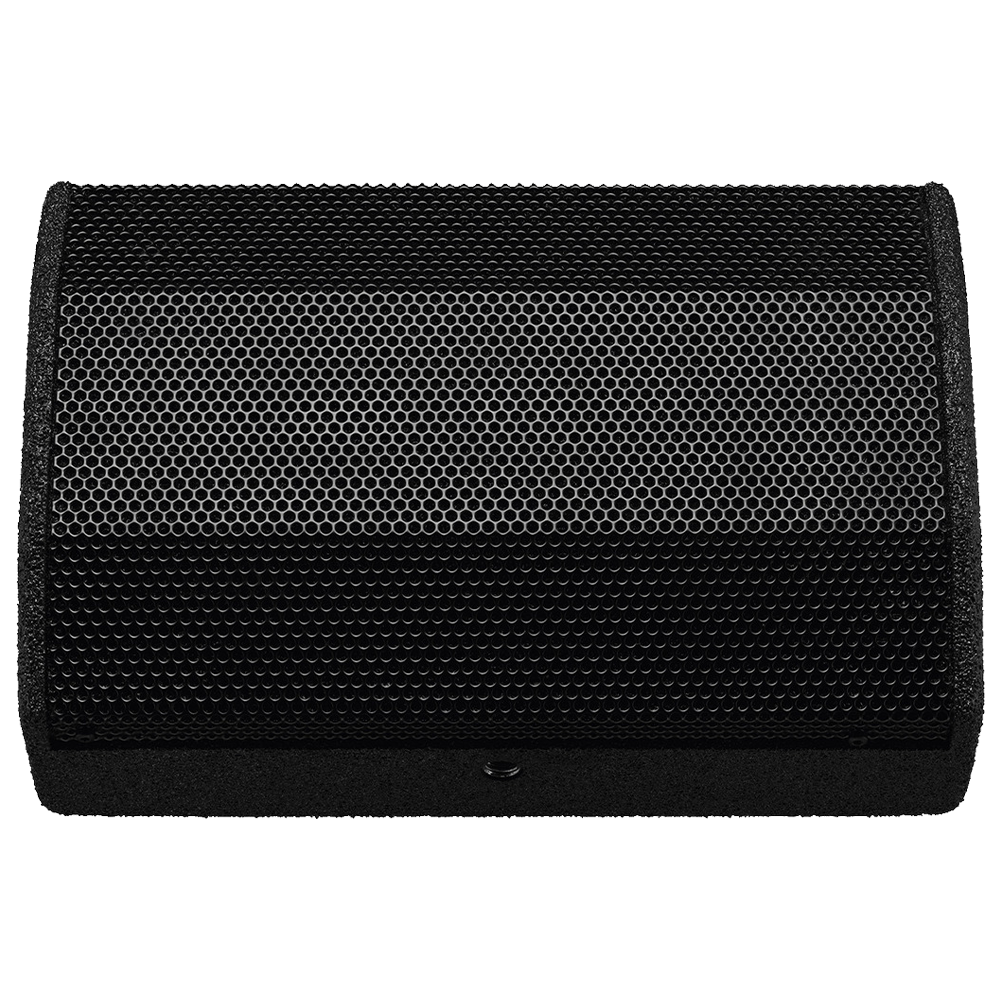

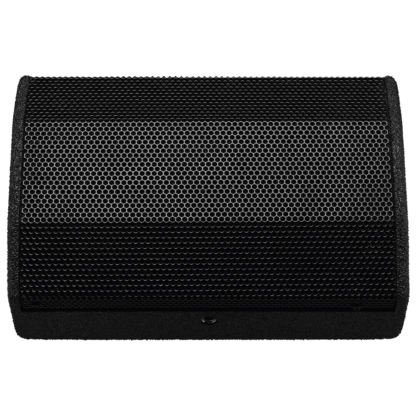

  • High-quality multiplex wooden cabinet with protective metal grille

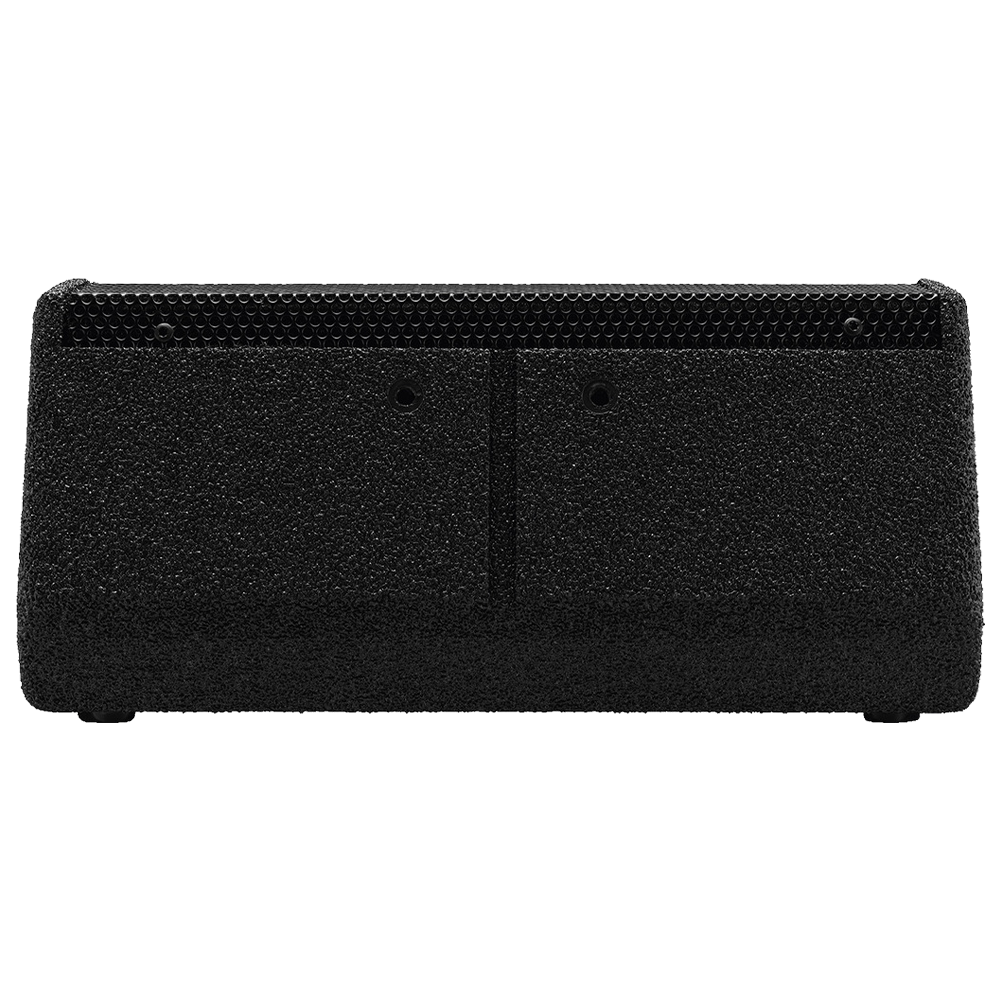

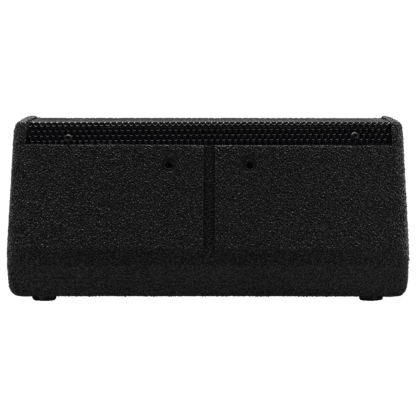

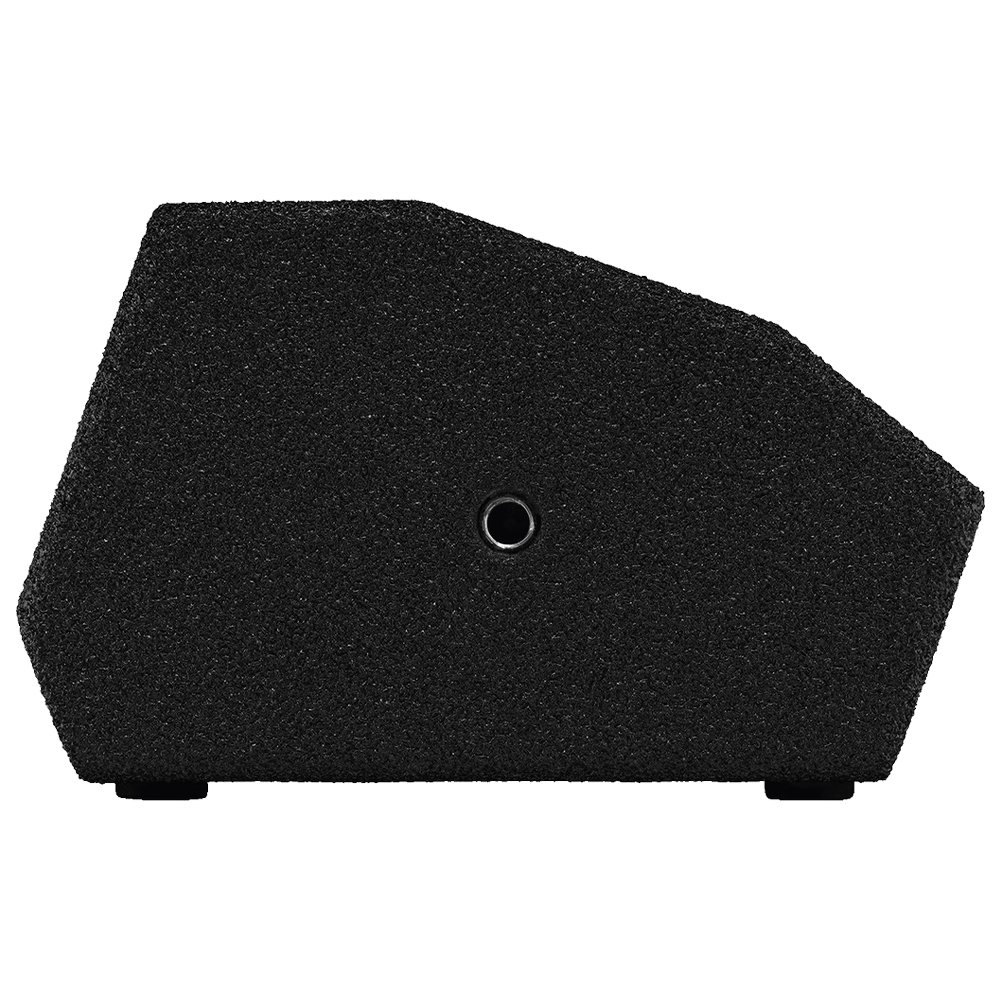

  • 2 x M10 and 2 x M6 threaded inserts for stand adapter or mounting device
  • Supplied with clamp for mounting, e.g. onto a microphone stand
  • Active/passive: active
  • Transmission method: cable
  • Total output power: 200 W
  • Power rating (RMS): 100 W
  • Frequency range: 90-20,000 Hz
  • Input signal: 16 mV/28 kΩ (line, balanced), 5 mV/20 kΩ (mic, balanced)
  • System: 2 x 4″, full range
  • Full range speaker: 2 x 10 cm (2 x 4″, FaitalPRO) full range speaker
  • Number of speakers: 2
  • Speaker size: 10 cm (4″)
  • Sensitivity: 97 dB/W/m
  • Max. rated SPL: 116 dB
  • Housing material: multiplex
  • Colour: black
  • Mounting device: 2 x M10 threaded insert, 2 x M6 threaded insert
  • Admissible ambient temperature: 0-40 °C
  • Power supply: ˜ 230 V/50 Hz/175 VA
  • Dimensions: 265 x 120 x 192.5 mm
  • Weight: 2.4 kg

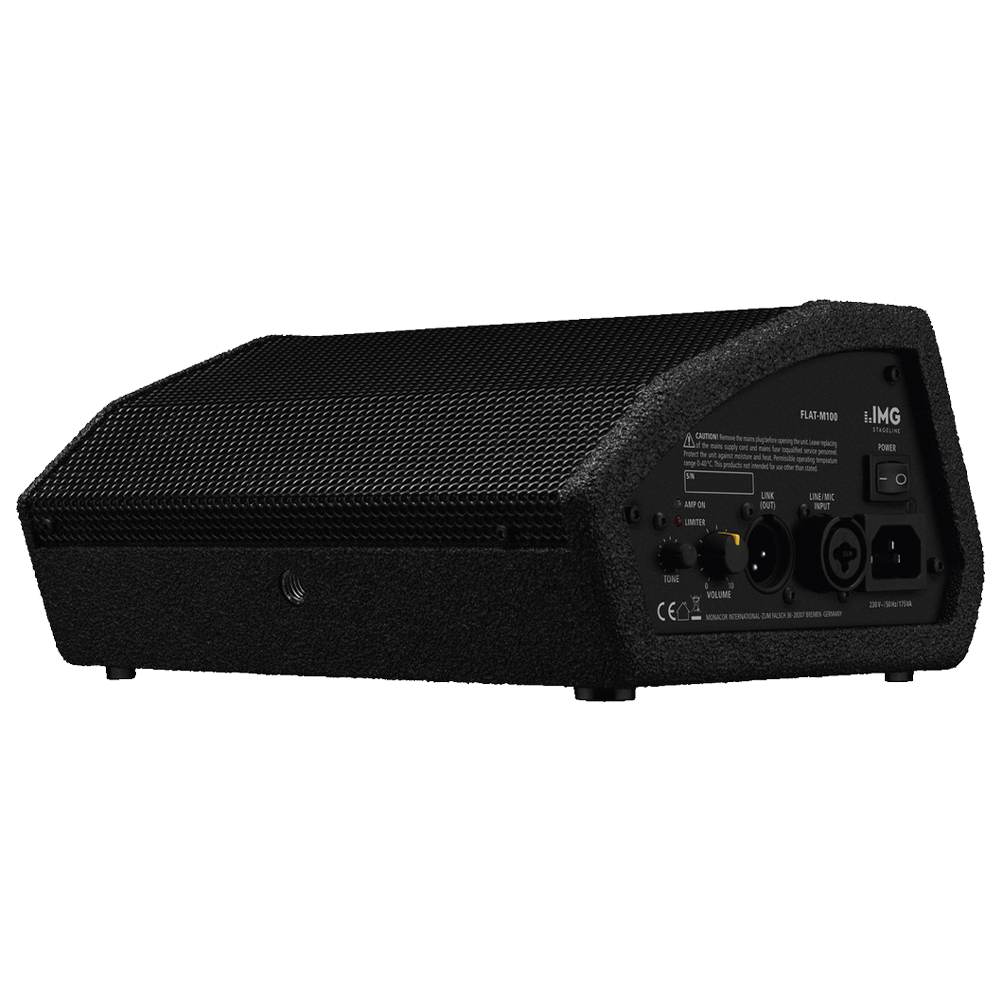

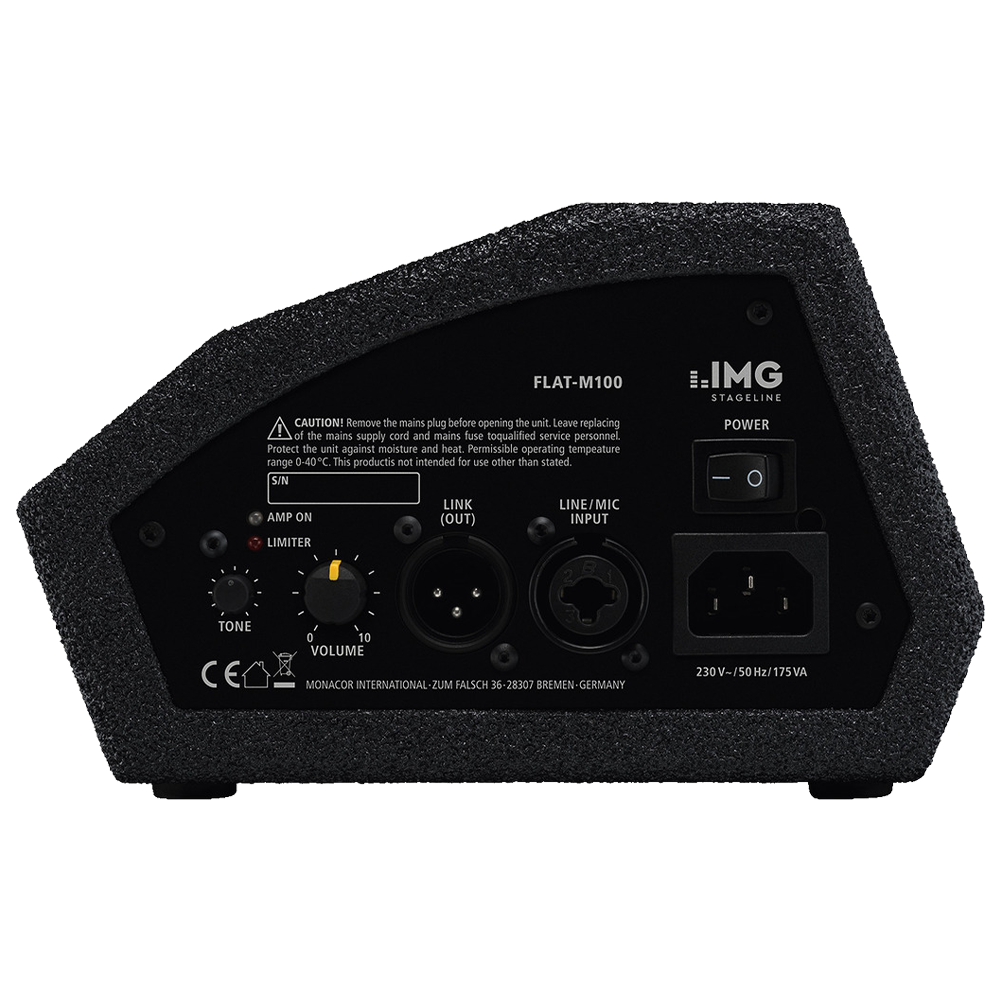

  • Inputs: 1 x combination XLR/6.3 mm (line/mic)
  • Outputs: 1 x XLR link out
  • Other features limiter
  • Accessories: FLAT-M100BAG

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.4 kg
Dimensions19.25 × 26.5 × 12 cm
Output (RMS)

100W

Speaker Size

4"

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack

Colour

Black

Condition

New

Brand

IMG Stageline

With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional sound and lighting equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing desks and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

Magazine Reviews

delamar.de
Despite compact dimensions, it provides a respectable output power. Due to the sturdy design with robust front grille and durable textured coating, this active speaker system is suitable for on-the-road applications. Regarding the sound, it impressively shows what it is capable of and provides a clear reproduction of vocals and speech. Thanks to various installation options, e.g. to microphone stands, it is possible to implement a system for individual, space-saving and unobtrusive monitoring.
Due to a combined mic/line input, you are also able to directly connect a microphone, e.g. for making announcements. However, the missing carrying handle which would sometimes facilitate handling results in a deduction of half a point. A neat workmanship, good price-performance ratio and foolproof operation complement this device which received 4.5 out of a possible 5 points in the test.
SOUNDCHECK 09/2018
The FLAT-M100 is a real space-saving solution with an impressive power capability. This mini monitor is compact, lightweight, practical, yet powerful. It is sure to become part of the inventory for smaller clubs and singer-songwriters on tour.
Gitarre & Bass 02/2019
Especially the test with acoustic guitar and vocals showed excellent results for practical operation.
