Denon DN-306X Mixer

Description

Denon DN-306X 6-channel mixer – used

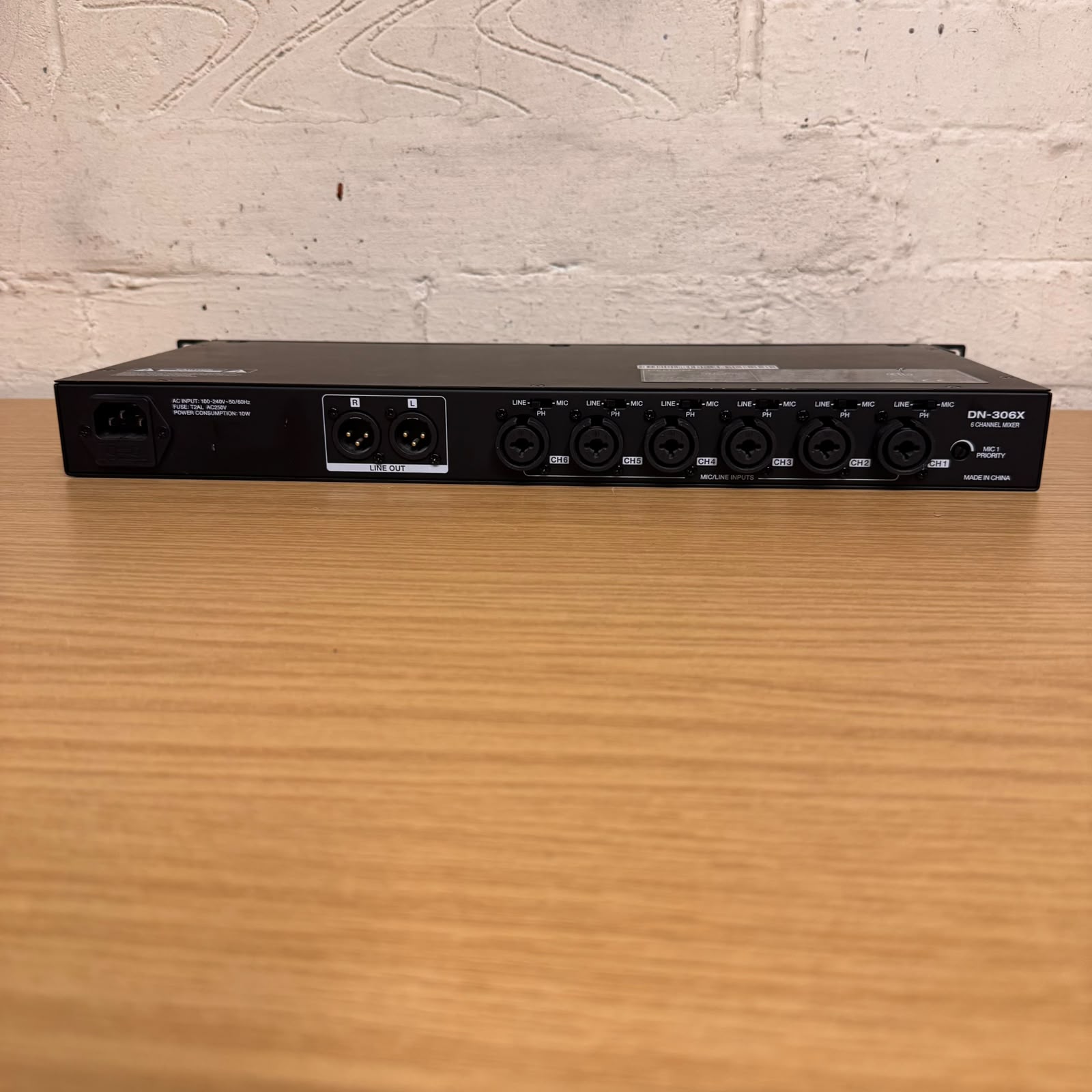

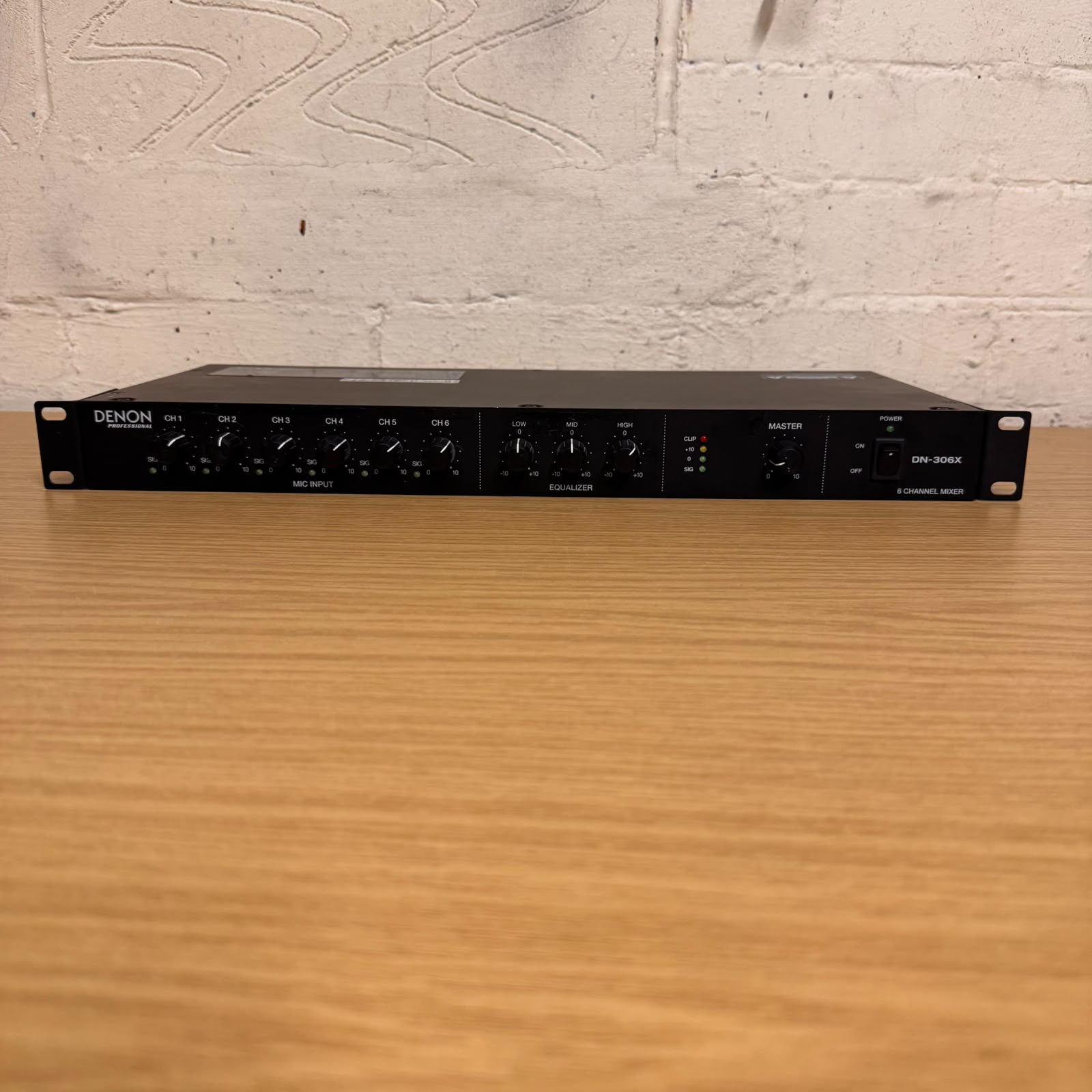

The DN-306X is a compact 6-channel mixer. It features combo XLR/TRS input jacks with switchable MIC, LINE, and phantom power along with two XLR line outputs. Added features include mic one priority and a 3-band equalizer on the output. The DN-306X is compact, versatile and ready to solve any number of audio installation challenges.

• Six-channel mixer in one rack space
• XLR/TRS combo input jacks with phantom power
• Two XLR line outputs
• Master level control and 3-band equalizer
• Mic one priority control

Audio Specification

• Signal-to-Noise Ratio: > 94dB
• Max Output Level: +24dBu
• Inputs: (6) combo XLR/TRS
• Phantom Power: 48VDC
• Maximum Voltage Gain: 60dB

Mic Inputs

• Max Input Level: -20dBu
• Sensitivity: -40dBu
• Impedance: 1.4kΩ

Line Inputs

• Max Input Level: +24dBu
• Impedance: 10kΩ

Equaliser

• High: ± 15dB @ 12kHz
• Mid: ± 12dB @ 2.5kHz
• Low: ± 15dB @ 80Hz

Environmental

• Operating Temperature: 40 – 140°F (5 – 60°C)
• Operating Humidity: 25 ~ 85% (non-condensing)

General

• Power Requirement: 100 ~ 240VAC 50/60Hz
• Power Consumption: < 5W
• Dimensions: 19.0 x 7.7 x 1.7” (483 x 195 x 44mm)
• Weight: 5.6 lbs. (2.5 kg)

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
