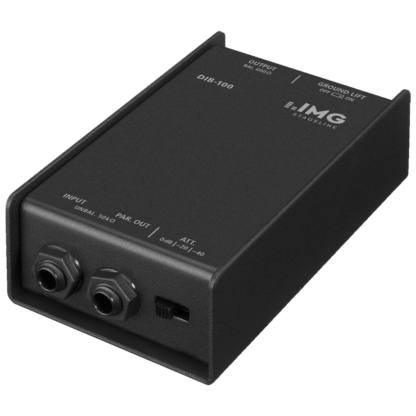

IMG Stageline DIB-100 DI Box

SKU: 241140

£30.92 + VAT    £37.10 incl. VAT

Passive direct injection box

1 in stock

PDF

Description

IMG Stageline DIB-100 DI box for an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated

  • 3-fold attenuation switch (0/-20/-40 dB)
  • Ground lift switch
  • Instrument feed-through output
  • Wideband balancing transformer
  • Robust metal housing
  • Type: DI box
  • Frequency range: 15-30,000 Hz, ±0 dB
  • Input impedance: 50 kΩ
  • Output signal: 600 Ω, XLR, 50 kΩ, jack
  • Output impedance: 600 Ω (balanced), 50 kΩ (unbalanced)
  • Gain: 0/-20/-40 dB
  • Transmission ratio: 10:1
  • Admissible ambient temperature: 0-40 °C
  • Dimensions: 74 x 45 x 130 mm
  • Weight: 560 g
  • Inputs: 6.3 mm jack, unbal
  • Outputs: 6.3 mm jack, unbalanced, par. out, XLR, balanced

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.56 kg
Dimensions13 × 7.4 × 4.5 cm
Colour

Black

Brand

IMG Stageline

With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional sound and lighting equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing desks and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

Magazine Reviews

PRODUCTION PARTNER 04/2013
The measured values and workmanship give no reason for criticism. When considering the price, too, you can’t go wrong.
