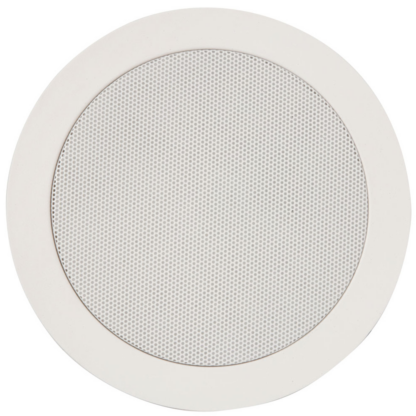

Adastra CC5V Ceiling Speaker

Description

Adastra CC5V 5¼” 20w 100v line or 8 ohm ceiling speaker

2-way quick fit ceiling speaker bass driver and a directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille. These CC series ceiling speakers can be used with either 100v line or 8 ohm low impedance sound systems.

• Rotary selector switch for 100V line tappings or 8 ohms
• Fitted with “dog-ear” mounts for fixing to ceiling tiles 1-20mm in thickness
• Spring loaded terminals for easy connection
• Woofer: 133mmØ (5.¼”)
• Tweeter: 38mmØ (1.5″)
• Frequency response: 85Hz – 20kHz
• Power max. : 8 Ohms: 80W
• Power rms : 8 Ohms: 50W
• Power rms : 100V line: 20W

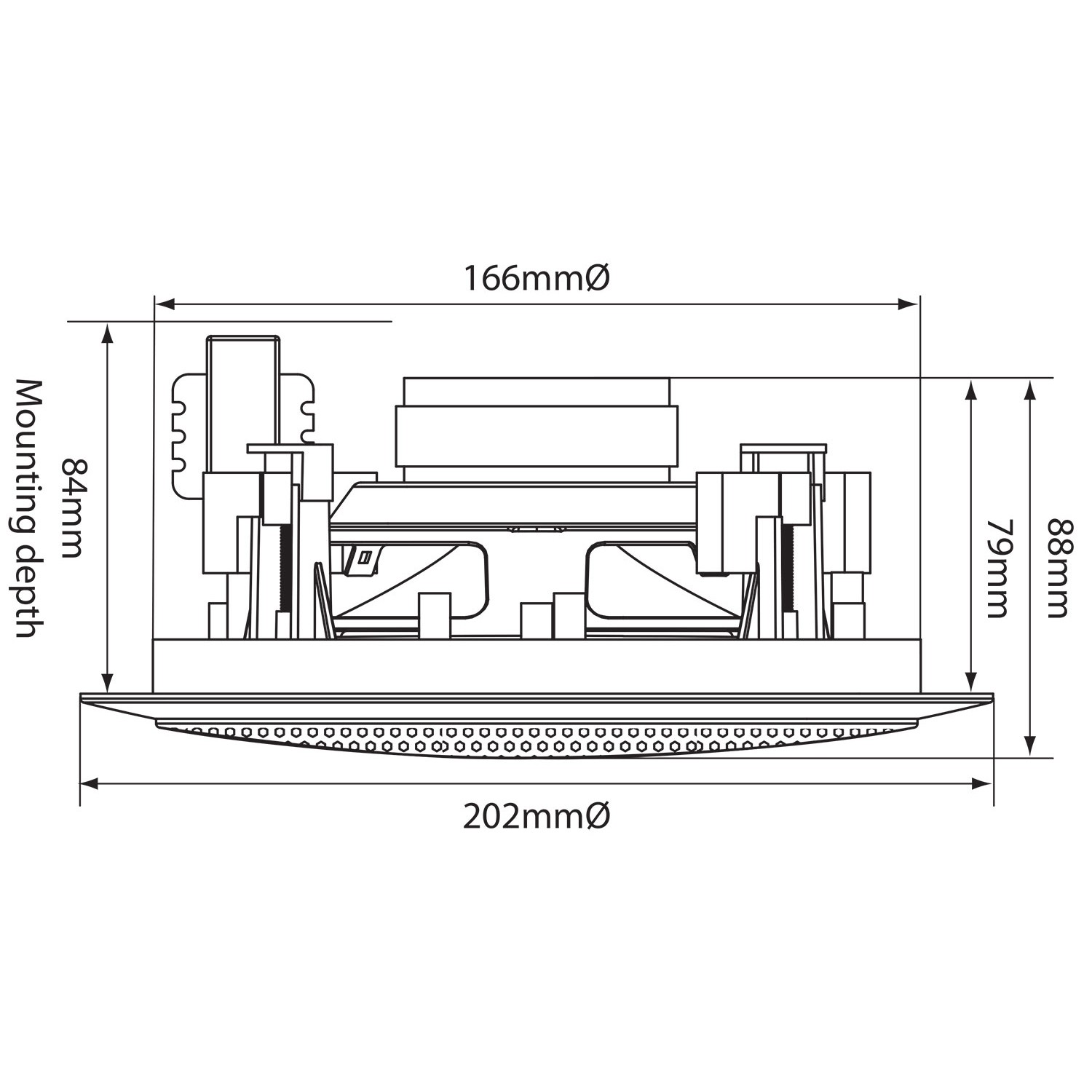

• Cutout: 166mmØ
• Mounting depth: 84mm
• SPL @ 1W/1m: 84dB (±2dB)
• Tappings: 2.5, 5, 10, 15, 20W & 8 Ohms
• Dimensions: 88 x 202mmØ
• Weight: 1.15kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
